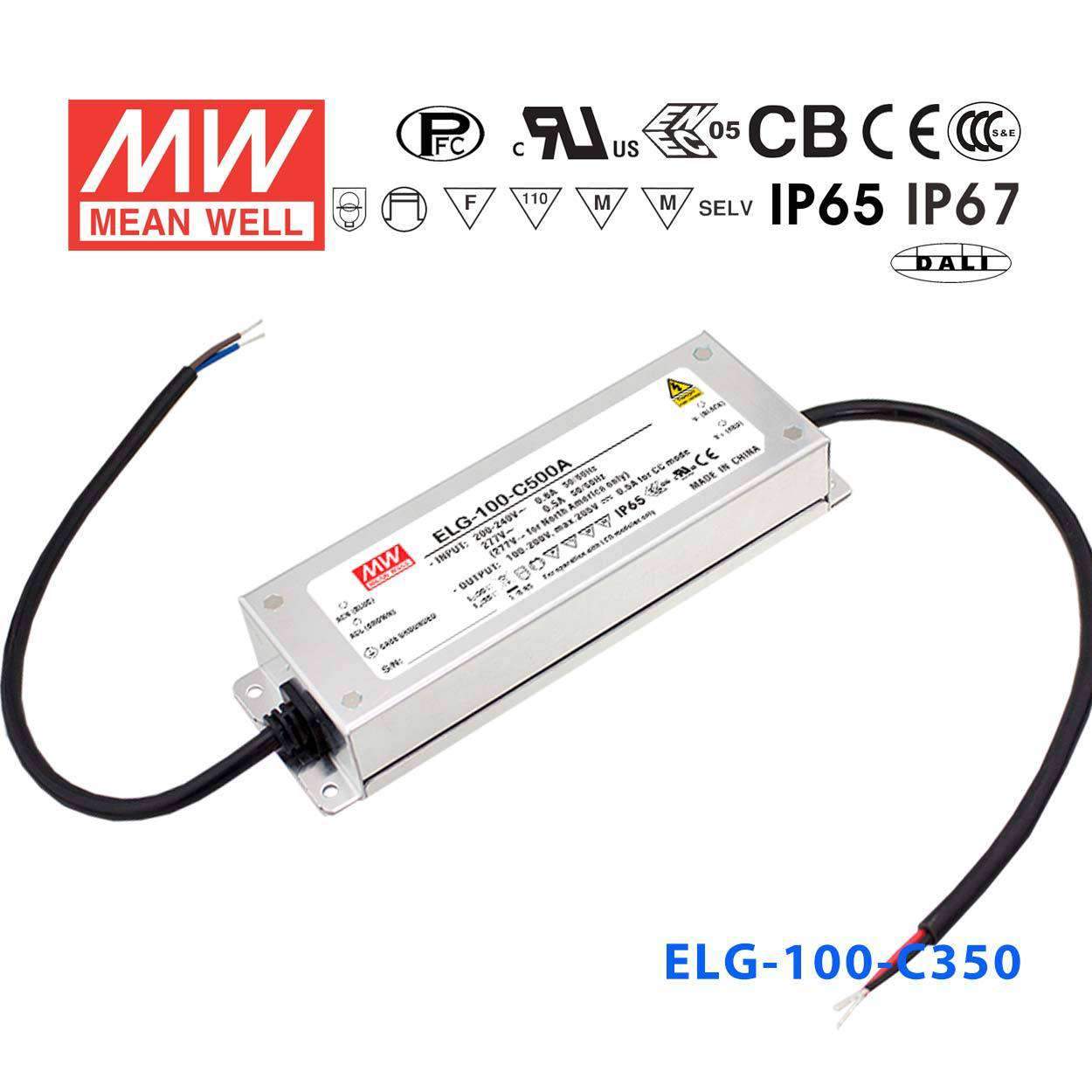

Mean Well ELG-100-C350 Constant Current LED Driver | New Zealand Distributor

Overview

ELG-100-C350 is the model of this series: rated current 350mA, typical efficiency 92%.

ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-C350Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER 200VAC ~ 305VAC: 100.1W
RATED POWER 100VAC ~ 180VAC: 70W
CONSTANT CURRENT REGION^Note.2: 143 ~ 286V
OPEN CIRCUIT VOLTAGE(max.): 297V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 175 ~ 350mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 305 ~ 333V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5 mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-C350 BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-100-C350 DIMMING OPERATION — DIMMING OPERATION

ELG-100-C350 OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-100-C350 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-C350 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-C350 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-100-C350 Dimensions (mm) — Dimensions (mm)

ELG-100-C350 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-C350 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-100-C)(EN) PDF Download

CB Certificate (ELG-100-C)(EN) PDF Download

EMC Certificate (ELG-100-C)(EN) PDF Download

ENEC Certificate (ELG-100-C)(EN) PDF Download

Test reports1

Test Report (ELG-100-C350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-C350 be used to power a long series string of LED modules in a linear lighting fixture?

Yes. The ELG-100-C350 operates as a constant current driver at 350mA with a high output voltage compliance range of 143–286V, which allows a larger number of LEDs to be placed in series compared to lower-voltage constant current drivers. The total forward voltage of the series string must fall within the 143–286V range, and the number of LEDs in the string will depend on the individual LED's forward voltage. Total output power is 100.1W.

Is the ELG-100-C350 appropriate for driving LED street light or outdoor area light modules?

The ELG-100-C350 is rated IP67 waterproof with a case temperature (Tcase) range of -40°C to +90°C, making it suitable for use inside outdoor luminaire housings such as street lights or area lights. It accepts 100–305VAC input, covering both US and international supply voltages. Its high output voltage range of 143–286V at 350mA supports long LED series strings typical of outdoor area light engines.

Why would a designer choose 350mA constant current instead of a higher current driver for LED downlights?

Lower drive currents like 350mA result in lower LED junction temperatures, which extends LED lifespan and maintains lumen output over time — often called high-efficacy or long-life drive conditions. A 350mA driver also allows more LEDs to be placed in series within the same wattage budget, which can simplify thermal management. The ELG-100-C350 delivers up to 100.1W at this current level, supporting substantial LED loads.

How many LEDs can the ELG-100-C350 drive in a single series string?

The ELG-100-C350 supports an output voltage range of 143–286V at a constant 350mA. The number of LEDs in the series string is determined by summing their individual forward voltages until the total falls within the 143–286V compliance window. There is no single fixed LED count — it varies depending on the Vf of each LED used.

Can the ELG-100-C350 be installed in an outdoor LED fixture that may be submerged temporarily during flooding?

The ELG-100-C350 carries an IP67 rating, which indicates protection against temporary water immersion as well as complete dust ingress protection. This makes it suitable for outdoor fixtures in locations prone to temporary flooding or heavy wash-down. For permanent submersion, a higher IP-rated enclosure would be required.

How does the ELG-100-C350 compare to the ELG-100-C1400 within the same product line?

Both the ELG-100-C350 and ELG-100-C1400 are constant current, ~100W LED drivers in the same physical enclosure (199×63×35.5mm) with IP67 ratings and identical input ranges. The ELG-100-C350 outputs 350mA across a 143–286V range, supporting longer LED series strings at lower current. The ELG-100-C1400 outputs 1400mA across a 35–72V range, better suited to shorter strings of higher-current LEDs. The choice depends on the LED module's rated current and string voltage.
