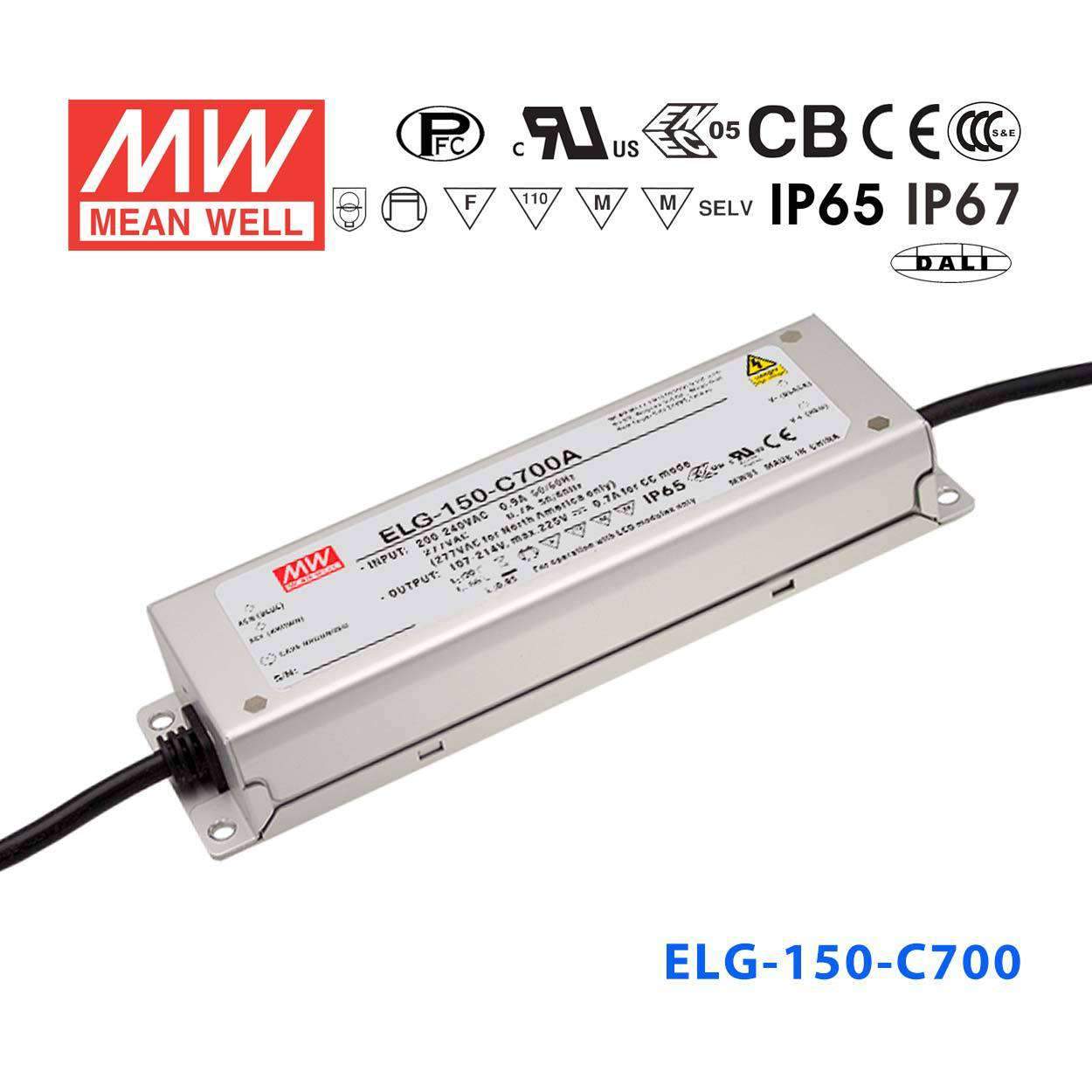

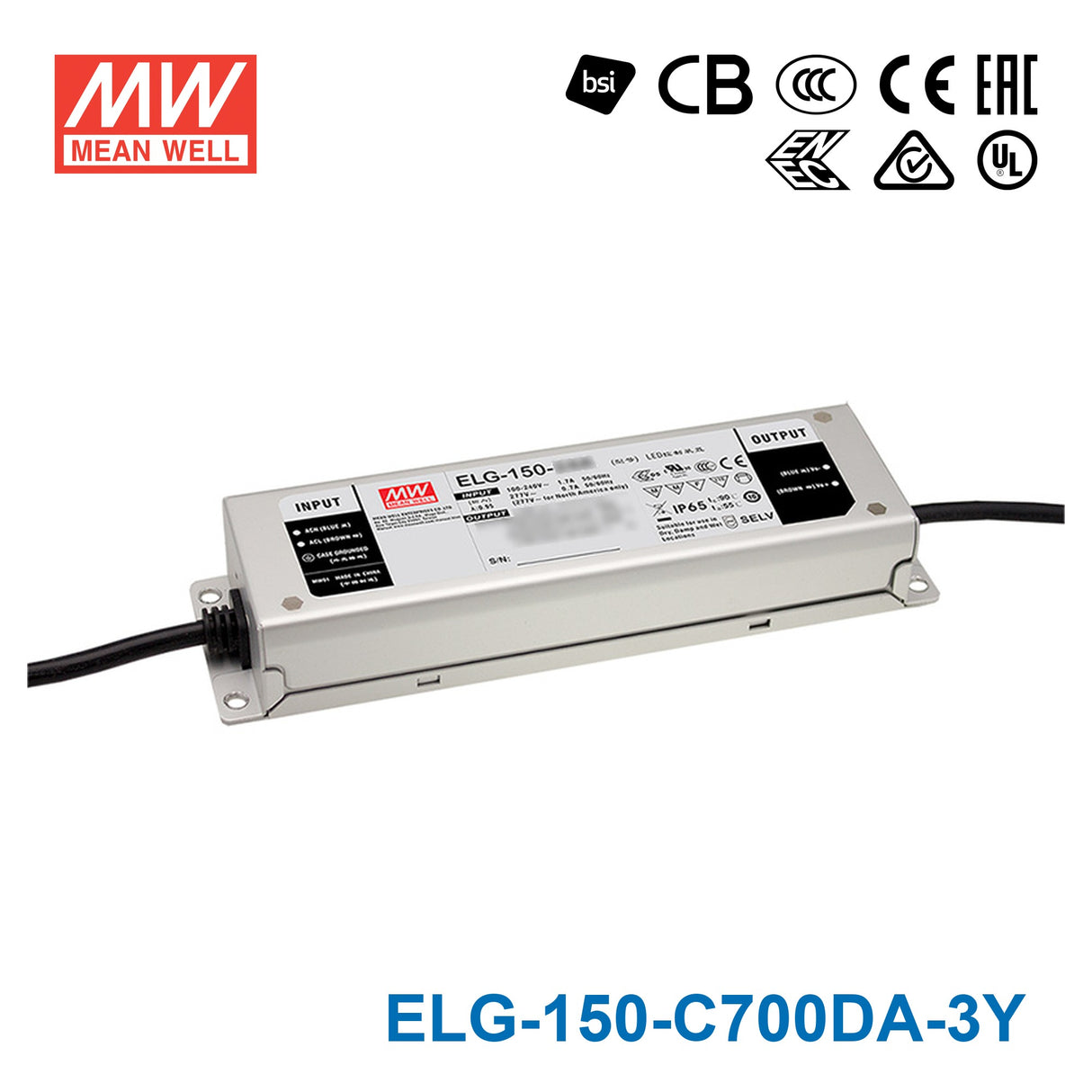

Mean Well ELG-150-C700DA-3Y Power Supply 150W 700mA - DALI — 3-Wire Input (with Earth)

constant currentmetal caseIP675 years warranty

SKU ELG-150-C700DA-3Y

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

ELG-150-C700DA-3Y is the model of this series: rated current 700mA, typical efficiency 92%.

ELG-150-C series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-150-C operates from 100~360VAC and offers models with different rated current ranging between 500mA and 2100mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-150-C700DA-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 149.8W
CONSTANT CURRENT REGION^Note.2: 107 ~ 214V
OPEN CIRCUIT VOLTAGE (max.): 225V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1600ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 230 ~ 265V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213,EAC TP TC 004,BIS IS15885(for 700A, 1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3102.4K hrs min. Telcordia SR-332 (Bellcore) ;308.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5 mm (L*W*H)
PACKING: 0.95Kg; 16pcs / 16.0kg / 0.77CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

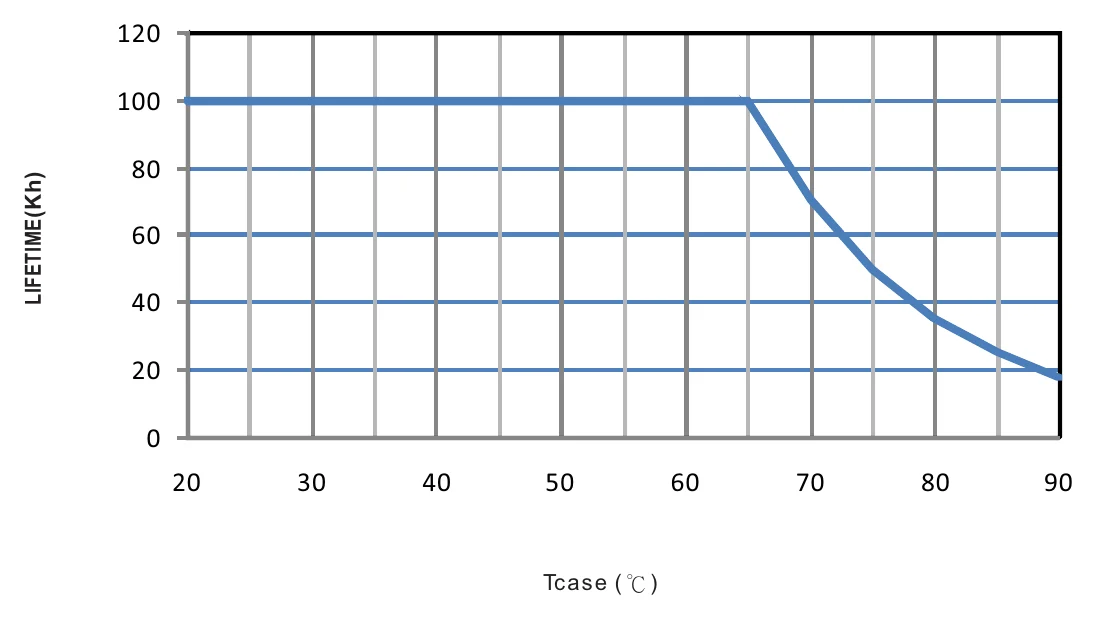

6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

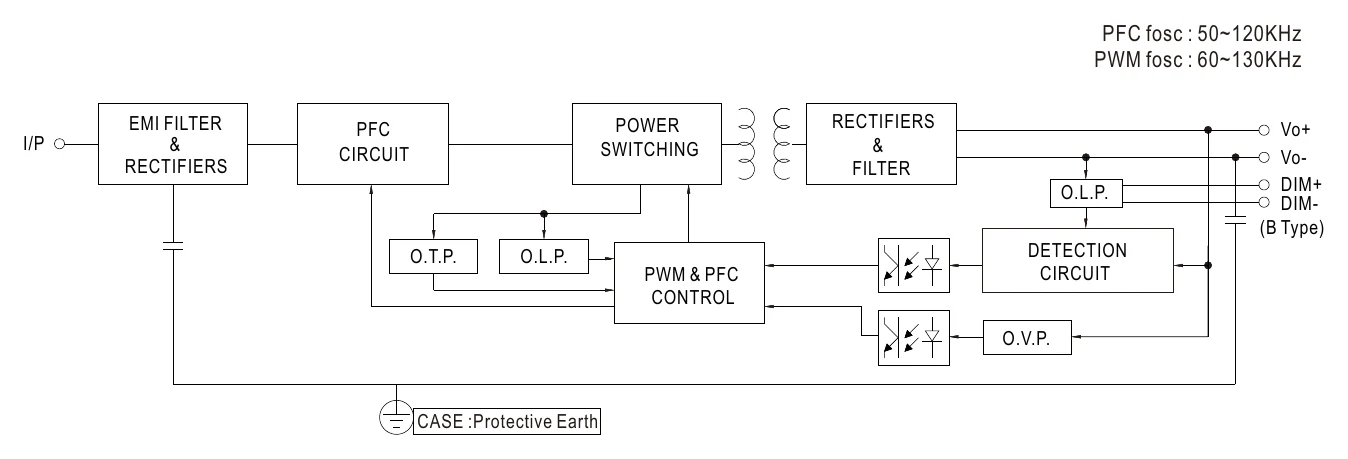

ELG-150-C700DA-3Y BLOCK DIAGRAM — BLOCK DIAGRAM

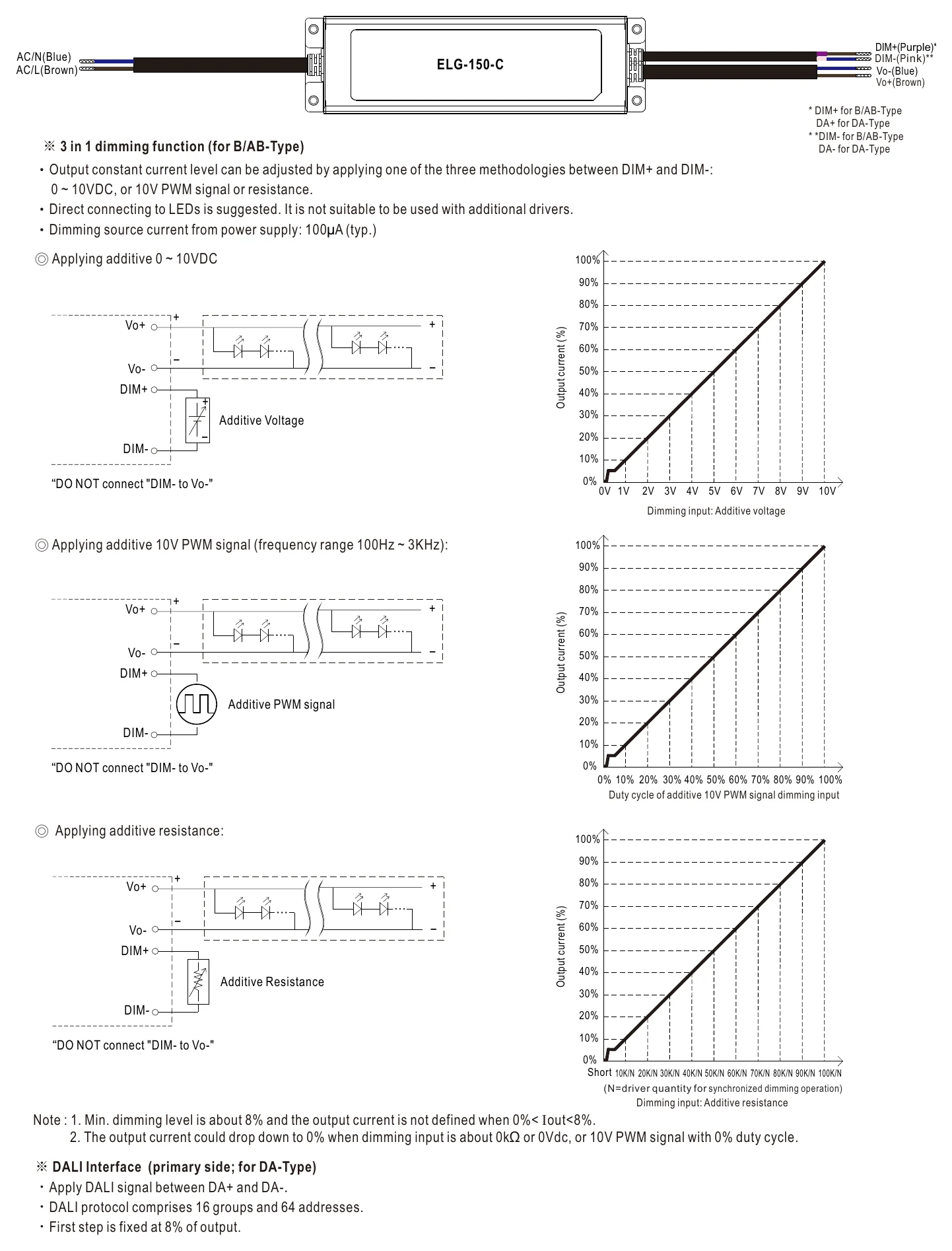

ELG-150-C700DA-3Y DIMMING OPERATION — DIMMING OPERATION

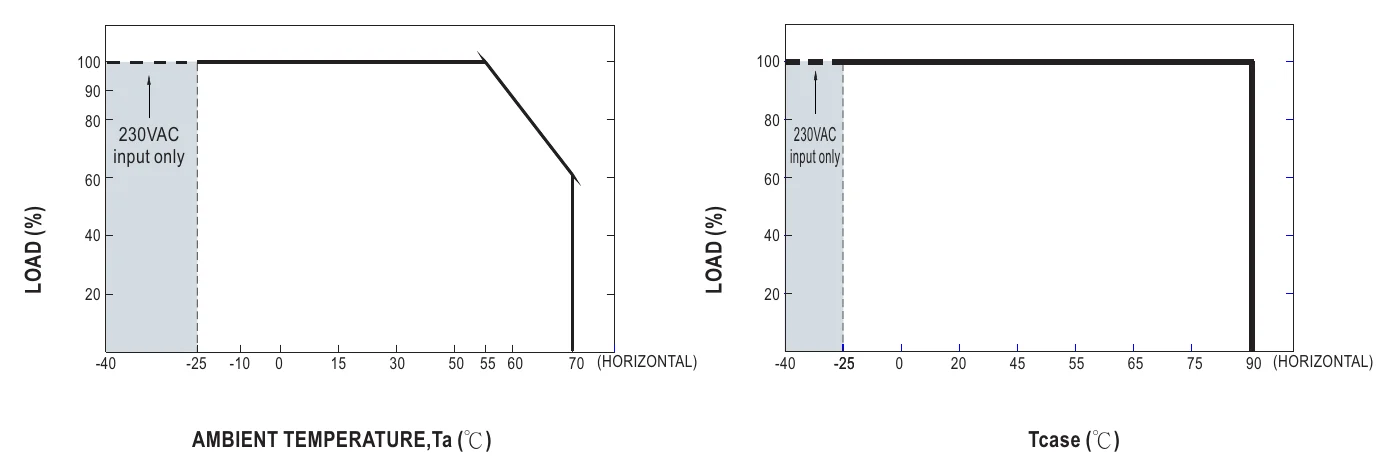

ELG-150-C700DA-3Y OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

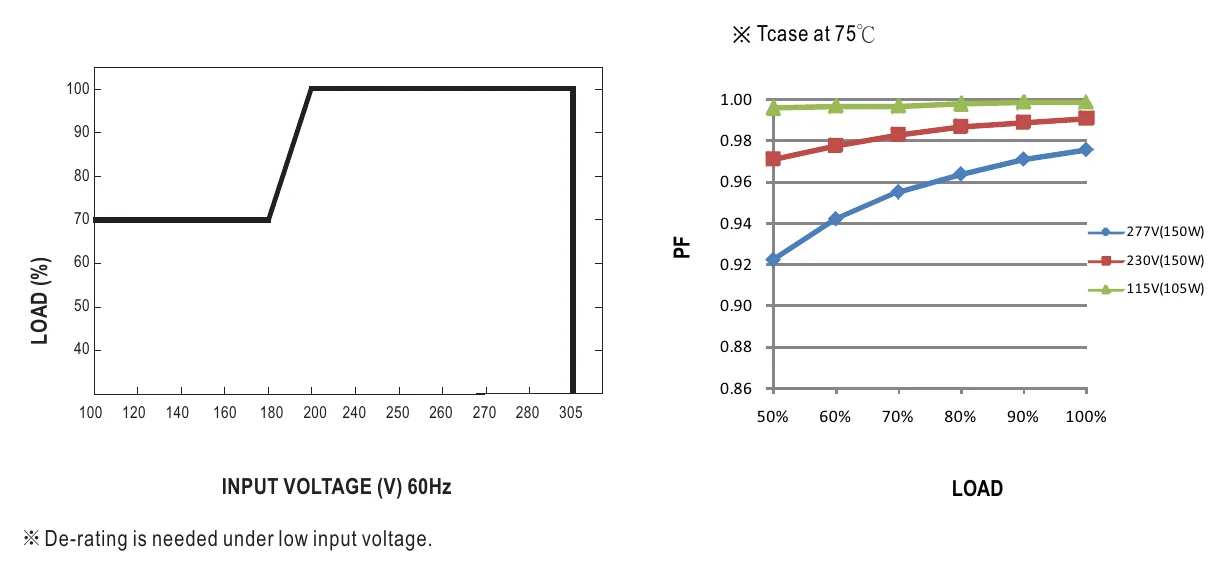

ELG-150-C700DA-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

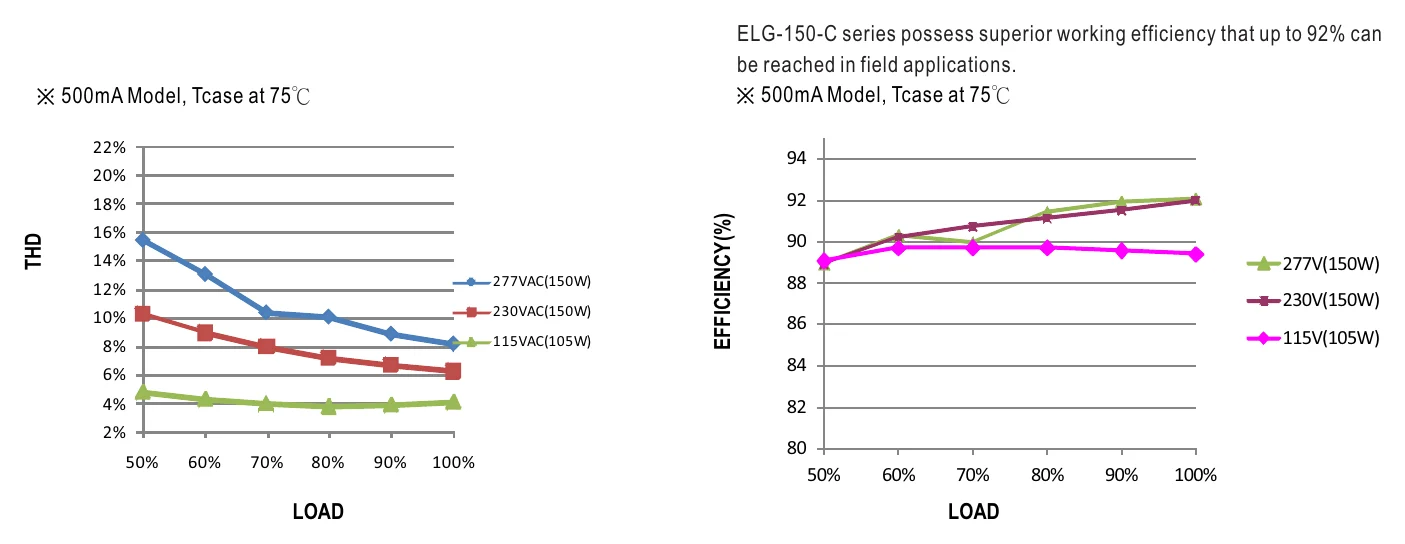

ELG-150-C700DA-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

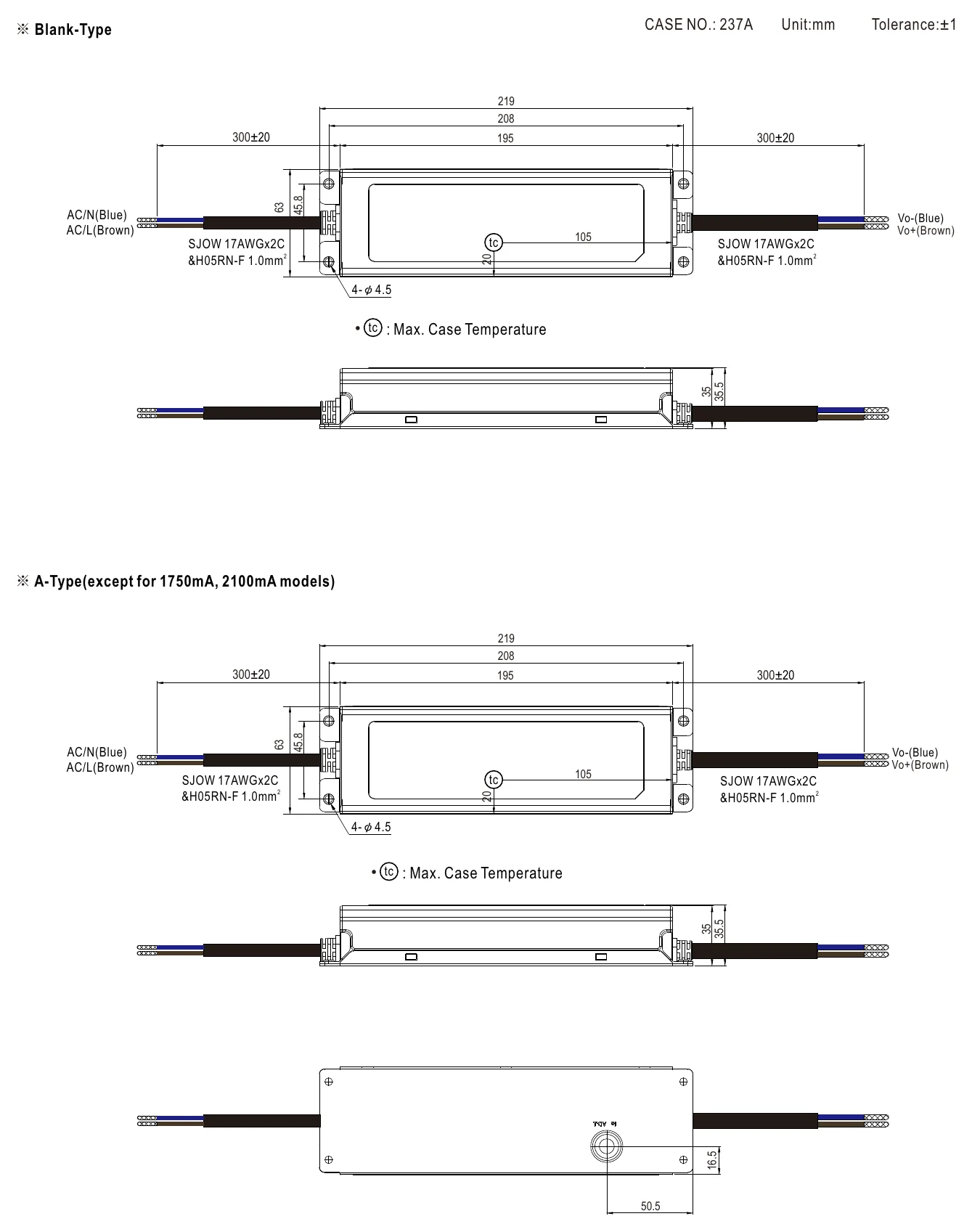

ELG-150-C700DA-3Y MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

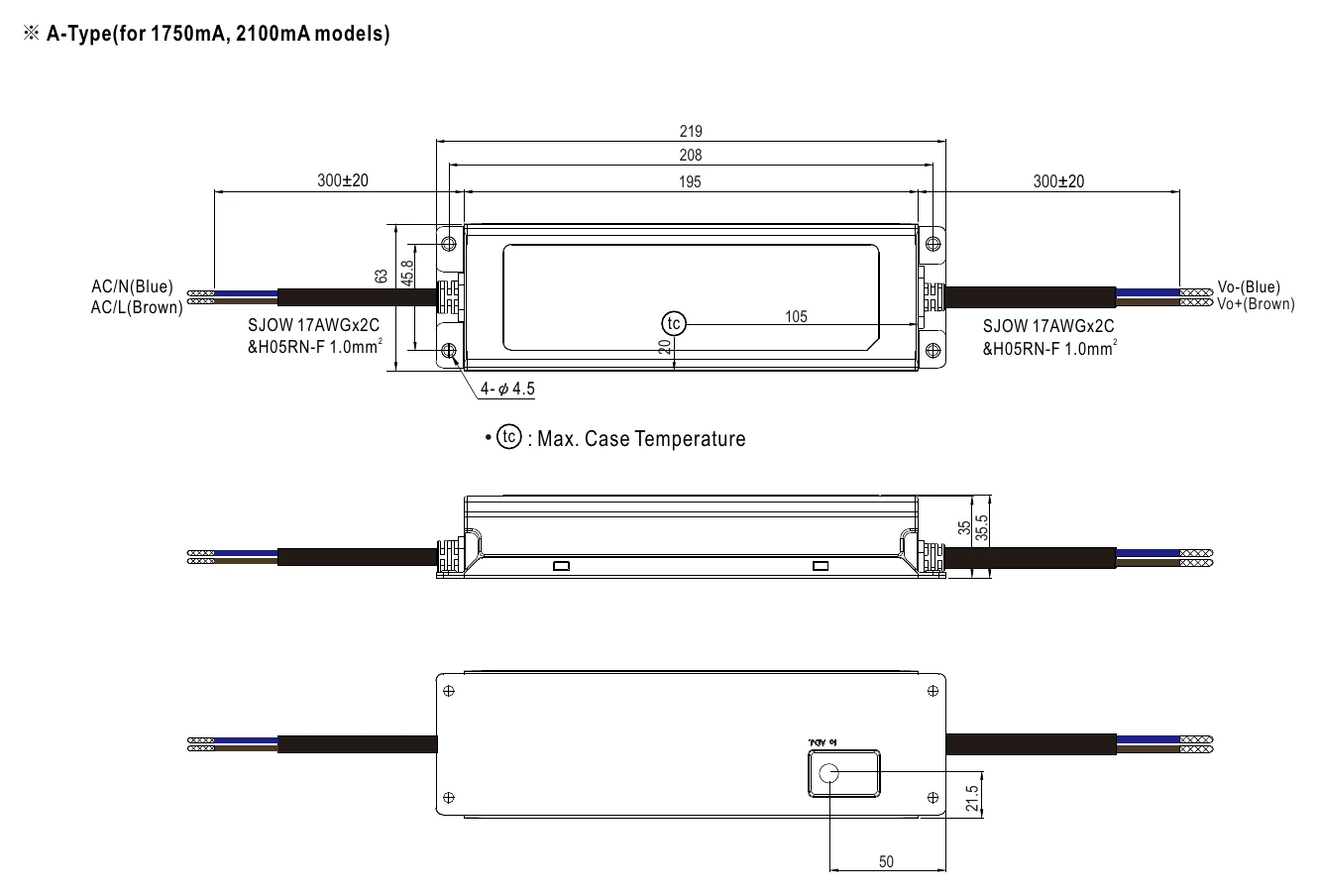

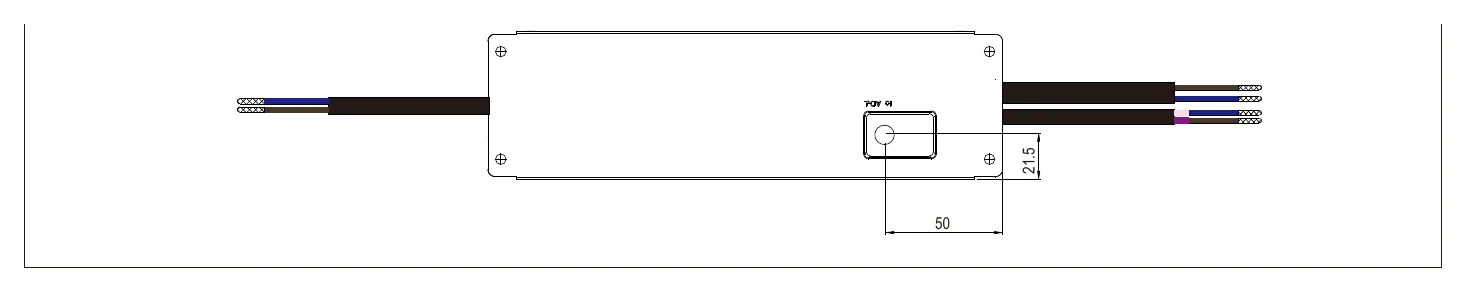

ELG-150-C700DA-3Y ※ A-Type(for 1750mA, 2100mA models) — ※ A-Type(for 1750mA, 2100mA models)

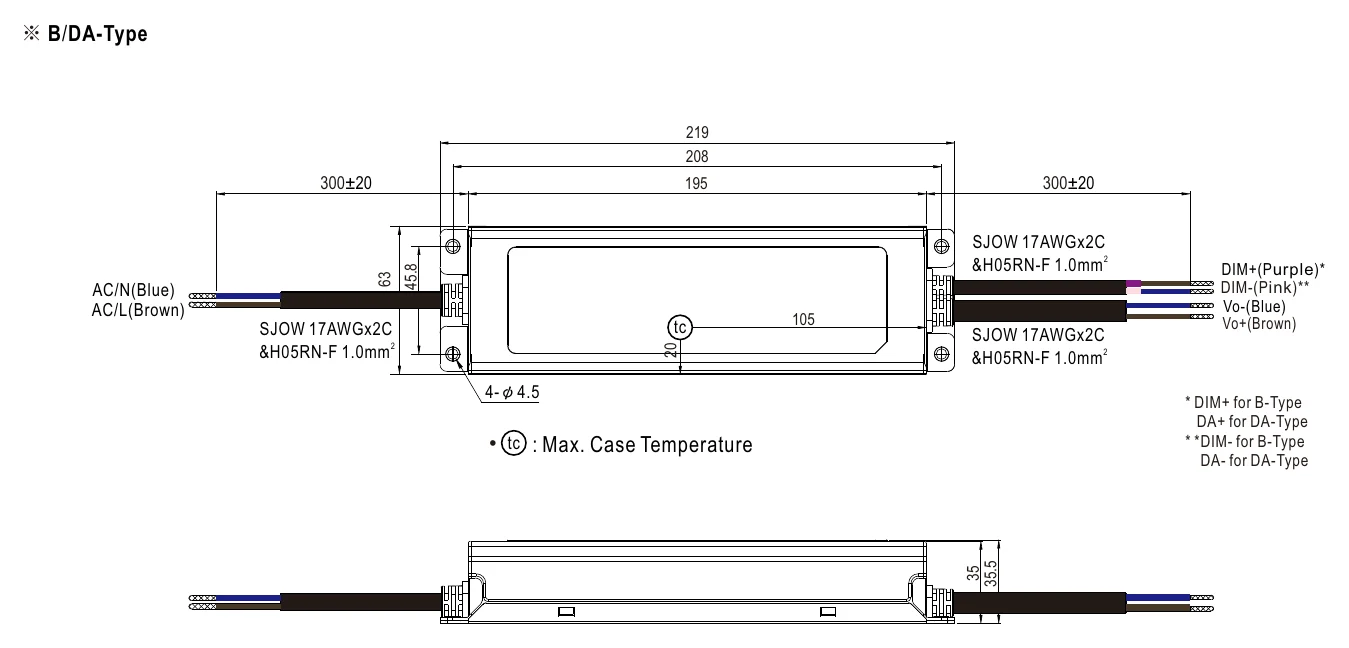

ELG-150-C700DA-3Y ※ B/DA-Type — ※ B/DA-Type

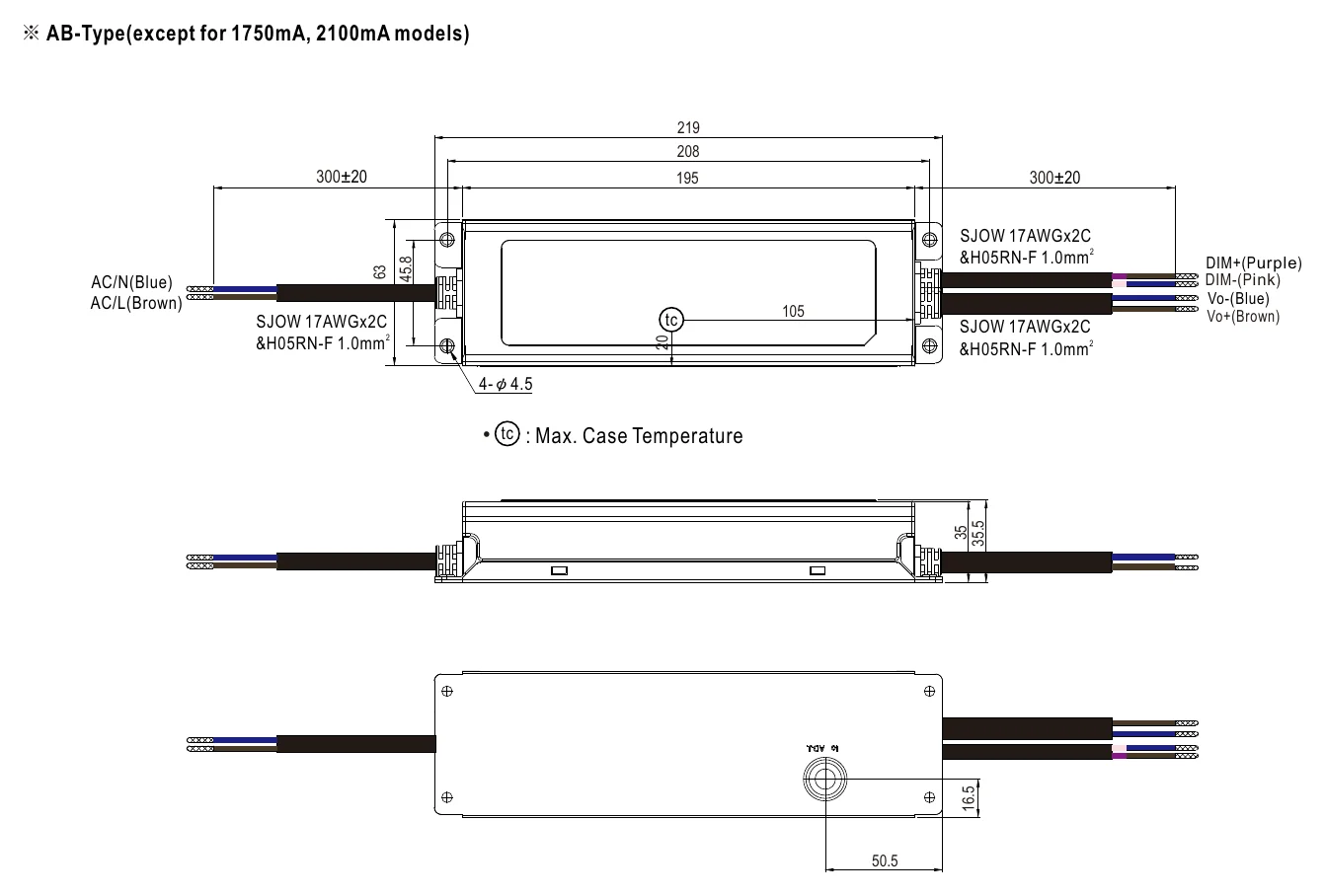

ELG-150-C700DA-3Y ※ AB-Type(except for 1750mA, 2100mA models) — ※ AB-Type(except for 1750mA, 2100mA models)

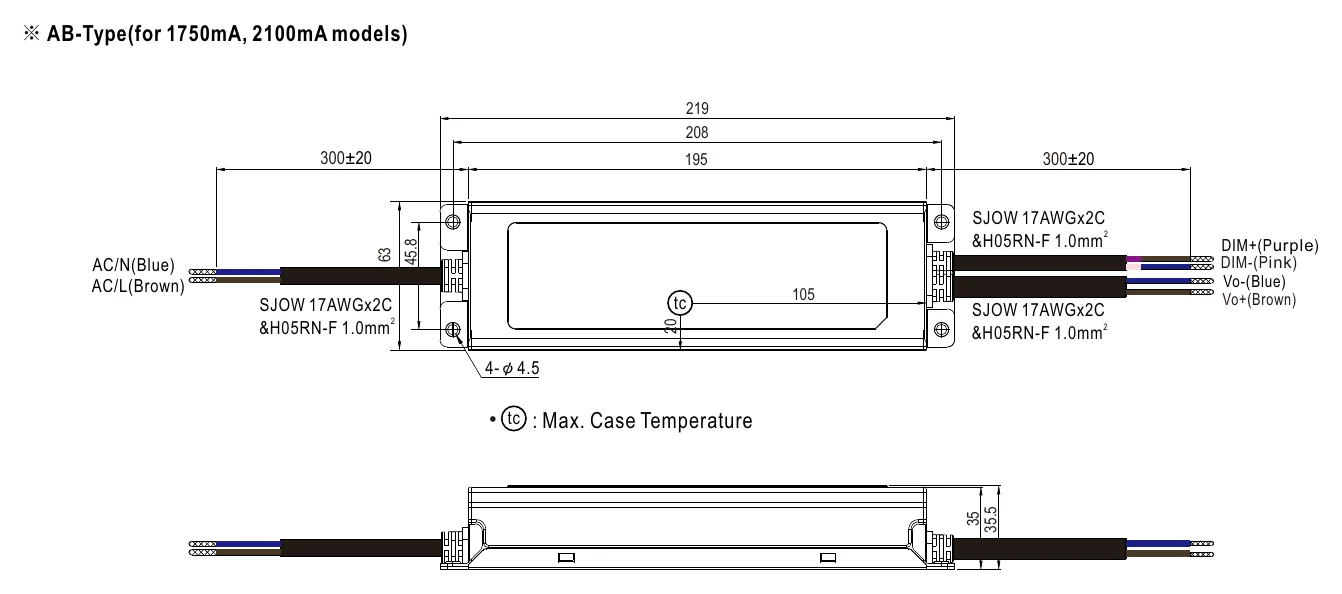

ELG-150-C700DA-3Y ※ AB-Type(for 1750mA, 2100mA models) — ※ AB-Type(for 1750mA, 2100mA models)

ELG-150-C700DA-3Y Dimensions (mm) — Dimensions (mm)

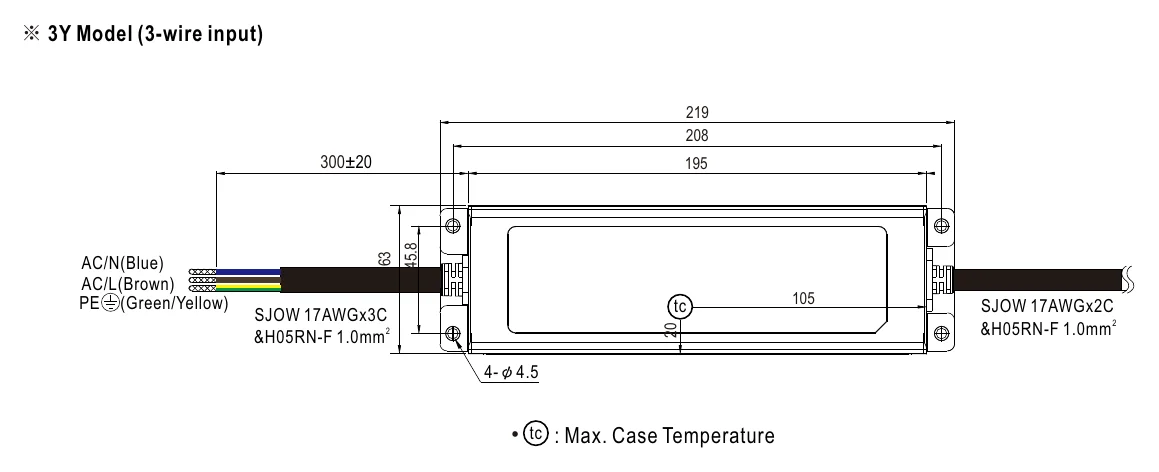

ELG-150-C700DA-3Y ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

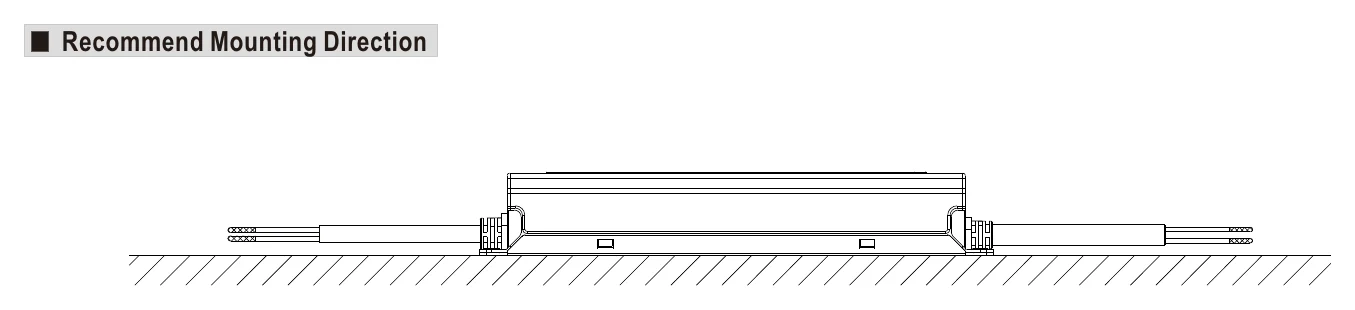

ELG-150-C700DA-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-150-C)(EN) PDF Download

CB Certificate (ELG-150-C)(EN) PDF Download

EMC Certificate (ELG-150-C)(EN) PDF Download

ENEC Certificate (ELG-150-C)(EN) PDF Download

Test reports1

Test Report (ELG-150-C1050)(EN) PDF Download

FAQ

What type of LED power supply is the Mean Well ELG-150-C700DA-3Y?

The ELG-150-C700DA-3Y is a constant current LED driver rated at 700mA. It is designed for LED lighting applications and provides up to 149.8W with DALI dimming support.

Is this model suitable for DALI lighting control systems?

Yes, this model supports DALI dimming control. That makes it a suitable option for commercial and architectural LED lighting projects that require integration with a DALI-based control system.

What input voltage range does the ELG-150-C700DA-3Y support?

This model supports a wide AC input range of 100 to 305VAC, and a DC input range of 142 to 431VDC. The wide input range helps it fit a broad range of lighting power environments.

What kinds of applications is this LED driver intended for?

It is a constant current driver intended for LED lighting applications. Its 150W class output, DALI dimming capability, IP-rated sealed case, and 92% typical efficiency make it relevant for demanding professional lighting projects.

Can this power supply operate in harsh temperature conditions?

Yes, the published working temperature is a case temperature (Tcase) of -40 to +90 degrees C, with reference to the output load vs temperature derating curve. This makes it suitable for environments where temperature resilience is important.

How efficient is the ELG-150-C700DA-3Y?

This model is rated for a typical efficiency of 92%. As a DA-type model, its standby power consumption is below 0.5W, which can help reduce standby energy use in suitable systems.

What protection features are included in this model?

The ELG-150-C700DA-3Y includes short circuit, over voltage, and over temperature protection. These built-in protections are part of the model's general specification for LED power applications.
