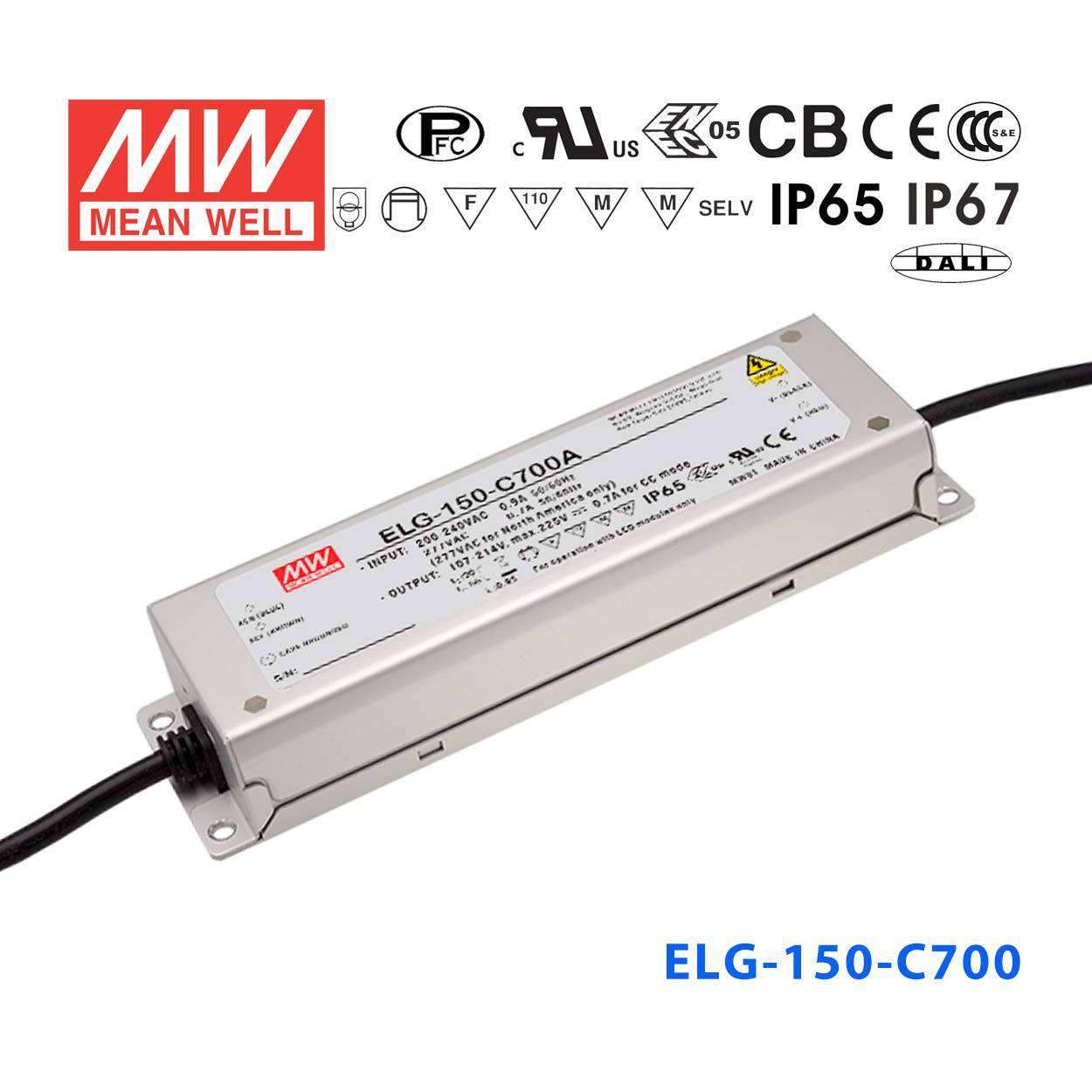

Mean Well ELG-150-C700DA 150W 700mA - DALI | LED Driver

Overview

ELG-150-C700DA is the model of this series: rated current 700mA, typical efficiency 92%.

ELG-150-C series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-150-C operates from 100~360VAC and offers models with different rated current ranging between 500mA and 2100mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-150-C700DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 149.8W
CONSTANT CURRENT REGION^Note.2: 107 ~ 214V
OPEN CIRCUIT VOLTAGE (max.): 225V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1600ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 230 ~ 265V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213,EAC TP TC 004,BIS IS15885(for 700A, 1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3102.4K hrs min. Telcordia SR-332 (Bellcore) ;308.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5 mm (L*W*H)
PACKING: 0.95Kg; 16pcs / 16.0kg / 0.77CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-C700DA BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-150-C700DA DIMMING OPERATION — DIMMING OPERATION

ELG-150-C700DA OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-150-C700DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-150-C700DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-150-C700DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-150-C700DA ※ A-Type(for 1750mA, 2100mA models) — ※ A-Type(for 1750mA, 2100mA models)

ELG-150-C700DA ※ B/DA-Type — ※ B/DA-Type

ELG-150-C700DA ※ AB-Type(except for 1750mA, 2100mA models) — ※ AB-Type(except for 1750mA, 2100mA models)

ELG-150-C700DA ※ AB-Type(for 1750mA, 2100mA models) — ※ AB-Type(for 1750mA, 2100mA models)

ELG-150-C700DA Dimensions (mm) — Dimensions (mm)

ELG-150-C700DA ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-150-C700DA Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-150-C)(EN) PDF Download

CB Certificate (ELG-150-C)(EN) PDF Download

EMC Certificate (ELG-150-C)(EN) PDF Download

ENEC Certificate (ELG-150-C)(EN) PDF Download

Test reports1

Test Report (ELG-150-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What is the DALI dimming capability of the ELG-150-C700DA and how does it integrate with building controls?

The DA suffix indicates this driver supports DALI (Digital Addressable Lighting Interface) dimming, allowing it to be individually addressed or grouped via a DALI controller on a two-wire bus. It integrates with building management systems and DALI lighting controllers for centralized scene and schedule control.

Can the ELG-150-C700DA power dimmable LED downlights in a hotel or hospitality project?

Yes. The DALI interface enables smooth, scene-based dimming control suitable for hospitality applications. At 149.8W and 700mA constant current over a CC voltage range of 107–214V, it drives the LED arrays in commercial downlight fixtures used throughout hotel corridors, lobbies, and guest rooms.

Is the ELG-150-C700DA suitable for outdoor architectural accent lighting with DALI control?

Yes. The IP67 waterproof rating and -40°C to +90°C case temperature (Tcase) rating make the ELG-150-C700DA appropriate for outdoor architectural installations. Its DALI interface allows integration with building facade lighting control systems for time-scheduled and scene-based dimming.

Can the ELG-150-C700DA be used in a series LED array for high-voltage LED modules?

Yes. The ELG-150-C700DA maintains 700mA constant current over a CC voltage range of 107–214V, accommodating series-connected LED modules that require high operating voltage. The number of LEDs in the string depends on each module's forward voltage.

What certifications does the ELG-150-C700DA hold, and which regions does it cover?

The ELG-150-C700DA is approved to UL8750 (type HL) and CSA C22.2 No. 250.13-12 (North America), BS EN/EN/AS/NZS 61347-1, 61347-2-13 and EN62384 (EU, UK, Australia/New Zealand), GB/T19510 (China), EAC TP TC 004 (Russia/Eurasia), BIS IS15885 (India) and KC (Korea), supporting multi-market product deployments.

Can I use the ELG-150-C700DA to drive LED modules in stage or theater lighting systems?

Yes. DALI-addressable dimming makes the ELG-150-C700DA suitable for stage and theater lighting control systems where individual fixture dimming and group-scene control are required. The 149.8W constant current output supports the high-power LED modules used in theatrical luminaires.
