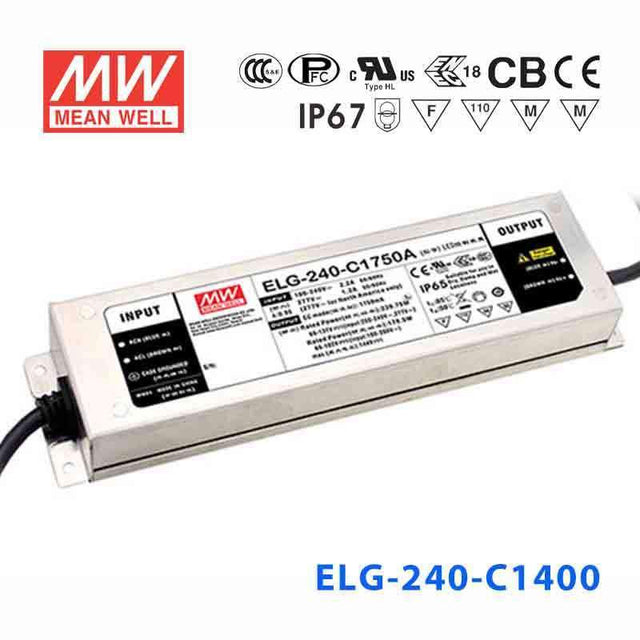

Mean Well ELG-240-C1400AB Power Supply – Adjustable and Dimmable | ELG-C Series

Overview

ELG-240-C1400AB is the model of this series: rated current 1400mA, typical efficiency 93%.

ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-240-C1400ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC: 239.4W
RATED POWER 100VAC ~ 180VAC: 179.2W
CONSTANT CURRENT REGION^Note.2: 86 ~ 171V
OPEN CIRCUIT VOLTAGE(max.): 180V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 192 ~ 216V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-240-C1400AB BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-240-C1400AB DIMMING OPERATION — DIMMING OPERATION

ELG-240-C1400AB OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-240-C1400AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-240-C1400AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-240-C1400AB LIFETIME(Kh) — LIFETIME(Kh)

ELG-240-C1400AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-240-C1400AB Dimensions (mm) — Dimensions (mm)

ELG-240-C1400AB ※ B/DA-Type — ※ B/DA-Type

ELG-240-C1400AB ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-240-C1400AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-240-C)(EN) PDF Download

CB Certificate (ELG-240-C)(EN) PDF Download

EMC Certificate (ELG-240-C)(EN) PDF Download

ENEC Certificate (ELG-240-C)(EN) PDF Download

Test reports1

Test Report (ELG-240-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-240-C1400AB drive dimmable LED downlights in a commercial office or hospitality setting?

Yes. The 'AB' suffix means it combines an analogue current-trim potentiometer with PWM/0–10V dimming input, making it suitable for commercial spaces where fixtures need both field-calibrated current levels and ongoing dimmer control. It outputs a constant 1400mA within a 86–171V range.

Is the ELG-240-C1400AB protected for use in semi-outdoor or covered parking structures?

The ELG-240-C series carries an IP65 or IP67 rating, protecting against dust and water. The ELG-240-C1400AB is appropriate for covered parking structures, loading docks, and canopied areas where direct rain does not reach but humidity and splash are present.

Can I use this driver to power LED modules in a retail display cabinet with adjustable brightness?

Yes. The built-in 0–10V or PWM dimming input allows continuous brightness adjustment for retail display lighting. The analogue trim also lets installers set maximum output current during initial setup, preventing over-driving LED modules.

How many LEDs can this driver support in a series string?

The output voltage range is 86–171V. You can calculate the number of series LEDs by dividing the available voltage span by the forward voltage (Vf) of your specific LED; the combined Vf of the entire string must stay within that 86–171V window.

How does the ELG-240-C1400AB differ from the ELG-240-C1400B?

Both models are 239.4W, 1400mA constant-current drivers with 3-in-1 dimming (0–10VDC / 10V PWM / resistance). The ELG-240-C1400AB adds a built-in potentiometer that lets you reduce output current (700–1400mA); the ELG-240-C1400B does not include this adjustment.

Can this driver be installed in a cold-climate outdoor cabinet?

Yes. The ELG-240-C1400AB is rated for a case temperature (Tcase) of -40°C to +85°C, which accommodates severe cold-climate outdoor installations. The series' IP65/IP67 enclosure provides moisture protection for outdoor cabinet environments.
