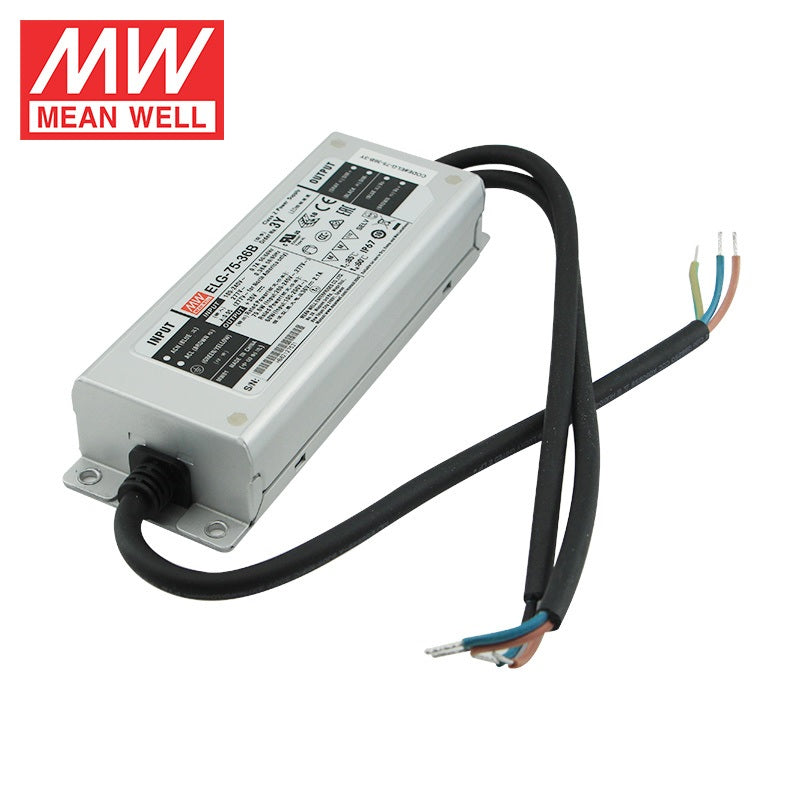

Mean Well ELG-75-36D2-3Y AC-DC Single output LED Driver Mix Mode (C...
Please Login for Pricing
Description
Description
The ELG-75-36D2 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length18 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.85 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-75-36D2-3Y be installed in a wet outdoor enclosure?
Yes. The ELG-75-36D2-3Y is rated IP67, meaning it is protected against temporary water immersion and is suitable for outdoor lighting enclosures, landscape fixtures, and exposed sign cabinets. Its operating range extends from -40°C to +90°C, which is slightly wider than most ELG-75 variants.
What DALI generation does the ELG-75-36D2-3Y support?
The 'D2' suffix indicates DALI 2 compatibility, the second-generation DALI protocol that offers improved two-way communication, device type support, and enhanced fault reporting compared to original DALI. This makes the driver suitable for modern smart building lighting systems.
How much 36V LED strip can the ELG-75-36D2-3Y power?
This driver is rated at 75W and 36V. For a 12 W/m strip, that supports roughly 6.25 meters; for a 10 W/m strip, approximately 7.5 meters. Always check your specific strip's rated power per meter and allow a 20% safety derating to protect both the driver and the strip.
Is the ELG-75-36D2-3Y suitable for DALI-controlled office or retail lighting?
Yes. With DALI 2 dimming and 36V / 2.1A output, this driver is a practical choice for office, retail, and hospitality lighting where central DALI control is required. Its wide 100–305VAC input accepts both 120V and 277V mains common in commercial buildings.
Can the ELG-75-36D2-3Y power 36V LED modules in a cold-storage display case?
Yes. The -40°C lower operating limit makes this driver suitable for refrigerated display or cold-storage lighting. The IP67 enclosure also tolerates condensation that can form in such environments, adding reliability margin.
What certifications does the ELG-75-36D2-3Y carry?
The ELG-75-36D2-3Y is certified to BSMI, CB, CE, EAC, and UL standards. This covers North America (UL), Europe (CE), Taiwan (BSMI), and Eurasia (EAC), making it suitable for projects in multiple international markets.
