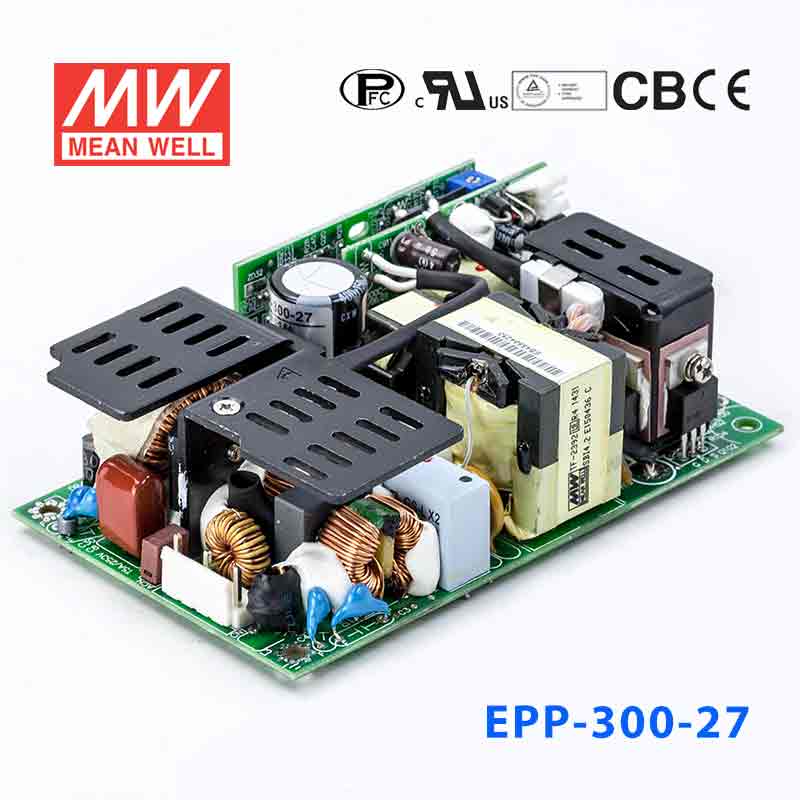

Mean Well EPP-300-27 Power Supply 200W 27V

Q: Can I use the EPP-300-27 for equipment that specifically requires 27V DC?

Yes, if the load is designed for constant 27Vdc input and does not exceed 199.8W or 7.4A. This unit should be matched to equipment that explicitly calls for 27V rather than nearby DC voltages.

Q: Is the EPP-300-27 suitable for 27V industrial control or embedded subsystems?

It can be used for 27Vdc control or embedded loads when the total requirement stays within the 7.4A and 199.8W limits. The 90-264VAC input range can also help in mixed-site industrial deployments.

Q: Can this power supply run a 27V instrumentation or test fixture load?

It is appropriate for 27V instrumentation, fixtures, or specialty electronics that need a constant-voltage output and stay under 199.8W. The fixed 27V output is the key compatibility point, with current capacity available up to 7.4A.

Q: Is the EPP-300-27 rated for outdoor service?

The unit is specified for operation from -30 degrees C to +70 degrees C, which covers a wide temperature span. However, the provided specs do not list an IP rating, so they do not confirm outdoor, wet-location, or dust-exposed suitability.

Q: How does the EPP-300-27 compare with other 27V EPP power supplies?

The listed 27V siblings are EPP-100-27 at 75.6W and 2.8A, EPP-120S-27 at 119.9W and 4.44A, EPP-150-27 at 100.17W and 3.71A, EPP-200-27 at 143.1W and 5.3A, this EPP-300-27 at 199.8W and 7.4A, EPP-400-27 at 251.1W and 9.3A, and EPP-500-27 at 321.3W and 11.9A. It sits between the 143.1W and 251.1W classes in the 27V branch of the series.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-300-27

End of Life, Succeeded by LOP-300-27

Please for Pricing

Notify me when it's back in stock

Description

No load power consumption under 0.5W by PS-ON control

<2mA/240VAC

Key Features

✓✓Universal AC input / Full range
✓✓Built-in active PFC function
✓✓High efficiency up to 93%
✓✓Withstand 300VAC surge input for 6 secondsNo load power consumption<0.5W5"x3" compact sizeHigh efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓Cooling by free air convection for 200W and 300W with 20.5 CFM forced airWith power good and fail signal outputBuilt-in remote sense function
✓✓No load power consumption under 0.5W by PS-ON control
✓✓Standby 5V@1A with fan, @ 0.6A without fan
✓✓Operating altitude up to 5000 meters
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

199.8 Watt
Output Voltage

27 Volt
Rated Current

7.4 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

12.7 cm
Width

7.62 cm
Height

3.5 cm
Weight

0.37 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-300-27 for equipment that specifically requires 27V DC?

Yes, if the load is designed for constant 27Vdc input and does not exceed 199.8W or 7.4A. This unit should be matched to equipment that explicitly calls for 27V rather than nearby DC voltages.

Is the EPP-300-27 suitable for 27V industrial control or embedded subsystems?

It can be used for 27Vdc control or embedded loads when the total requirement stays within the 7.4A and 199.8W limits. The 90-264VAC input range can also help in mixed-site industrial deployments.

Can this power supply run a 27V instrumentation or test fixture load?

It is appropriate for 27V instrumentation, fixtures, or specialty electronics that need a constant-voltage output and stay under 199.8W. The fixed 27V output is the key compatibility point, with current capacity available up to 7.4A.

Is the EPP-300-27 rated for outdoor service?

The unit is specified for operation from -30 degrees C to +70 degrees C, which covers a wide temperature span. However, the provided specs do not list an IP rating, so they do not confirm outdoor, wet-location, or dust-exposed suitability.

How does the EPP-300-27 compare with other 27V EPP power supplies?

The listed 27V siblings are EPP-100-27 at 75.6W and 2.8A, EPP-120S-27 at 119.9W and 4.44A, EPP-150-27 at 100.17W and 3.71A, EPP-200-27 at 143.1W and 5.3A, this EPP-300-27 at 199.8W and 7.4A, EPP-400-27 at 251.1W and 9.3A, and EPP-500-27 at 321.3W and 11.9A. It sits between the 143.1W and 251.1W classes in the 27V branch of the series.

Model	Power	Voltage	Current
Mean Well EPP-300-48 Power Supply 200W 48V	200.2W	48V	4.17A	View
Mean Well EPP-300-24 Power Supply 200W 24V	199.9W	24V	8.33A	View
Mean Well EPP-300-15 Power Supply 200W 15V	200W	15V	13.33A	View
Mean Well EPP-300-12 Power Supply 200W 12V	200W	12V	16.67A	View
