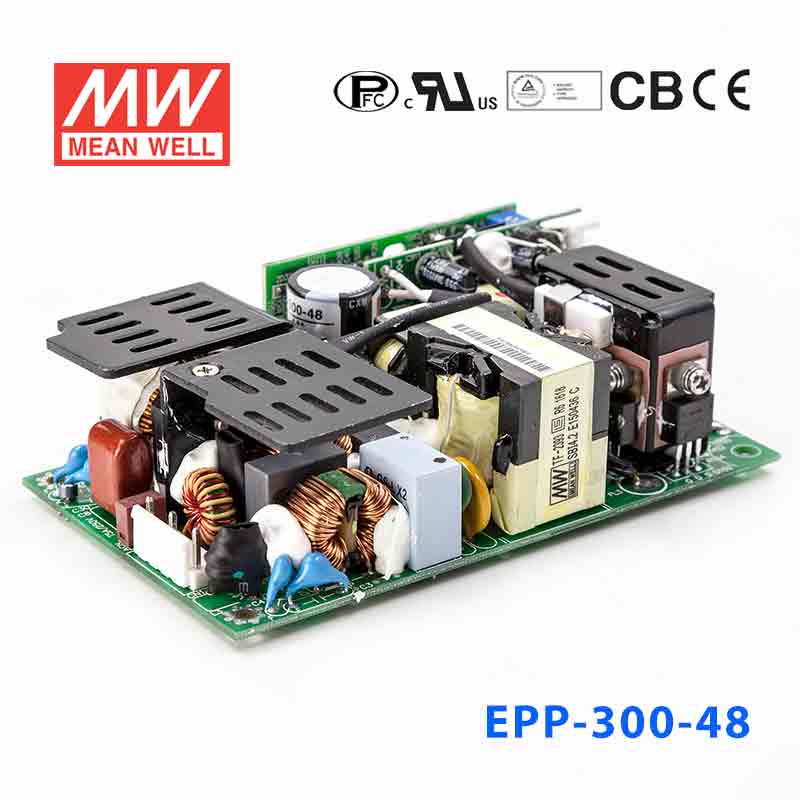

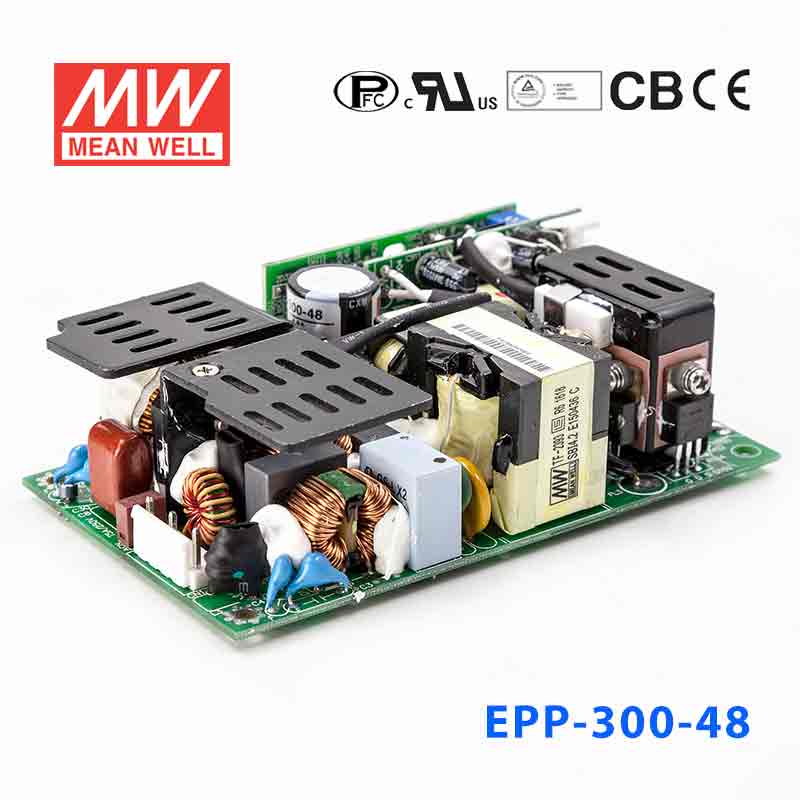

Mean Well EPP-300-48 Power Supply 200W 48V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| High efficiency up to 93% |
| Withstand 300VAC surge input for 6 seconds No load power consumption<0.5W 5"x3" compact size High efficiency up to 94% |
| Protections: Short circuit/Overload/Over voltage/Over temperature |
| Cooling by free air convection for 200W and 300W with 20.5 CFM forced air With power good and fail signal output Built-in remote sense function |
No load power consumption under 0.5W by PS-ON control |
| Standby 5V@1A with fan, @ 0.6A without fan |
| Operating altitude up to 5000 meters |
| 3 years warranty |
General Specification
| AC input voltage range | 90 ~ 264VAC; 127 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC |
| Leakage current | <2mA/240VAC |
| Overload protection | 105 ~ 135% rated output power |
| Over-voltage protection | 112%~125% rated output voltage |
| Setup, rise, hold up time | 2500ms, 30ms, 13ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| Connection | I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH |
| Dimension (LxWxH) | 127x76.2x35 |
| Packing | 36pcs / 14.3kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating200.2 Watt
-
Output Voltage48 Volt
-
Rated Current4.17 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.7 cm
-
Width7.62 cm
-
Height3.5 cm
-
Weight0.37 kg
