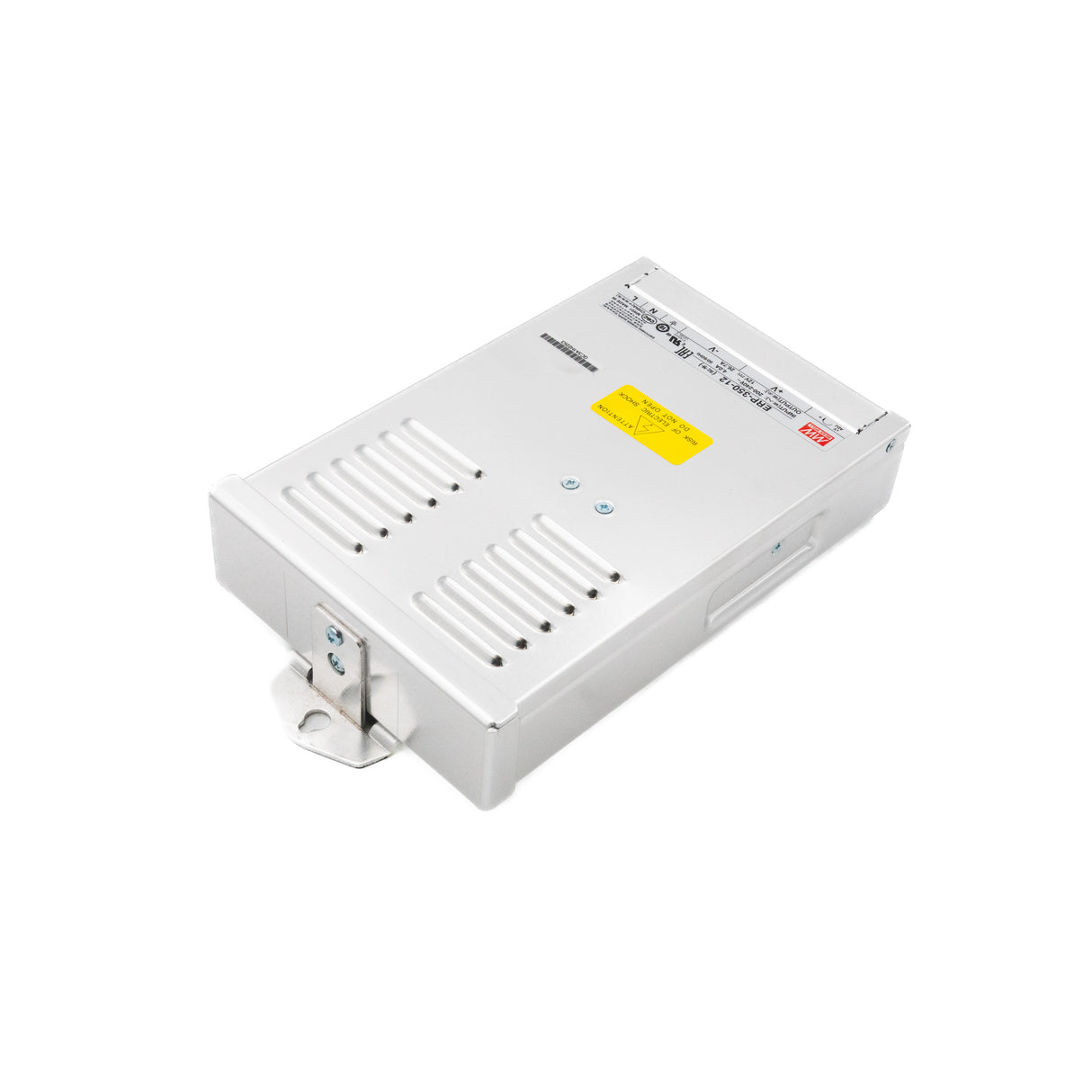

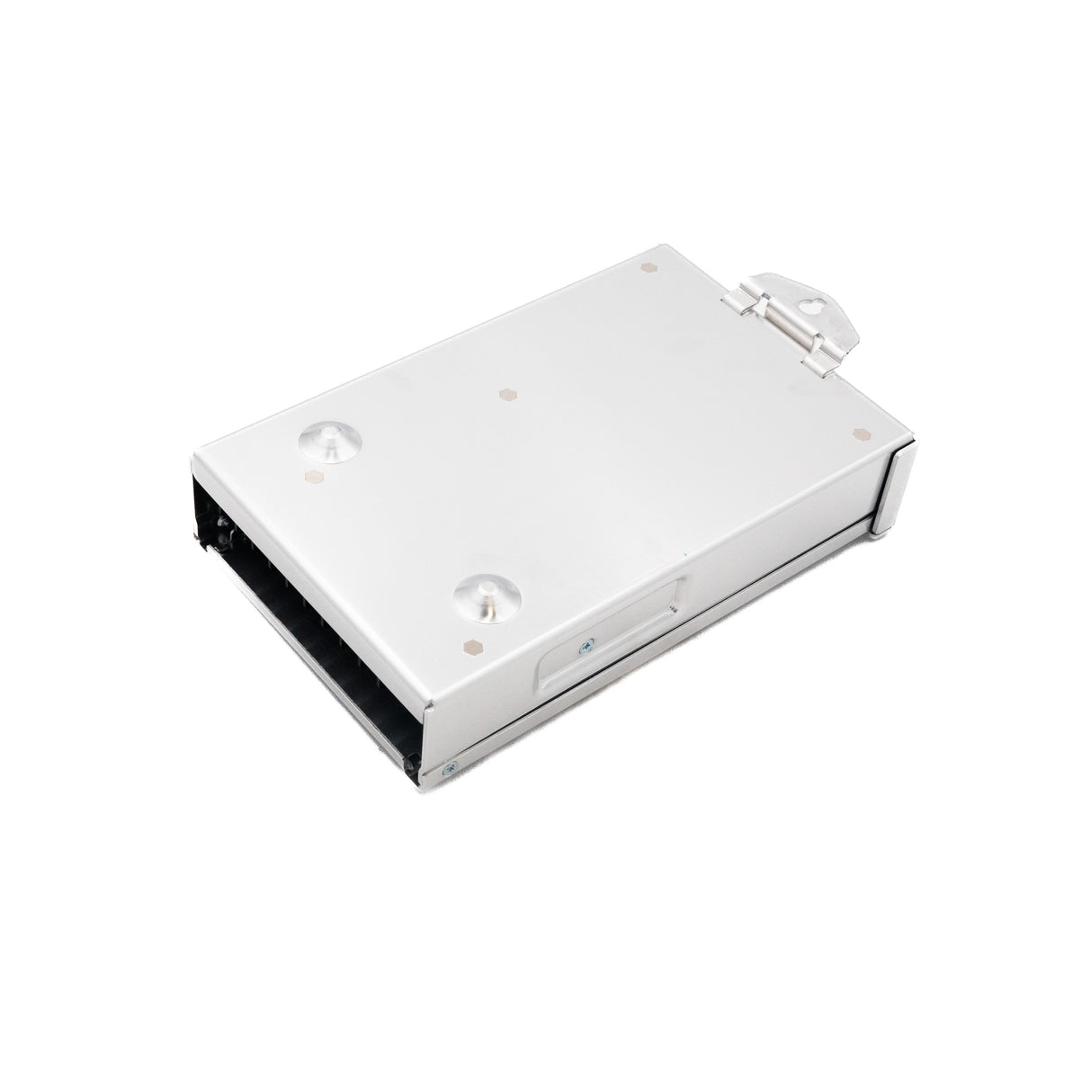

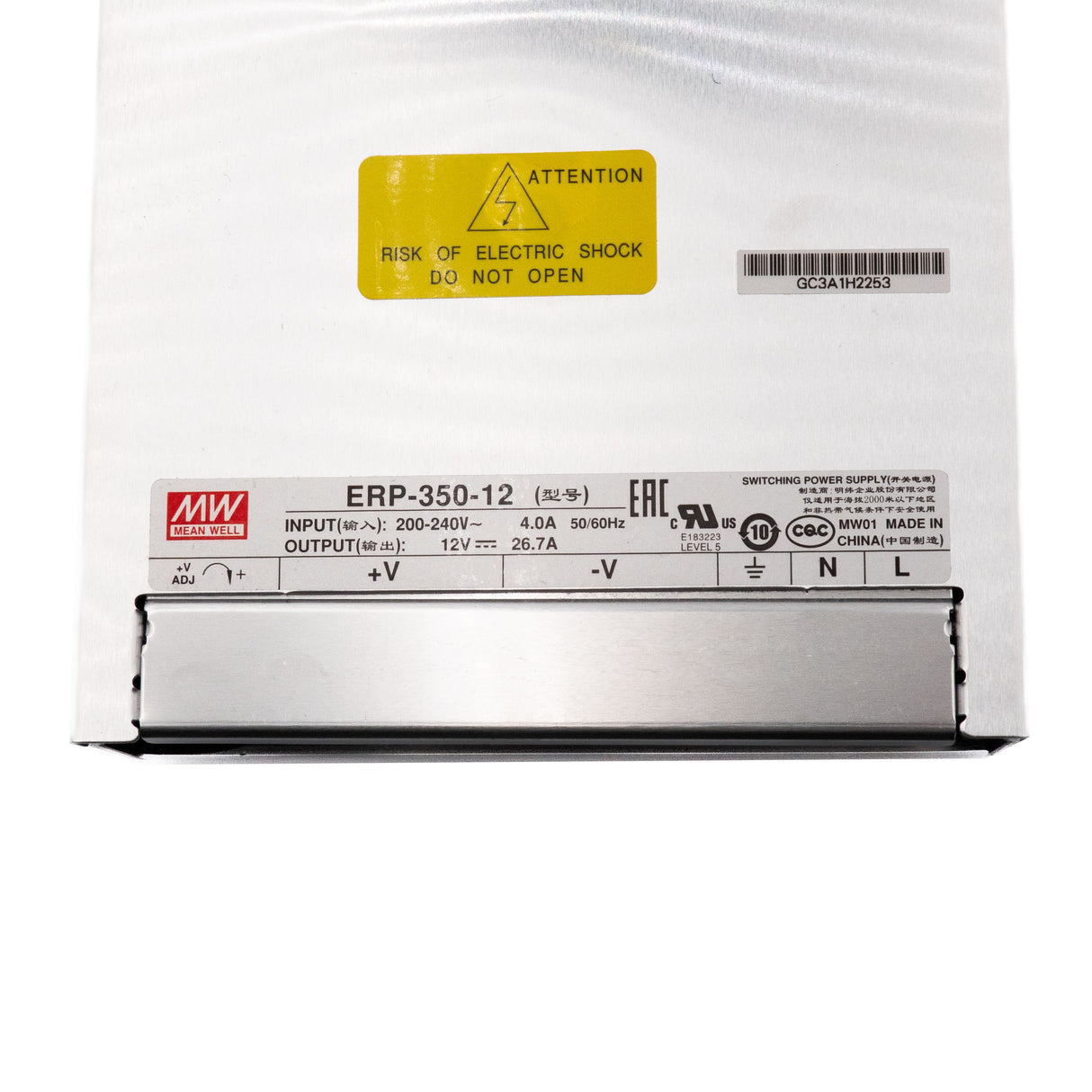

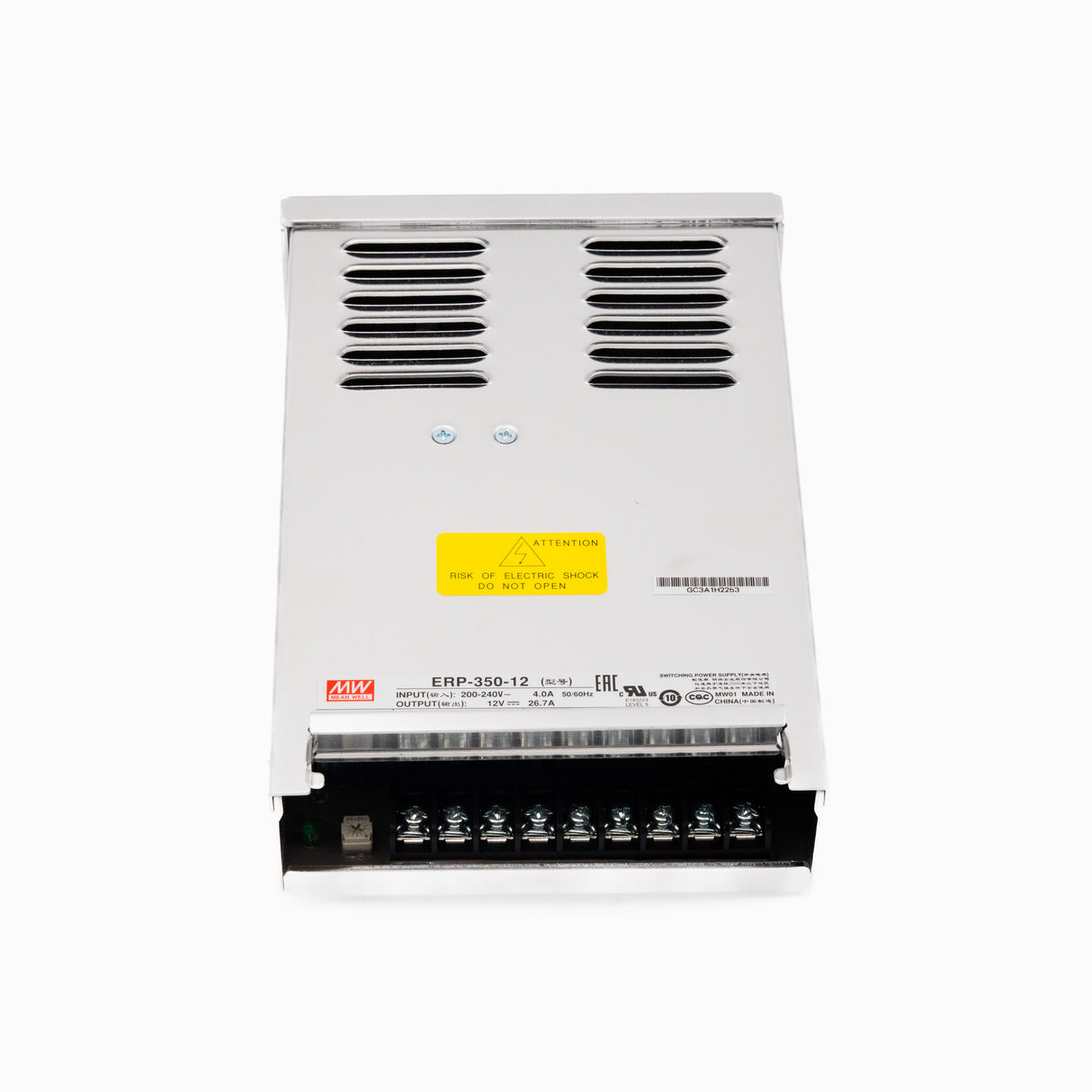

Mean Well ERP-350-12 Switching Power Supply 350W 12V

design against rain splash, fanless design, economical

|

Description

Features

AC input 180~264VAC
Withstand 300VAC surge input for 5 seconds
Design against rain splash
Protections: Short circuit / Overload /Over voltage/Over temperature
Cooling by free air convection
LED indicator for power on
Low cost,high reliability
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 180~264VAC ; 254~370VDC
AC inrush current (max.) 90A/230VAC
Over temperature protection Shut down O/P voltage, recovers automatically after temperature goes down
Over voltage protection Protection type :Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -30~+60ºC (refer to output derating curve)
Safety standards UL60950-1,GB4943.1-2011(except for ERP-350-12) approved
EMC standards Refer to EN55022 (CISPR22) class A
Dimension (LxWxH)(mm) 220.4 x 130 x 48 mm

Specifications

  • Brand
    Mean Well
  • Series
    ERP Series
  • Power Rating
    350 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    26.7 Ampere
  • Input Voltage
    180V~264V
  • Standards Met
    BSMI,CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~60°C
  • Warranty
    3 Year
  • Length
    22.04 cm
  • Width
    13 cm
  • Height
    4.8 cm
  • Weight
    0.9 kg

File Downloads
