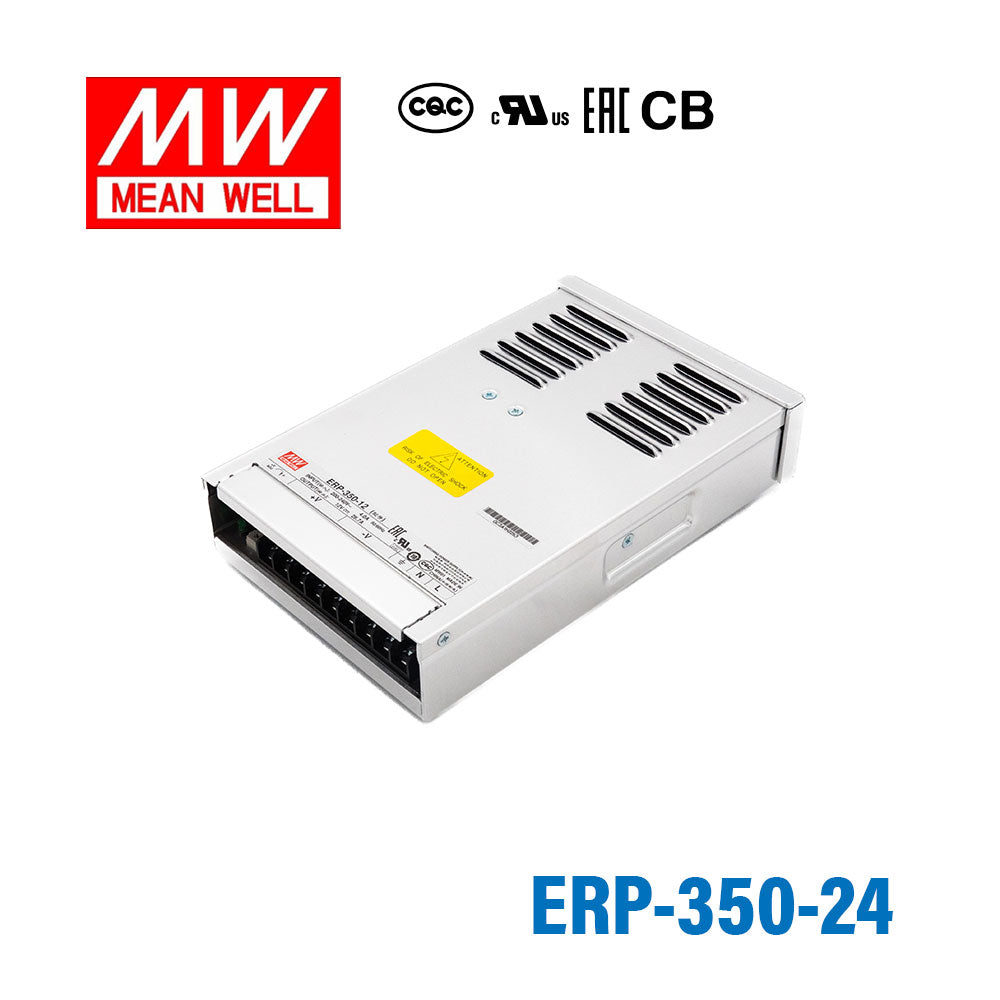

Mean Well ERP-350-24 Switching Power Supply 350W 24V
Please Login for Pricing
Description
Description
The ERP-350 is a 350W Mean Well power converter (input range: 180~264VAC, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL 62368-1,IEC 62368-1,GB4943.1-2011,EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesERP Series
-
Power Rating350 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage180V~264V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length22.04 cm
-
Width13 cm
-
Height4.8 cm
-
Weight0.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ERP-350-24 for a 24V industrial automation or control application?
Yes, if the equipment requires 24V constant voltage and does not exceed 14.6A or 350W. That makes it suitable for many 24V industrial and automation loads powered from 180-264VAC input.
Is the ERP-350-24 suitable for 24V PLC-related devices, sensors, or cabinet electronics?
It can be used for 24V constant voltage cabinet electronics that fit within its 14.6A and 350W output limits. The unit is a fanless AC-DC power supply, which can be useful in enclosed industrial spaces.
Can this power supply run 24V embedded or industrial computing hardware?
Yes, for 24V constant voltage hardware whose total draw stays within 350W and 14.6A. Its 180-264VAC input range matches standard AC-powered industrial equipment environments.
Is the ERP-350-24 a reasonable option for 24V systems that need a fanless 350W supply?
Yes. This model is rated for 24V output at up to 14.6A, with a total power rating of 350W, and it uses a fanless design. Its size is 220.4 × 130.0 × 48.0 mm.
Can the ERP-350-24 be used in outdoor or semi-exposed locations?
The product is described as having a design against rain splash, and its operating temperature range is -30°C to +60°C. However, no IP rating is listed, so the provided specs do not define a formal outdoor ingress-protection level.
