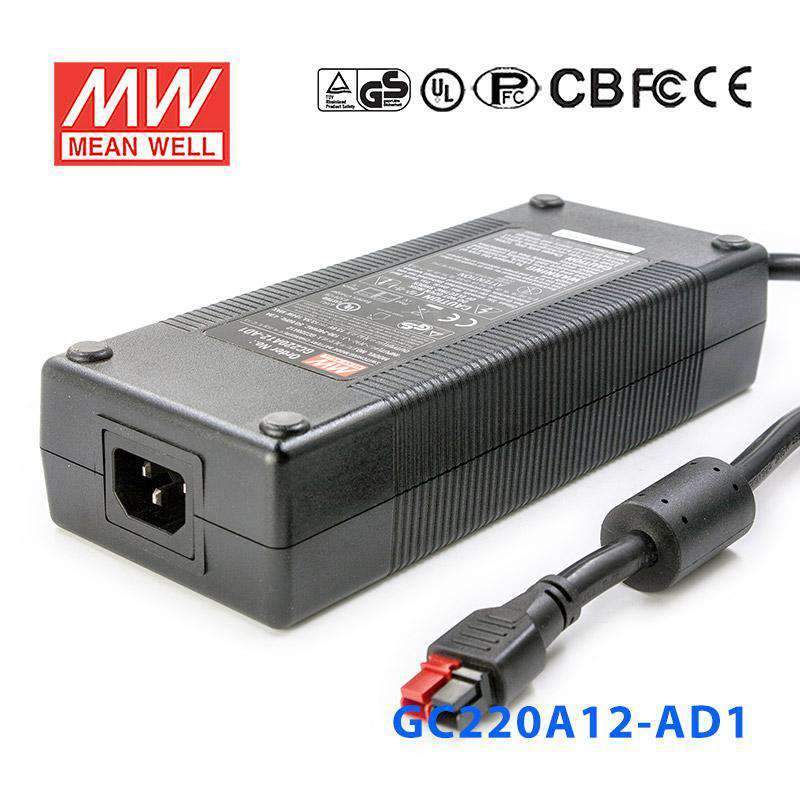

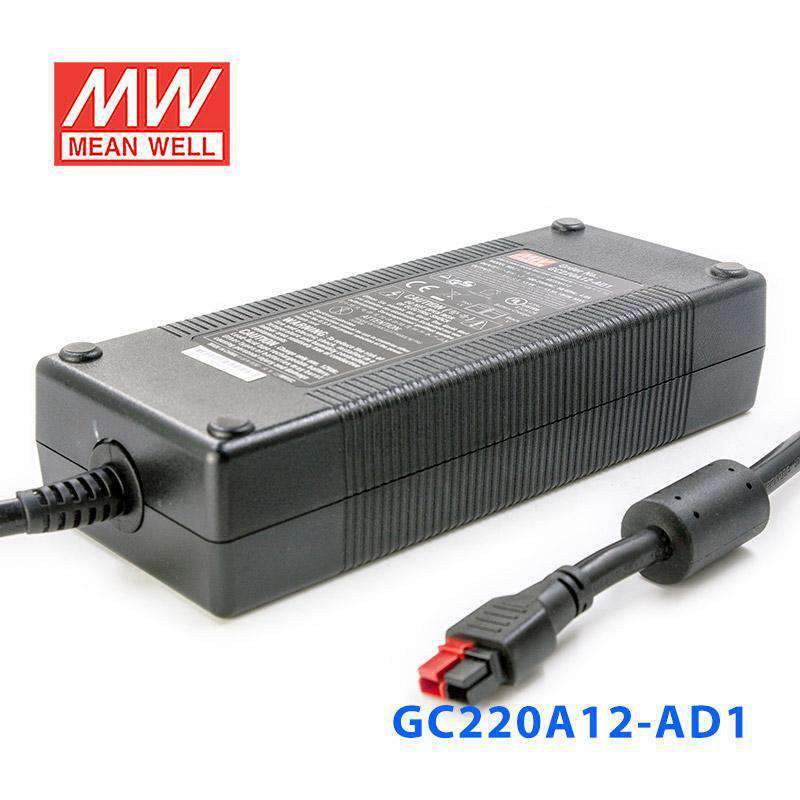

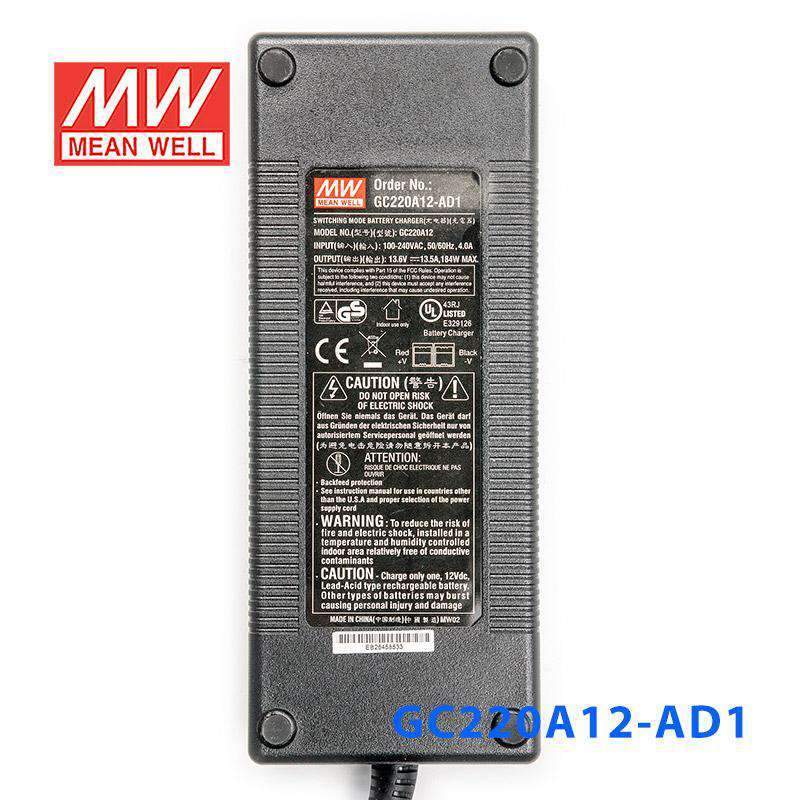

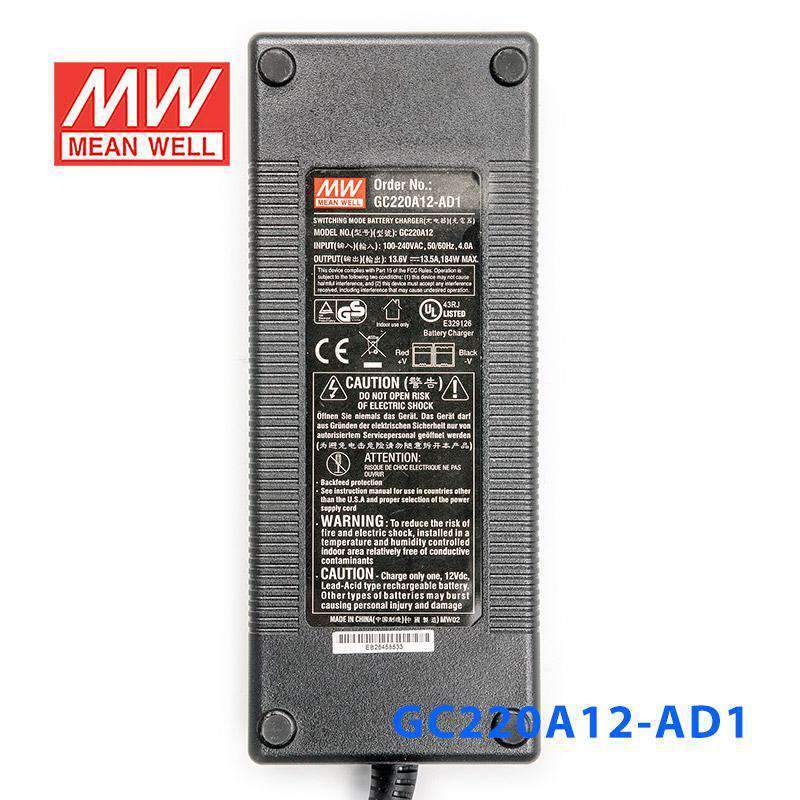

Mean Well GC220A12-AD1 Portable Chargers 183.6W 13.6V 13.5A - Green...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| No load power consumption < 1W |
| High efficiency up to 93.5% |
| 2 stage charging characteristic |
| Cooling by free air convection |

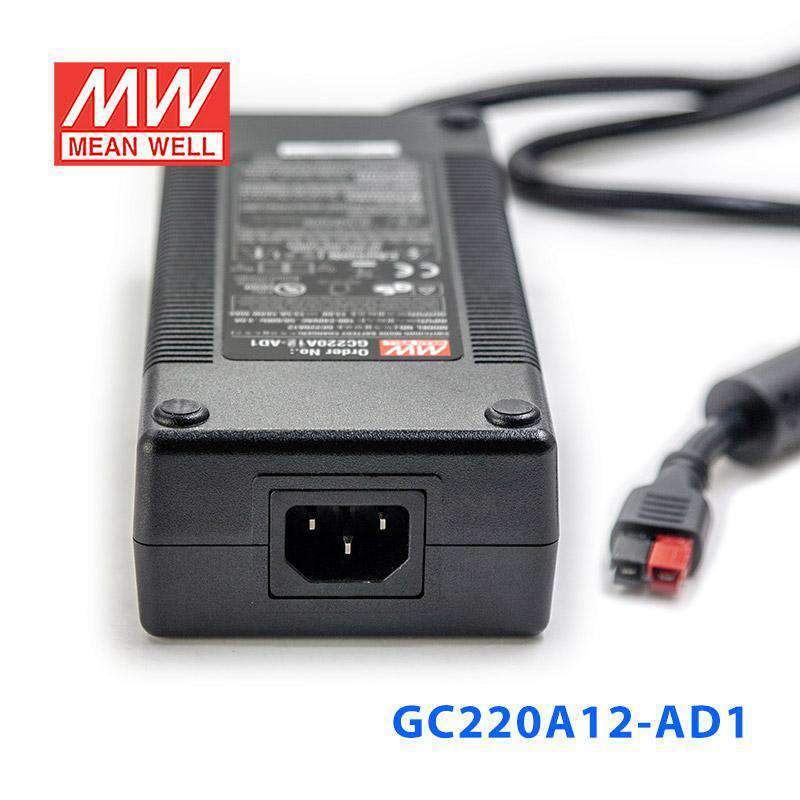

| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) |
| Fully enclosed plastic case |

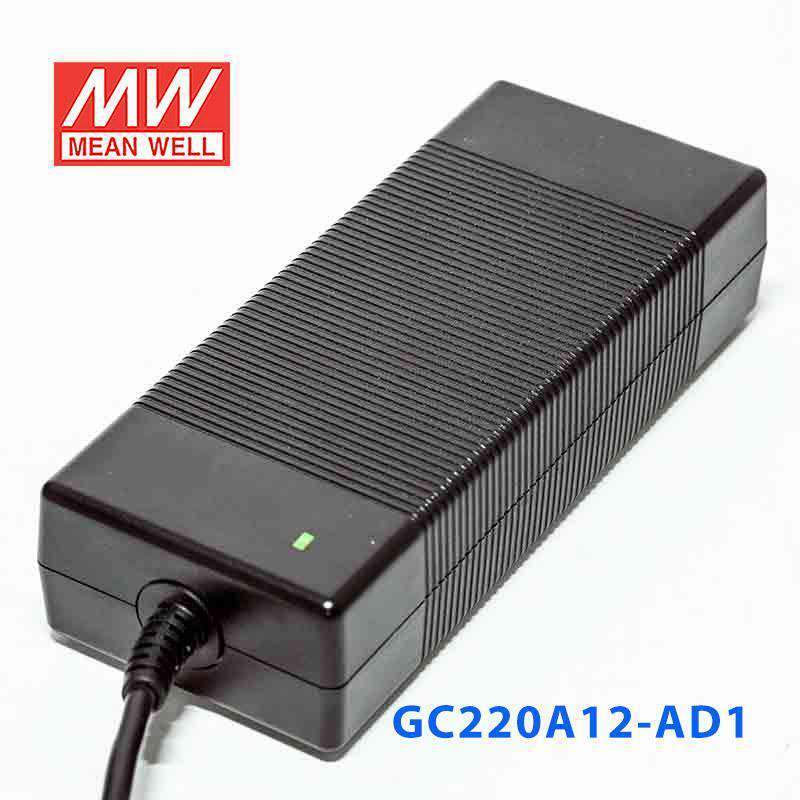

| 2 color LED indicator for charging status |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| Overload protection | 90~110% constant current, auto-recovery |
| Over voltage protection | 105%~135% shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+60°C (refer to derating curve) |
| Safety standards | TUV EN60950-1, UL1012 (GC220Axx-AD1 only) approved |
| EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 210x85x46 |
| Length of output cable | 100cm of UL2464, 16AWGx 4C |
| Standard DC plug | Power DIN 4P with lock type (R7B) |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating183.6 Watt
-
Output Voltage13.6 Volt
-
Rated Current13.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length21 cm
-
Width8.5 cm
-
Height4.6 cm
-
Weight1.1 kg
