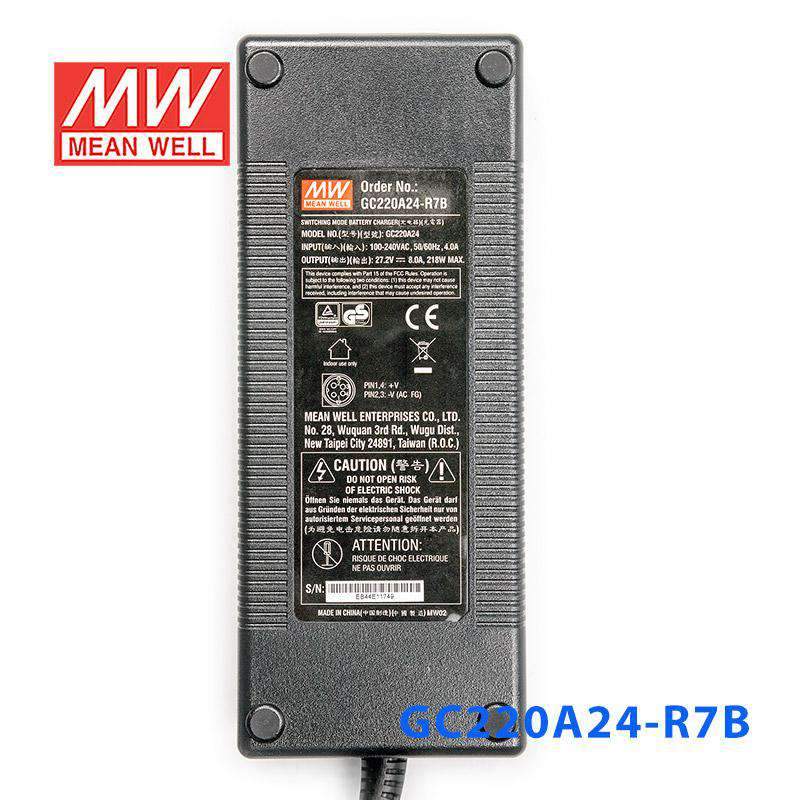

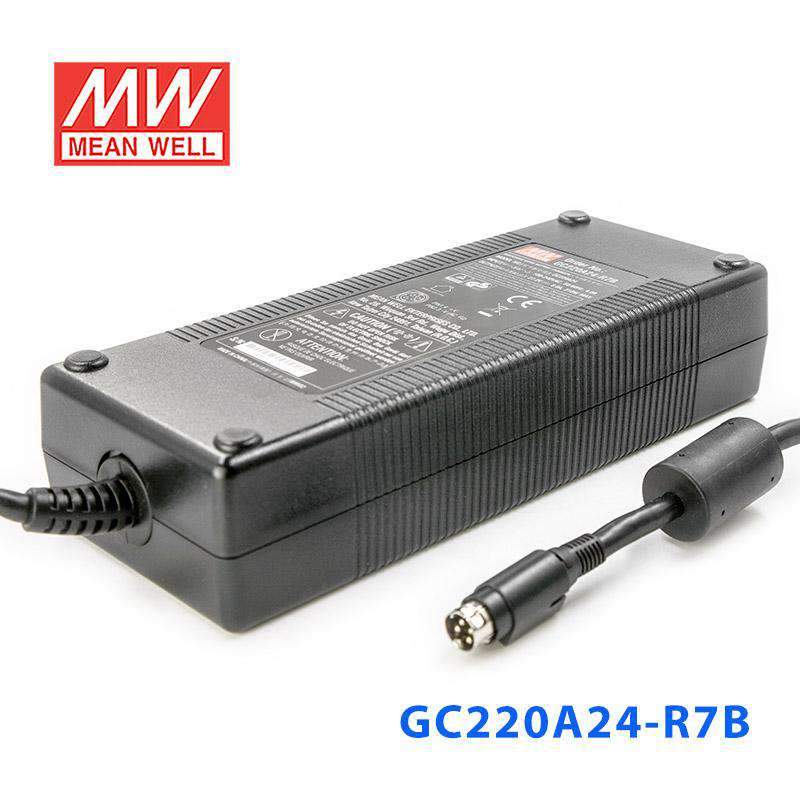

Mean Well GC220A24-R7B Portable Chargers 217.6W 27.2V 8A - Green Adaptor


|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over Temp.
No load power consumption < 1W
High efficiency up to 93.5%
2 stage charging characteristic
Cooling by free air convection

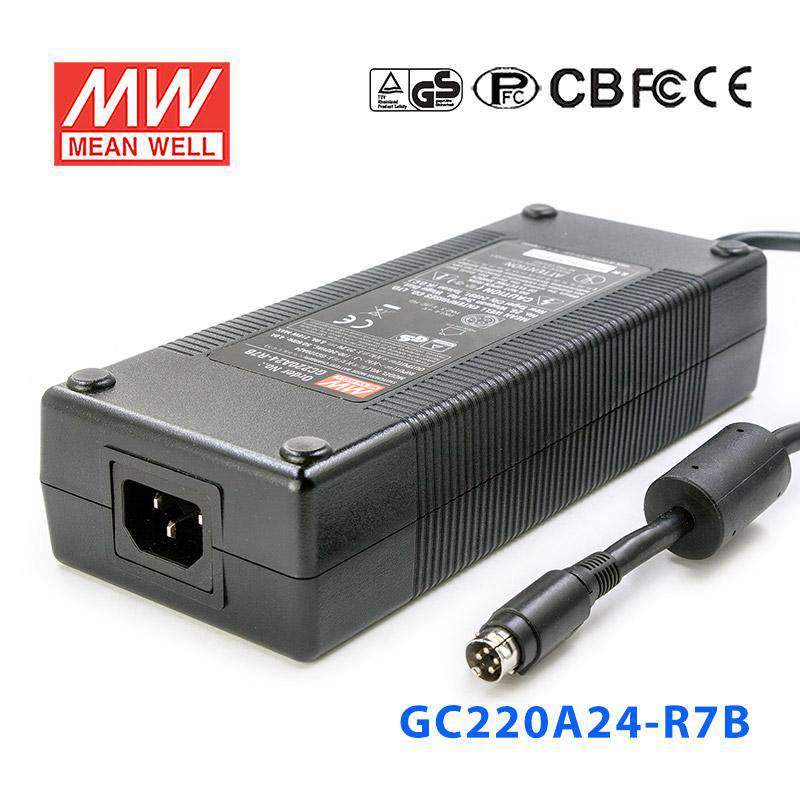

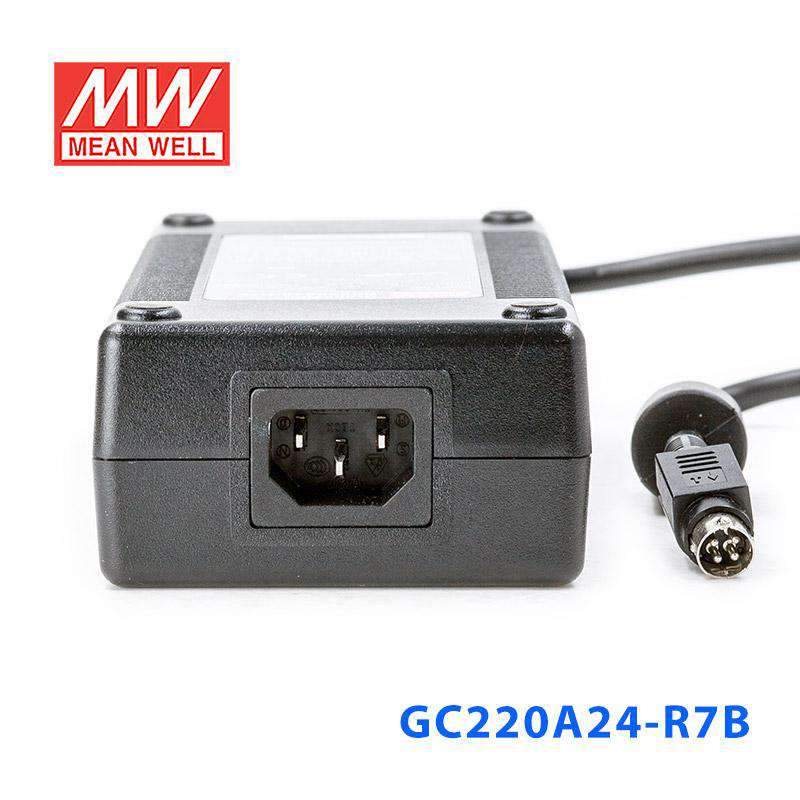

3 pole AC inlet IEC320-C14
Class I power (with earth pin)
Fully enclosed plastic case

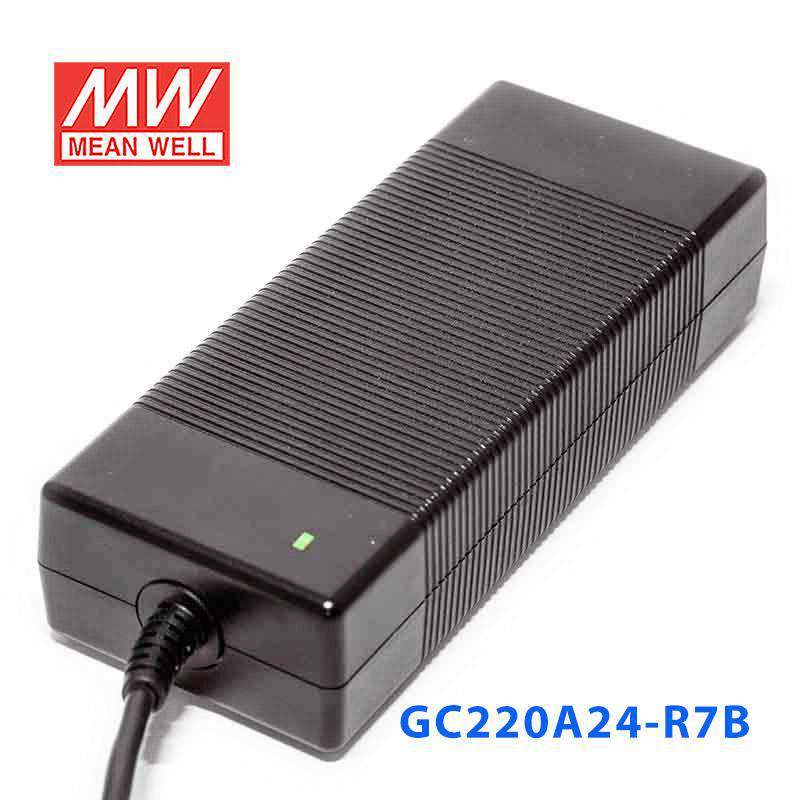

2 color LED indicator for charging status
2 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
Overload protection 90~110% constant current, auto-recovery
Over voltage protection 105%~135% shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+60°C (refer to derating curve)
Safety standards TUV EN60950-1, UL1012 (GC220Axx-AD1 only) approved
EMC standards EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 210x85x46
Length of output cable 100cm of UL2464, 16AWGx 4C
Standard DC plug Power DIN 4P with lock type (R7B)

Specifications

  • Brand
    Mean Well
  • Series
    GC Series
  • Power Rating
    217.6 Watt
  • Output Voltage
    27.2 Volt
  • Rated Current
    8 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,cUL,EAC,FCC,TUV
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -30°C~60°C
  • Warranty
    2 Year
  • Length
    21 cm
  • Width
    8.5 cm
  • Height
    4.6 cm
  • Weight
    1.1 kg
