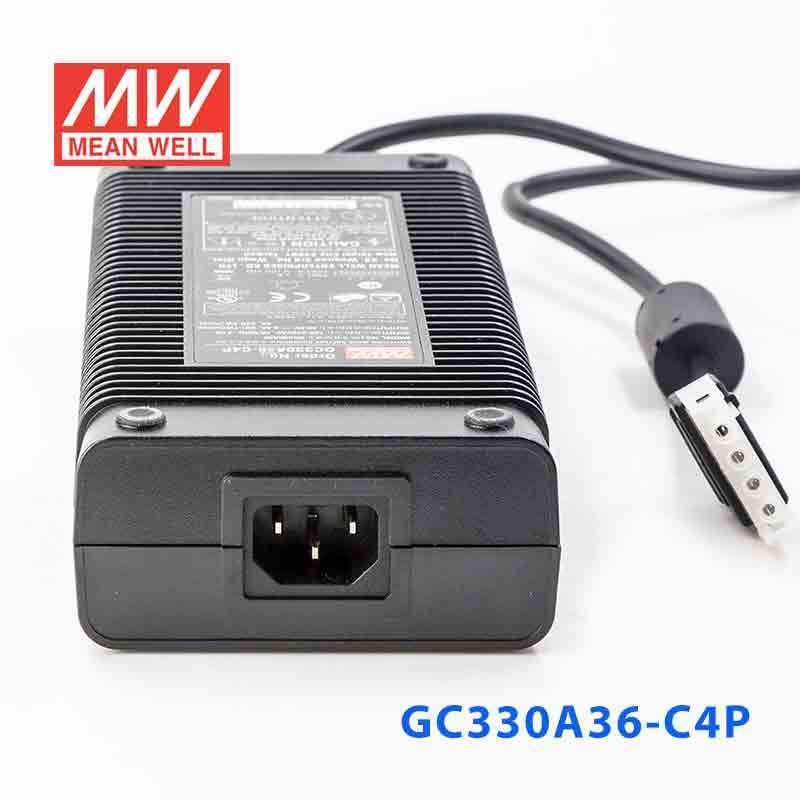

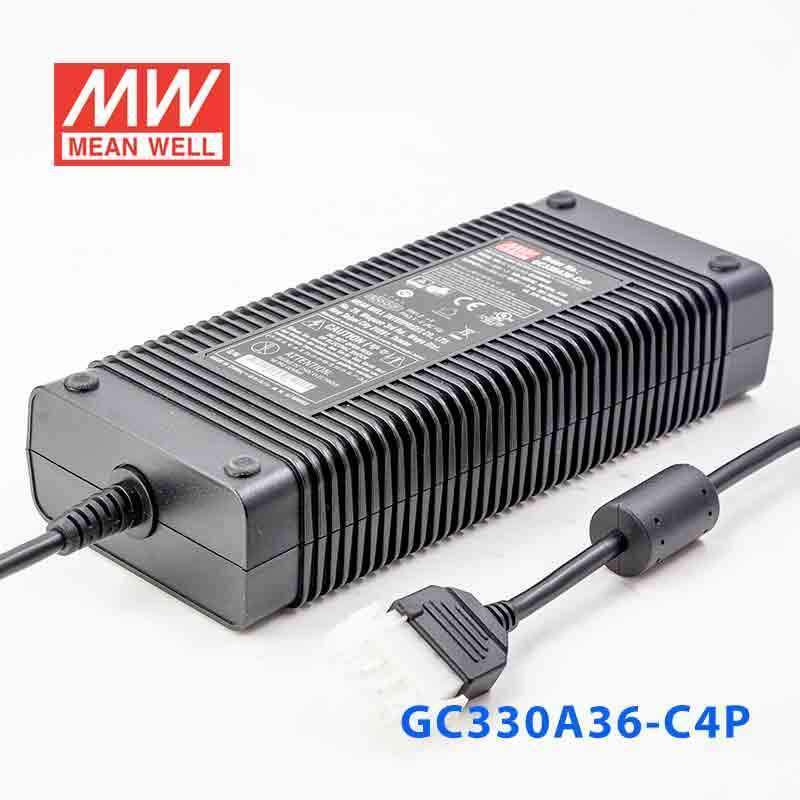

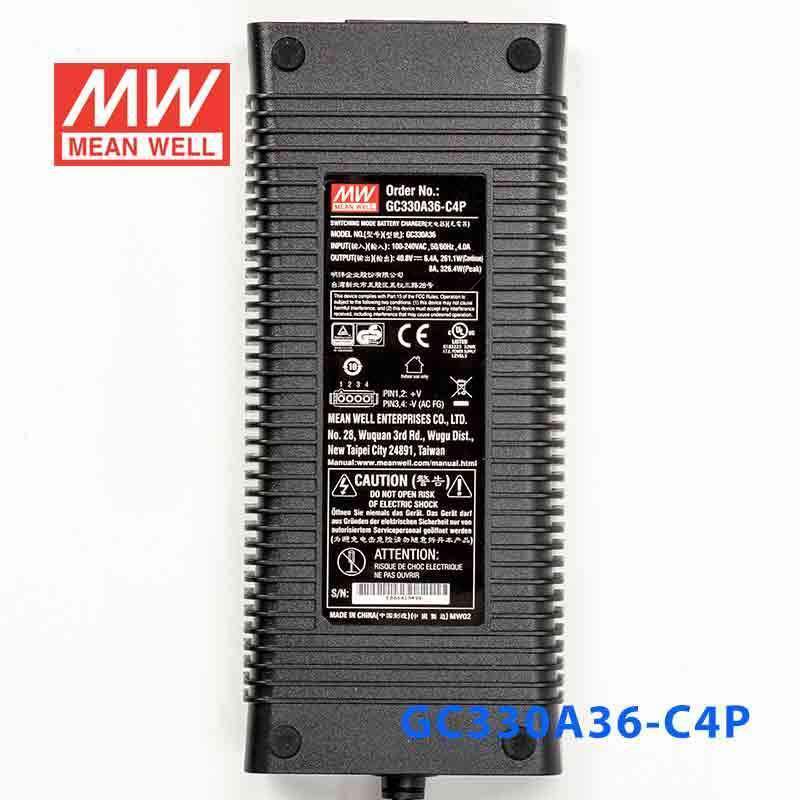

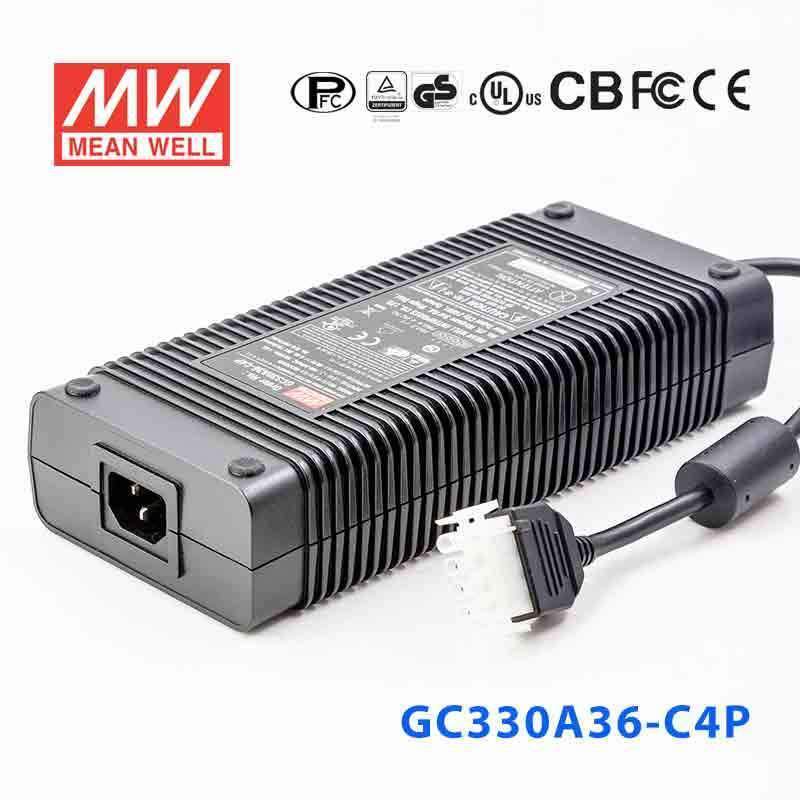

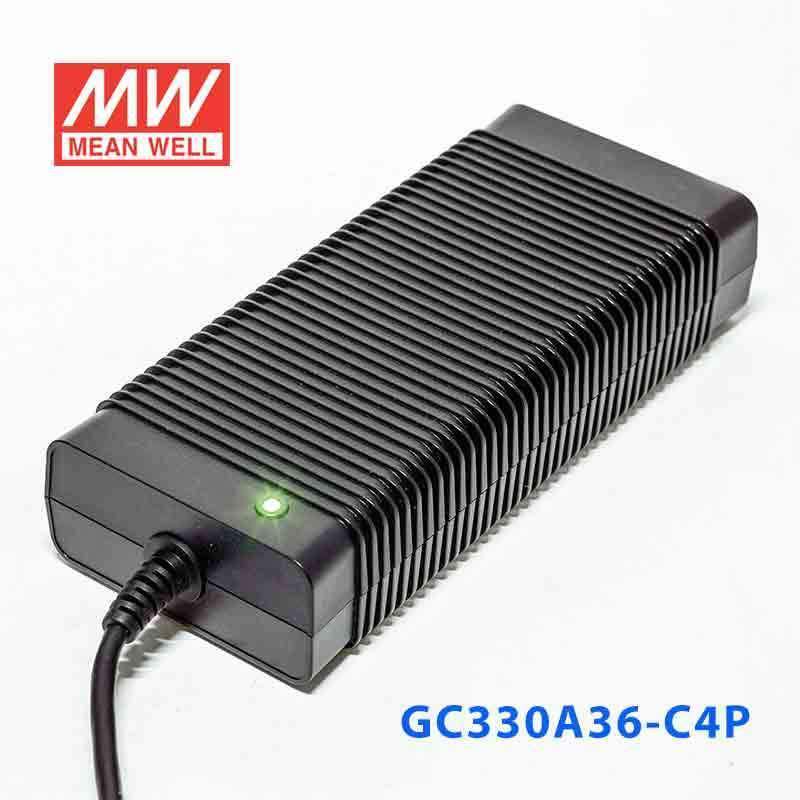

Mean Well GC330A36-C4P Portable Chargers 261.1W 40.8V 6.4A - Green ...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| No load power consumption < 0.5W |
| 2 color LED indicator for charging status |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) |
| Fully enclosed plastic case |
| Approvals:TUV/UL/CUL/CB/FCC/CE |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC;127~370VDC |
| AC inrush current | Cold start, 120 at 230VAC |
| Over voltage protection | 105%~135% Shut down and latch off o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+60°C (refer to derating curve) |
| Safety standards | UL60950-1,TUV EN60950-1 approved |
| EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 220 x 95 x 46 mm |
| Packing | 12pcs / 16kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating261.1 Watt
-
Output Voltage40.8 Volt
-
Rated Current6.4 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length22 cm
-
Width9.5 cm
-
Height4.6 cm
-
Weight1.25 kg
