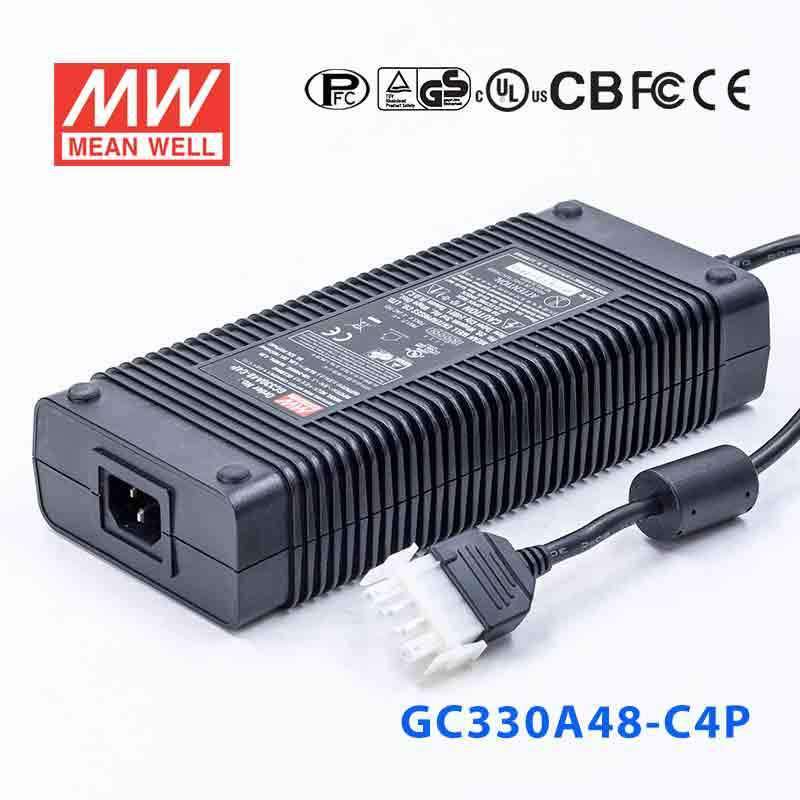

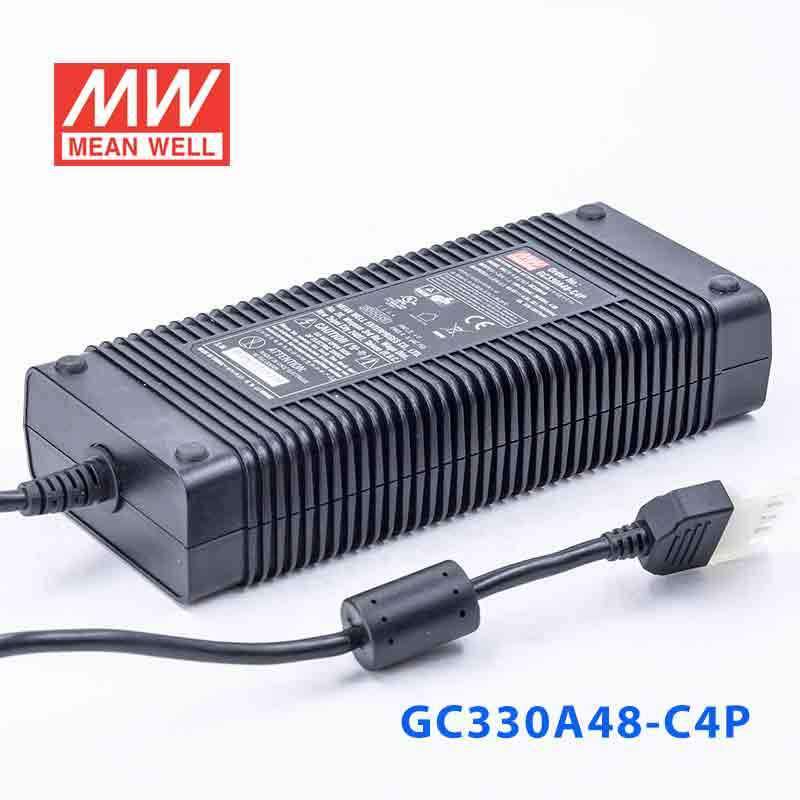

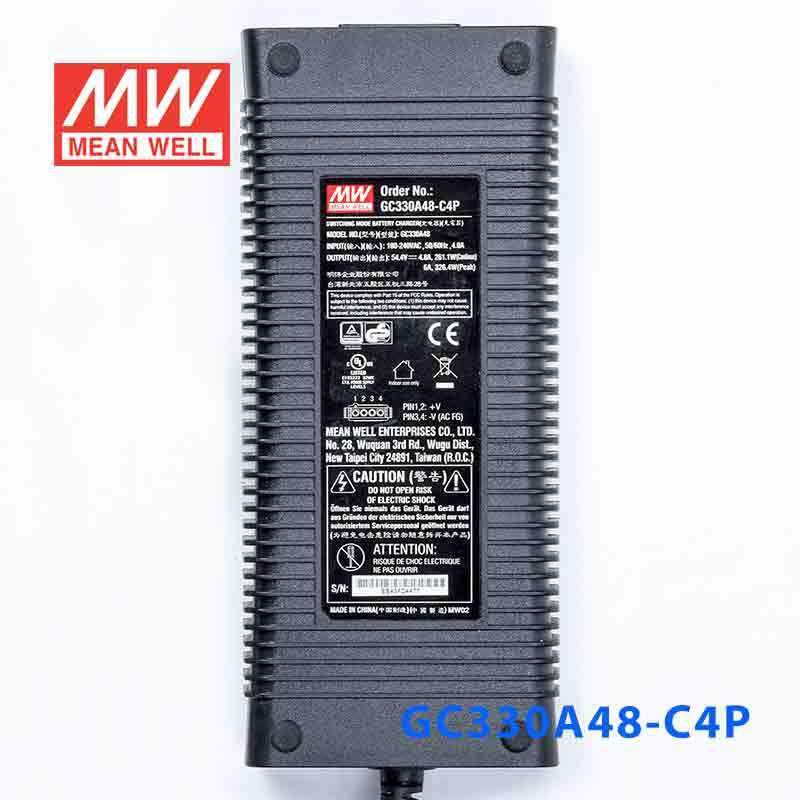

Mean Well GC330A48-C4P Portable Chargers 261.1W 54.4V 4.8A - Green Adaptor


|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over Temp.
No load power consumption < 0.5W

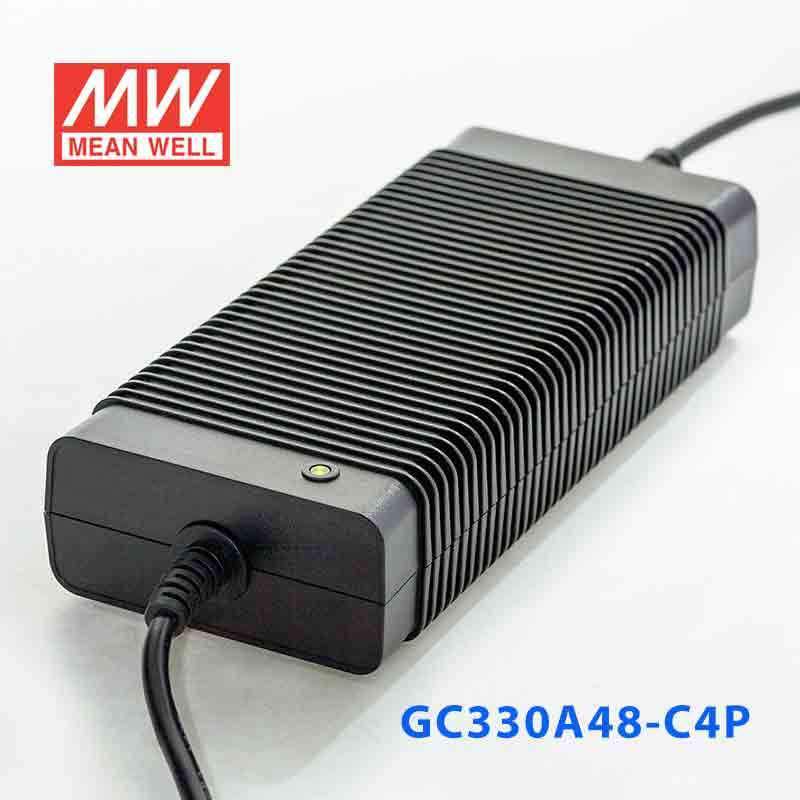

2 color LED indicator for charging status

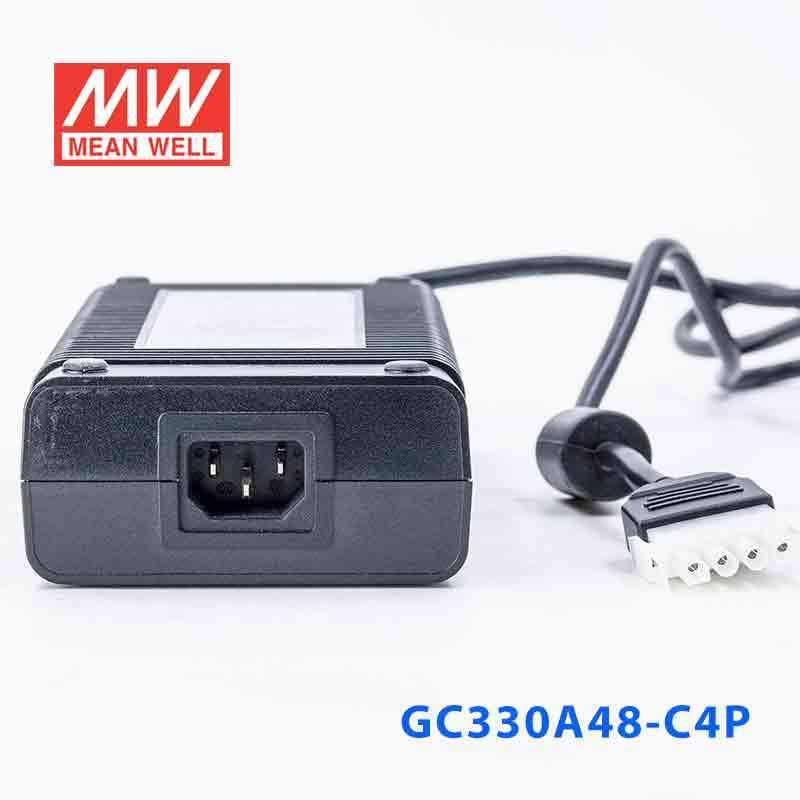

3 pole AC inlet IEC320-C14
Class I power (with earth pin)
Fully enclosed plastic case
Approvals:TUV/UL/CUL/CB/FCC/CE
2 years warranty

General Specification

AC input voltage range 90~264VAC;127~370VDC
AC inrush current Cold start, 120 at 230VAC
Over voltage protection 105%~135% Shut down and latch off o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+60°C (refer to derating curve)
Safety standards UL60950-1,TUV EN60950-1 approved
EMC standards EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 220 x 95 x 46 mm
Packing 12pcs / 16kg

Specifications

  • Brand
    Mean Well
  • Series
    GC Series
  • Power Rating
    261.1 Watt
  • Output Voltage
    54.4 Volt
  • Rated Current
    4.8 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,cUL,EAC,FCC,TUV
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -30°C~60°C
  • Warranty
    2 Year
  • Length
    22 cm
  • Width
    9.5 cm
  • Height
    4.6 cm
  • Weight
    1.25 kg

File Downloads

::specification::
