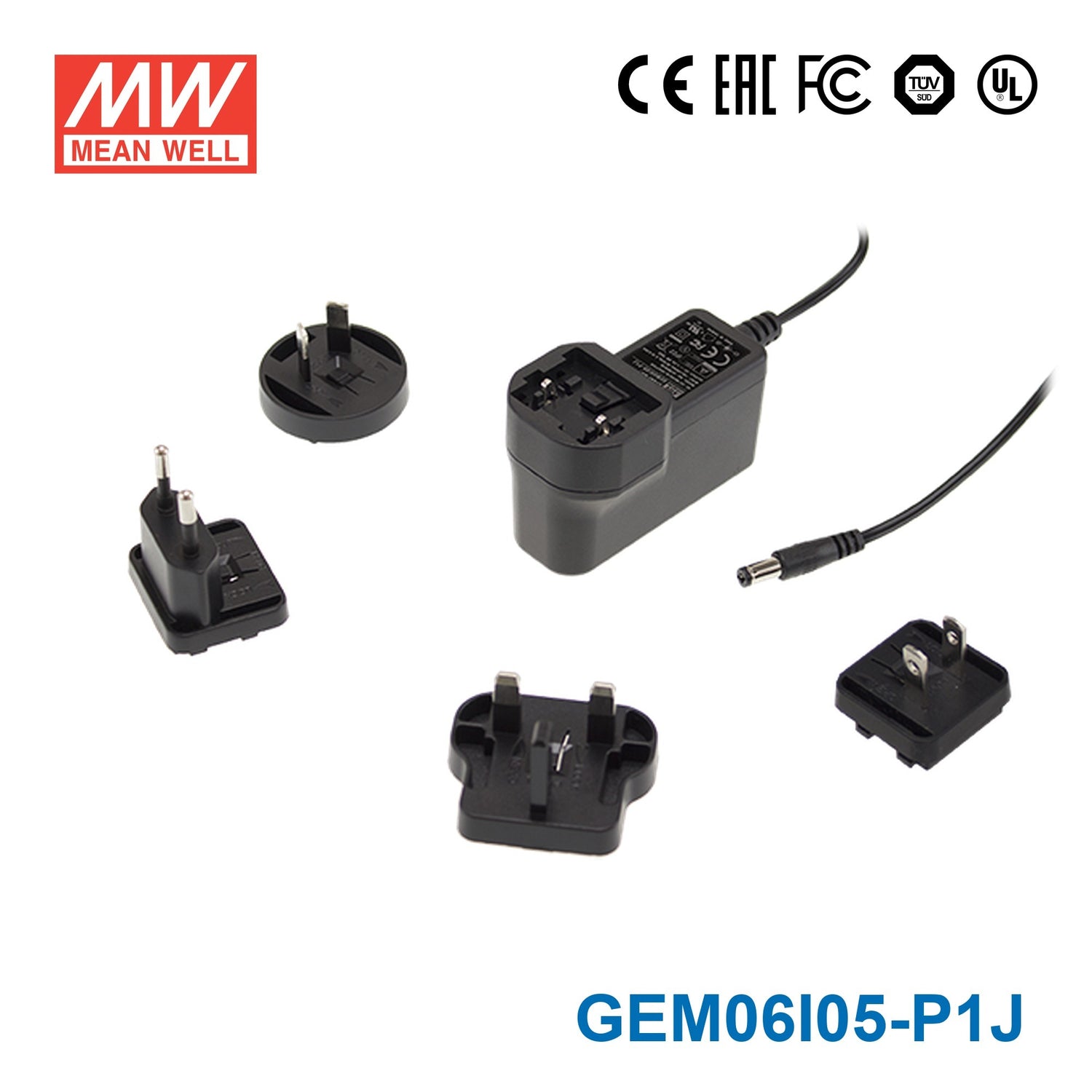

Mean Well GEM06I05-P1J Power Supply 6W 5V 1.2A

SKU GEM06I05-P1J

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NGE12I05-P1J

Available to order

Overview

GEM06I05-P1J is the 5V output model of this series: rated current 1.2A, typical efficiency 70%.

GEM06I is a highly reliable, 6W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GEM06I is a class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<55μA), fitting the medical devices in direct electrical contact with the patients. With the working efficiency up to 80% and the extremely low no-load power consumption below 0.3W, GEM06I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅴ) and EU ErP. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retarded plastic case that it can effectively prevent users from electrical hazard.

Features

Interchangeable AC plugs (plug kit sold separately)
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/ES60601-1-11,BS EN/EN60601-1/ BS EN/EN60601-1-11
Extremely low leakage current
No load power consumption< 0.3W
Energy efficiency Level Ⅴ
-20~+70℃ wide range working temperature
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adaptor accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf
3 years warranty

Specifications

GEM06I05-P1JSpecifications from the official datasheet (2022-04-26 edition)

OUTPUT

SAFETY MODEL NO.: GEM06I05
DC VOLTAGE^Note.2: 5V
RATED CURRENT: 1.2A
CURRENT RANGE: 0 ~ 1.2A
RATED POWER (max.): 6W
RIPPLE & NOISE (max.)^Note.3: 50mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 70%
AC CURRENT: 0.18A / 100VAC
INRUSH CURRENT (max.): Cold start 15A/ 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 55μA/264VAC

PROTECTION

OVERLOAD: >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output power Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.04% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP22

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3rd edition approved, GEM06I05-USB without BS EN/EN60601-1-11 , ANSI/ AAMII ES60601-1-11
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22 Class B
Radiated emission BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22	Class B
Radiated emission	BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

LIFE: 3 years (12 hrs per day for 5V output)
MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 73.9*39*48.5mm (L*W*H)
PACKING: 101g ; 72pcs / 8.3kg / CARTON for cable connection; 72g ; 150pcs / 11.8kg / CARTON for USB connection

CONNECTOR

PLUG: See page 4~5 ; other type available by customer requested
CABLE: See page 4~5 ; other type available by customer requested

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

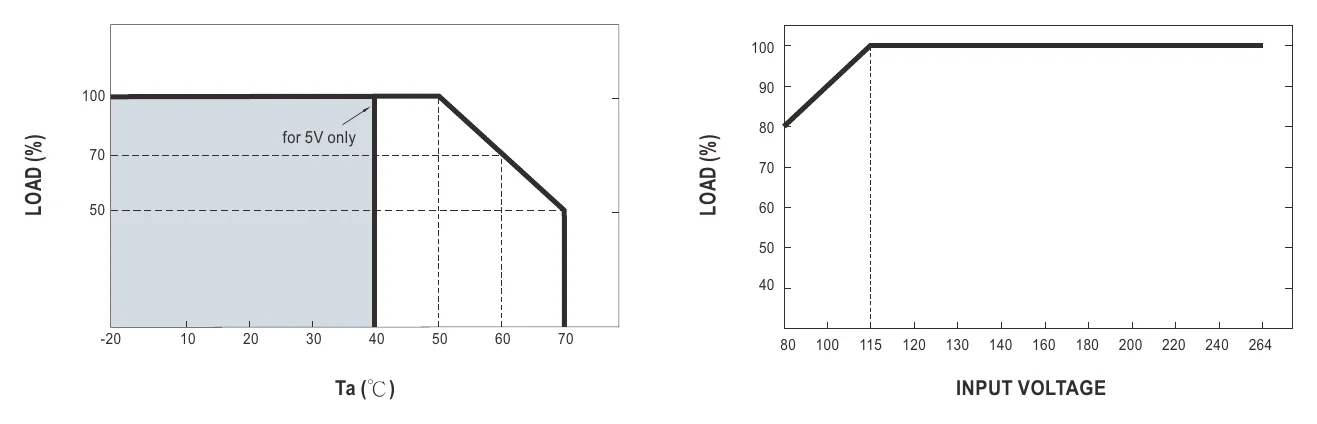

GEM06I05-P1J Derating Curve — Derating Curve

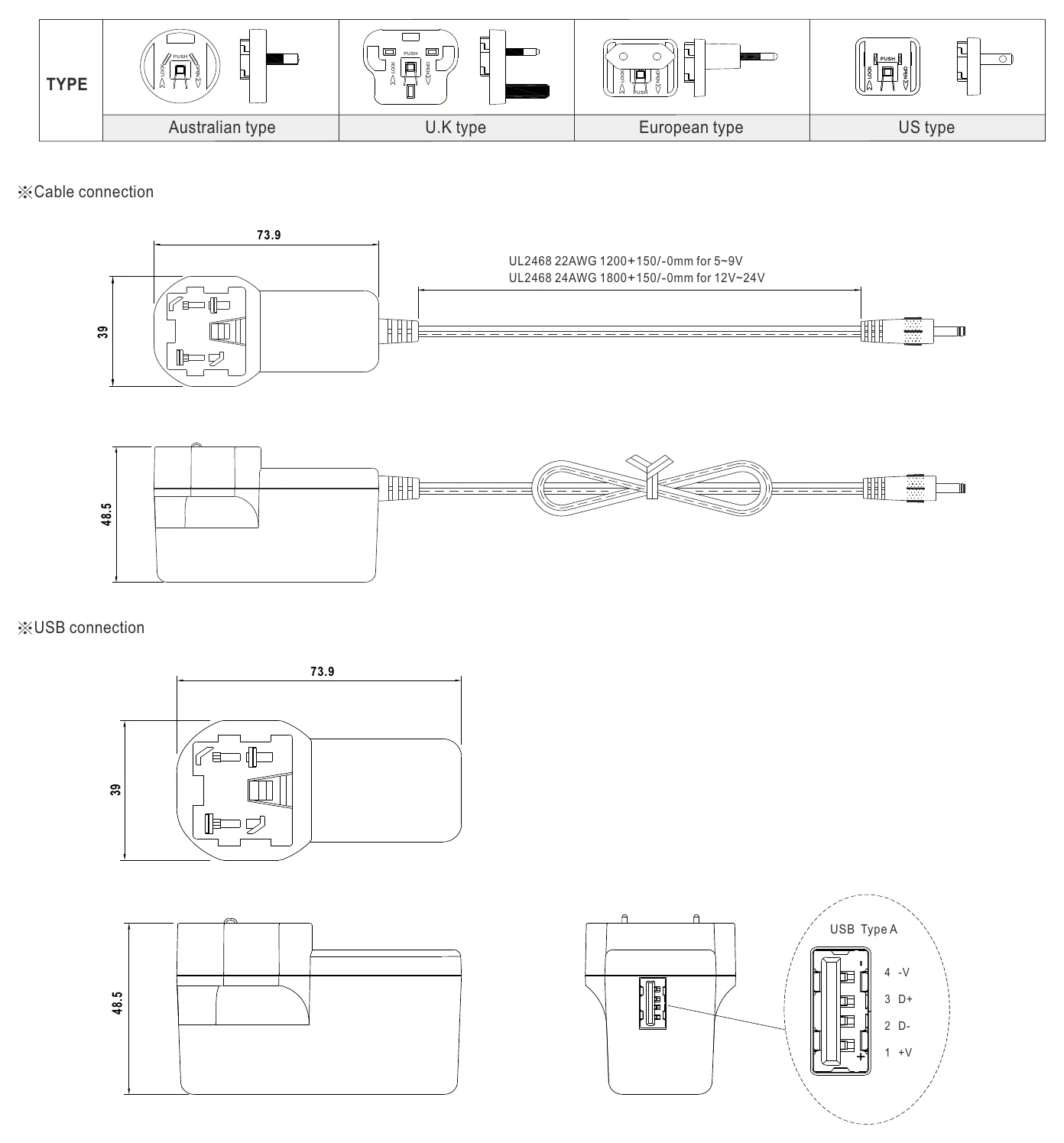

GEM06I05-P1J Mechanical Specification — Mechanical Specification

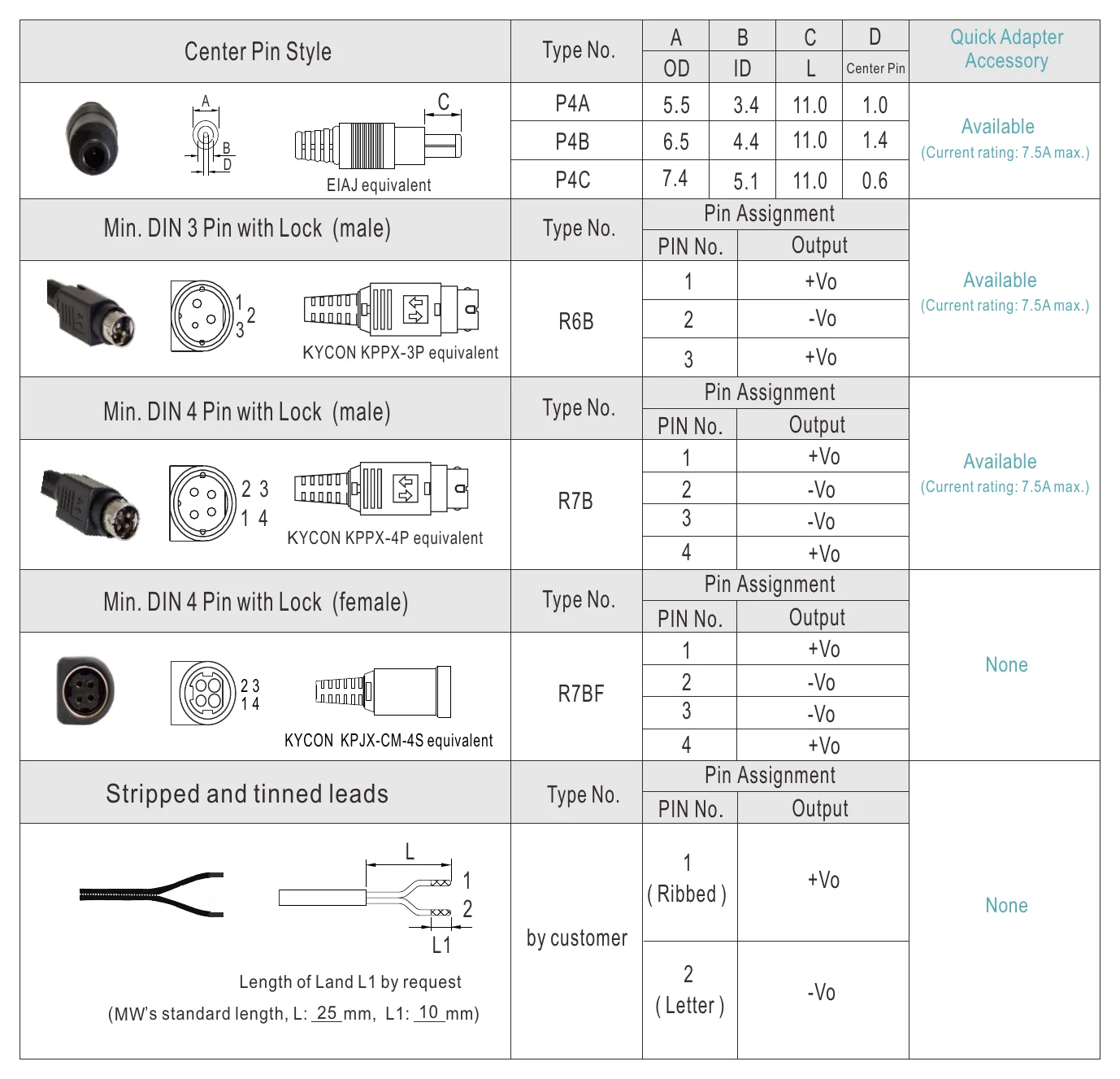

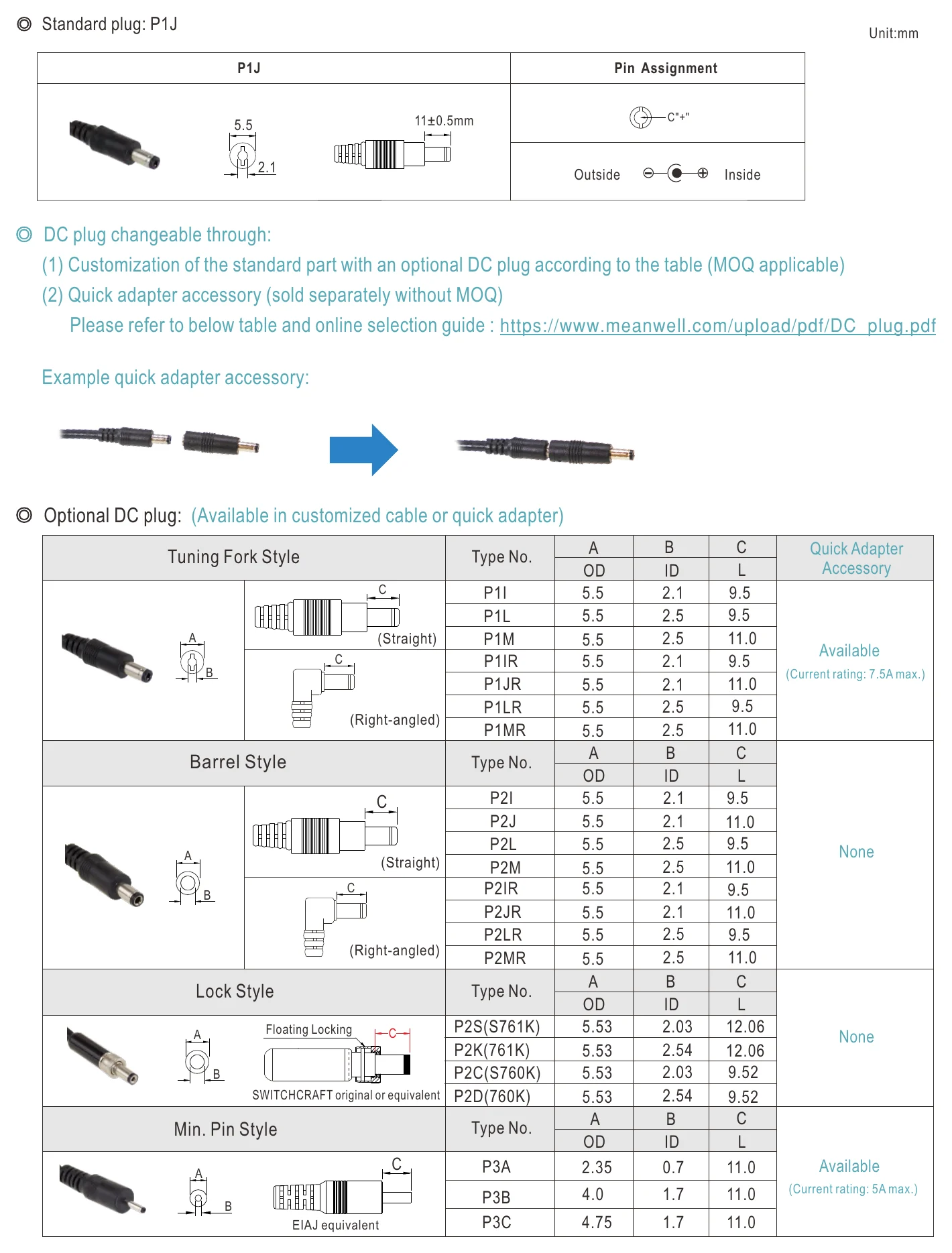

GEM06I05-P1J DC output plug — DC output plug

GEM06I05-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Certificates8

Mean Well 0147476-EAC Certificate PDF Download

Mean Well GSM06-GEM06-CB Certificate PDF Download

Mean Well GEM06-UL Certificate PDF Download

Mean Well GEM06-TUV Certificate PDF Download

Mean Well GSM06-GEM06-U-E-I-xx-USB-FCC Certificate PDF Download

Mean Well GSM06-GEM06-U-E-I-xx-USB-EMC Certificate PDF Download

Mean Well GSM06E-GEM06I-CE-dec Certificate PDF Download

Mean Well GSM06E-GEM06I-UK-dec Certificate PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GEM06I05-P1J to power a 5V microcontroller or embedded development board?

Yes, this model provides 5V constant-voltage output up to 6W and 1.2A. It is appropriate for embedded boards, gateways, or control electronics that are designed for 5V DC and stay within that load range.

Is the GEM06I05-P1J a good fit for a small 5V sensor interface or monitoring device?

It can be used for a compact 5V sensor interface or monitoring unit if the total demand remains at or below 1.2A and 6W. This makes it better suited to low-power electronics than to larger automation loads.

Can this 5V 6W power supply run a USB-powered style embedded product that needs regulated 5V?

It is suitable for low-power electronics that require regulated 5V DC and do not exceed 6W, but the -P1J version has a 5.5 x 2.1mm DC barrel plug, not a USB connector (that is the GEM06I05-USB). Confirm the current draw stays within 1.2A.

Would the GEM06I05-P1J work for a compact IT accessory or small single-board computer?

Yes, for small 5V IT or embedded devices that fit within 6W and 1.2A. The supply uses constant-voltage output, so it should be paired with equipment expecting a fixed 5V source.

Is the GEM06I05-P1J suitable for indoor or outdoor conditions?

The datasheet gives an IP22 rating, so it should be used in protected indoor environments rather than exposed outdoor locations. Its operating temperature range is -20°C to +70°C with derating at higher temperatures, but that does not indicate weatherproofing.
