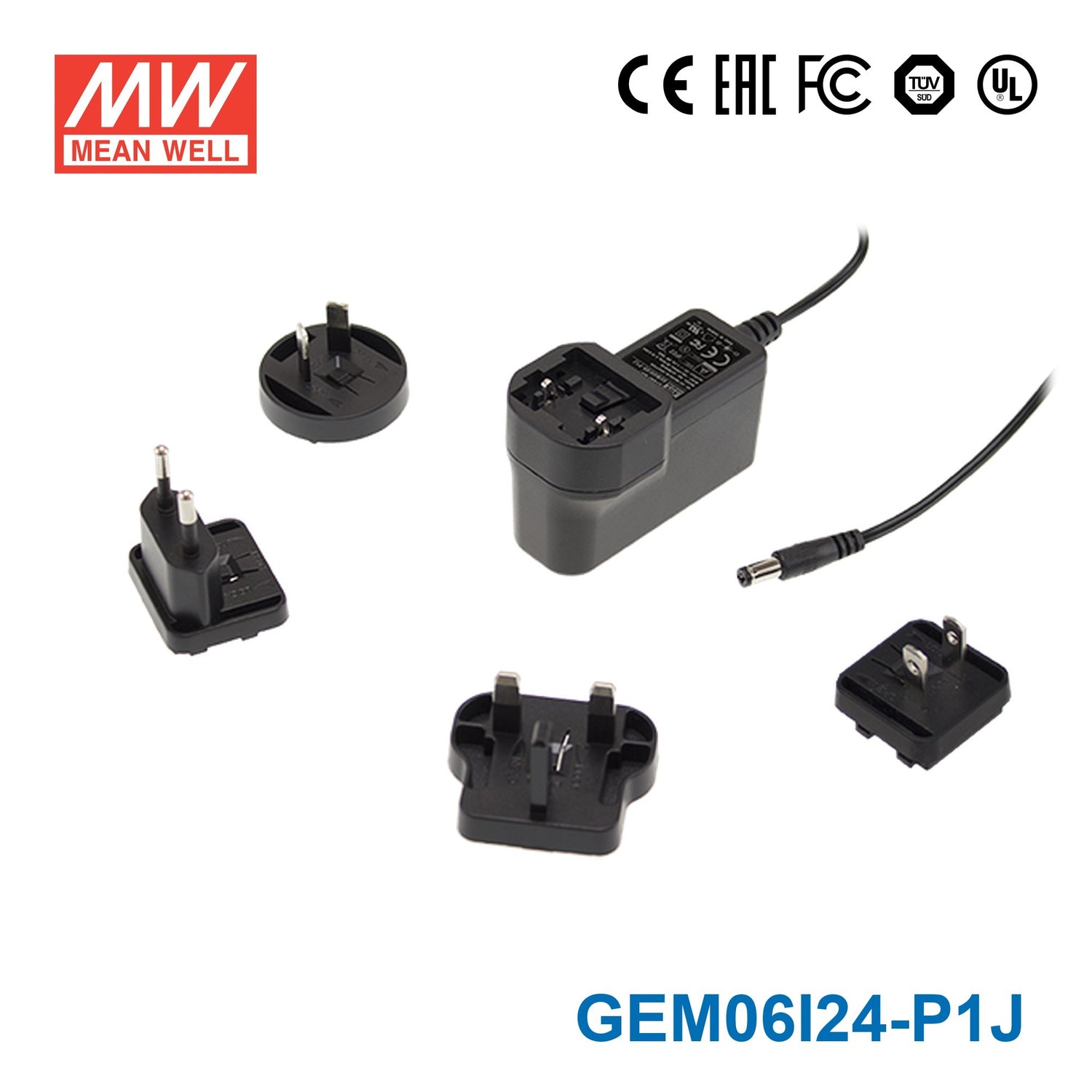

Mean Well GEM06I24-P1J Power Supply 6W 24V 250mA

SKU GEM06I24-P1J

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NGE12I24-P1J

Available to order

Overview

GEM06I24-P1J is the 24V output model of this series: rated current 0.25A, typical efficiency 80%.

GEM06I is a highly reliable, 6W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GEM06I is a class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<55μA), fitting the medical devices in direct electrical contact with the patients. With the working efficiency up to 80% and the extremely low no-load power consumption below 0.3W, GEM06I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅴ) and EU ErP. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retarded plastic case that it can effectively prevent users from electrical hazard.

Features

Interchangeable AC plugs (plug kit sold separately)
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/ES60601-1-11,BS EN/EN60601-1/ BS EN/EN60601-1-11
Extremely low leakage current
No load power consumption< 0.3W
Energy efficiency Level Ⅴ
-20~+70℃ wide range working temperature
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adaptor accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf
3 years warranty

Specifications

GEM06I24-P1JSpecifications from the official datasheet (2022-04-26 edition)

OUTPUT

SAFETY MODEL NO.: GEM06I24
DC VOLTAGE^Note.2: 24V
RATED CURRENT: 0.25A
CURRENT RANGE: 0 ~ 0.25A
RATED POWER (max.): 6W
RIPPLE & NOISE (max.)^Note.3: 180mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±2.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.18A / 100VAC
INRUSH CURRENT (max.): Cold start 15A/ 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 55μA/264VAC

PROTECTION

OVERLOAD: >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output power Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.04% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP22

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3rd edition approved, GEM06I05-USB without BS EN/EN60601-1-11 , ANSI/ AAMII ES60601-1-11
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22 Class B
Radiated emission BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22	Class B
Radiated emission	BS EN/EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

LIFE: 3 years (12 hrs per day for 5V output)
MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 73.9*39*48.5mm (L*W*H)
PACKING: 101g ; 72pcs / 8.3kg / CARTON for cable connection; 72g ; 150pcs / 11.8kg / CARTON for USB connection

CONNECTOR

PLUG: See page 4~5 ; other type available by customer requested
CABLE: See page 4~5 ; other type available by customer requested

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GEM06I24-P1J Derating Curve — Derating Curve

GEM06I24-P1J Mechanical Specification — Mechanical Specification

GEM06I24-P1J DC output plug — DC output plug

GEM06I24-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Certificates8

Mean Well 0147476-EAC Certificate PDF Download

Mean Well GSM06-GEM06-CB Certificate PDF Download

Mean Well GEM06-UL Certificate PDF Download

Mean Well GEM06-TUV Certificate PDF Download

Mean Well GSM06-GEM06-U-E-I-xx-USB-FCC Certificate PDF Download

Mean Well GSM06-GEM06-U-E-I-xx-USB-EMC Certificate PDF Download

Mean Well GSM06E-GEM06I-CE-dec Certificate PDF Download

Mean Well GSM06E-GEM06I-UK-dec Certificate PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GEM06I24-P1J to power a 24V industrial sensor or transmitter?

Yes, if the device requires a constant 24V DC input and stays within 0.25A. This model is rated for 6W total output, so it fits low-power 24V sensors, transmitters, and similar control devices rather than heavier 24V loads.

Is this 24V power supply suitable for a small automation relay or interface module?

It can be suitable for compact 24V automation accessories that use constant voltage and draw no more than 0.25A. The 6W output makes it a better fit for light-duty relay interfaces, signal converters, and small control modules than for power-hungry actuators.

Can I use this adapter for low-power embedded or industrial control electronics that run on 24V?

Yes, this unit is intended for constant-voltage 24V loads and can support embedded or industrial control electronics up to 6W. Buyers should match both the 24V output and the 0.25A maximum current to the equipment requirements.

How do I know if a 24V device is compatible with this power supply?

The load should require constant 24V DC and draw no more than 0.25A or 6W. If the equipment exceeds either the current or power rating, this model is undersized for that application.

Is the GEM06I24-P1J appropriate for indoor or harsh-environment use?

The operating temperature range is -20°C to +70°C, with derating at higher ambient temperatures per the derating curve. The datasheet gives an IP22 rating, so this product should not be treated as an outdoor or washdown-rated power supply.
