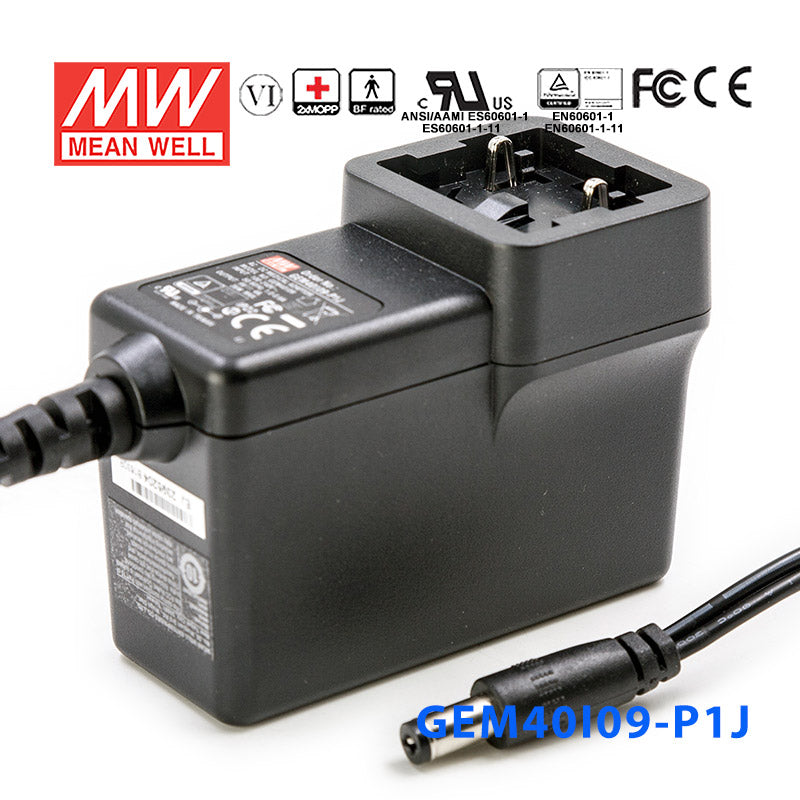

Mean Well GEM40I09-P1J Power Supply 36W 9V

SKU:
GEM40I09-P1J

|

Description

Features

Interchangeable AC plugs (plug kit sold separately)
Medical safety approved(2 xMOPP) according to 60601-1
Extremely low leakage current
No-load power consumption <0.1W
Energy efficiency Level VI
-25 ~ +70°C wide range working temperature
Class II power (without earth pin)
Protections: Short circuit/ Overload/ Over voltage
Fully enclosed plastic case
3 years warranty


General Specification

AC input voltage range 80~264VAC
AC inrush current (max.) Cold start, 30A / 115VAC; 65A / 230VAC
Setup, rise, hold up time 500ms, 30ms, 16ms at 230VAC input
Overload protection 105 ~ 160% rated output power; Hiccup mode, auto-recovery
Over-voltage protection 110%~140% rated output voltage
Withstand voltage I/P-O/P:5656VDC

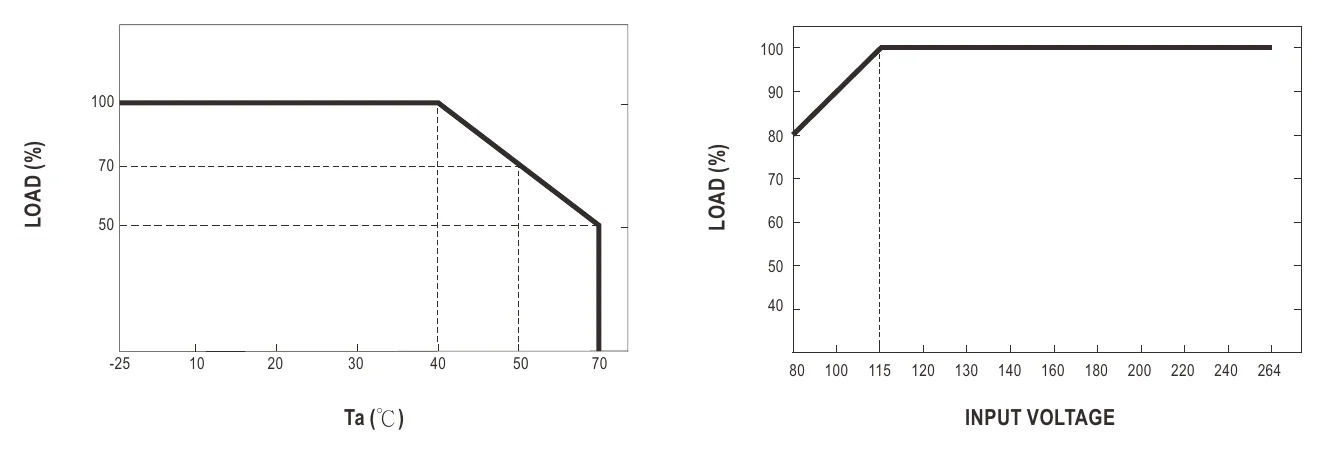

Working temperature -25~+70°C (refer to output derating curve)
Safety standards TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3 edition, EAC TP TC 004 approved
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V

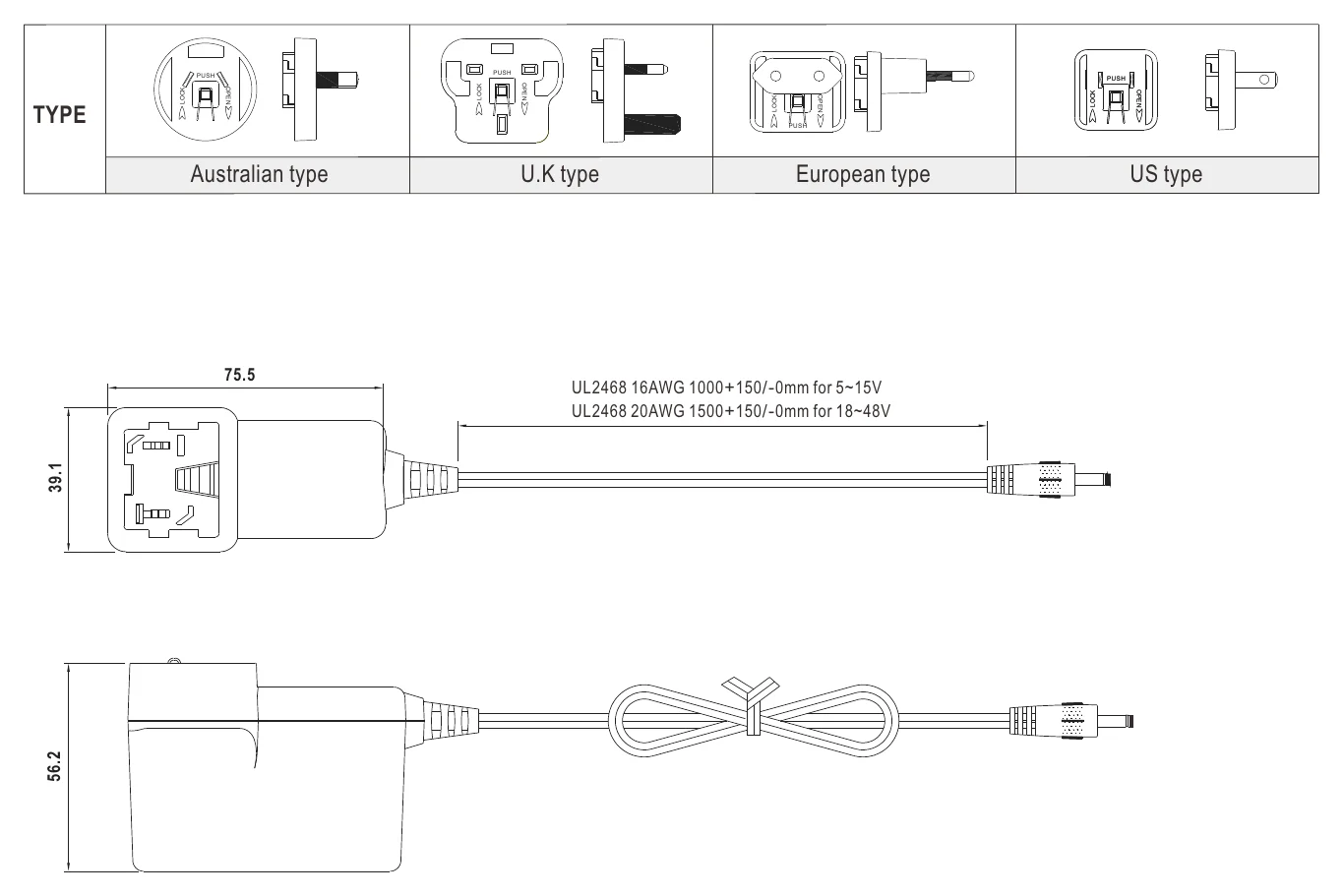

Dimension (LxWxH) 75.5x 39.1x 56.2 mm

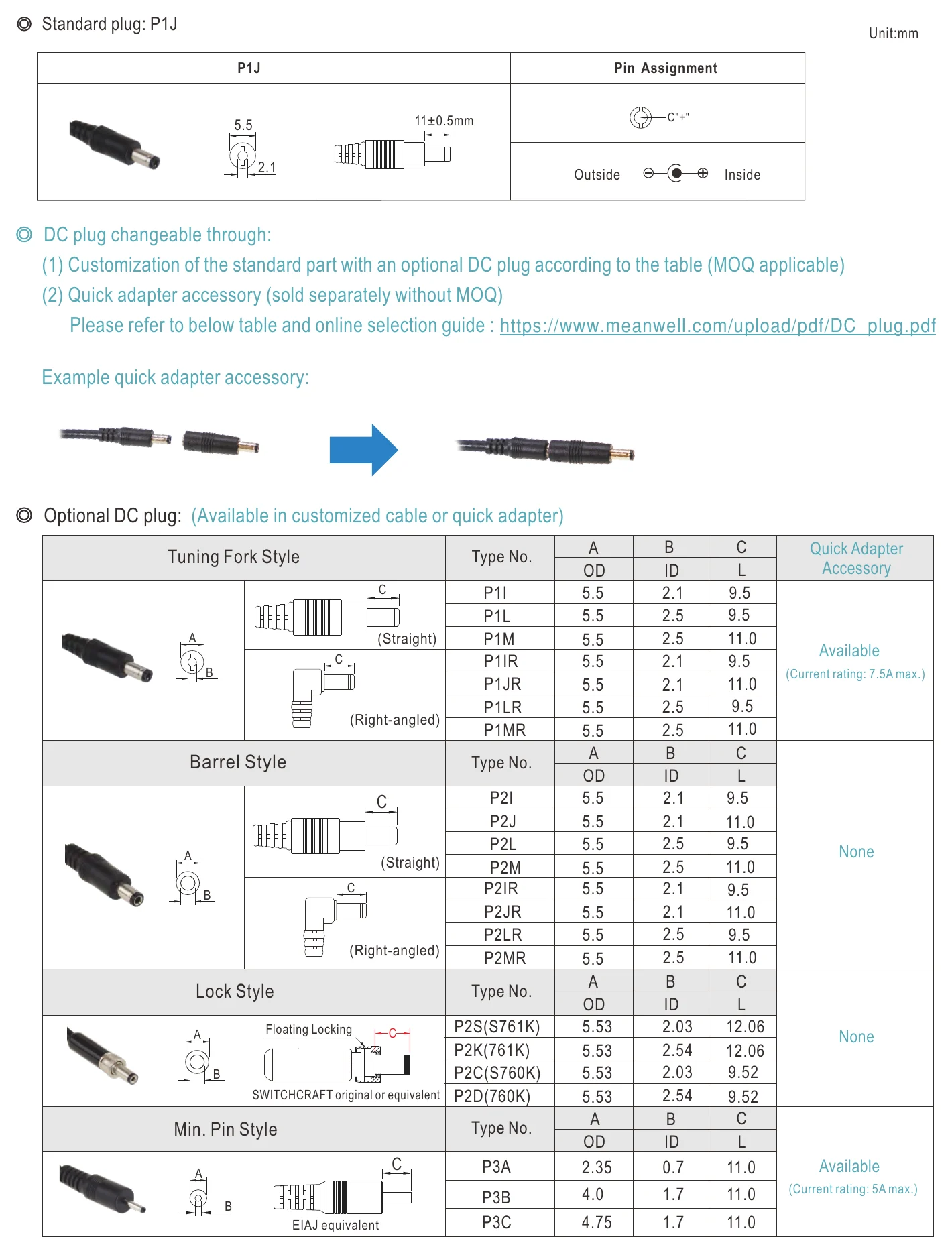

Standard DC plug P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GEM Series
  • Power Rating
    36 Watt
  • Output Voltage
    9 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    7.55 cm
  • Width
    5.62 cm
  • Height
    3.91 cm
  • Weight
    0.2 kg

File Downloads
