Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

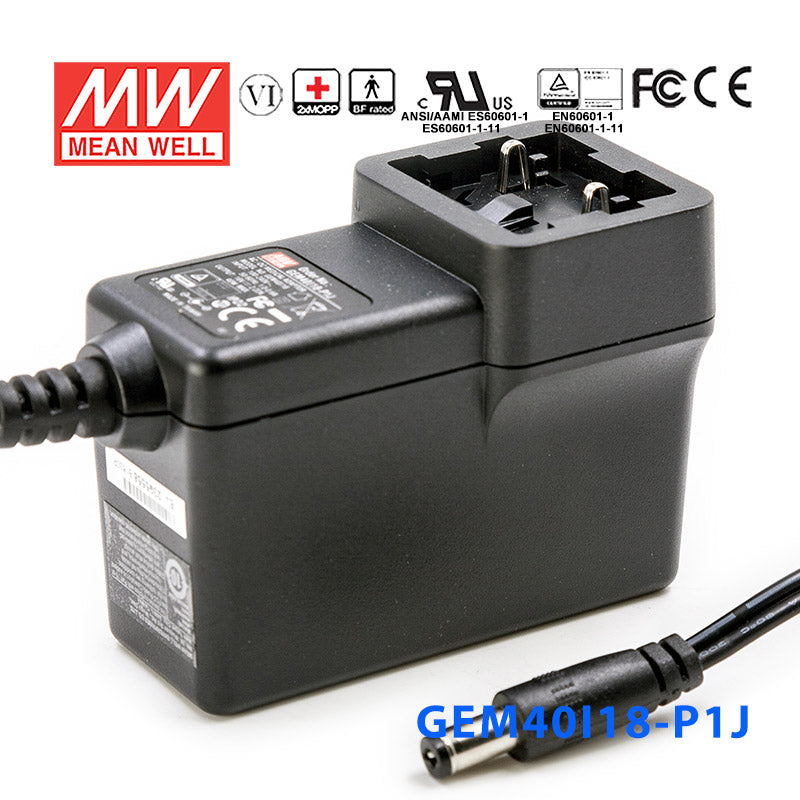

Mean Well GEM40I18-P1J Power Supply 40W 18V

SKU:

GEM40I18-P1J

End of Life, Succeeded by NGE45I18-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GEM40I18 is a 40W Mean Well power converter.

Key Features

✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

40 Watt
Output Voltage

18 Volt
Rated Current

2.22 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

7.55 cm
Width

5.62 cm
Height

3.91 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GEM40I18-P1J for an 18V embedded control system?

Yes, if the control system is designed for a constant 18V DC supply and the load remains within 2.22A. The unit is rated for 40W output, so it fits lower-power 18V embedded and control applications within that limit.

Is this power supply appropriate for 18V automation modules or industrial peripherals?

It is appropriate for 18V DC peripherals that need fixed-voltage input and draw no more than 2.22A. The constant voltage operating mode is intended for devices specified for 18V supply rather than current-regulated operation.

Can the GEM40I18-P1J run 18V monitoring or measurement equipment?

It can support 18V monitoring or measurement equipment when the total demand stays within 40W. With 2.22A available at 18V, it is sized for moderate-power electronic loads rather than higher-current systems.

What kind of AC input range does this model support?

This model is specified for 80-264VAC input. That gives it a wide operating window for installations that may see different nominal AC line voltages.

Is the GEM40I18-P1J suitable for exposed outdoor environments?

Its operating temperature range is listed as -25°C to +70°C, so thermal operation is defined. The specs provided do not include an IP rating, which means outdoor ingress protection is not specified here.

Model	Power	Voltage	Current
Mean Well GEM40I48-P1J Power Supply 40W 48V	40W	48V	0.83A	View
Mean Well GEM40I24-P1J Power Supply 40W 24V	40W	24V	1.66A	View
Mean Well GEM40I15-P1J Power Supply 40W 15V	40W	15V	2.66A	View
Mean Well GEM40I12-P1J Power Supply 40W 12V	40W	12V	3.33A	View
Mean Well GEM40I09-P1J Power Supply 36W 9V	36W	9V	4A	View
Mean Well GEM40I05-P1J Power Supply 25W 5V	25W	5V	5A	View
