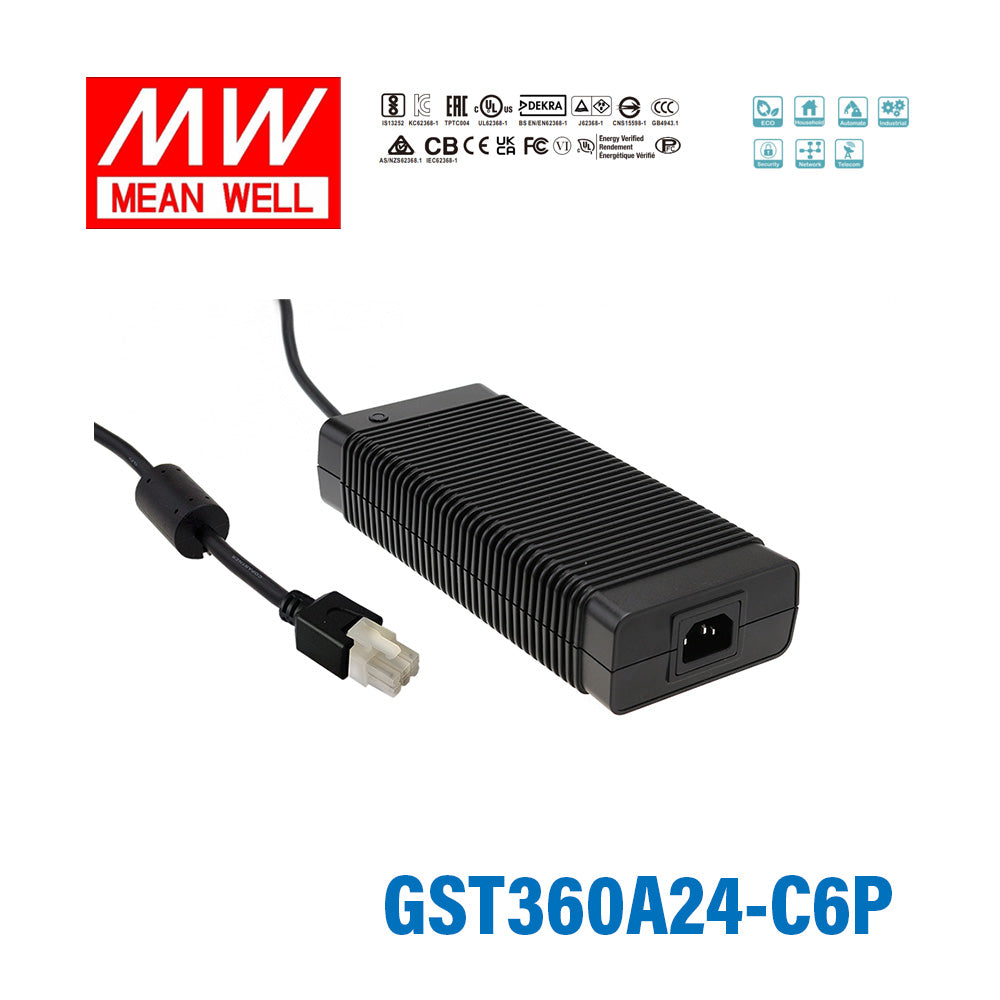

Mean Well GST360A24-C6P AC-DC Industrial Adaptor 360W 24V With 6 Pi...
Please Login for Pricing
Description
Description
Universal AC input / Full range
450W peak power(3 sec.)
C6P: MOLEX 6 pin connector
Key Features
- ✓Universal AC input / Full range450W peak power(3 sec.)
- ✓No load power consumption < 0.5W
- ✓Energy Efficiency Level VI
- ✓Meet EISA 2007 (Energy Independence and Security Act)
- ✓NRCan compliant
- ✓MEPS compliant
- ✓3 pole AC inlet IEC320-C14
- ✓Class I power (with earth pin) only
- ✓Protections: Short circuit /Overload / Over voltage/Over temperature
- ✓Fully enclosed plastic case
- ✓LED indicator for power on
- ✓Built-in active PFC function
- ✓Fanless design
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating360 Watt
-
Output Voltage24 Volt
-
Rated Current15 Ampere
-
Input Voltage85V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length22 cm
-
Width9.5 cm
-
Height4.6 cm
-
Weight1.4 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360A24-C6P?
The GST360A24-C6P is a 360W AC-DC industrial adaptor with a 24V DC output. It is rated for up to 15A output current. This model is designed for higher-power equipment that requires a stable 24V desktop-style power supply.
What type of connector does the GST360A24-C6P use?
This model uses a C6P MOLEX 6 pin connector as its standard DC plug. It also includes a 100cm output cable specified as UL2464, 16AWG x 4C. Buyers who need a 6 pin connector format should verify that their equipment matches this model's connector style.
What input range does the Mean Well GST360A24-C6P support?
The adaptor accepts a universal AC input range of 85 to 264VAC, and it also supports 120 to 370VDC input. This wide range makes it suitable for use across different regions and electrical environments. It is built with a 3 pole IEC320-C14 AC inlet and is a Class I power supply with earth pin.
Is the GST360A24-C6P suitable for demanding industrial environments?
Yes, this model is built for industrial use with protections for short circuit, overload, over voltage, and over temperature. It also operates across a wide working temperature range of -30°C to +70°C, subject to the output derating curve. The fully enclosed plastic case and fanless design also support reliable use in many commercial and industrial settings.
What efficiency and compliance features does this power adaptor offer?
The GST360A24-C6P meets Energy Efficiency Level VI and has no load power consumption below 0.5W. It is also listed as compliant with EISA 2007, NRCan, and MEPS requirements. These features make it a strong option for buyers looking for a high-power adaptor with modern energy-efficiency performance.
What safety and EMC approvals does the GST360A24-C6P have?
This model is approved to multiple safety standards including UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, and PSE J60950-1. For EMC, it meets standards such as EN55022 Class B, EN61000-3-2/3, FCC Part 15, CISPR22 Class B, CNS13438 Class B, GB9254, and GB17625.1. These approvals are useful for OEM and industrial buyers who need documented compliance coverage.
What kinds of applications is the GST360A24-C6P best suited for?
This 24V, 360W adaptor is best suited to industrial and commercial equipment that needs a high-power external AC-DC power source. Its fanless design, active PFC, and 450W peak power capability for 3 seconds make it well suited to applications with demanding but controlled power requirements. It is generally chosen when a robust desktop adaptor format is preferred over an open-frame supply.
