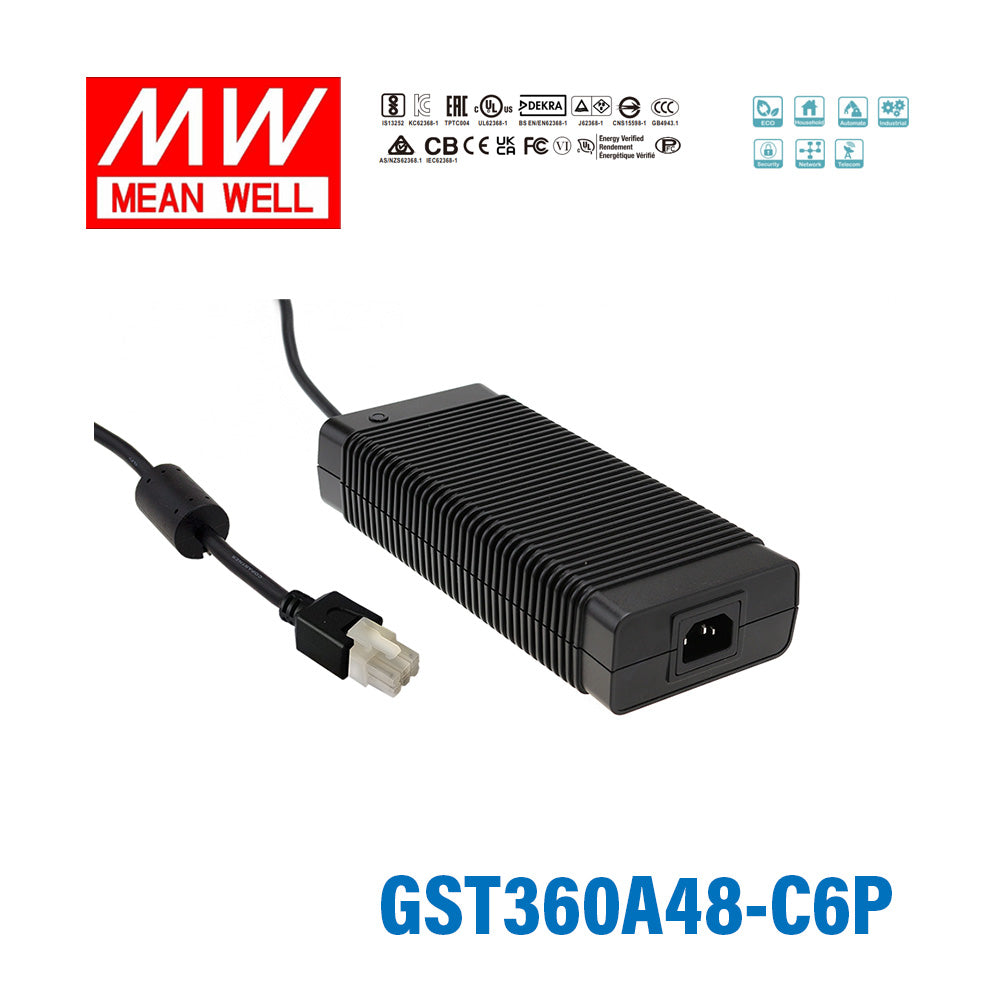

Mean Well GST360A48-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pi...
Please Login for Pricing
Description
Description
Universal AC input / Full range
450W peak power(3 sec.)
C6P: MOLEX 6 pin connector
Key Features
- ✓Universal AC input / Full range450W peak power(3 sec.)
- ✓No load power consumption < 0.5W
- ✓Energy Efficiency Level VI
- ✓Meet EISA 2007 (Energy Independence and Security Act)
- ✓NRCan compliant
- ✓MEPS compliant
- ✓3 pole AC inlet IEC320-C14
- ✓Class I power (with earth pin) only
- ✓Protections: Short circuit /Overload / Over voltage/Over temperature
- ✓Fully enclosed plastic case
- ✓LED indicator for power on
- ✓Built-in active PFC function
- ✓Fanless design
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating360 Watt
-
Output Voltage48 Volt
-
Rated Current7.5 Ampere
-
Input Voltage85V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length22 cm
-
Width9.5 cm
-
Height4.6 cm
-
Weight1.4 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360A48-C6P?
This model is a 360W AC-DC industrial adaptor with a 48V DC output. It is rated for 7.5A output current and is designed as a desktop-style external power supply. The product name and specification table identify it as the C6P version with a 6 pin connector.
What type of connector does the GST360A48-C6P use?
The GST360A48-C6P uses a C6P MOLEX 6 pin connector as its standard DC plug. Its output cable length is specified as 100cm using UL2464 16AWG 4-core cable. Buyers should confirm that their equipment is designed for this connector style and 48V output.
What AC input range does this power adaptor support?
This model supports a universal input range of 85 to 264VAC, and it also lists 120 to 370VDC input capability. That wide range makes it suitable for use across different standard mains environments where the product's approvals and application requirements are met. It also uses a 3 pole IEC320-C14 AC inlet.
Is the GST360A48-C6P suitable for industrial or commercial environments?
Yes, this adaptor is positioned as an industrial AC-DC power adaptor and includes protections for short circuit, overload, over voltage, and over temperature. It also has built-in active PFC, a fully enclosed plastic case, and a fanless design. These features make it a practical option for professional equipment that requires a 48V external supply.
Can this model operate in hot or cold environments?
The specified working temperature range is -30°C to +70°C, with reference to the output derating curve. That gives it a broader operating range than many general-purpose desktop adaptors. Buyers should still verify that the full application stays within the product's published limits.
Does the GST360A48-C6P include efficiency and compliance features important for B2B purchasing?
Yes, this model is listed as Energy Efficiency Level VI and meets EISA 2007 requirements. It is also noted as NRCan compliant and MEPS compliant. Those details can matter for commercial procurement where efficiency and regulatory alignment are part of the buying criteria.
What protections and reliability features are included in this power adaptor?
The GST360A48-C6P includes protection against short circuit, overload, over voltage, and over temperature. The specification table states overload protection operates in hiccup mode with auto-recovery. It also includes a power-on LED indicator and comes with a 3-year warranty.
