Mean Well

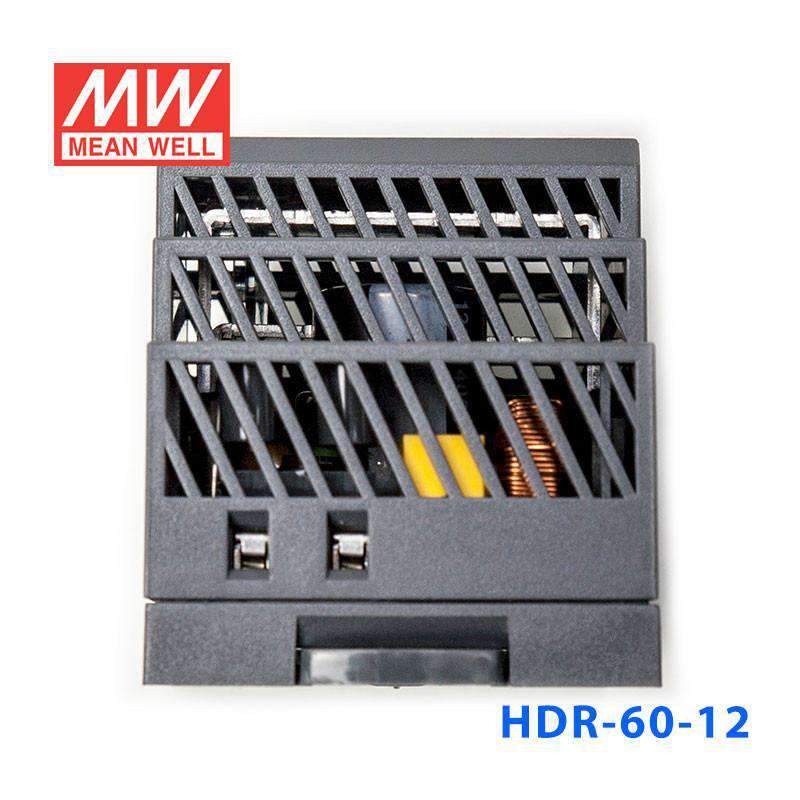

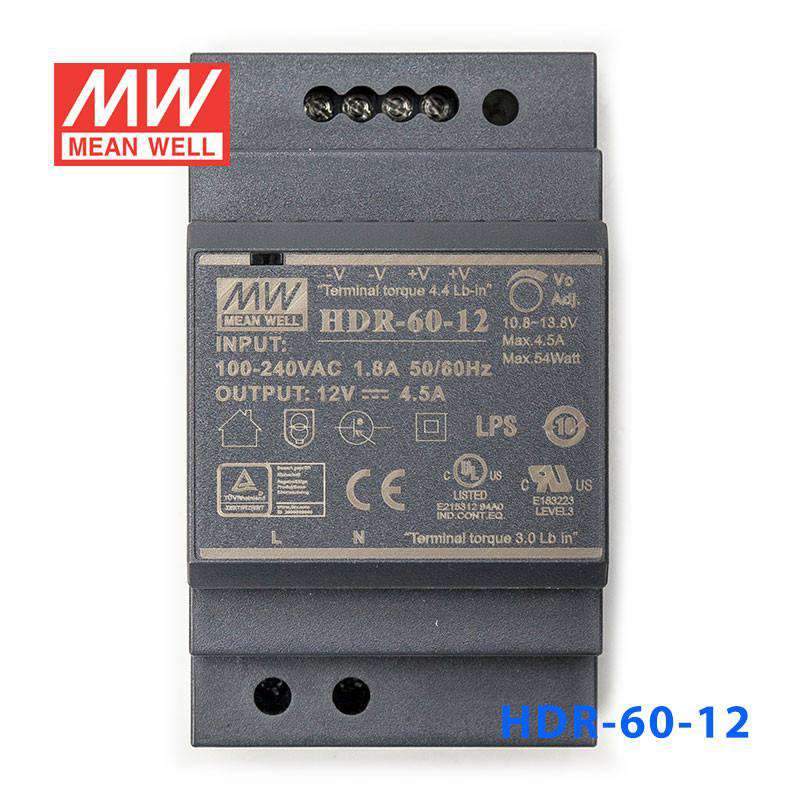

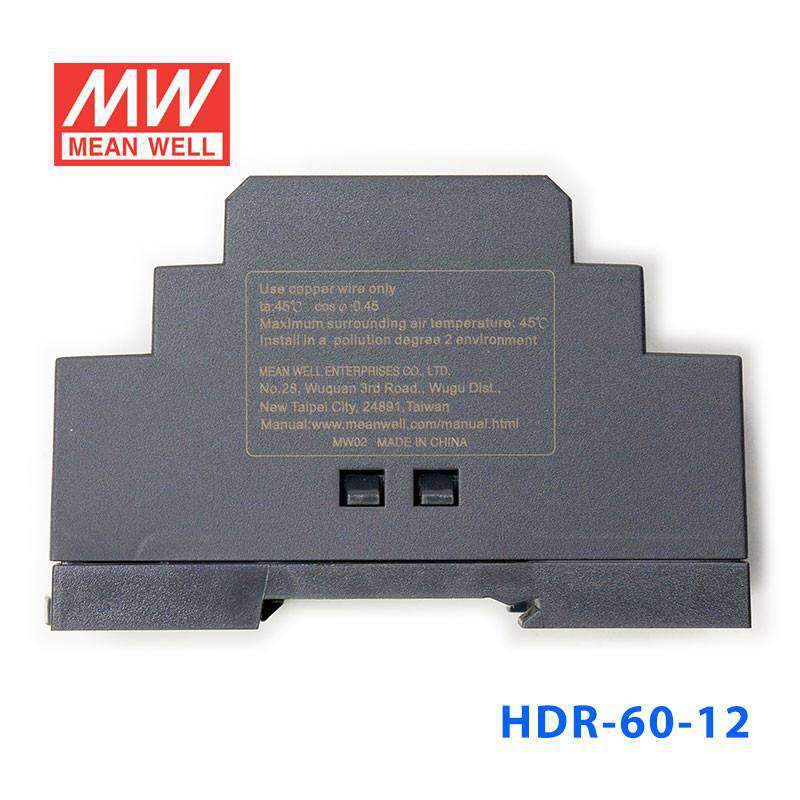

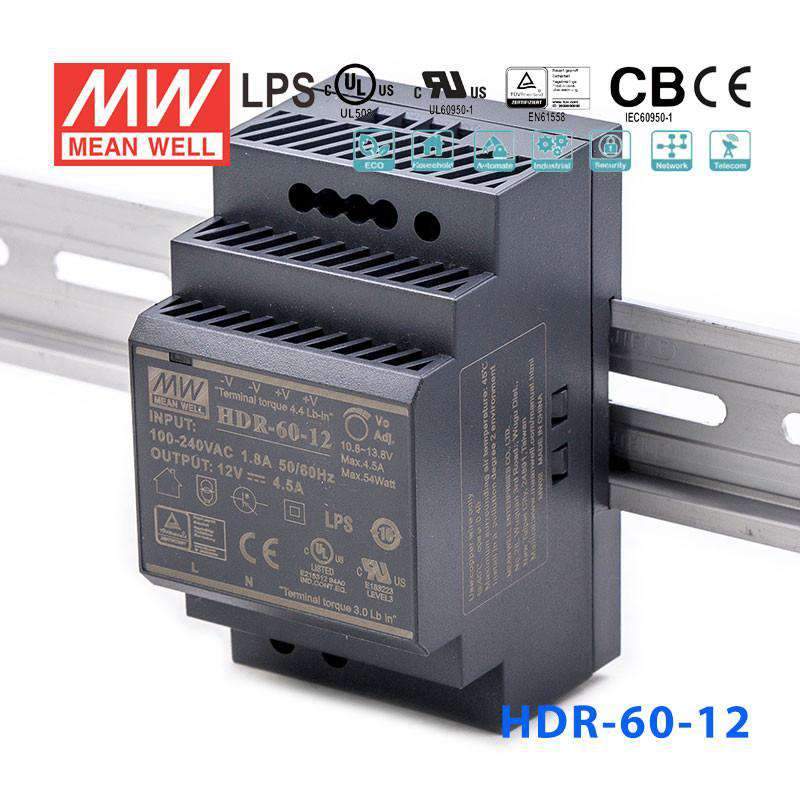

Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-60-12
Model
Please for Pricing
|

Description

Features

Universal AC input / Full range

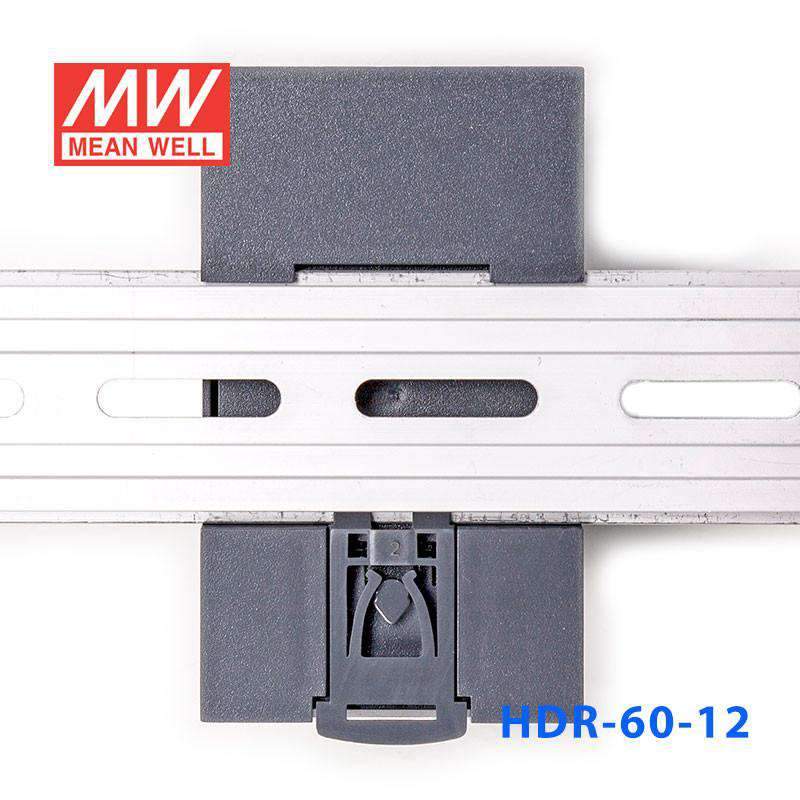

Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 52.5mm(3SU) width
Isolation class II
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 30A at 115VAC, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 50ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 52.5x90x54.5
Packing 60pcs / 12.4kg

Specifications
  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    54 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    4.5 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    9 cm
  • Width
    5.45 cm
  • Height
    5.25 cm
  • Weight
    0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 12V mid-range control panel applications suit the HDR-60-12?

At 54W and 4.5A on a 12V output, the HDR-60-12 powers mid-sized 12V loads such as multi-relay output modules, 12V HMI terminals, and industrial 12V Ethernet switches mounted in DIN rail panels. Its step-shape slim profile takes less rail space than conventional block-style PSUs.

How does the HDR-60-12 compare to the HDR-30-12 and HDR-100-12 in the 12V lineup?

HDR-30-12: 24W / 2A. HDR-60-12: 54W / 4.5A. HDR-100-12: 82.5W / 7.1A. HDR-100-12N: 90W / 7.5A. HDR-150-12: 122.4W / 10.2A. The HDR-60-12 fills the mid-power position between the 30W and 100W 12V models on the DIN rail.

What input voltage range does the HDR-60-12 accept?

The HDR-60-12 accepts 85–264VAC universal input, supporting 100V, 120V, 230V, and 240V mains without manual voltage selection. This broadens its suitability for international panel builds.

What is the operating temperature range for the HDR-60-12?

The HDR-60-12 is rated -30°C to +70°C. It requires enclosure installation since it carries no standalone IP rating. The -30°C lower limit covers unheated outdoor control cabinets in cold regions.
