Mean Well

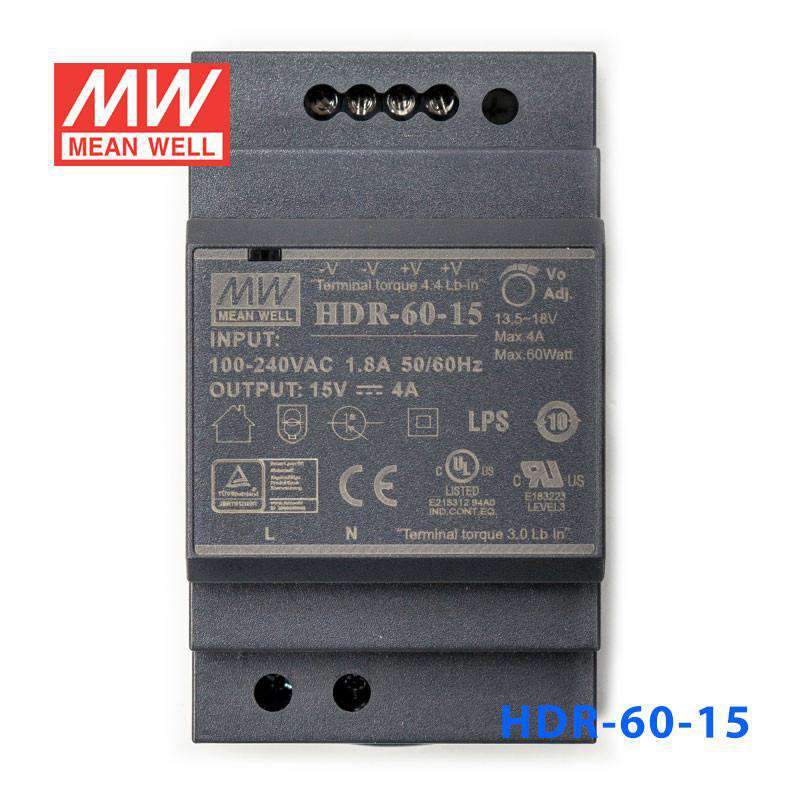

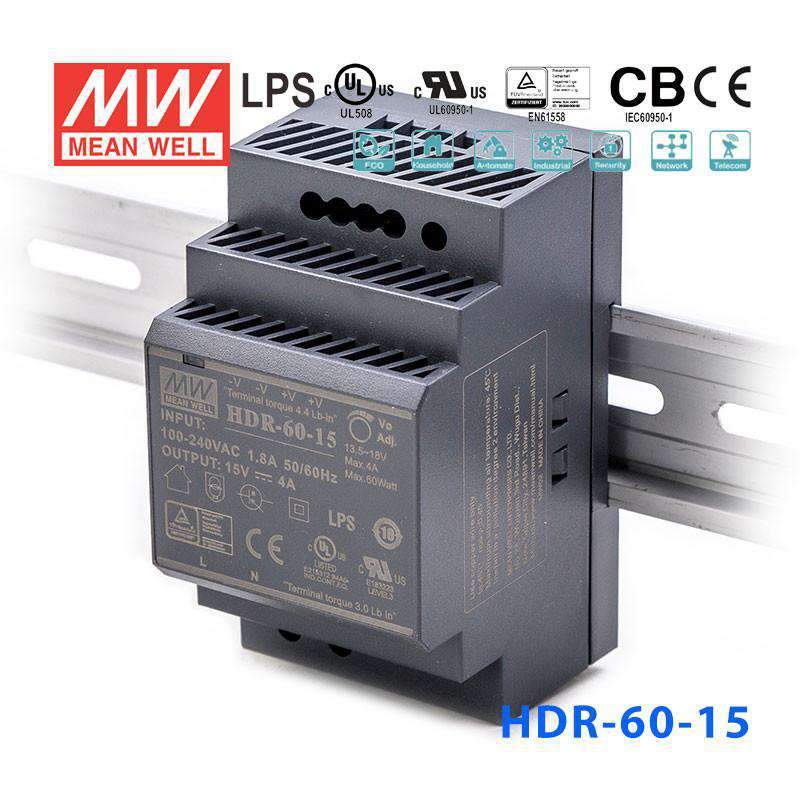

Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-60-15
Model
Please for Pricing
|

Description

Features

Universal AC input / Full range

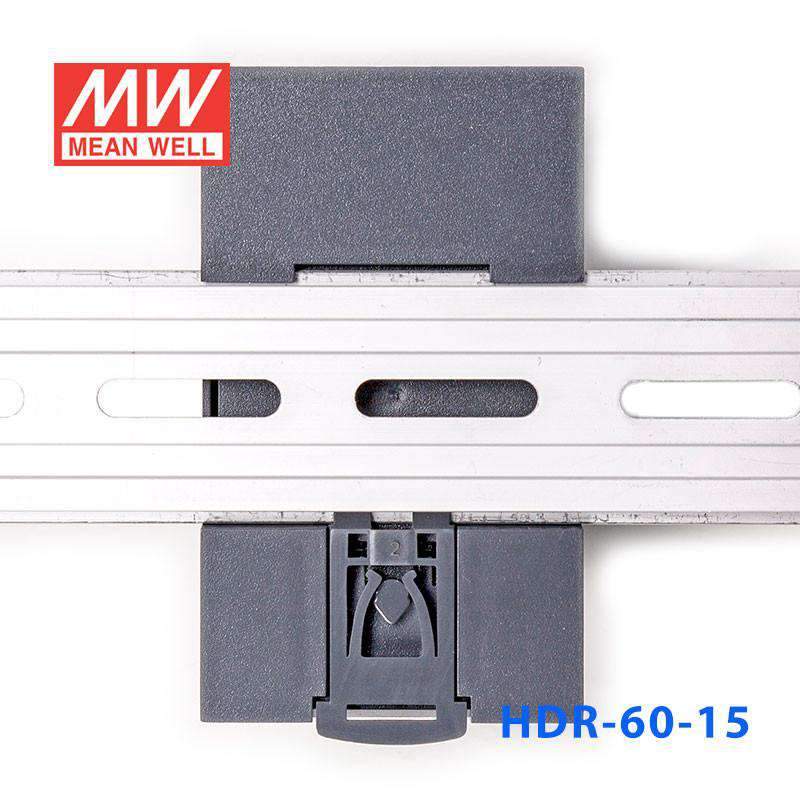

Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 52.5mm(3SU) width
Isolation class II

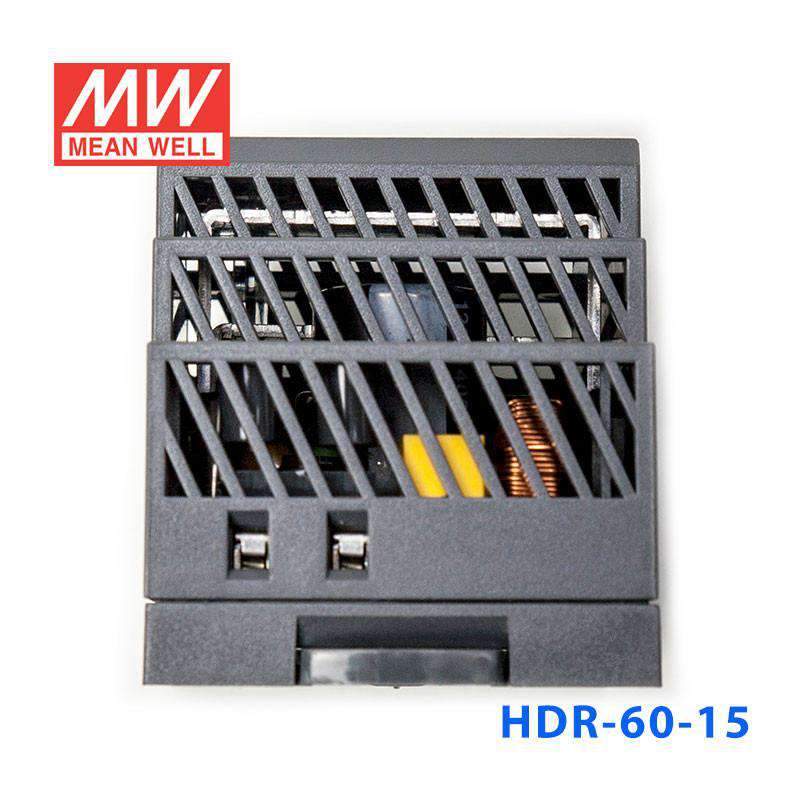

Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 30A at 115VAC, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 50ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 52.5x90x54.5
Packing 60pcs / 12.4kg

Specifications
  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    60 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    9 cm
  • Width
    5.45 cm
  • Height
    5.25 cm
  • Weight
    0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 15V applications can the HDR-60-15 power in a DIN rail panel?

The HDR-60-15 delivers 60W at 4A on a 15V bus, appropriate for mid-power 15V loads such as analog signal conditioning racks, legacy servo amplifier auxiliaries, and 15V industrial communication power supplies in DIN rail panels. It mounts on standard 35mm rail.

How does the HDR-60-15 compare to the HDR-30-15 and HDR-100-15 in the 15V group?

HDR-30-15: 30W / 2A. HDR-60-15: 60W / 4A. HDR-100-15: 92W / 6.13A. HDR-100-15N: 97.5W / 6.5A. HDR-150-15: 128.3W / 8.55A. The HDR-60-15 doubles the output of the HDR-30-15 in the same voltage class.

Does the HDR-60-15 have an adjustable output voltage?

Yes, the DC output is adjustable and the unit is isolation class II. No-load power consumption is less than 0.3W, which limits standby losses in continuously energized control systems.

Is the HDR-60-15 suitable for use in enclosed control cabinets with high ambient temperatures?

The HDR-60-15 is rated up to +70°C operating temperature, accommodating warm industrial enclosures. The -30°C lower limit covers cold-environment panels. The unit must be installed inside an enclosure as it carries no IP rating.
