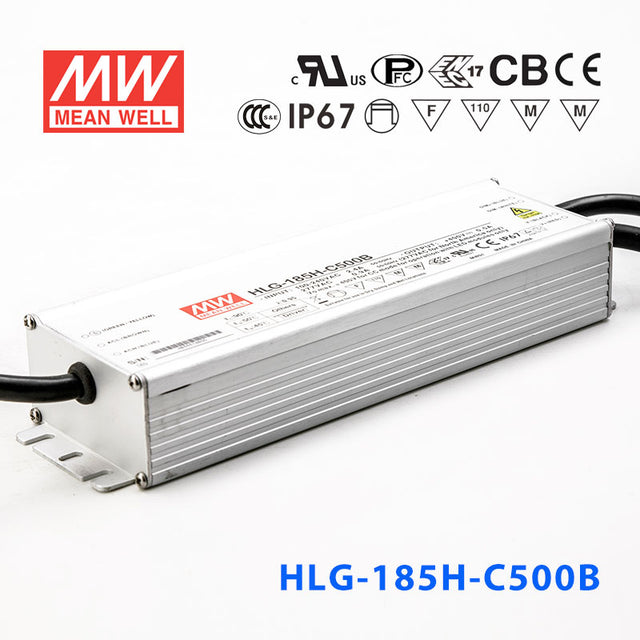

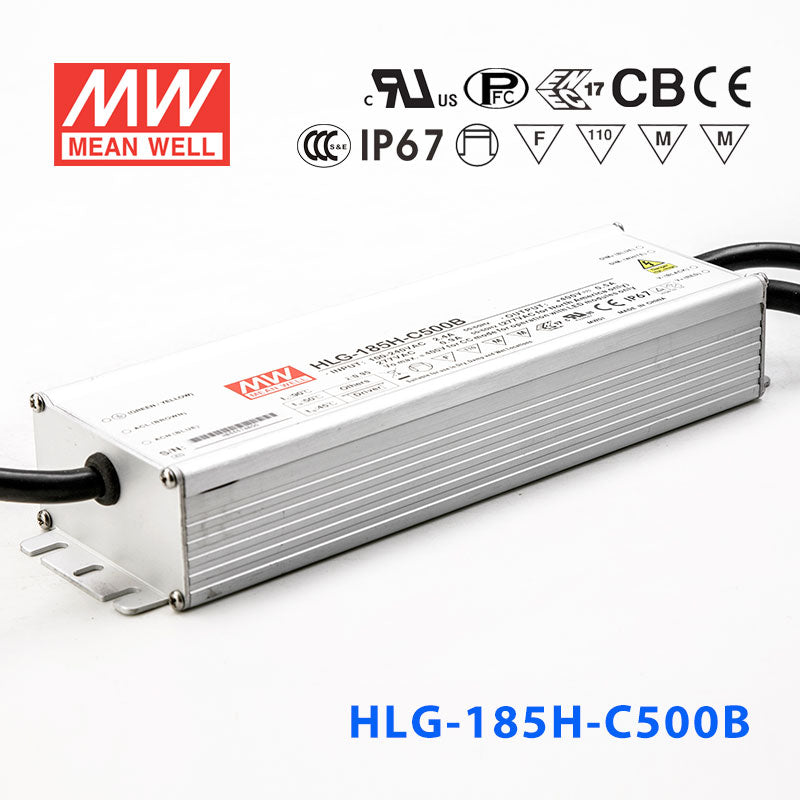

Mean Well HLG-185H-C500AB Power Supply 200W 500mA - Adjustable and Dimmable

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-185H-C500AB

Log in to see price Trade pricing & online ordering for account holders

Select model — 6 in this family

HLG-185H-C500AB

HLG-120H-C500A 500mA Adjustable Backorder

HLG-120H-C500B 500mA Dimmable Backorder

HLG-120H-C500AB 500mA Adjustable and Dimmable Backorder

HLG-185H-C500A 500mA Adjustable Backorder

HLG-185H-C500B 500mA Dimmable Backorder

HLG-185H-C500AB 500mA Adjustable and Dimmable Backorder

Product variants

Available to order

Overview

HLG-185H-C500AB is the model of this series: rated current 500mA, rated power 200W, typical efficiency 94%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP65).

HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-185H-C500ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER: 200W
CONSTANT CURRENT REGION^Note.2: 200V ~ 400V
CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer 250 ~ 500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 450 ~ 470V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Refer to "Derating Curve")
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm (L*W*H)
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-185H-C500AB BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-185H-C500AB DIMMING OPERATION — DIMMING OPERATION

HLG-185H-C500AB Illustration (page 5) — Illustration (page 5)

HLG-185H-C500AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-185H-C500AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-185H-C500AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-185H-C500AB Dimensions (mm) — Dimensions (mm)

HLG-185H-C500AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED bay lighting

Downloads

Datasheet1

HLG-185H-C500AB datasheetHLG-185H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate (HLG-185H-C)(EN) PDF Download

CB Certificate (HLG-185H-C)(EN) PDF Download

EMC Certificate (HLG-185H-C)(EN) PDF Download

ENEC Certificate (HLG-185H-C)(EN) PDF Download

PSE Certificate(HLG-185H-C)(EN) PDF Download

Test reports1

Test Report(HLG-185H-C500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-185H-C500AB for dimmable long-string LED signage installations?

Yes. The HLG-185H-C500AB provides 500mA constant current with a 200-400V compliance range, supporting very long series chains of LED signage modules. The AB model includes both output adjustment and 1-10V/PWM dimming, enabling day/night brightness scheduling through a lighting controller.

Is the HLG-185H-C500AB suitable for driving series-connected LED fixtures in a commercial corridor with dimming?

Yes. The 200-400V compliance range allows many LED fixtures to be wired in a single series string, reducing wiring complexity. At 200W and 500mA, it handles long runs of corridor downlights or linear fixtures. The dimming input integrates with building management systems for occupancy or daylight-responsive dimming.

Can this driver power a dimmable backlit LED display or light wall?

Yes. The high compliance voltage of 200-400V accommodates large arrays of series-wired LED modules typical in backlit displays. The 500mA constant-current output keeps brightness uniform across the array, and the dimming interface allows content-synchronized brightness changes or energy-saving schedules.

What safety considerations apply when using the HLG-185H-C500AB outdoors?

The series' IP65 or IP67 rating protects against dust and water jets, making it suitable for sheltered outdoor installations. However, the output can reach 400V DC, which requires proper high-voltage wiring practices, insulated connectors, and code-compliant enclosures. The case temperature (Tcase) must stay within -40°C to +90°C, with derating per the derating curve.

How does the HLG-185H-C500AB differ from the C500A and C500B?

All three share the same 200W, 500mA, 200-400V constant-current specs. The C500A has only an output adjustment potentiometer for current trimming. The C500B has only a dimming input (1-10V/PWM). The C500AB combines both, providing manual current adjustment plus external dimming control.

How do I verify that the HLG-185H-C500AB is compatible with my LED configuration?

Confirm that your LED modules are rated for 500mA drive current, then calculate the total forward voltage of all modules wired in series. The sum must fall between 200V and 400V. The number of LEDs you can connect depends on each LED's forward voltage at 500mA. Also ensure total power does not exceed 200W.
