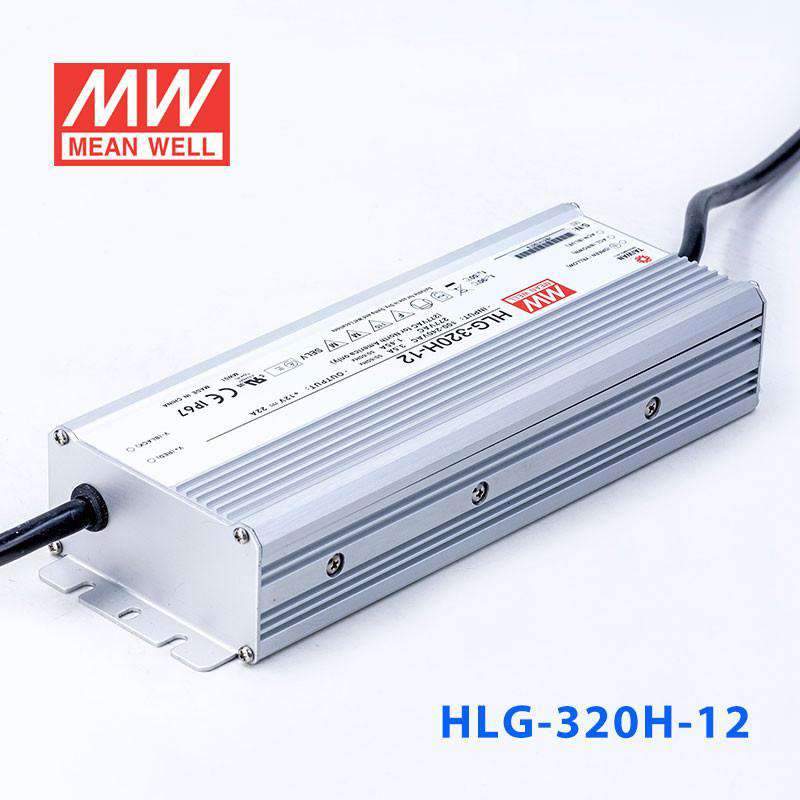

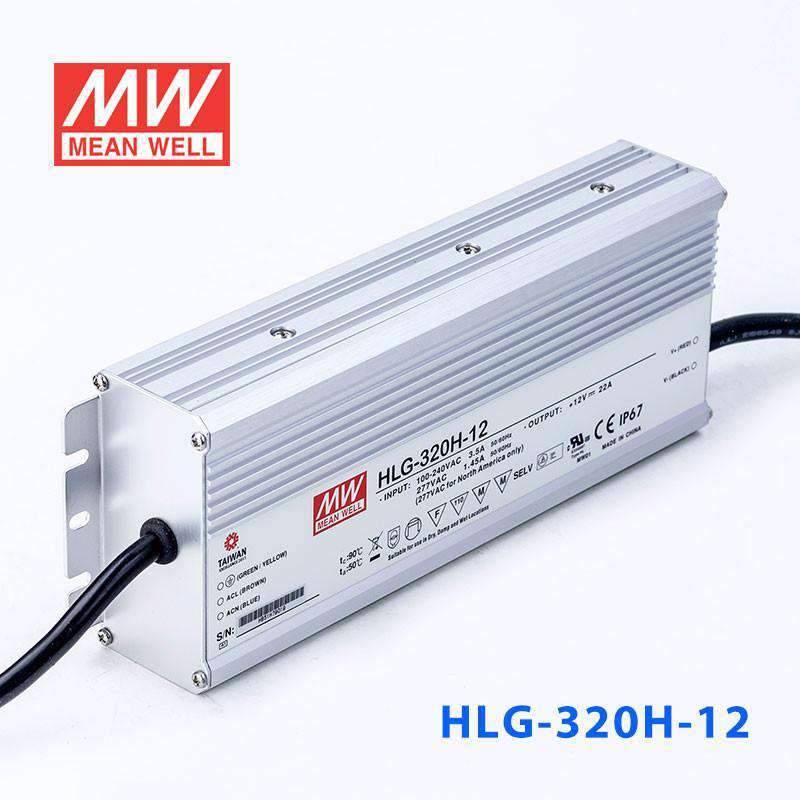

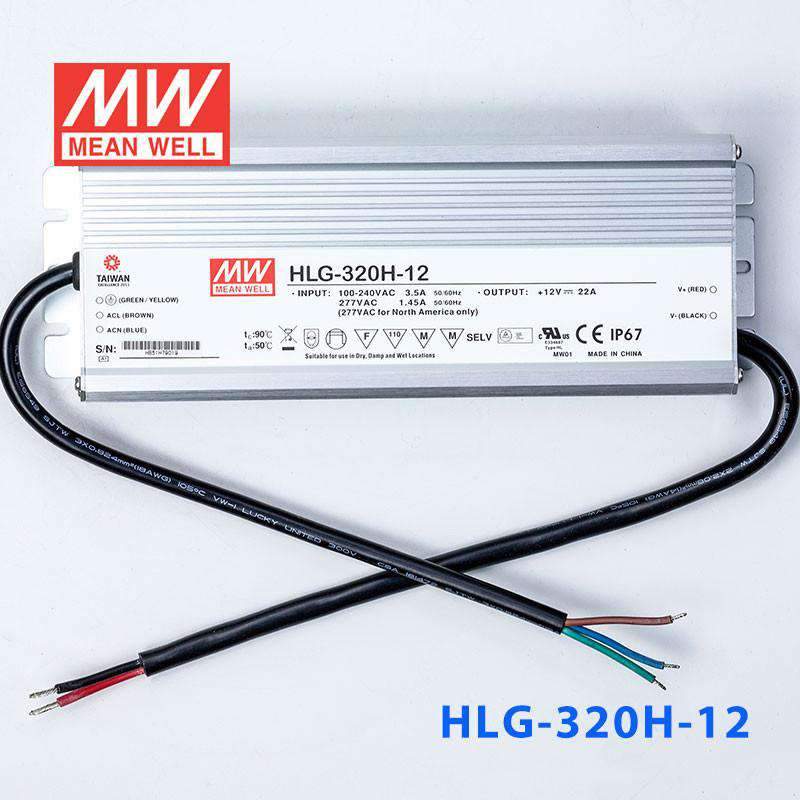

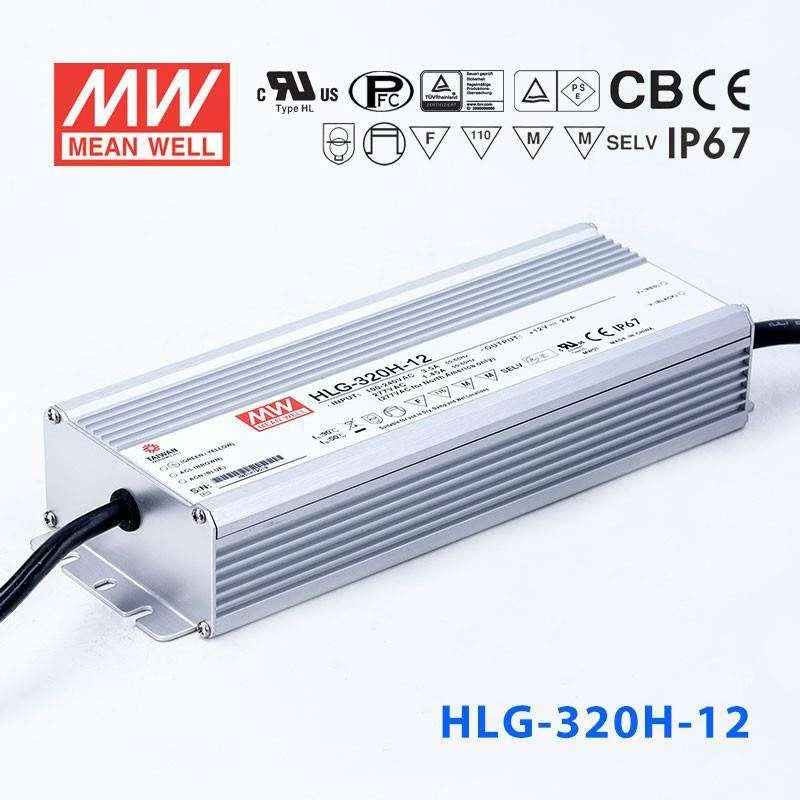

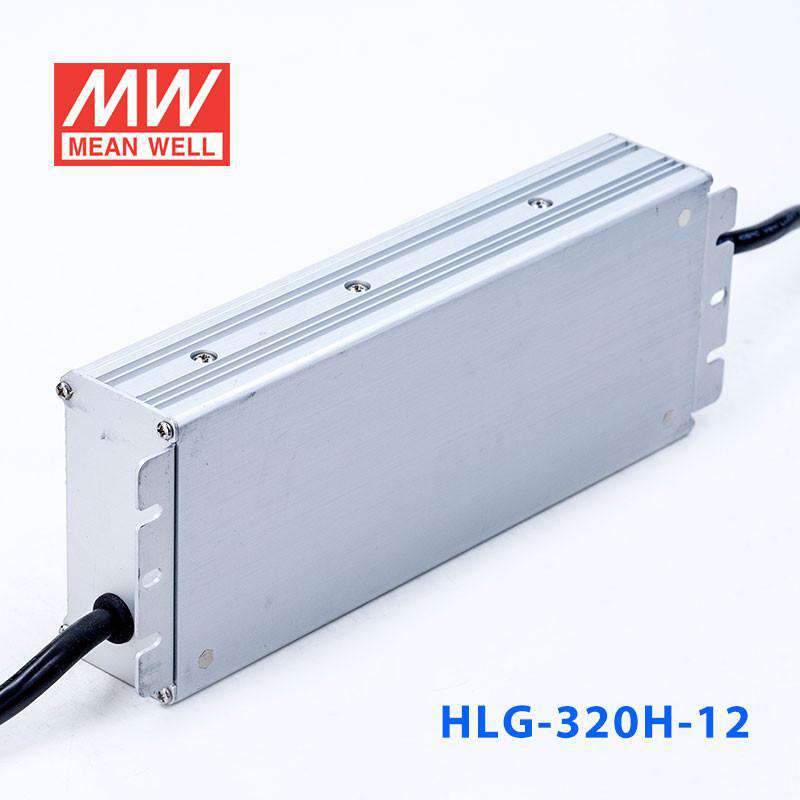

Mean Well HLG-320H-12 Power Supply 264W 12V

Yes. The HLG-320H-12 delivers 264W at 12V with up to 22A, making it capable of driving substantial lengths of 12V LED strip. For example, if your strip draws 14.4W per meter, this driver supports up to 264 / 14.4 = 18.3 meters. Check your strip's rated power per meter and keep total wattage at or below 264W.

Yes. At 264W and 12V with 22A of output current, the HLG-320H-12 can drive multiple strings of 12V LED modules used in illuminated channel letters. The IP67 waterproof rating allows outdoor sign-cabinet mounting, and the wide 90-305VAC input supports varying commercial mains voltages.

Yes. With 264W at 12V and 22A output, the HLG-320H-12 has enough capacity for extensive 12V LED under-cabinet runs in commercial kitchens. The IP67 rating also protects against splashes and steam common in kitchen environments. Keep the total connected load at or below 264W.

That depends on the strip's power per meter. The HLG-320H-12 supplies up to 264W at 12V (22A). For example, a strip rated at 9.6W per meter could run up to 264 / 9.6 = 27.5 meters. A higher-output strip at 19.2W per meter would support 264 / 19.2 = 13.75 meters. Always check your strip's rated power per meter.

Yes. The IP67 waterproof rating protects against full dust ingress and temporary water immersion up to 1 meter. It can be mounted in exposed outdoor locations, sign cabinets, or ground-level junction boxes without additional weatherproofing.

The HLG-320H-12 provides 264W at 12V (22A) while the HLG-240H-12 provides 192W at 12V (16A). Both are IP67 waterproof with the same 90-305VAC input range. Choose the 320H when your total 12V LED load exceeds 192W or when you want additional headroom for future expansion.
