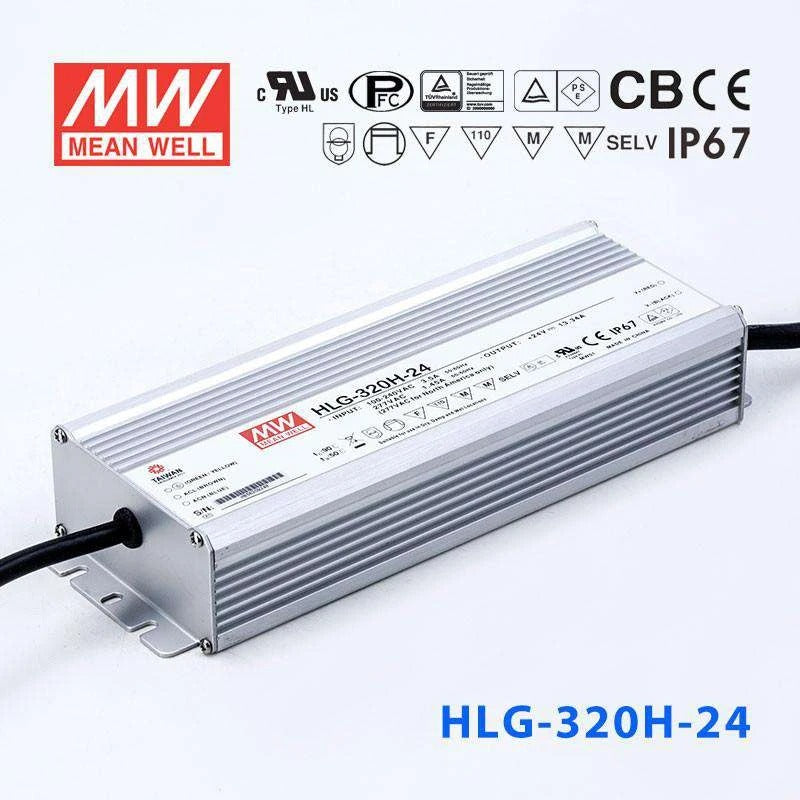

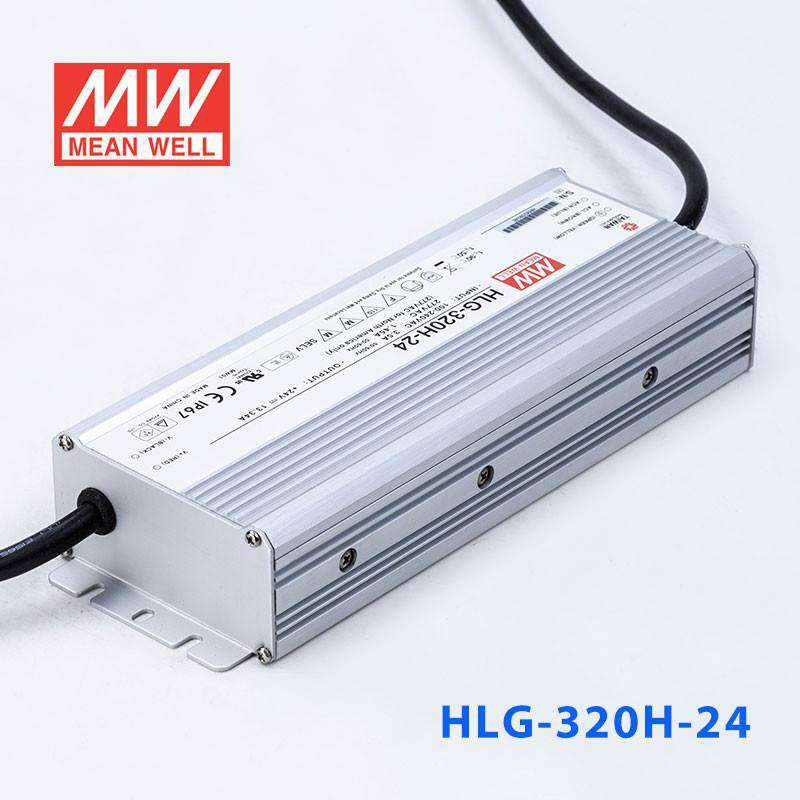

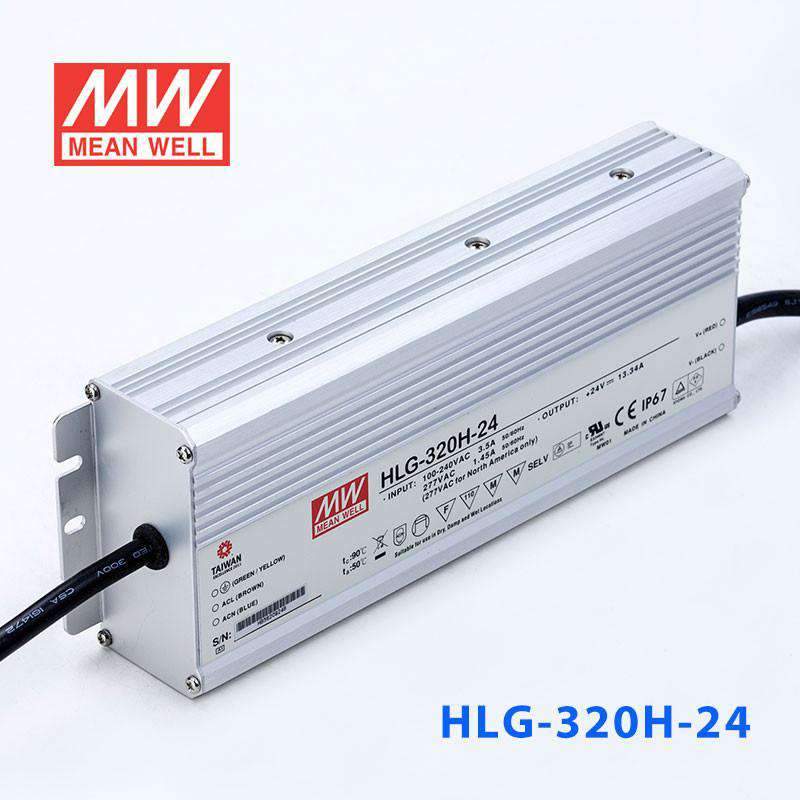

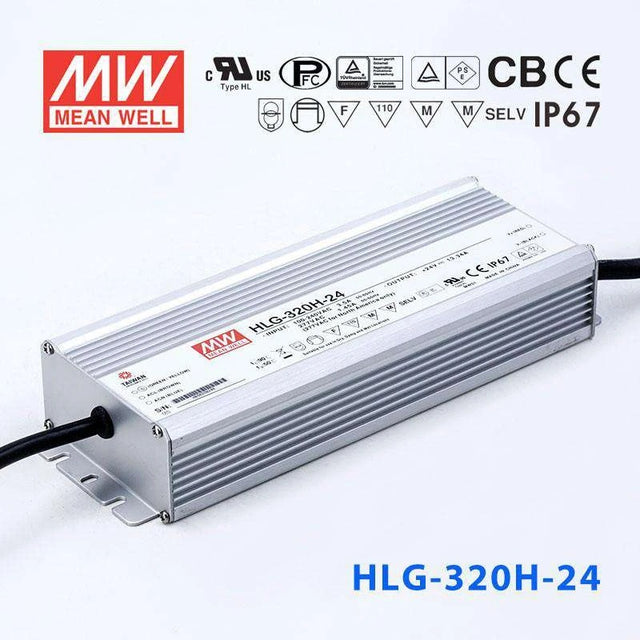

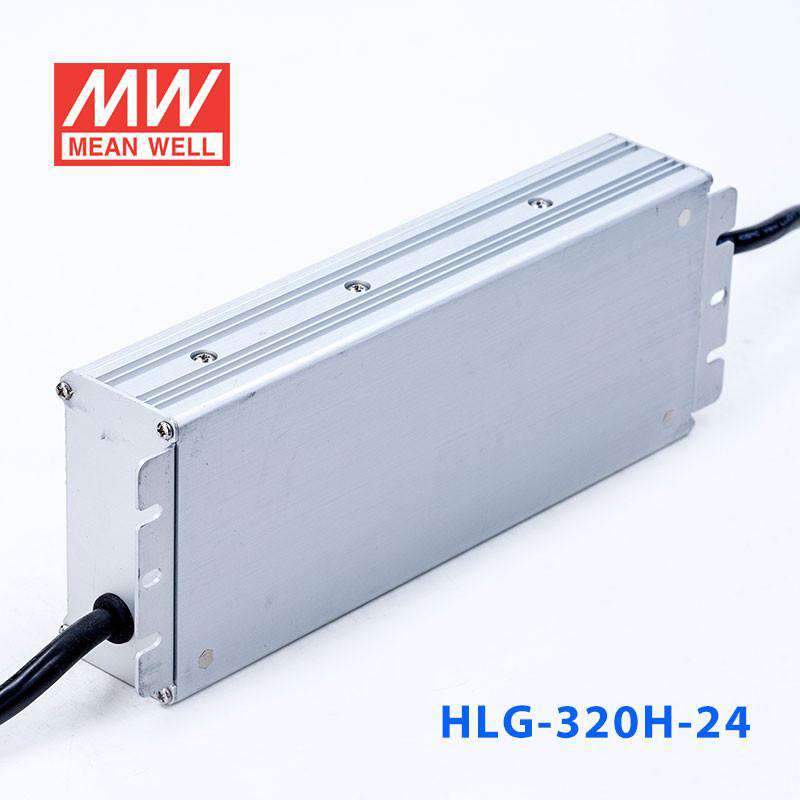

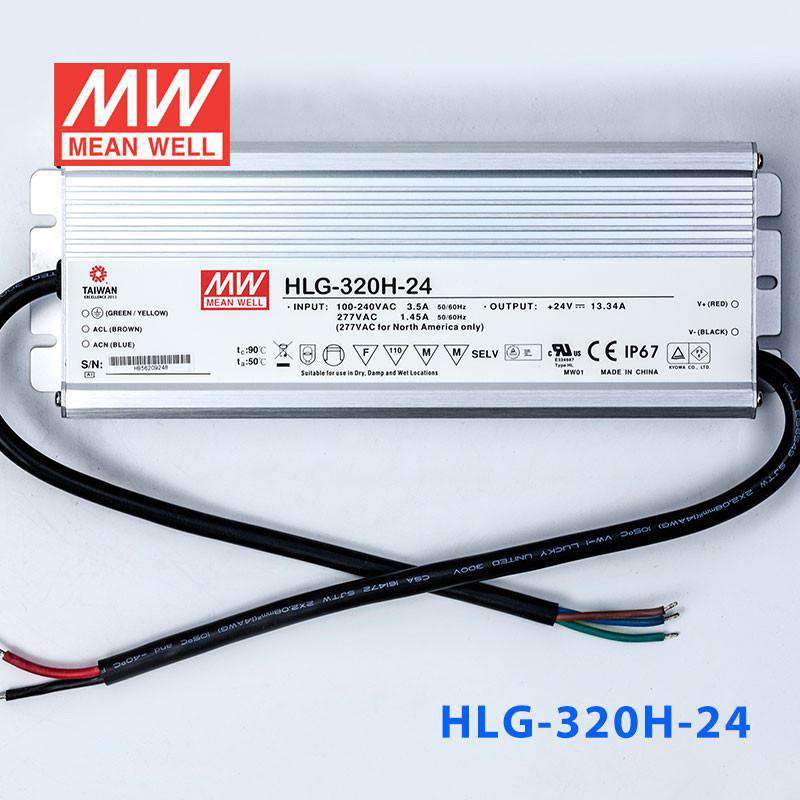

Mean Well HLG-320H-24 Power Supply | HLG Series in Auckland

Description

The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & EMC
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

320 Watt
Output Voltage

24 Volt
Rated Current

13.34 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

25.2 cm
Width

9 cm
Height

4.38 cm
Weight

1.88 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-320H-24 to power a large 24V LED strip installation outdoors?

Yes. The HLG-320H-24 outputs 24V at up to 13.34A (320W) with an IP67 waterproof rating, making it suitable for long 24V LED strip runs in fully exposed outdoor locations. Its aluminium casing and -40°C to +90°C operating range handle harsh weather.

Is the HLG-320H-24 suitable for powering 24V LED signage or channel letters?

Yes. At 320W and 24V it can drive a substantial array of 24V LED sign modules or channel letters. The wide 90-305VAC input and IP67 rating make it a reliable choice for outdoor commercial signage exposed to varying mains voltages and weather.

Can the HLG-320H-24 drive 24V LED high-bay or warehouse lighting?

Yes. With 320W at 24V and constant-current operation, the HLG-320H-24 can power high-bay 24V LED fixtures in warehouses, factories, or large indoor spaces. Its IP67 rating also makes it suitable for damp or dusty industrial environments.

How many meters of 24V LED strip can the HLG-320H-24 handle?

Divide 320W by your strip's power consumption per meter. For instance, a strip rated at 14.4W/m would allow about 22.2 meters (320W / 14.4W per meter). Always check your strip's rated power per meter and keep the total load at or below 320W.

Can the HLG-320H-24 be installed in a location subject to temporary flooding or standing water?

Its IP67 rating protects against temporary immersion up to 1 meter depth, so brief flooding events will not damage the unit. However, it is not designed for continuous submersion. For permanently submerged applications, a higher-rated enclosure would be needed.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-320H-24 Power Supply 320W 24V with AU/NZ plug	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable	320W	24V	13.34A	IP65	View
Mean Well S-HLG-320H-12 Power Supply 264W 12V with AU/NZ plug	264W	12V	22A	IP67	View
Mean Well HLG-320H-48A Power Supply 320W 48V - Adjustable	320W	48V	6.7A	IP65	View
Mean Well HLG-320H-48 Power Supply 320W 48V	320W	48V	6.7A	IP67	View
Mean Well HLG-320H-12 Power Supply 264W 12V	264W	12V	22A	IP67	View
Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-15 Power Supply 285W 15V	285W	15V	19A	IP67	View
