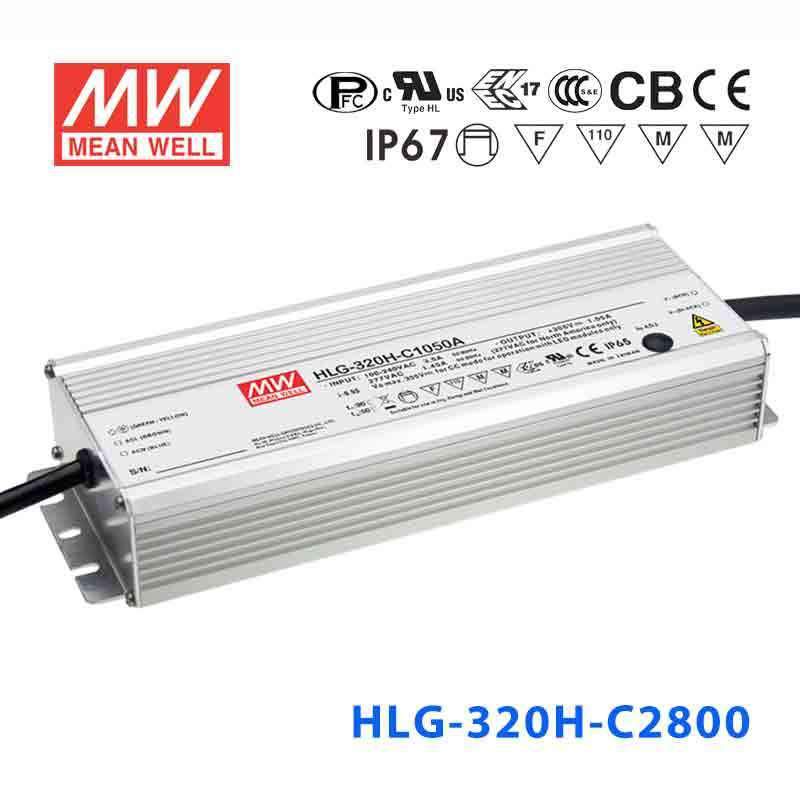

Mean Well HLG-320H-C2800B Power Supply 319.2W 2800mA - Dimmable
Please Login for Pricing
Description
Description
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating319.2 Watt
-
Output Voltage118 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty7 Year
-
Length25.2 cm
-
Width9 cm
-
Height4.38 cm
-
Weight1.88 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-320H-C2800B to power dimmable LED high-bay fixtures?
Yes. The HLG-320H-C2800B provides 319.2W at 2800mA constant current with a built-in dimming interface (1-10V, PWM, or resistance). It can drive high-bay LED modules whose string voltage falls within the 57-114V range, and the dimming capability supports occupancy-based or scheduled brightness reduction.
Is the HLG-320H-C2800B suitable for LED street lighting with photocell dimming?
Yes. The dimming input accepts 1-10V or PWM signals, which many photocell dimming controllers output. At 319.2W and 2800mA, it can power street light modules in the 57-114V range. The IP65 rating handles outdoor dust and rain spray, though it should be mounted in a pole-top enclosure for best protection.
Can the HLG-320H-C2800B drive LED fixtures in a cold-storage facility?
Yes. Its operating temperature range of -40°C to +85°C covers cold-storage and freezer environments. The 2800mA constant current output at up to 319.2W can drive high-output LED luminaires, and the dimming input allows reducing light during non-working hours to save energy.
Will the HLG-320H-C2800B work for illuminated LED advertising displays?
Yes, provided the display modules operate within the 57-114V CC voltage range at 2800mA. The built-in dimming input is useful for reducing brightness at night. At 319.2W total output, it can handle large illuminated sign panels or backlit display cabinets.
How does the HLG-320H-C2800B differ from the HLG-320H-C2800A?
Both share identical core specs: 319.2W, 118V, 2800mA, and a 57-114V CC range with IP65 protection. The -B model includes a dimming input (1-10V/PWM/resistance) but no output adjustment potentiometer. The -A model has an output adjustment potentiometer but no dimming input. Choose -B for external dimming control or -A for fixed output trimming.
Can the HLG-320H-C2800B be mounted in an outdoor junction box?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, making it safe for outdoor junction boxes, electrical cabinets, or covered mounting locations. For fully submerged or heavily flooded installations, the IP67-rated DA variant would be more appropriate.
