Can I use the HLG-40H-12AB for dimmable 12V LED under-cabinet lighting in a kitchen?

Yes. The HLG-40H-12AB outputs 12V at up to 3.33A (40W) and supports 1-10V, PWM, and resistance dimming. This makes it ideal for under-cabinet strips where you want smooth brightness control from a wall dimmer or smart home controller.

Is the HLG-40H-12AB a good choice for dimmable 12V cove lighting in a home theater?

Yes. The built-in dimming input allows integration with common 1-10V or PWM dimmers for scene-setting in home theaters, media rooms, or architectural cove details. The adjustable output also lets you fine-tune the voltage to match your specific LED strip.

Can the HLG-40H-12AB power a 12V LED light box with dimming control?

Yes. At 40W and 12V, it can drive a compact 12V lightbox while providing dimming via 1-10V, PWM, or resistance signal. The adjustable potentiometer lets you set the base output to match the exact load of your lightbox modules.

How many meters of 12V LED strip can the HLG-40H-12AB power?

Divide 40W by the strip's rated wattage per meter. For instance, a 12V strip rated at 10W/m could run up to 4 meters (40W / 10W per meter = 4m). Always check your strip's rated power per meter and keep total load at or below 40W.

Can the HLG-40H-12AB be used in a semi-enclosed outdoor soffit?

Yes. Its IP65 water-resistant rating protects against dust ingress and low-pressure water jets, making it suitable for sheltered outdoor locations such as soffits, eaves, or covered walkways. For direct rain exposure, consider the IP67-rated HLG-40H-12B instead.

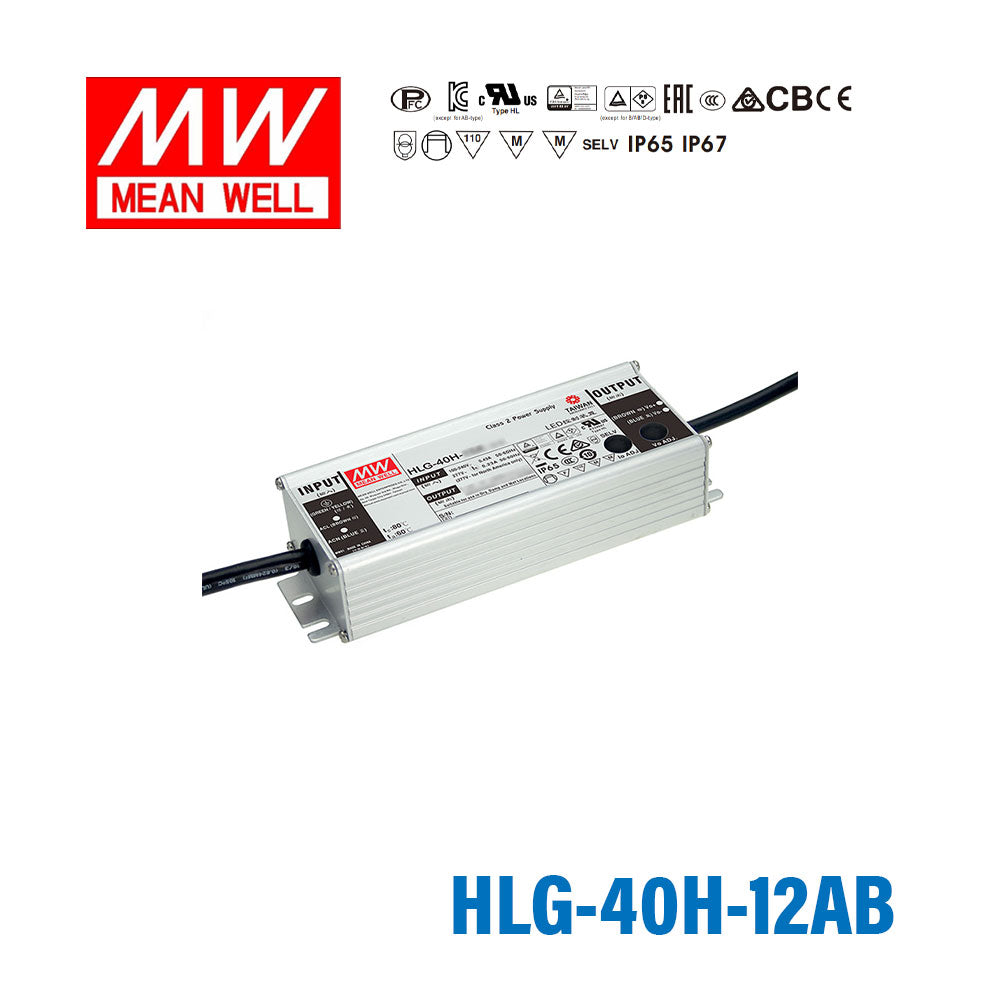

Mean Well HLG-40H-12AB Power Supply 40W 12V - Adjustable and Dimmable

☎ 0800 88 87 86 | +64 22 522 4414

Apply Wholesale and Trade Account Contact us

The HLG-40H is a 40W Mean Well AC-DC LED driver (input: 90~305VAC, output: 12V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 12V
✓ Rated output current: 3.33A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty
