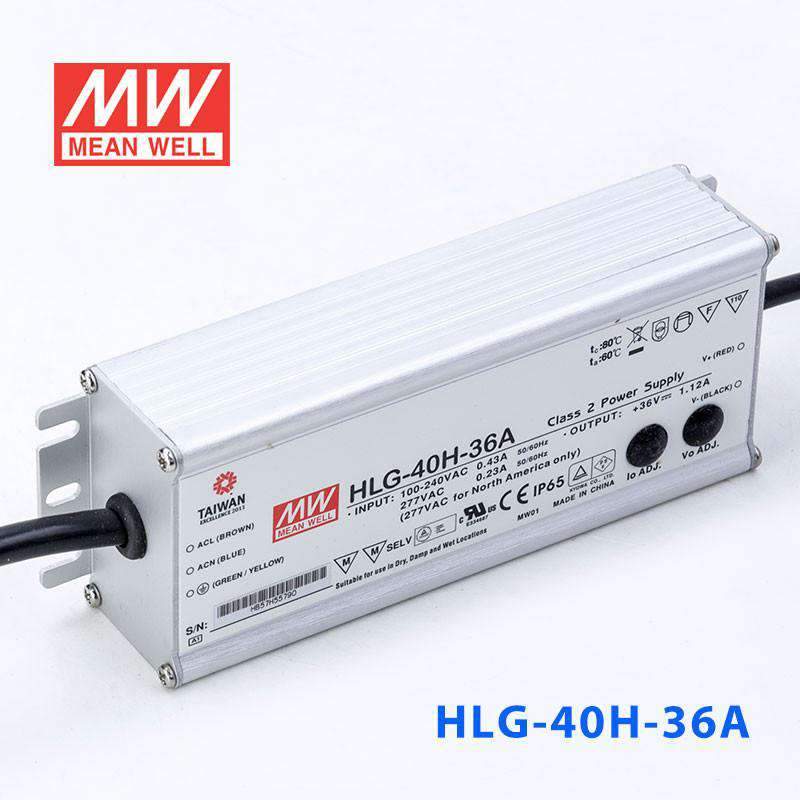

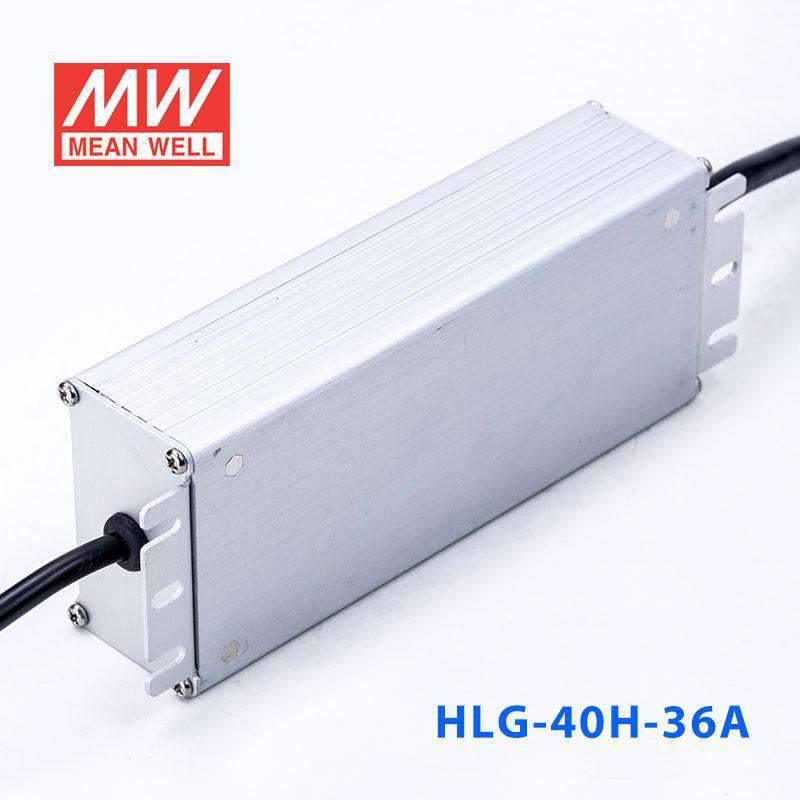

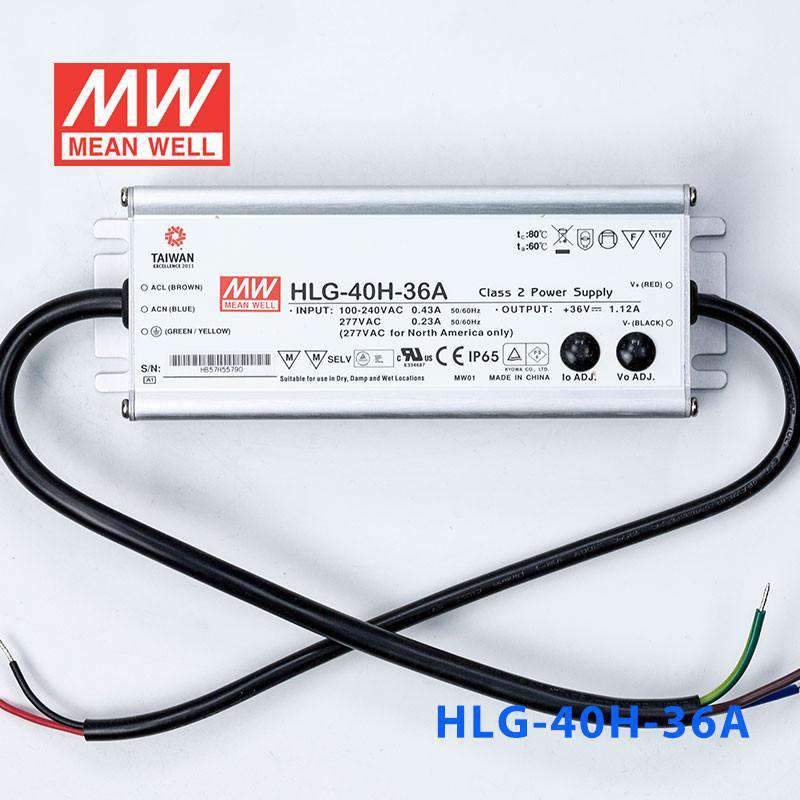

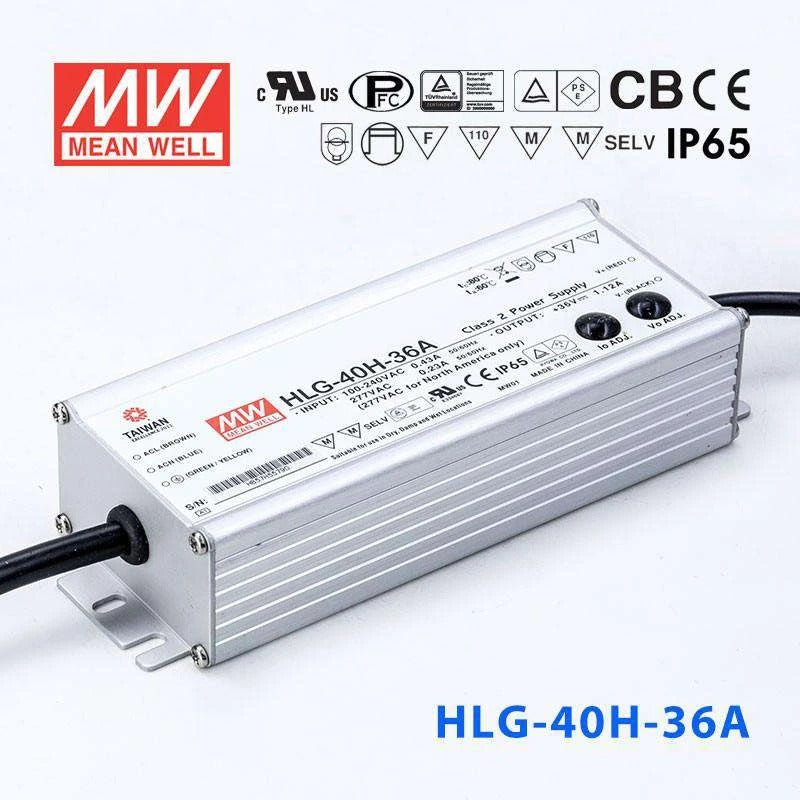

Mean Well HLG-40H-36A Power Supply 40W 36V - Adjustable for LED and Street Lighting

Overview

HLG-40H-36A is the 36V output model of this series: rated current 1.12A, rated power 40.32W, typical efficiency 88.5%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-40H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is able to operate for -40 ~ +80 case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-40H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-40H-36ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 21.6 ~ 36V
RATED CURRENT: 1.12A
RATED POWER: 40.32W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE: 33 ~ 40V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 0.67 ~ 1.12A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 88.5%
AC CURRENT (Typ.): 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 49V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent , GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13, IP65 approved ; J61347-1 , J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-40H-36A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-40H-36A Illustration (page 5) — Illustration (page 5)

HLG-40H-36A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-40H-36A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-40H-36A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-40H-36A MECHANICAL SPECIFICATION ※A-Type — MECHANICAL SPECIFICATION ※A-Type

HLG-40H-36A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HLG-40H-36A WATERPROOF CONNECTION — WATERPROOF CONNECTION

HLG-40H-36A WATERPROOF CONNECTION (2) — WATERPROOF CONNECTION (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-40H-36A datasheetHLG-40H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

TUV Certificate (HLG-40H)(EN) PDF Download

UL Certificate(HLG-40H)(EN) PDF Download

CB Certificate(HLG-40H)(EN) PDF Download

EMC Certificate(HLG-40H)(EN) PDF Download

PSE Certificate(HLG-40H)(EN) PDF Download

Test reports1

Test Report(HLG-40H-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-40H-36A to fine-tune output for a 36V LED art or display installation?

Yes. The HLG-40H-36A includes a built-in potentiometer that lets you adjust the output voltage and current. This is useful for art installations or display cases where the 36V LEDs may need a slightly lower drive level to achieve the desired brightness without adding a separate controller.

Is the HLG-40H-36A suitable for powering 36V LED strips in retail shelf lighting?

Yes. At 40W and 36V it can drive typical retail shelf or cabinet LED strip runs. The adjustable output lets you match the driver precisely to the strip's optimal voltage, reducing potential over-driving and extending LED lifespan. The compact 171 x 61.5 x 36.8 mm form factor fits easily above ceiling tiles or behind display shelves.

Can the HLG-40H-36A power 36V LED modules in an indoor light box?

Yes, as long as total module power stays within 40W. The constant-current CC range of 21.6-36V accommodates LED module strings that may operate slightly below the full 36V. The potentiometer adjustment is helpful for balancing brightness uniformity across the light box surface.

How many meters of 36V LED strip can the HLG-40H-36A handle?

Divide 40W by your strip's rated wattage per meter. For a 36V strip drawing 8W/m, you can run 5 meters (40W / 8W per meter = 5m). For a higher-density strip at 14W/m, about 2.8 meters. Always verify your strip's rated power per meter and keep total consumption within 40W.

Is the HLG-40H-36A water-resistant enough for a damp warehouse or garage?

Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, which is more than adequate for damp warehouses, garages, or covered loading docks. For locations with direct rain exposure or potential standing water, consider the IP67-rated HLG-40H-36 base model.
