Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

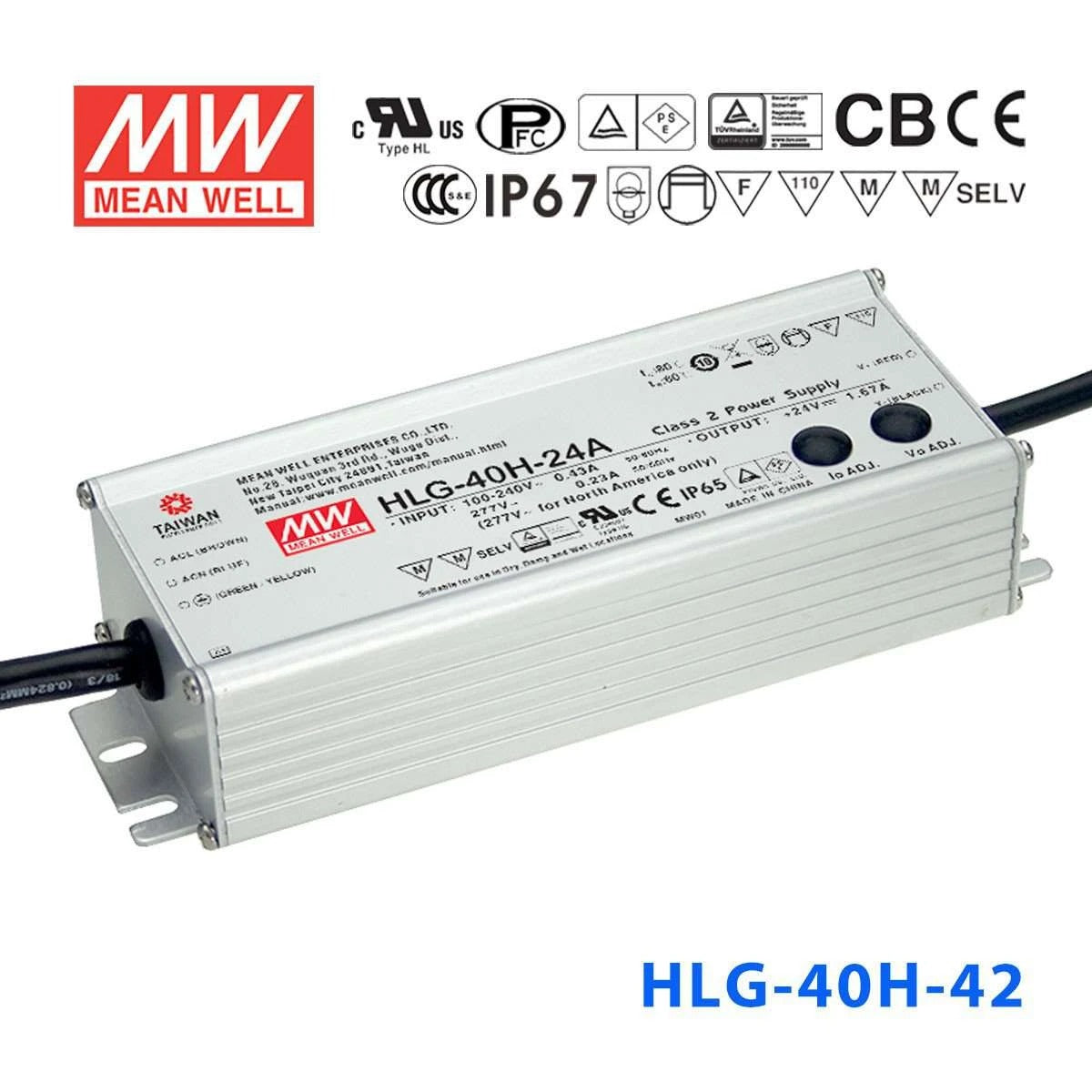

Mean Well HLG-40H-42 Power Supply 40W 42V 960mA
4.9 (21 reviews)Notify me when it's back in stock
Mean Well HLG-40H-42 Power Supply 40W 42V 960mA
Log in to see priceThe HLG-40H is a 40W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 42V
- ✓ Rated output current: 0.96A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating40 Watt
-
Output Voltage42 Volt
-
Rated Current0.96 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length17.1 cm
-
Width6.15 cm
-
Height3.68 cm
-
Weight0.73 kg
::specification::
Frequently Asked Questions
Can I use the HLG-40H-42 to power 42V LED panel lights?
Yes. The HLG-40H-42 delivers 40W at 42V in constant-current mode, which suits 42V LED panels commonly used in commercial and architectural lighting. Its CC voltage range of 25-42V also accommodates panels with slightly lower forward-voltage requirements during startup.
Is the HLG-40H-42 a good choice for outdoor 42V LED landscape lighting?
Yes. With an IP67 waterproof rating it can handle direct rain, sprinkler exposure, and ground-level moisture. The 40W output at 42V is well-suited for small landscape accent fixtures or path lights that run on a 42V bus.
Can the HLG-40H-42 drive 42V LED modules in a small light box or sign?
Yes, provided the total load does not exceed 40W. At 42V and 0.96A, it matches standard 42V LED module strings. The wide 90-305VAC input range accommodates most mains voltages worldwide, which is useful for commercial signage installations.
How many meters of 42V LED strip can the HLG-40H-42 support?
That depends on the strip's power consumption per meter. The HLG-40H-42 supplies up to 40W at 42V. For a strip rated at 8W/m you could run up to 5 meters (40W / 8W per meter = 5m). Always verify your strip's rated power per meter and keep total draw at or below 40W.
Can the HLG-40H-42 be left exposed to rain without an additional enclosure?
Yes. Its IP67 rating means the unit is sealed against dust and protected against temporary submersion in water up to 1 meter. It can be mounted outdoors without a secondary enclosure, even in heavy rain or sprinkler zones.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-40H Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-40H-24 Power Supply 40W 24V 1.67A | 40W | 24V | 1.67A | IP67 | View |
| Mean Well HLG-40H-24A Power Supply 40W 24V - Adjustable 1.67A | 40W | 24V | 1.67A | IP65 | View |
