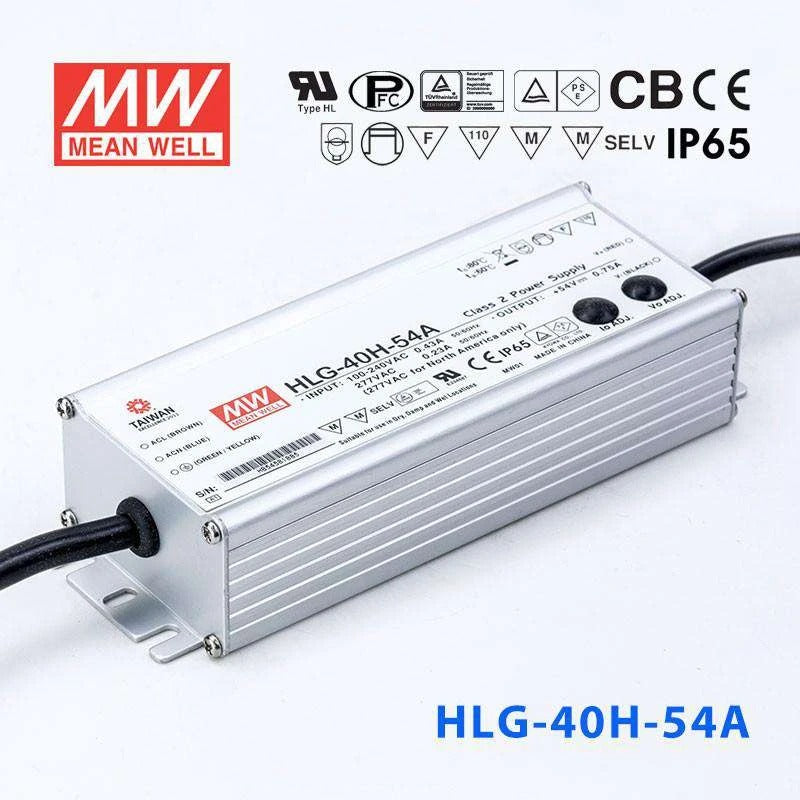

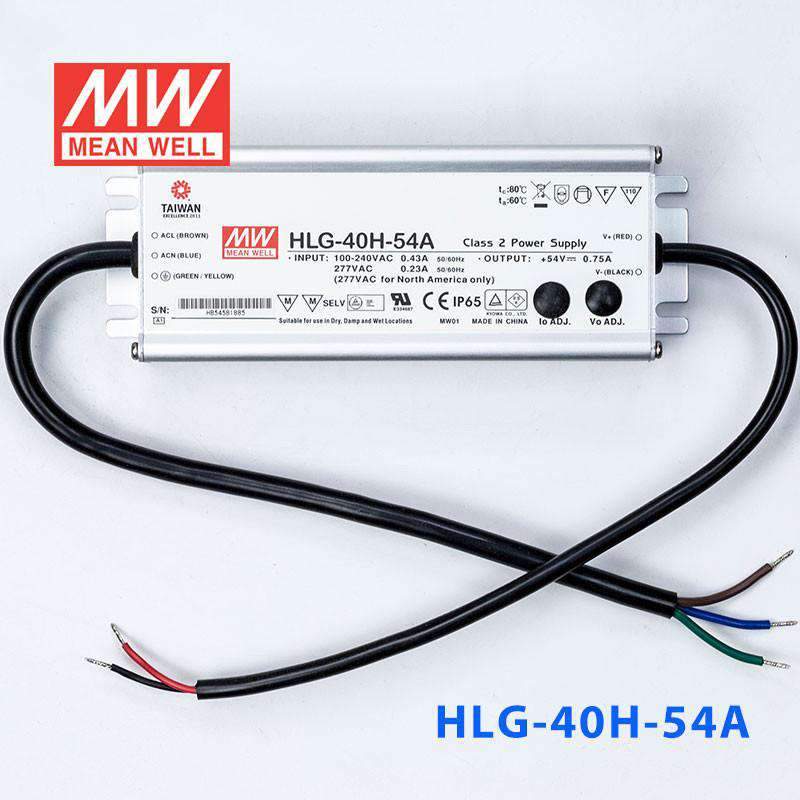

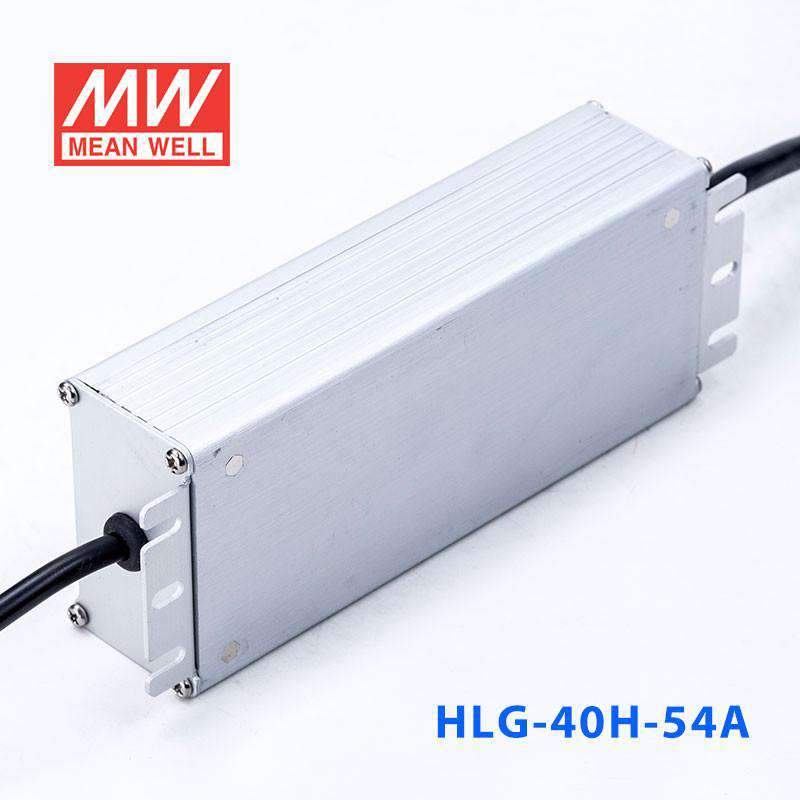

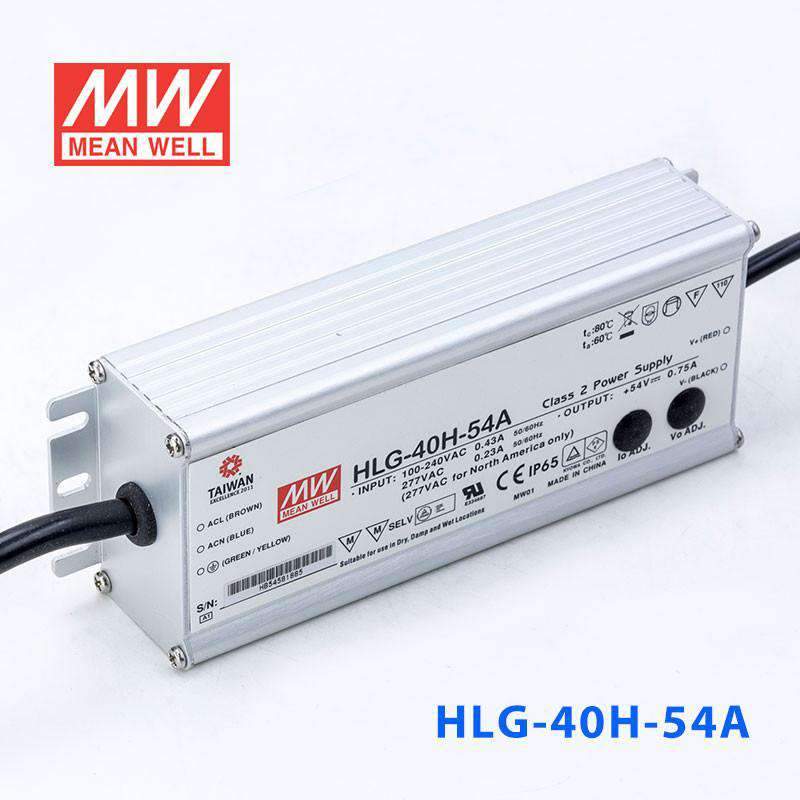

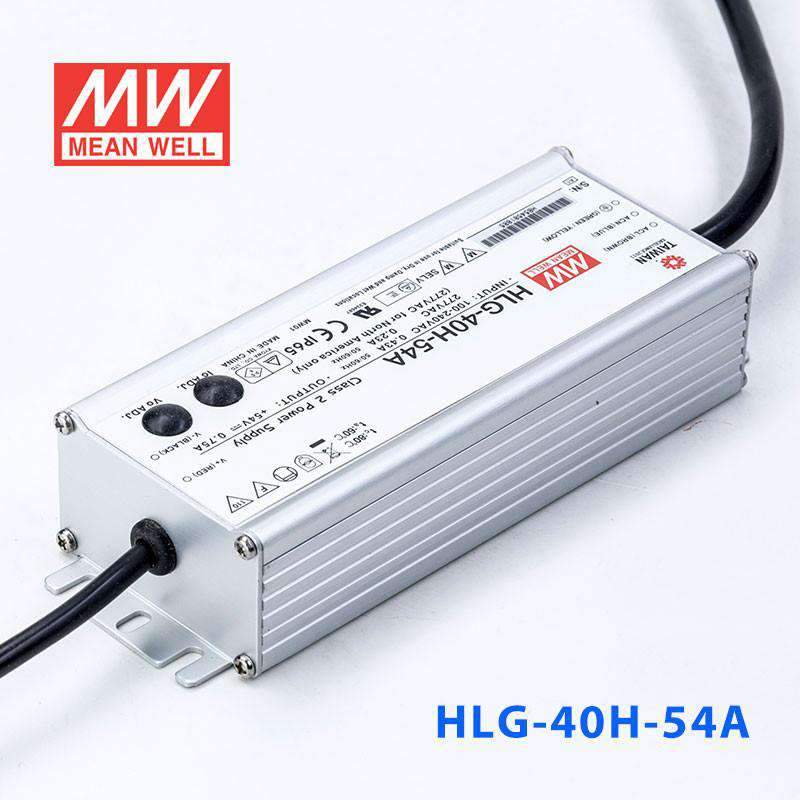

Mean Well HLG-40H-54A Power Supply 40W 54V - Adjustable 750mA
4.9 (21 reviews)Notify me when it's back in stock
Mean Well HLG-40H-54A Power Supply 40W 54V - Adjustable 750mA
Log in to see priceThe HLG-40H is a 40W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 54V
- ✓ Rated output current: 0.75A
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating40 Watt
-
Output Voltage54 Volt
-
Rated Current0.75 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length17.1 cm
-
Width6.15 cm
-
Height3.68 cm
-
Weight0.73 kg
::specification::
Frequently Asked Questions
Can I use the HLG-40H-54A to fine-tune output for sensitive 54V LED fixtures?
Yes. The A suffix means it has a built-in potentiometer to adjust output voltage and current. With a CC voltage range of 32-54V, you can trim the output to match the exact forward voltage of your 54V LED fixture, which is useful for optimizing brightness and efficiency.
Is the HLG-40H-54A suitable for a small indoor 54V LED track lighting system?
Yes. At 40W and 54V, it can drive a compact track lighting setup using 54V LED modules. The adjustable output lets you calibrate brightness precisely. Its IP65 rating makes it suitable for indoor or semi-protected installations.
Can the HLG-40H-54A power 54V LED modules in a display case or retail fixture?
Yes, as long as the total LED load stays within 40W. The built-in potentiometer lets you reduce output to achieve the desired display brightness without needing an external dimmer. The constant-current operation across 32-54V adapts well to varying LED forward voltages.
How many meters of 54V LED strip can the HLG-40H-54A power?
Divide 40W by your strip's power consumption per meter. A 54V strip rated at 8W/m would allow up to 5 meters (40W / 8W per meter = 5m). Always check your strip's rated power per meter and keep total load at or below 40W for safe operation.
Is the HLG-40H-54A appropriate for a damp bathroom or laundry room installation?
Yes. Its IP65 rating protects against dust and low-pressure water jets, which is sufficient for damp indoor spaces like bathrooms, laundry rooms, or utility areas. For locations with direct rain exposure or potential standing water, the IP67-rated HLG-40H-54 or HLG-40H-54B would be better suited.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-40H Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-40H-24 Power Supply 40W 24V 1.67A | 40W | 24V | 1.67A | IP67 | View |
| Mean Well HLG-40H-24A Power Supply 40W 24V - Adjustable 1.67A | 40W | 24V | 1.67A | IP65 | View |
