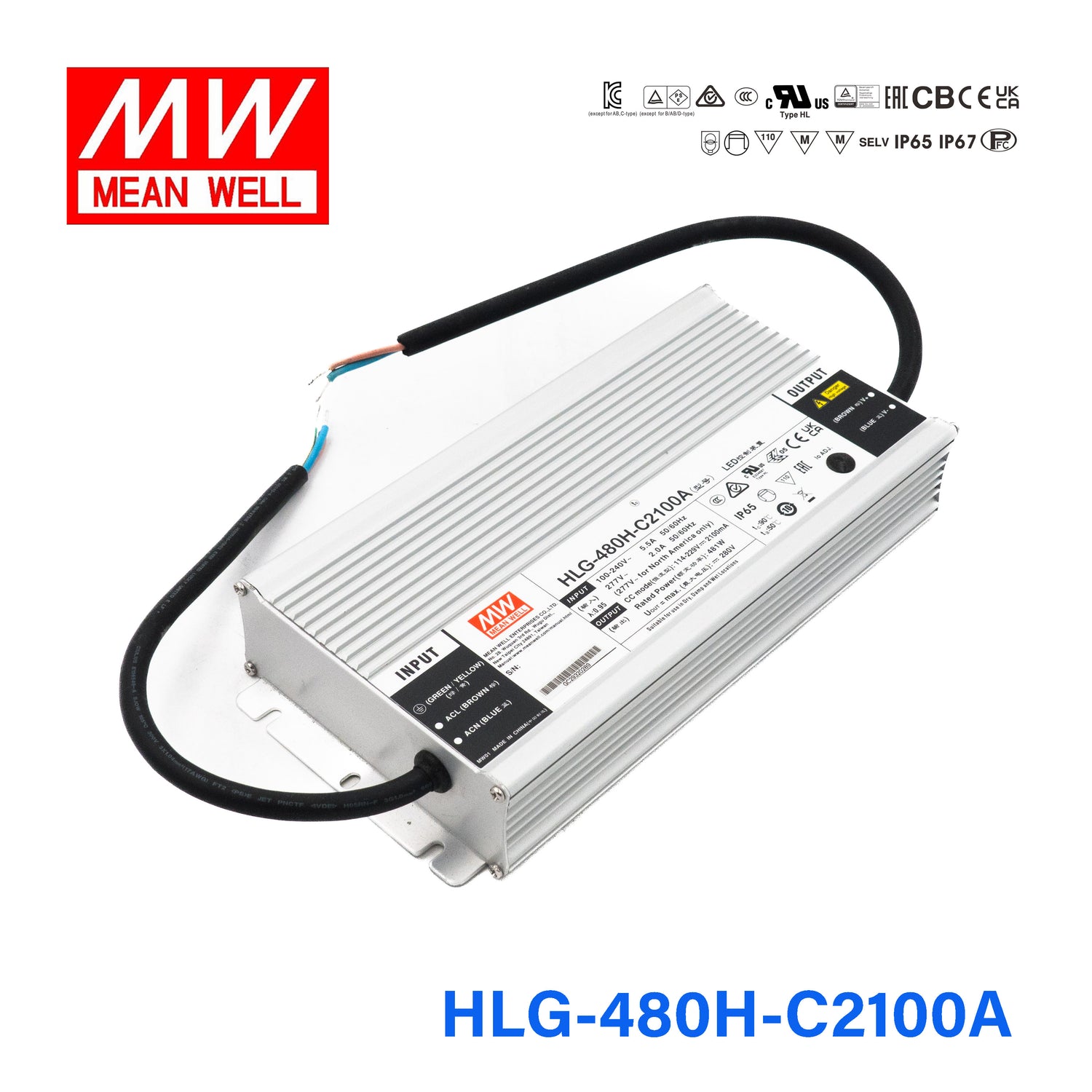

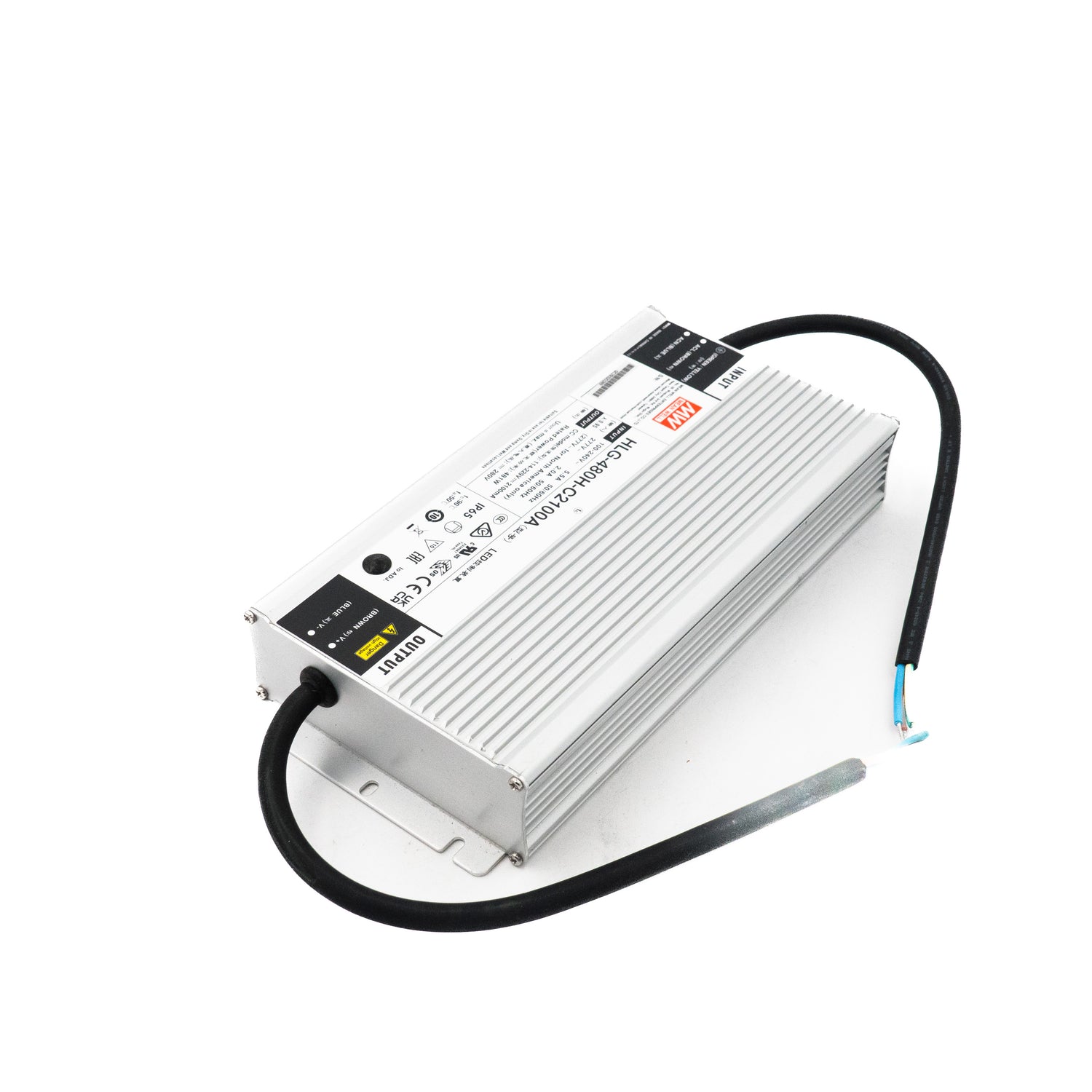

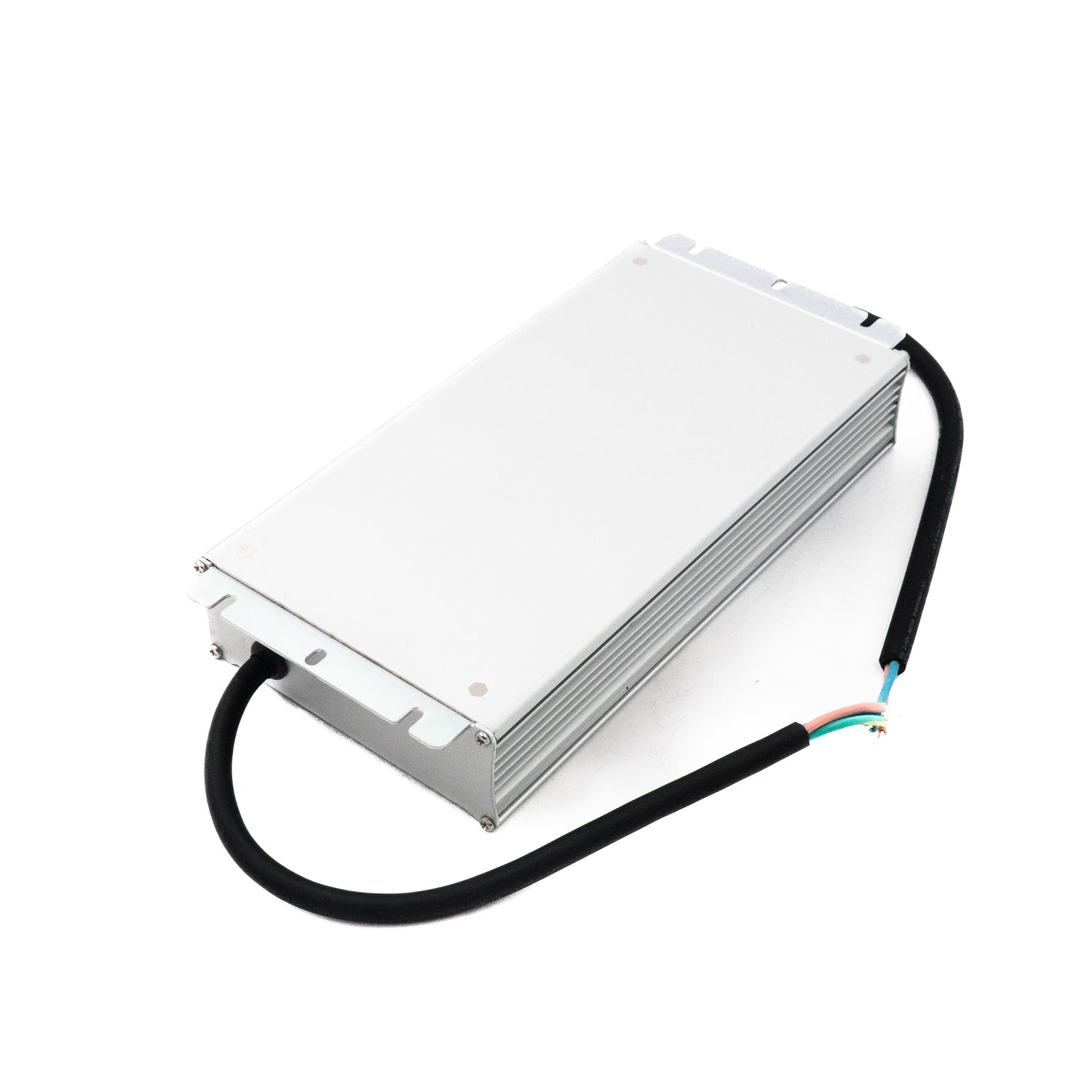

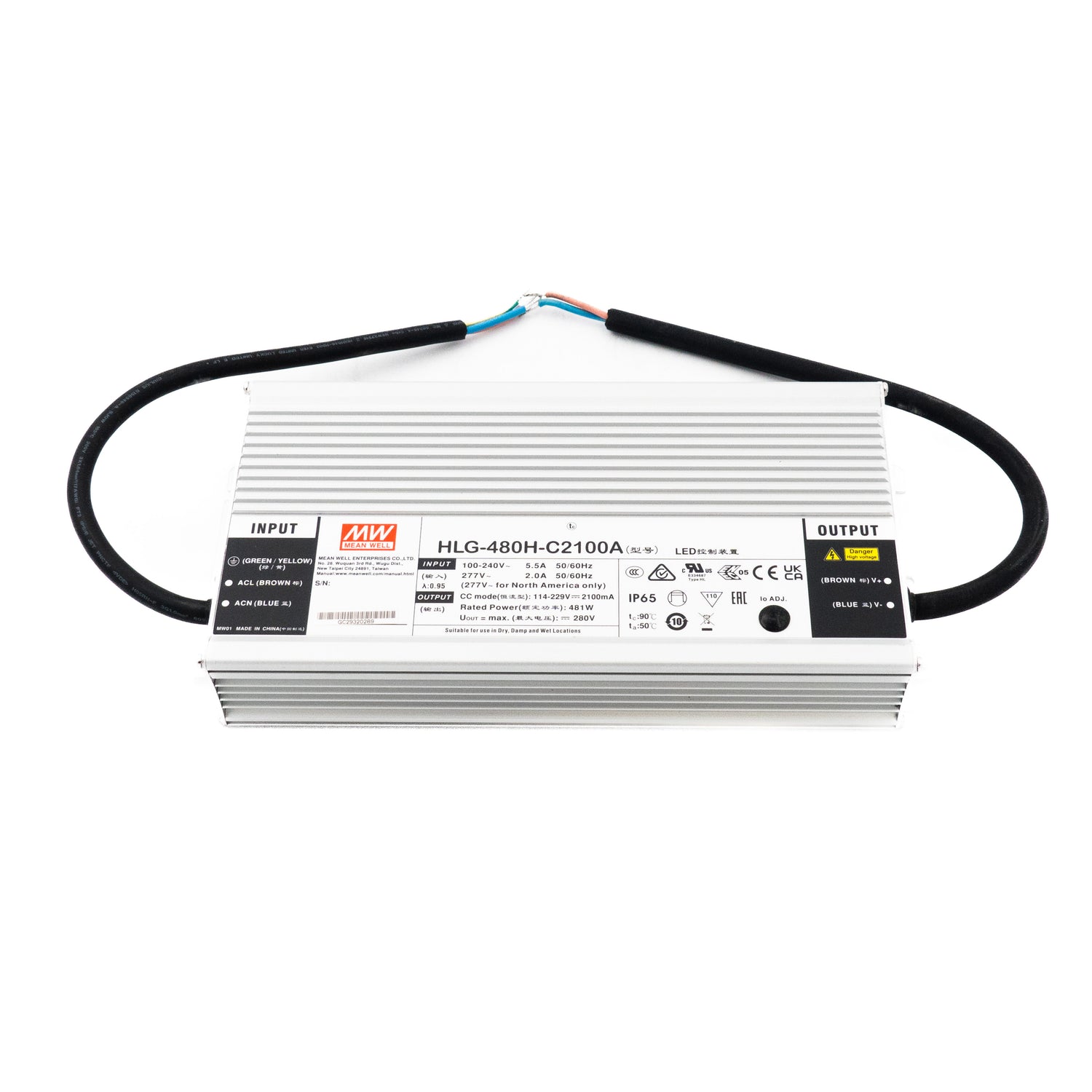

Mean Well HLG-480H-C2100A Power Supply 481W 2100mA - Adjustable

premium quality, 7 years warranty, aluminium casing, high efficiency, high output voltage > 60VDC

|

Description

Features

Constant Current mode output
Metal housing with Class I design
Built-in active PFC function
Environment-adaptive driving capability
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in-1 dimming (dim-to-off and Isolated Design); Smart timer dimming; Low-temperature light-on; Junction box
Typical lifetime >62000 hours(Note.7)
7 years warranty

General Specification

AC input voltage range 90~305VAC | 127~431VDC
AC inrush current (max.) COLD START 35A(twidth=1800 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short Circuit Protection Constant current recovers automatically after the fault condition is removed
Over-voltage protection 102~112% | Shut down output voltage, re-power on to recovery
Over temp. protection Shut down output voltage, re-power on to recovery
Setup, rise, hold up time 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -40~+90ºC (refer to output derating curve)
Safety standards UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm) 262 x 125 x 43.8mm
Packing 2.8Kg;4pcs/12.2Kg/0.55CUFT

Specifications

  • Brand
    Mean Well
  • Series
    HLG-C Series
  • Power Rating
    481 Watt
  • Output Voltage
    280 Volt
  • Rated Current
    2.1 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    7 Year
  • Length
    26.2 cm
  • Width
    12.5 cm
  • Height
    4.38 cm
  • Weight
    2.8 kg
