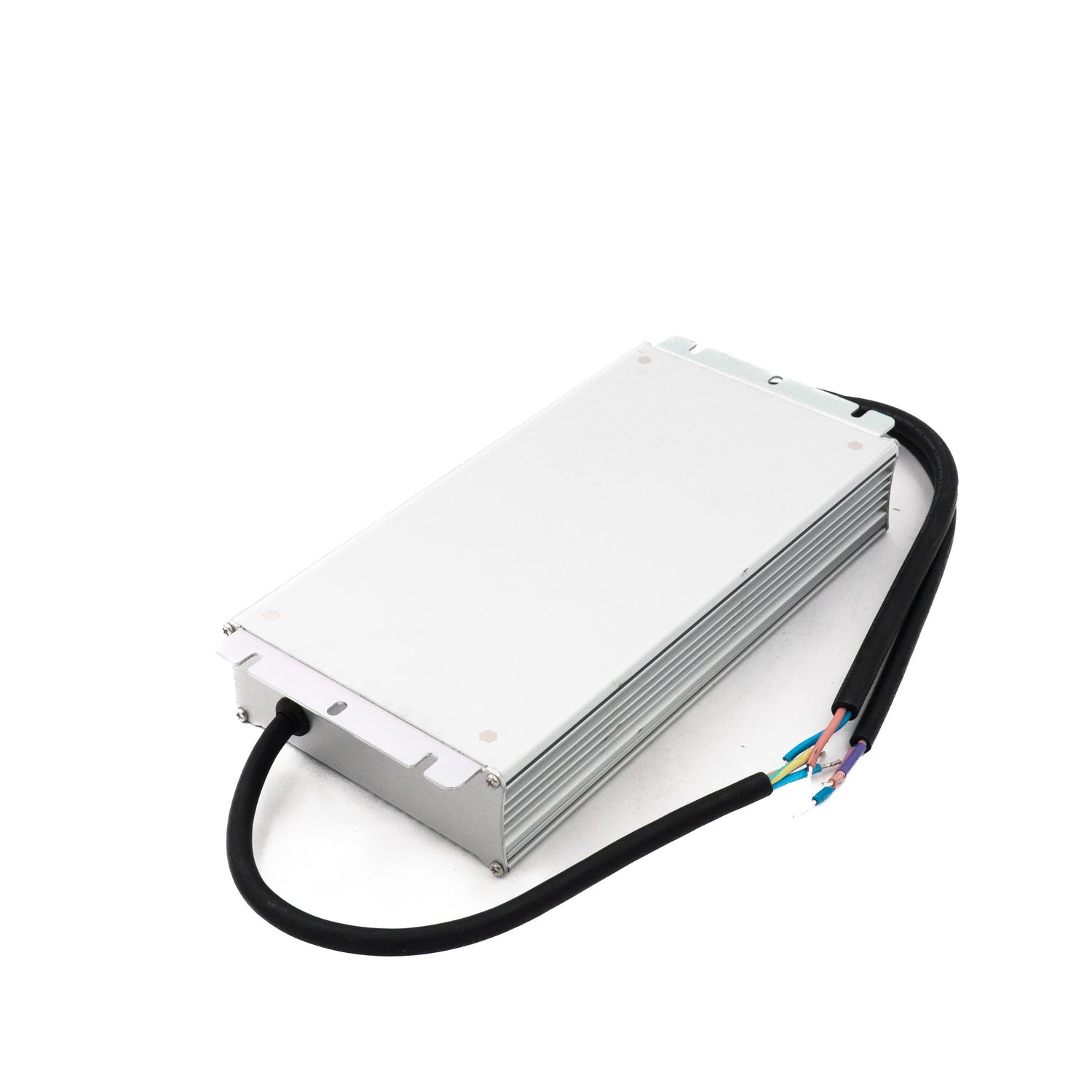

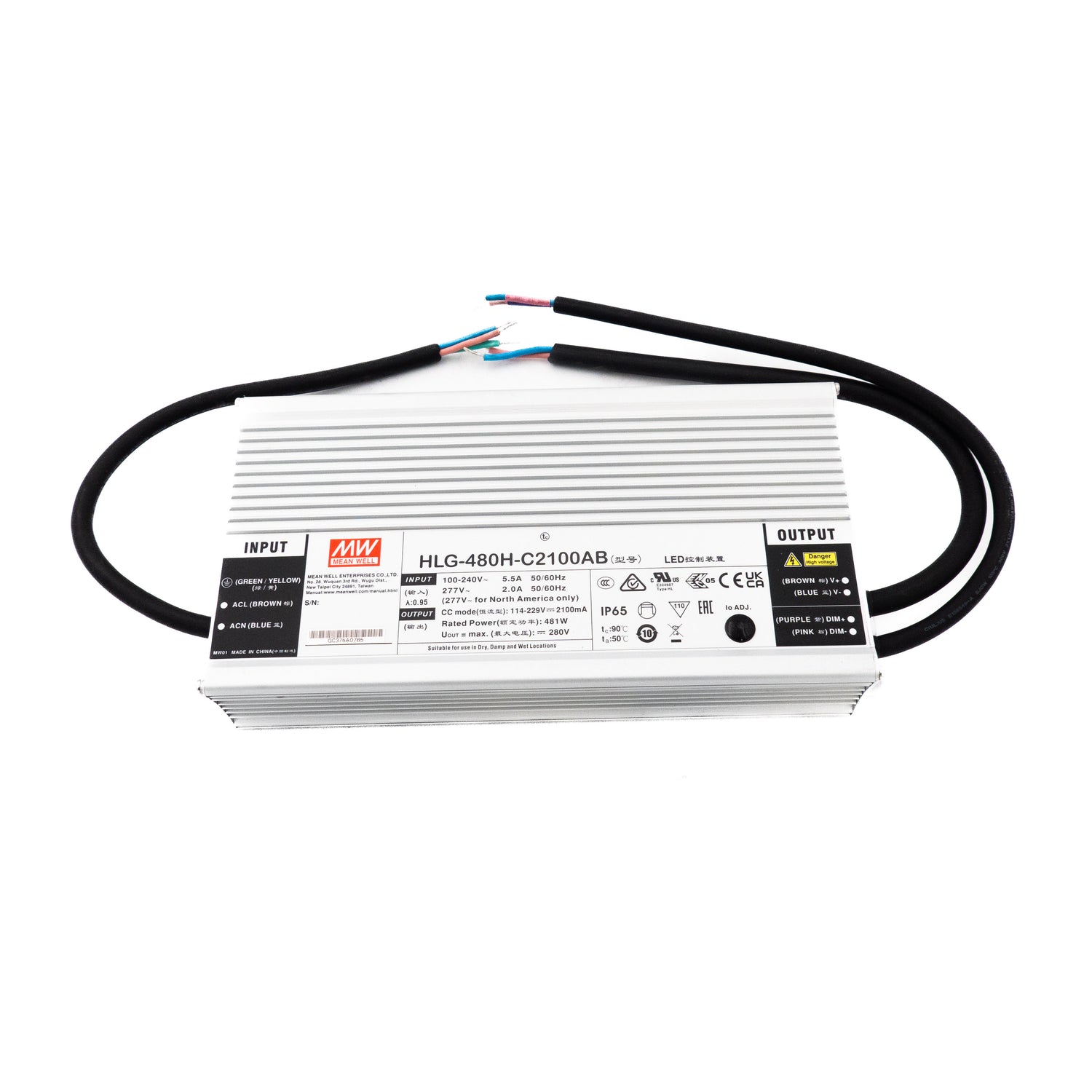

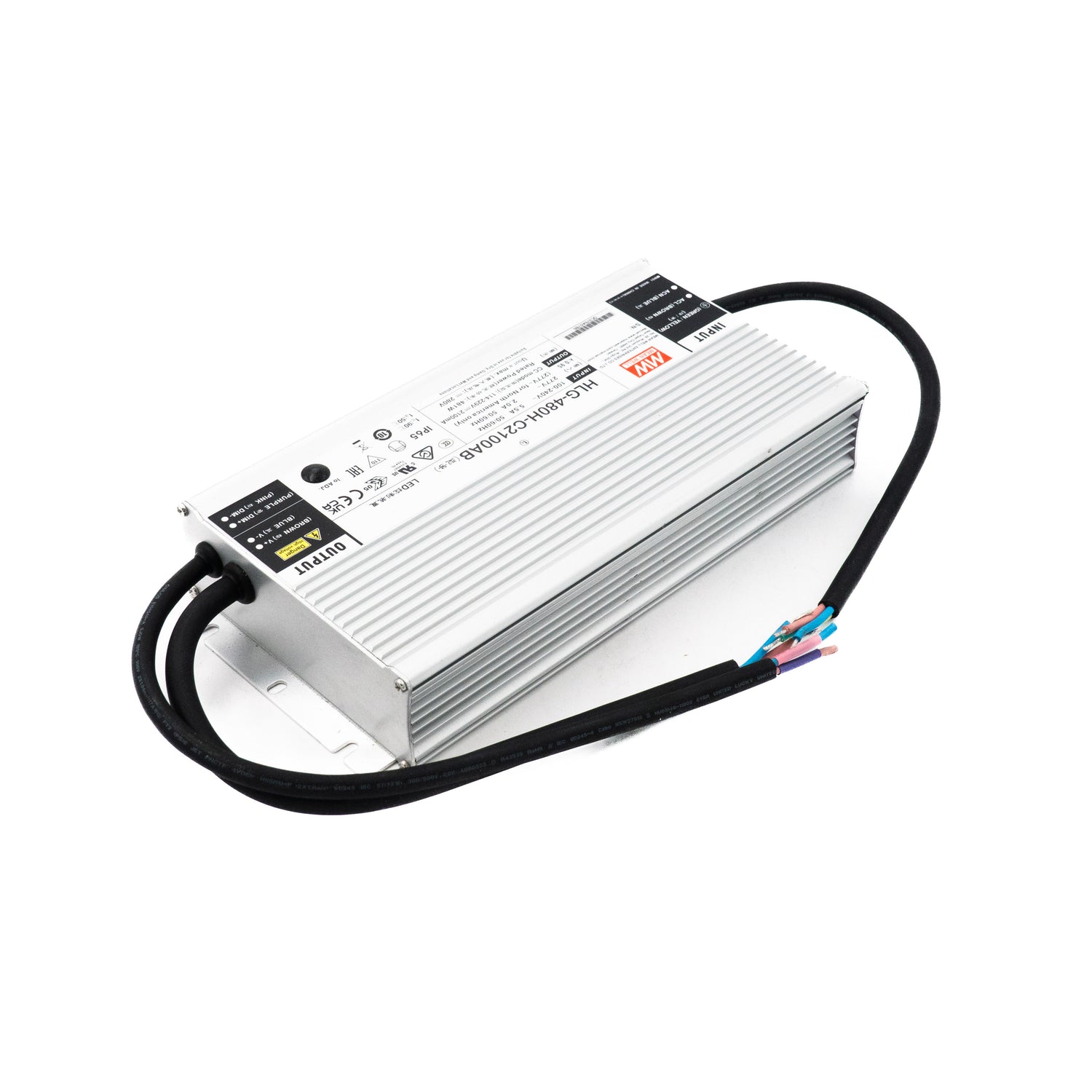

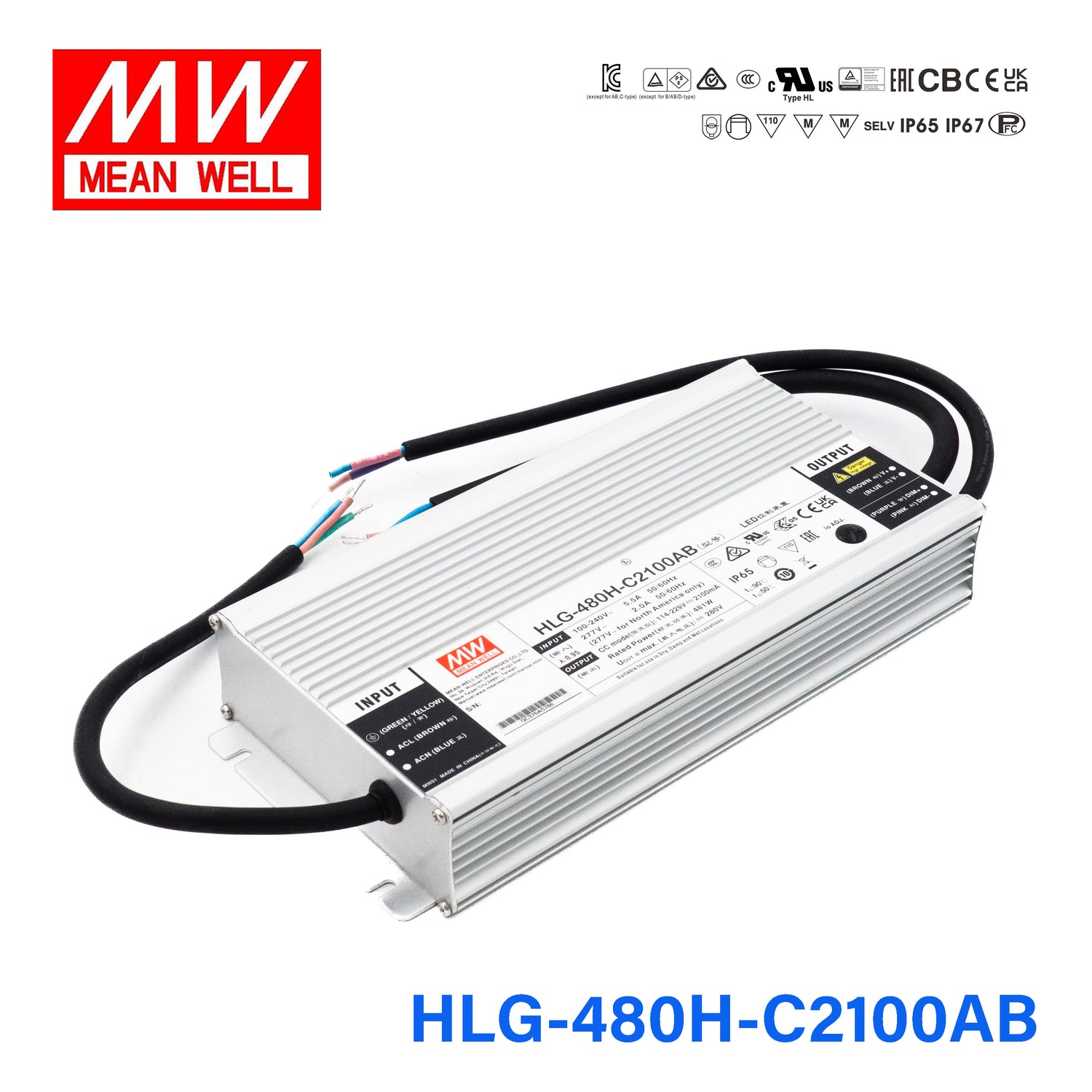

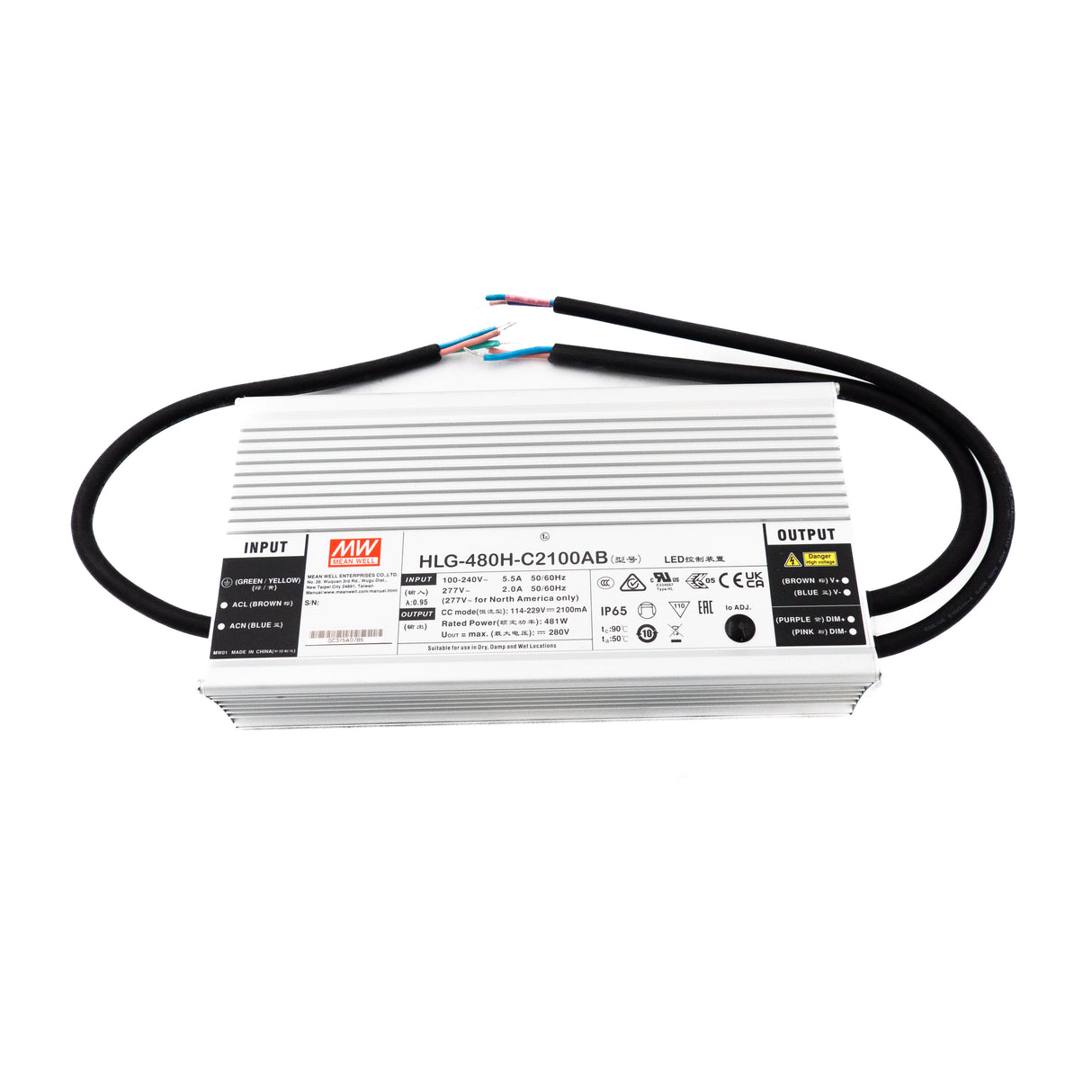

Mean Well HLG-480H-C2100AB Power Supply 481W 2100mA - Adjustable an...
Please Login for Pricing
Description
Description
Features
| Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC function |
| Environment-adaptive driving capability |
| IP67 / IP65 design for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in-1 dimming (dim-to-off and Isolated Design); Smart timer dimming; Low-temperature light-on; Junction box |
| Typical lifetime >62000 hours(Note.7) |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC | 127~431VDC |
| AC inrush current (max.) | COLD START 35A(twidth=1800 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short Circuit Protection | Constant current recovers automatically after the fault condition is removed |
| Over-voltage protection | 102~112% | Shut down output voltage, re-power on to recovery |
| Over temp. protection | Shut down output voltage, re-power on to recovery |
| Setup, rise, hold up time | 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+90ºC (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm) |
| Dimension (LxWxH) (mm) | 262 x 125 x 43.8mm |
| Packing | 2.8Kg;4pcs/12.2Kg/0.55CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG-C Series
-
Power Rating481 Watt
-
Output Voltage280 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length26.2 cm
-
Width12.5 cm
-
Height4.38 cm
-
Weight2.8 kg
