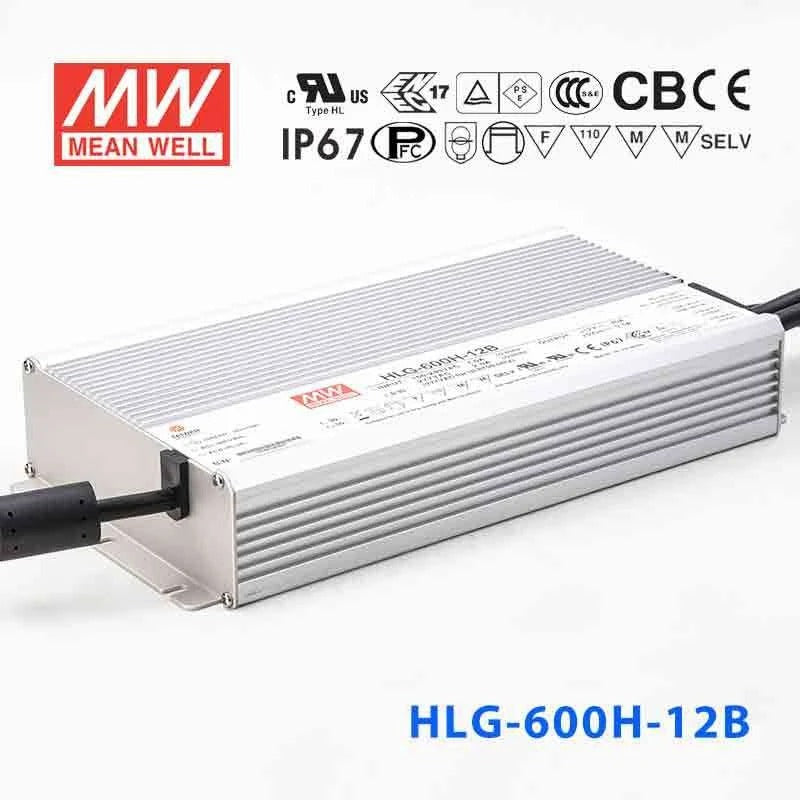

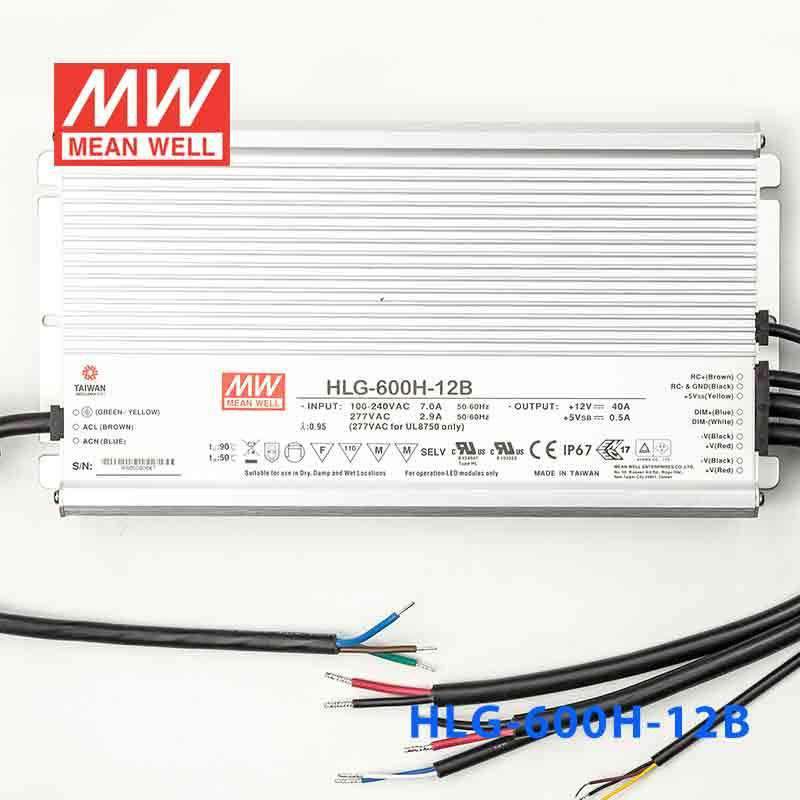

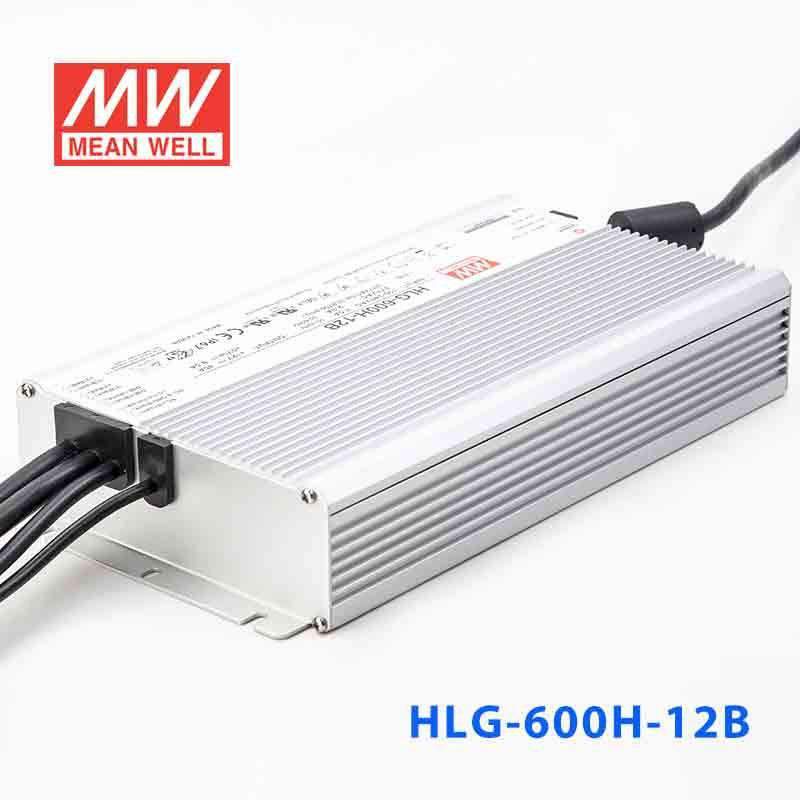

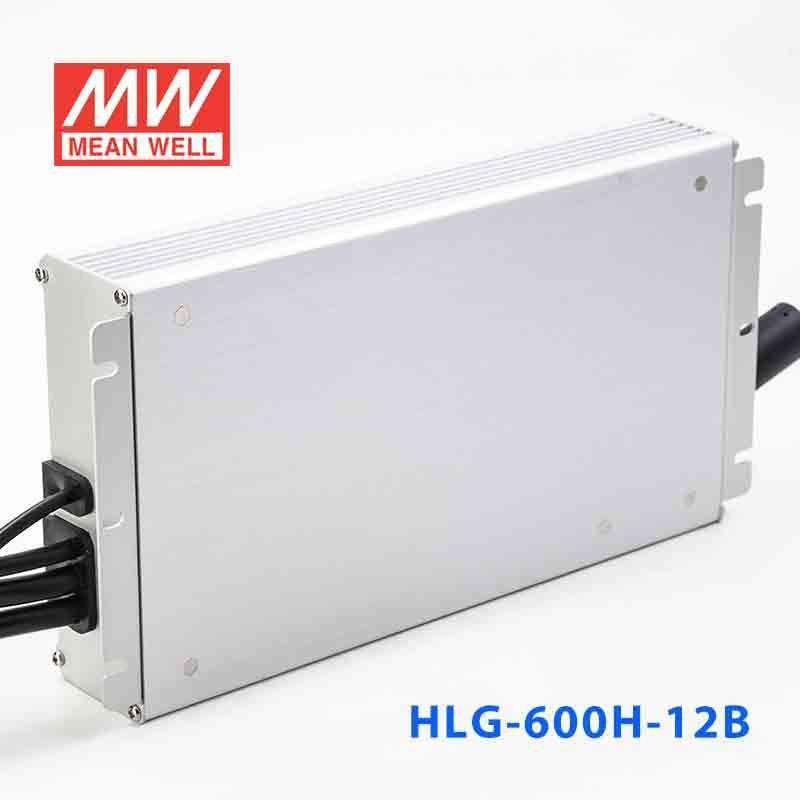

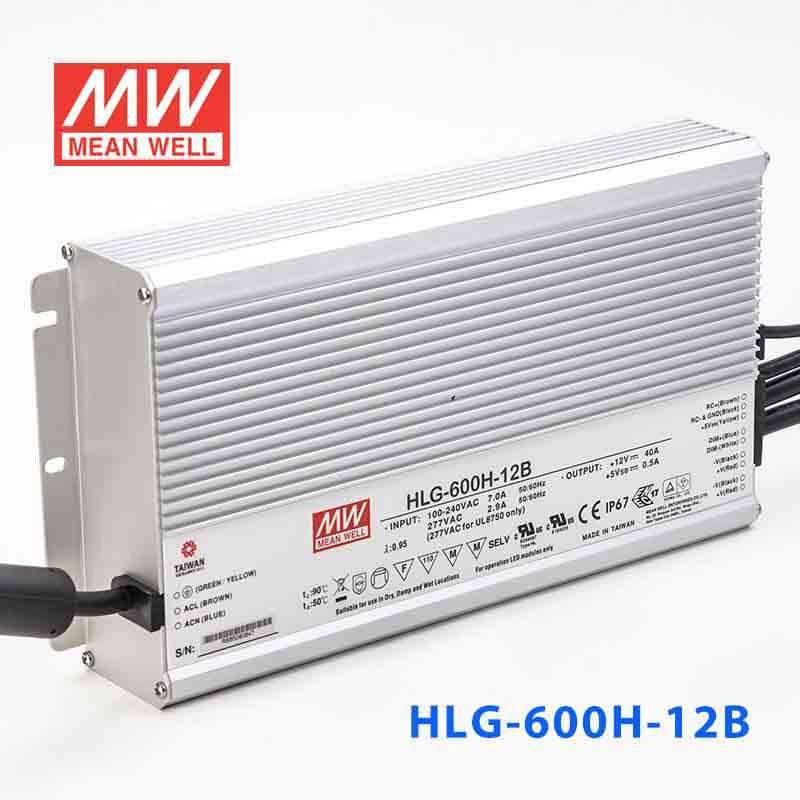

Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable
Please Login for Pricing
Description
Description
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length28 cm
-
Width14.4 cm
-
Height4.85 cm
-
Weight3.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-600H-12B for a large outdoor 12V LED strip lighting project?
Yes. The HLG-600H-12B provides 480W at 12V and carries an IP67 waterproof rating, so it can be mounted outdoors even in direct rain or wet locations. With 40A of output current, it can drive long runs of 12V LED strips for building facades, landscape lighting, or parking structure illumination.
Is the HLG-600H-12B suitable for powering 12V LED modules in an outdoor sign?
Yes. At 480W and 12V output, it can power a large array of 12V LED sign modules. The IP67 waterproof rating means the driver can be installed inside an outdoor sign cabinet or mounted externally without additional weatherproofing, and the 90-305VAC input handles global mains voltages.
Can I control the brightness of my 12V LEDs with the HLG-600H-12B?
Yes. The B suffix means this model accepts an external 1-10V analog or PWM dimming signal. You can pair with a compatible wall dimmer, automation controller, or building management system to adjust LED brightness. Note that unlike the -12AB variant, this model does not include a built-in potentiometer for manual voltage/current trimming.
How many meters of 12V LED strip can the HLG-600H-12B drive?
That depends on the strip's rated power per meter. The HLG-600H-12B delivers up to 480W at 12V. For example, a strip rated at 10W/m could be run up to 48 meters (480W / 10W per meter = 48m). Always check your strip's rated power per meter and keep the total load at or below 480W.
Can the HLG-600H-12B handle freezing winter temperatures and summer heat?
Yes. Its operating temperature range is -40°C to +90°C, which covers extreme cold and hot environments. Combined with the IP67 waterproof rating and aluminium casing, this driver is built for year-round outdoor service in virtually any climate.
Other HLG-600H Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | View |
