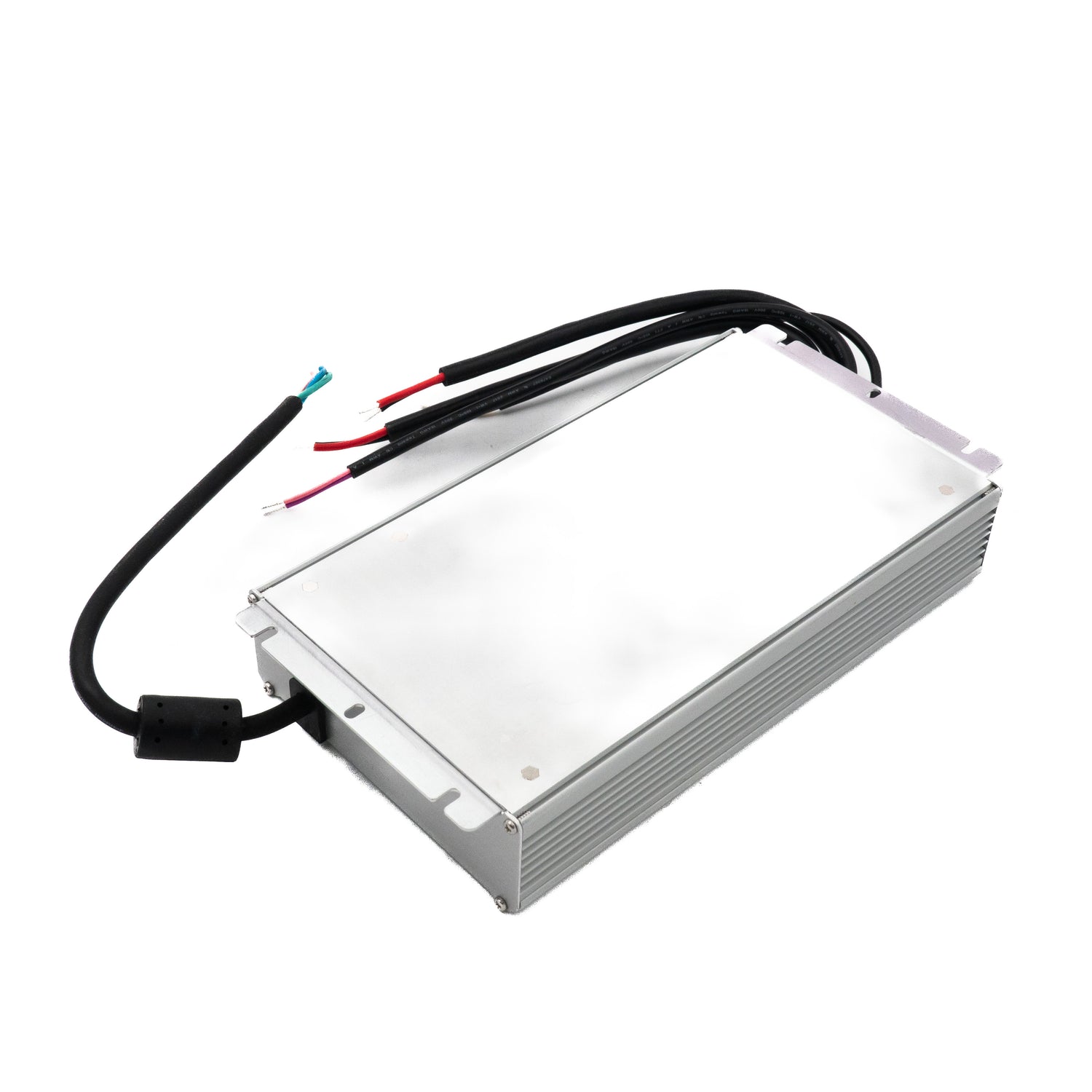

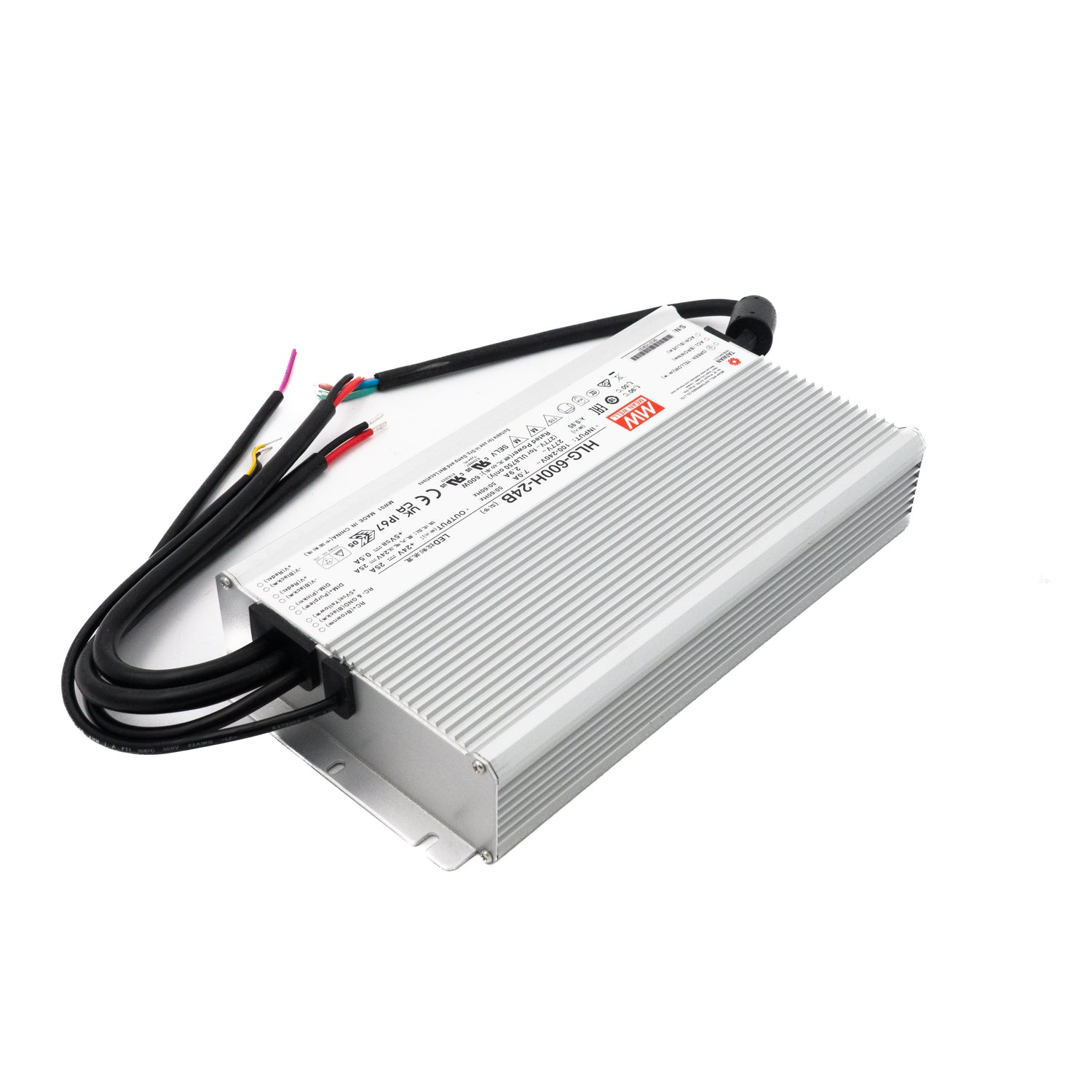

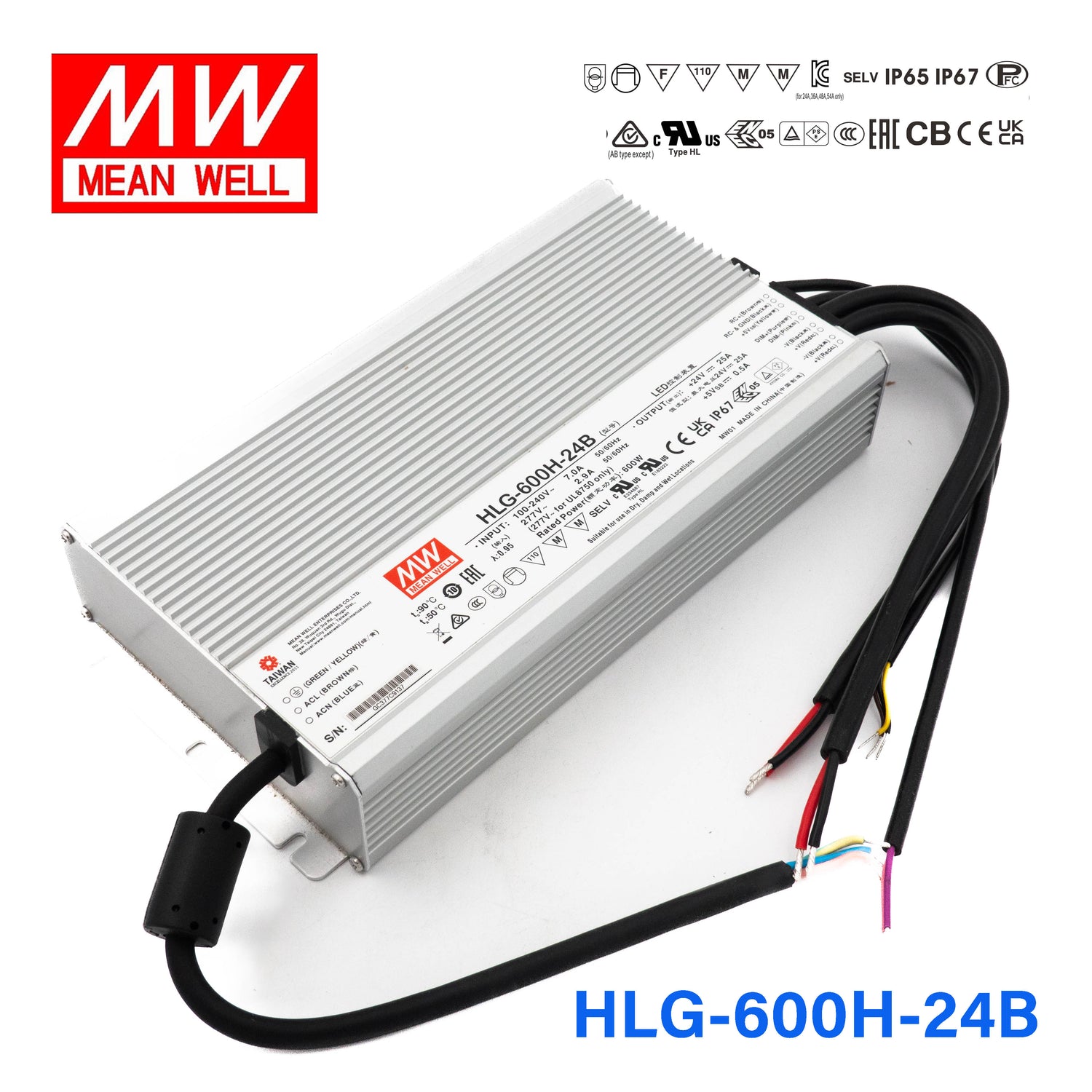

Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable
Please Login for Pricing
Description
Description
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length28 cm
-
Width14.4 cm
-
Height4.85 cm
-
Weight3.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-600H-24B to power dimmable 24V LED lighting in a fully exposed outdoor area?
Yes. The HLG-600H-24B delivers 600W at 24V / 25A with a 1-10V/PWM dimming input and carries an IP67 waterproof rating. It can be mounted in locations exposed to direct rain, snow, and temporary submersion, making it ideal for outdoor plazas, facades, or landscape lighting.
Is the HLG-600H-24B suitable for powering 24V LED fixtures on a bridge or outdoor structure?
Yes. The IP67 waterproof rating and -40°C to +90°C operating range handle the harsh conditions typical of bridge and structural lighting. At 600W and 24V, it can power a large number of architectural LED fixtures, and the dimming input enables brightness control for nighttime dimming schedules.
Can the HLG-600H-24B drive 24V LED strip lighting in a car wash or wet industrial environment?
Yes. The IP67 rating means it can withstand dust, high-pressure water exposure, and temporary submersion. At 600W it has ample capacity for extensive LED strip runs in wet environments. The 1-10V/PWM dimming input allows brightness adjustments without accessing the driver.
How many meters of 24V LED strip can the HLG-600H-24B handle?
It depends on your strip's power consumption per meter. At 600W and 24V, a strip rated at 14.4W/m allows about 41 meters (600W / 14.4W per meter ≈ 41.6m). A 7.2W/m strip would allow about 83 meters. Always check your strip's rated power per meter and keep total draw within 600W.
Can the HLG-600H-24B be buried or installed in a below-grade enclosure?
Yes. IP67 certification means the driver withstands temporary immersion up to 1 meter. It can be installed in below-grade vaults, underground junction boxes, or waterproof enclosures. The -40°C to +90°C operating range handles the temperature conditions found in underground installations.
Other HLG-600H Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | View |
