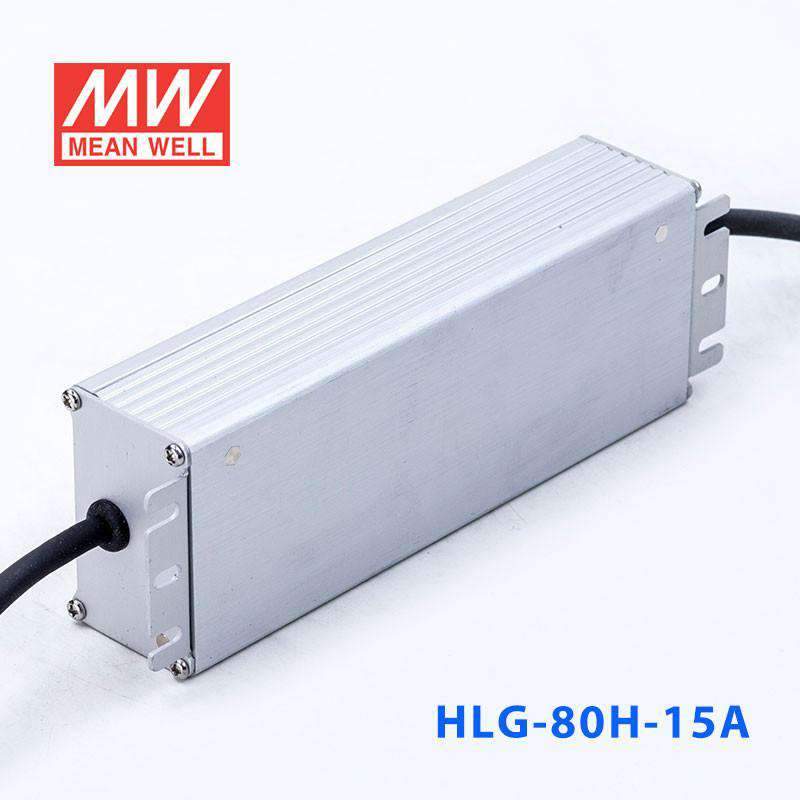

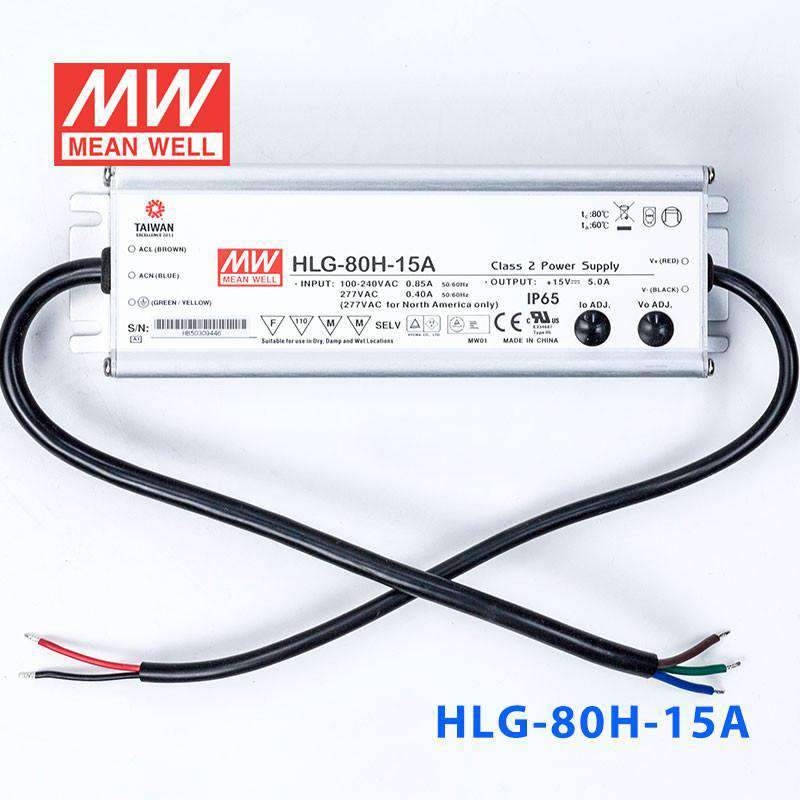

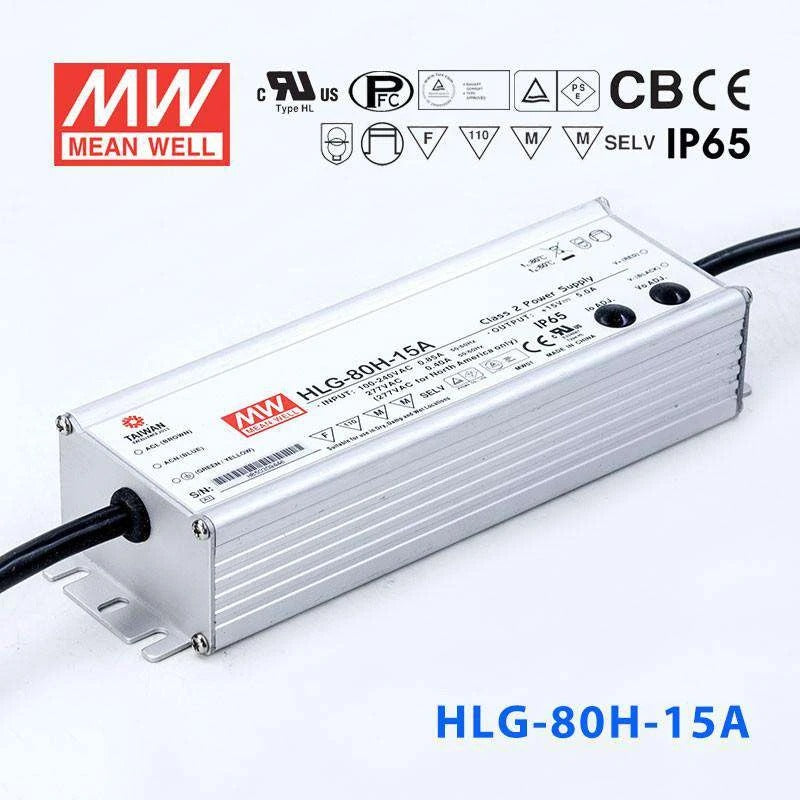

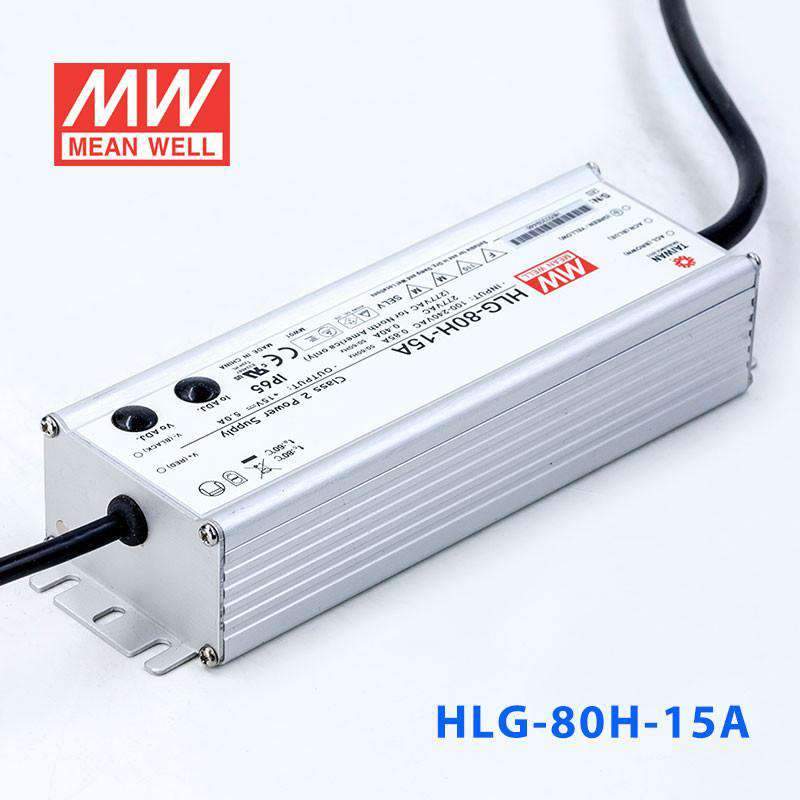

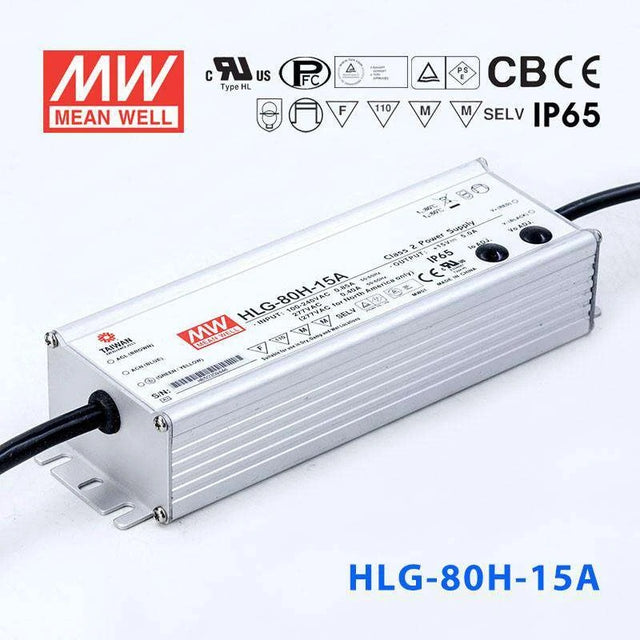

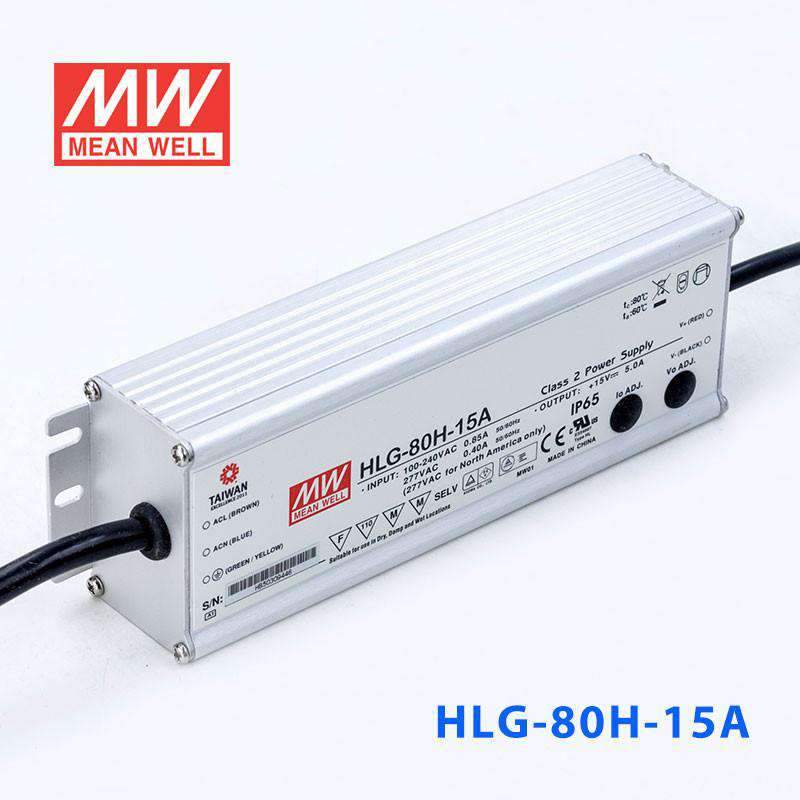

Mean Well HLG-80H-15A Power Supply 75W 15V - Adjustable 5A
4.9 (21 reviews)Notify me when it's back in stock
Mean Well HLG-80H-15A Power Supply 75W 15V - Adjustable 5A
Log in to see priceThe HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length19.56 cm
-
Width6.15 cm
-
Height3.88 cm
-
Weight0.84 kg
::specification::
Frequently Asked Questions
Can I use the HLG-80H-15A to power 15V LED strips in a covered outdoor installation?
Yes. The HLG-80H-15A delivers 75W at 15V and is IP65 water-resistant, protecting against dust and low-pressure water jets. It works well under canopies, awnings, or soffits. For fully exposed rain installations, the IP67-rated HLG-80H-15 or HLG-80H-15B would be more suitable.
Is the adjustable output on the HLG-80H-15A useful for matching 15V LED loads precisely?
Yes. The built-in potentiometer lets you trim the output voltage and current so you can match the driver output exactly to your 15V LED strip or module. The CC voltage range of 9-15V provides flexibility to lower the drive point when the LED load requires less than the full rated voltage.
Can the HLG-80H-15A power 15V LED modules in a retail display or menu board?
Yes. At 75W and 15V, it has enough capacity for 15V LED modules used in light boxes, menu boards, and retail display signage. The adjustable output allows you to optimize brightness and match the exact module voltage, and the 90-305VAC input handles diverse commercial supplies worldwide.
How many meters of 15V LED strip can the HLG-80H-15A drive?
Divide 75W by your strip's rated power per meter. A strip consuming 12W/m would allow about 6.2 meters (75W / 12W per meter = 6.25m). A lower-power strip at 7.5W/m would allow 10 meters. Always check your strip's rated power per meter and keep total load at or below 75W.
Is the HLG-80H-15A appropriate for a damp warehouse or parking garage?
Yes. The IP65 rating provides protection against dust and low-pressure water spray, which is adequate for damp indoor environments like warehouses, parking structures, or utility areas. For areas subject to direct water jets or standing water, an IP67-rated variant like the HLG-80H-15 is recommended.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-80H Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-80H-24 Power Supply 80W 24V 3.4A | 80W | 24V | 3.4A | IP67 | View |
