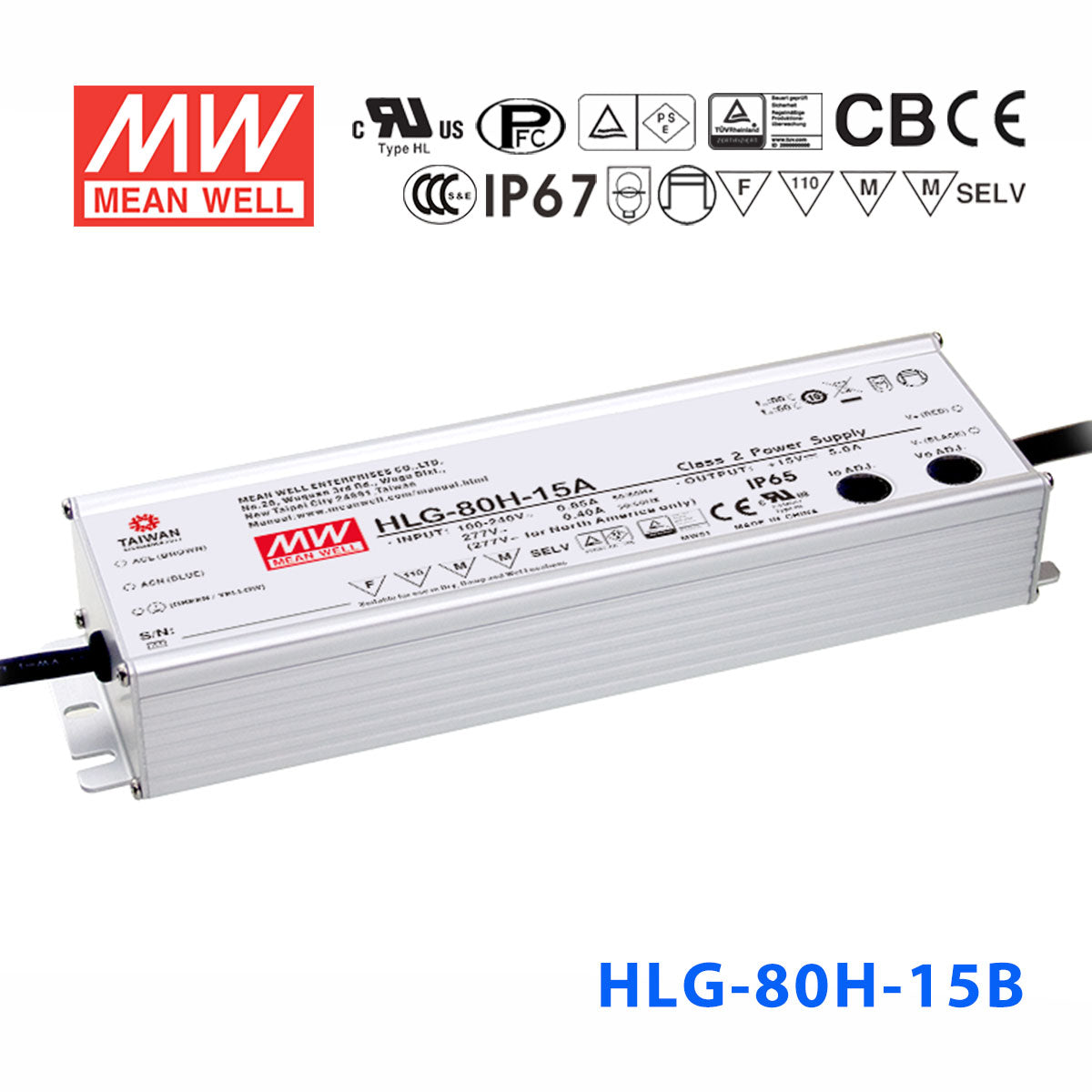

Mean Well HLG-80H-15AB Power Supply | Best Prices in Auckland - Distributor in New Zealand

The HLG-80H is a 75W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 15V
✓ Rated output current: 5A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-80H-15AB to power 15V LED strip lighting in a covered outdoor setting?

Yes. The HLG-80H-15AB outputs 15V at up to 5A (75W) and carries an IP65 water-resistant rating, so it handles dust and water jets in covered patios, soffits, or canopies. For fully exposed rain locations, consider the IP67-rated HLG-80H-15B instead.

Is the HLG-80H-15AB a good choice for powering 15V LED channel-letter signs?

Yes. With 75W at 15V, it can drive 15V LED sign modules comfortably. The built-in output adjustment lets you fine-tune voltage and current to match the exact module string, and the 1-10V/PWM dimming input allows automated brightness scheduling for storefront signs.

Can I dim the HLG-80H-15AB with a 1-10V or PWM signal for scene control?

Yes. The AB suffix means this model accepts both 1-10V analog and PWM dimming signals. Combined with its adjustable output potentiometer, you can set a baseline brightness level and then dim further via an external controller for scene or daylight-responsive control.

How many meters of 15V LED strip can the HLG-80H-15AB power?

That depends on the strip's rated power per meter. The HLG-80H-15AB supplies up to 75W at 15V. For example, if your strip draws 10W/m, you could run up to 7.5 meters (75W / 10W per meter = 7.5m). Always check your strip's rated power per meter and keep total load at or below 75W.

Can the HLG-80H-15AB handle freezing temperatures in an unheated outdoor enclosure?

Yes. It is rated for an operating temperature range of -40°C to +80°C, so it will start and run reliably in sub-zero conditions. The aluminium casing also dissipates heat effectively in warm enclosures during summer.

What are the differences between the HLG-80H-15, 15A, 15AB, and 15B models?

All four share the same 75W / 15V / 5A core specs and 195.6 x 61.5 x 38.8 mm dimensions. The base HLG-80H-15 has no output adjustment and is IP67 waterproof. The -15A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -15AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -15B adds dimming input only and retains IP67.
