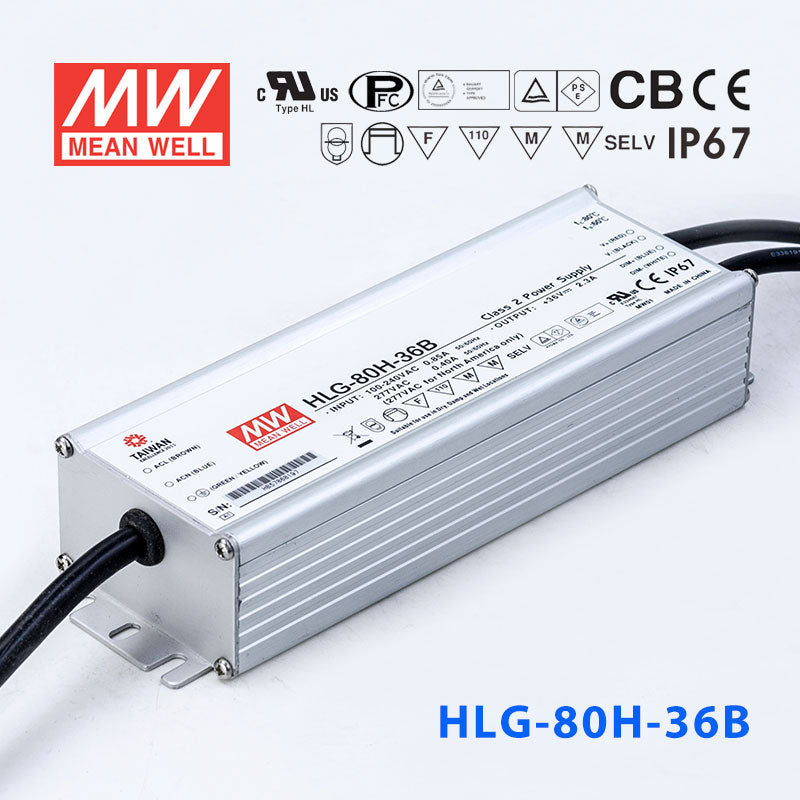

Mean Well HLG-80H-36AB Power Supply | 80W 36V - Adjustable and Dimmable

The HLG-80H is a 80W Mean Well AC-DC LED driver (input: 90~305VAC, output: 36V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 36V
✓ Rated output current: 2.3A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-80H-36AB to power 36V LED strip lighting in a sheltered outdoor area?

Yes. The HLG-80H-36AB outputs 36V at up to 2.3A (80W) and carries an IP65 water-resistant rating, making it suitable for covered patios, soffits, and canopy installations where dust and splashing water are present. For fully exposed rain locations, consider the IP67-rated HLG-80H-36B instead.

Is the HLG-80H-36AB a good driver for dimmable 36V LED signage?

Yes. The HLG-80H-36AB includes both a built-in potentiometer for output adjustment and a 1-10V/PWM dimming input, so you can fine-tune brightness for 36V channel letters or light boxes. Its 80W capacity and wide 90-305VAC input handle most commercial mains supplies.

Can I dim 36V LED panel lights with the HLG-80H-36AB using a 1-10V controller?

Yes. The AB suffix means this model accepts 1-10V and PWM dimming signals, allowing smooth brightness control of 36V LED panels. The adjustable output also lets you trim voltage and current via the built-in potentiometer to match your panel's exact requirements within the 21-36V CC range.

How many meters of 36V LED strip can the HLG-80H-36AB power?

Divide 80W by your strip's rated power per meter. For example, a strip drawing 8W/m would allow up to 10 meters (80W / 8W per meter = 10m). Always check your strip's rated power per meter and keep the total load at or below 80W.

What is the difference between the HLG-80H-36, 36A, 36AB, and 36B models?

All four share the same 80W / 36V / 2.3A core specs and CC voltage range of 21-36V. The base HLG-80H-36 has no adjustment or dimming and is IP67 waterproof. The -36A adds output adjustment via potentiometer (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming (IP65). The -36B adds dimming input only and retains IP67.

Can I mount the HLG-80H-36AB in a dusty industrial environment?

Yes. Its IP65 rating means the enclosure is fully protected against dust ingress and low-pressure water jets. The aluminium casing and -40°C to +80°C operating range also handle temperature extremes found in factories, workshops, and warehouses.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-80H-24A Power Supply 80W 24V - Adjustable 3.4A	80W	24V	3.4A	IP65	View
Mean Well HLG-80H-24 Power Supply 80W 24V 3.4A	80W	24V	3.4A	IP67	View

Customer reviews

4.9 Reviews verified for authenticity

5 ★ (19)

4 ★ (2)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 21 customers across the HLG series

Best outdoor driver we use
By Hemi K.|2026-06-22✓ Verified Buyer
Model: HLG-240H-24Quantity: 6
HLG-240H-24 is IP67 and just keeps going. Powering a car-park flood install, 8 months no issues.
Premium, worth it
By Bright Spark|2026-06-01✓ Verified Buyer
Model: HLG-185H-24Quantity: 4
Built-in PFC, runs cool, DALI option on the B model. Our go-to.
Flawless
By Olivia D.|2026-05-09✓ Verified Buyer
Model: HLG-320H-48Quantity: 2
Drove a 48V architectural run for months, dead silent.
