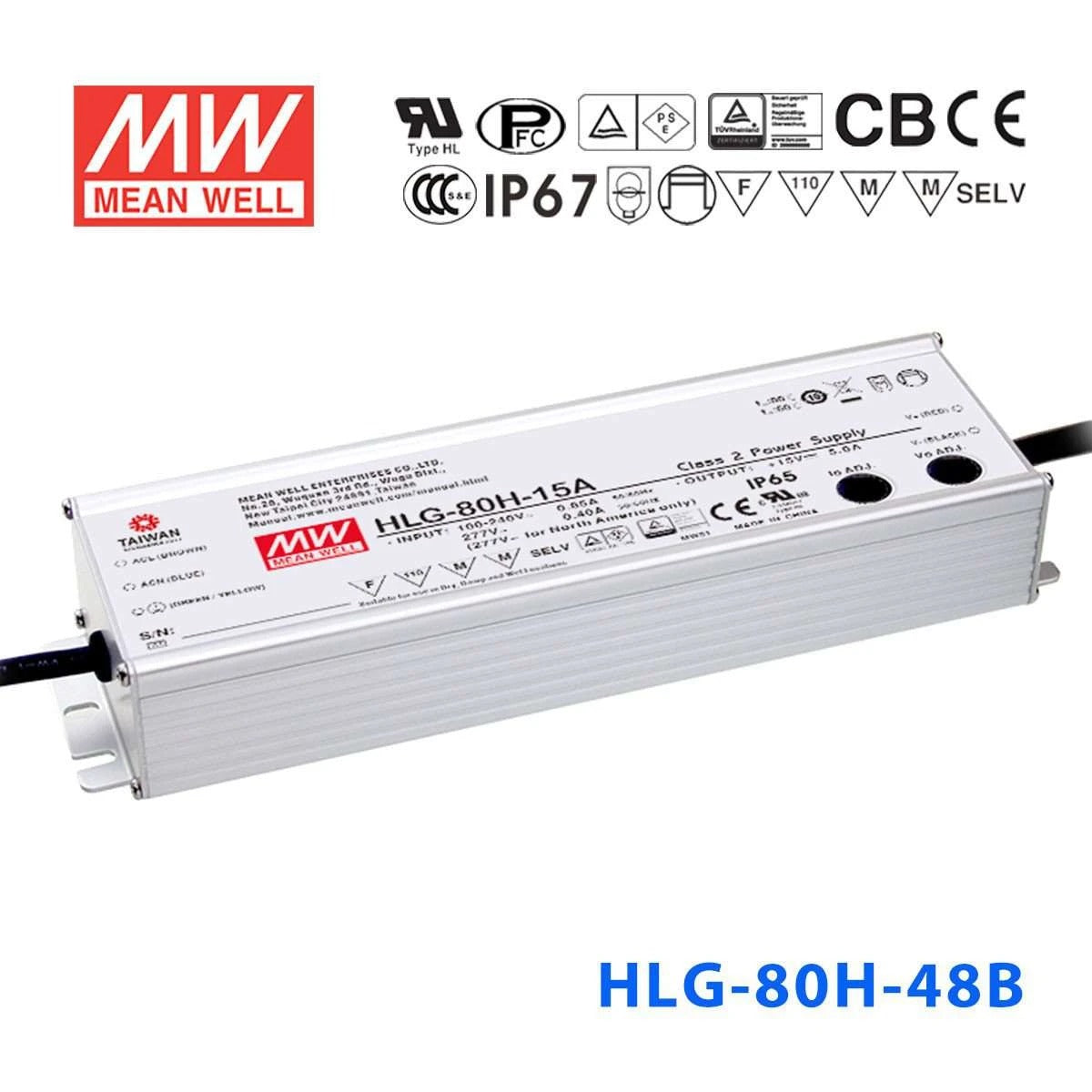

Mean Well HLG-80H-48B Power Supply 80W 48V - Dimmable
Please Login for Pricing
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant current output with high output voltage>60VDC |
| Built-in active PFC function |
| Protections: Short circuit / Over voltage / Over temperature |
| High efficiency up to 94% |
| Cooling by free air convection |
| Output current adjustable through output cable or internal potentiometer |
| IP67 / IP65 design for indoor or outdoor installations |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| 2Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127VDC~431VDC |
| AC inrush current (typ.) | Cold start, 60A at 230VAC |
| Current adjustment range | 60%~100% |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temp. protection | 85OC±10OC(RTH2), shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 16AWGx3C(30cm) |
| Connection Output | A&D-Type: SJTW 16AWGx2C(30cm) B-Type: SJTW 16AWGx2C(30cm) + SJTW 16AWGx2C(30cm) |
| Dimension (LxWxH) (mm) | 195.6x 61.5x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage48 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length19.56 cm
-
Width6.15 cm
-
Height3.88 cm
-
Weight0.84 kg
