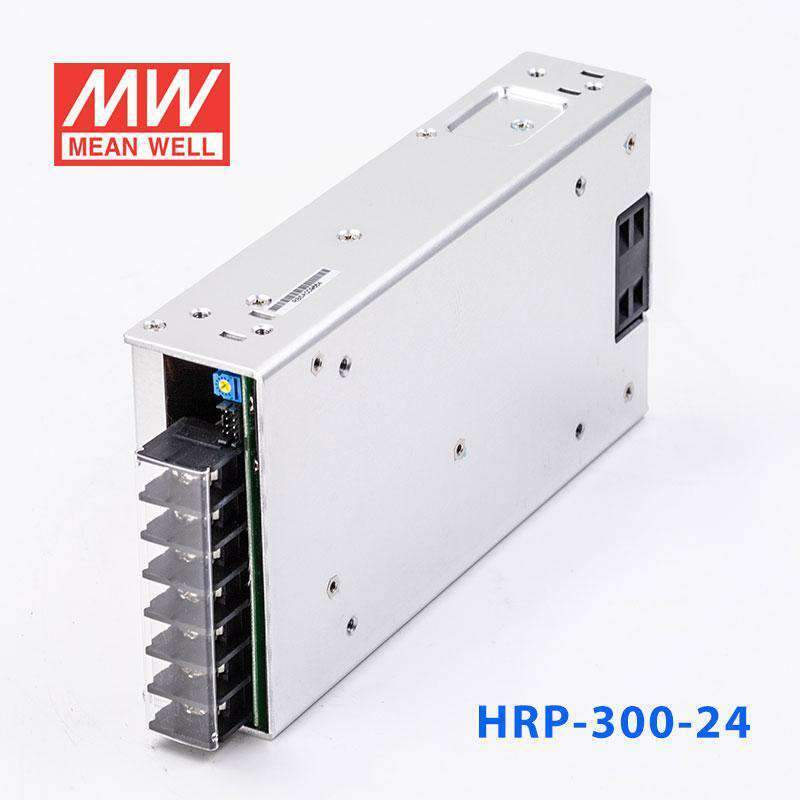

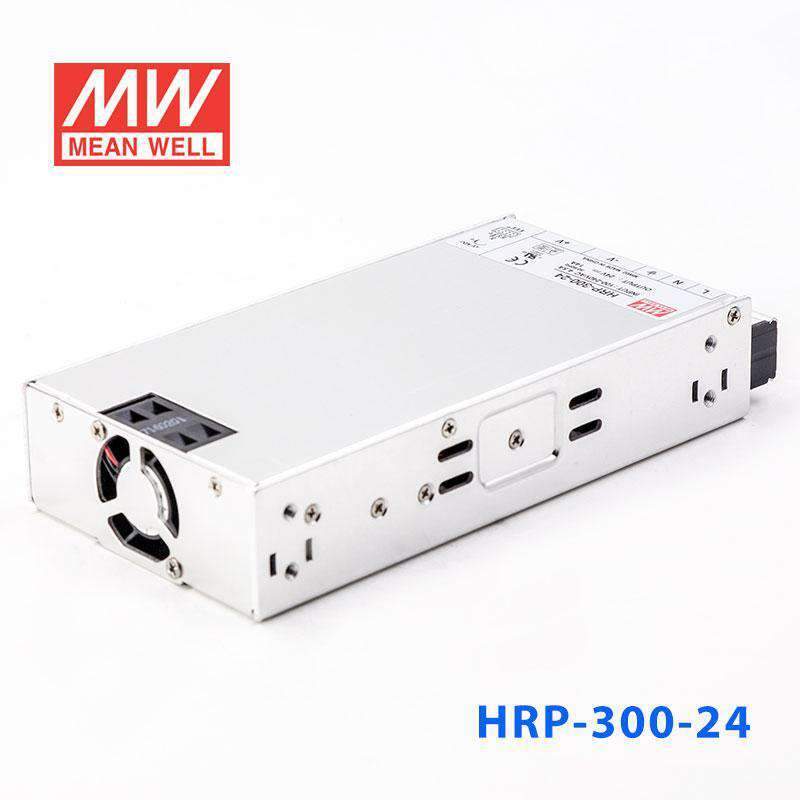

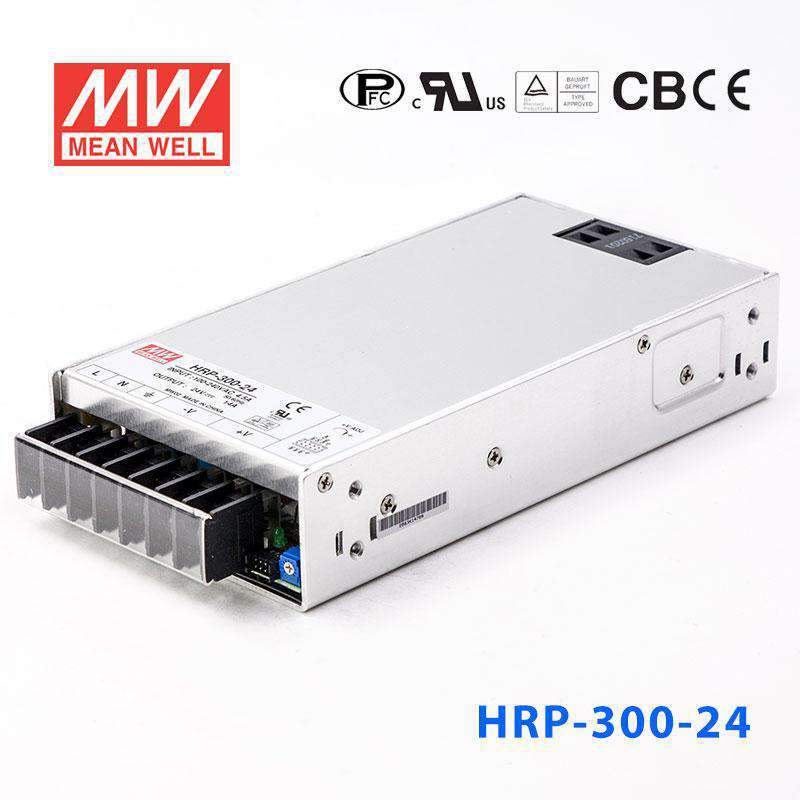

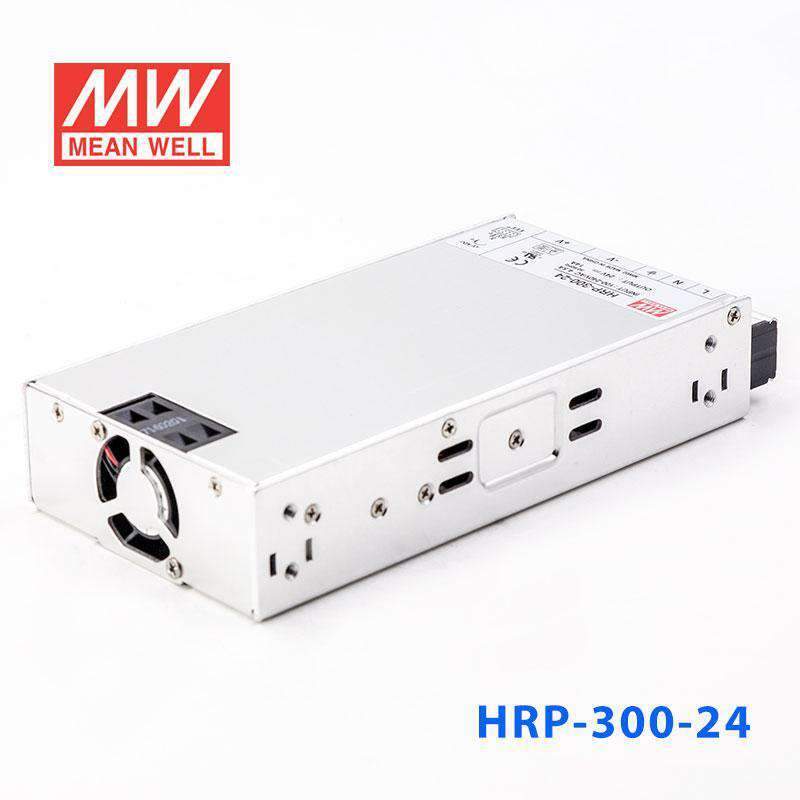

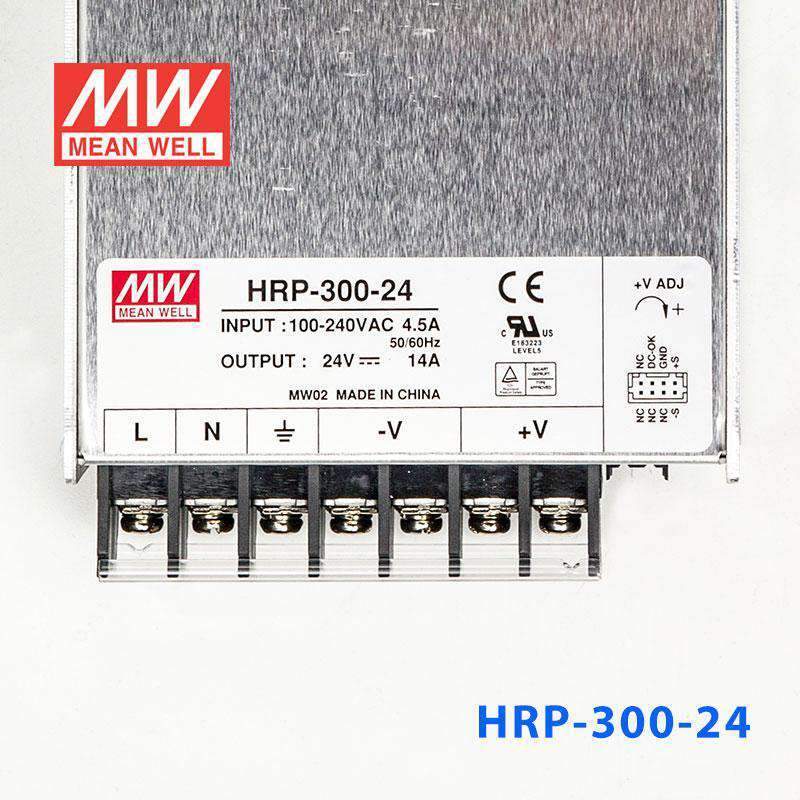

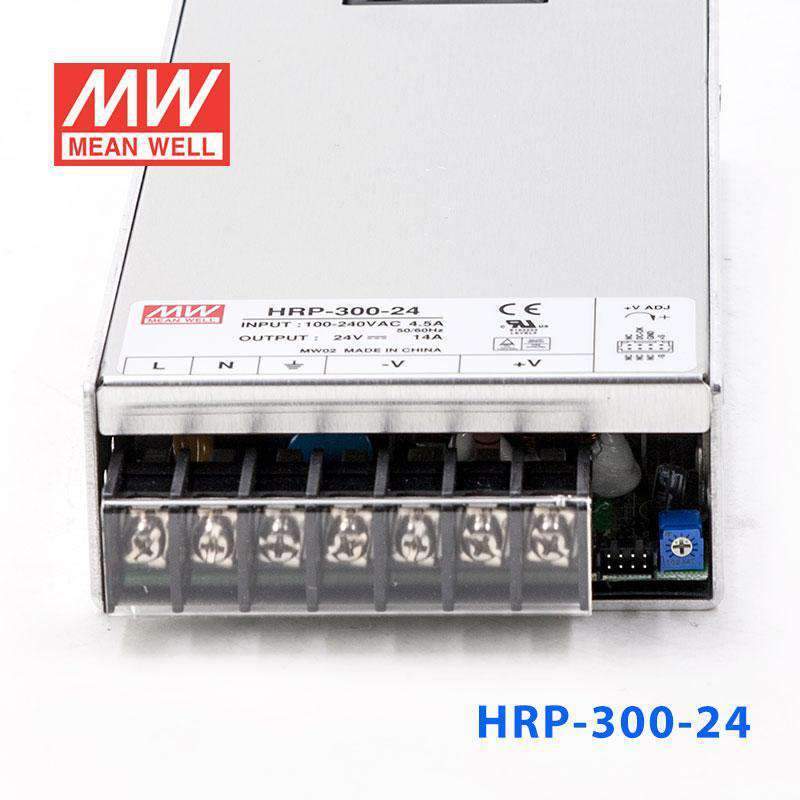

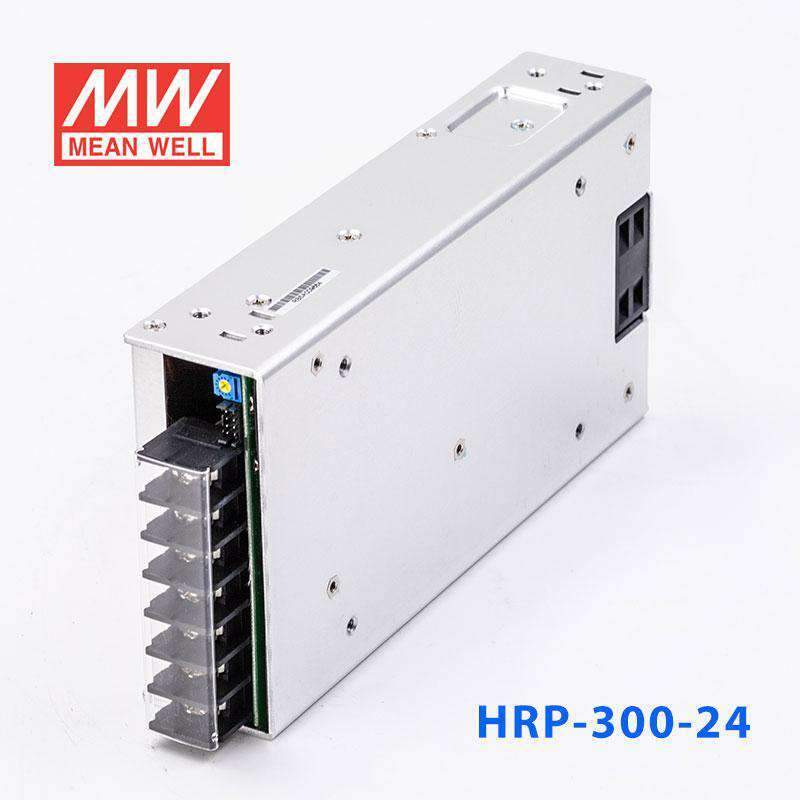

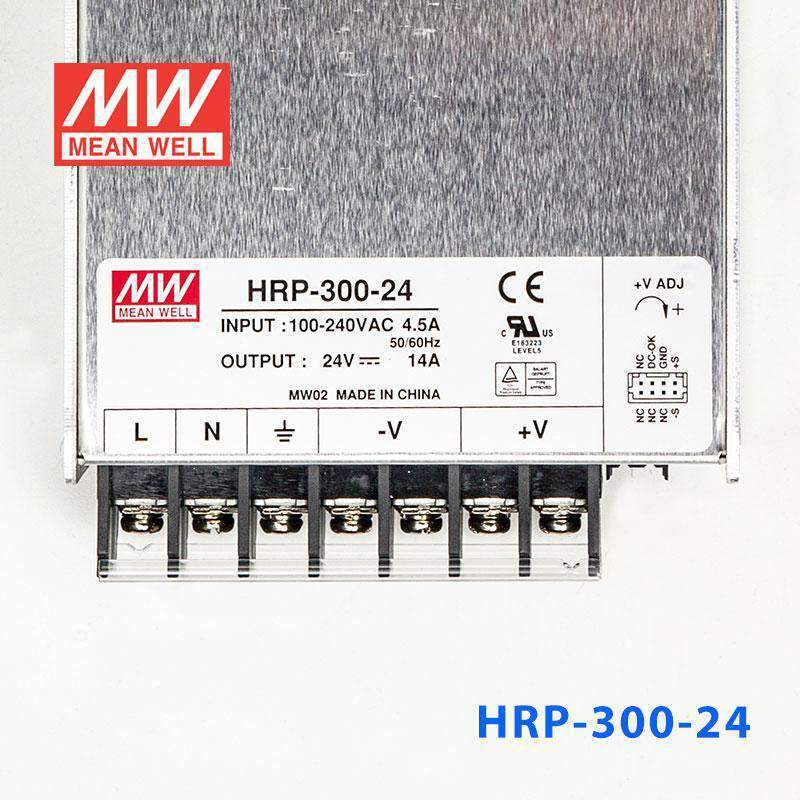

Mean Well HRP-300-24 Power Supply 336W 24V 14A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-300-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-300-24

HRP-75-24 75W 24V Backorder

HRP-100-24 100W 24V Low stock

HRP-150-24 150W 24V Backorder

HRP-200-24 200W 24V Backorder

HRP-300-24 300W 24V In stock

HRP-450-24 450W 24V Low stock

HRP-600-24 600W 24V Low stock

Product variants

In stock

Overview

HRP-300-24 is the 24V output model of this series: rated current 14A, rated power 336W, typical efficiency 87%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
1U low profile 41mm
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
5 years warranty

Specifications

HRP-300-24Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 14A
CURRENT RANGE: 0 ~ 14A
RATED POWER: 336W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 28.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1.2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 30 ~ 34.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL: PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 1487.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*105*41mm (L*W*H)
PACKING: 0.95Kg;15pcs/15.3Kg/0.83CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-300-24 Mechanical Specification — Mechanical Specification

HRP-300-24 Block Diagram — Block Diagram

HRP-300-24 Derating Curve — Derating Curve

Downloads

Certificates4

EMC Certificate (HRP-300)(EN) PDF Download

UL Certificate(HRP-300)(EN) PDF Download

CB Certificate (HRP-300)(EN) PDF Download

TUV Certificate(HRP-300)(EN) PDF Download

Test reports1

Test Report(HRP-300-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-300-24 for a 24V PLC or industrial automation system?

Yes, this model is a constant voltage 24V power supply rated for 14A and 336W. It is suited to 24V industrial and automation loads whose total demand stays within that rating.

Is the HRP-300-24 a fit for 24V embedded control equipment or instrumentation?

It can be used where the equipment requires a regulated 24V DC source and the total load remains within 14A and 336W. The 85-264VAC input range also supports use across varied AC input conditions.

Can this power supply support a 24V DC control panel with multiple devices on one supply?

It can, as long as the combined 24V demand stays within 336W and 14A. That makes it useful for centralized 24V control power in industrial panels and automation assemblies.

Would the HRP-300-24 work for a 24V communications or industrial electronics load?

It is appropriate for 24V constant voltage electronics that need up to 14A. Buyers usually choose this version when the load is specifically 24V and fits within its 336W rating.

Can the HRP-300-24 be used outdoors or in unprotected areas?

The specified operating range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is provided, so it should be treated as an indoor or enclosure-protected power supply rather than an exposed outdoor unit.

What are the main differences between the HRP-300-24 and the other HRP-300 versions?

The HRP-300 family includes 3.3V at 198W and 60A, 5V at 300W and 60A, 7.5V at 300W and 40A, 12V at 324W and 27A, 15V at 330W and 22A, 24V at 336W and 14A, 36V at 324W and 9A, and 48V at 336W and 7A. The HRP-300-24 sits in the middle of the voltage range while keeping the same 199.0 × 105.0 × 41.0 mm form factor and 0.95 kg weight as the other products listed here.
