Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

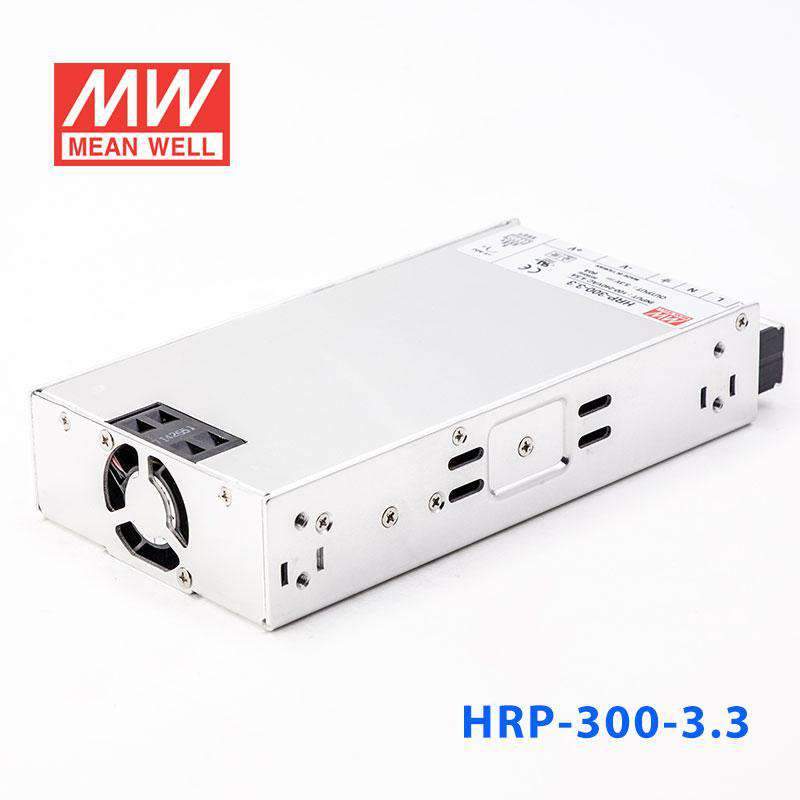

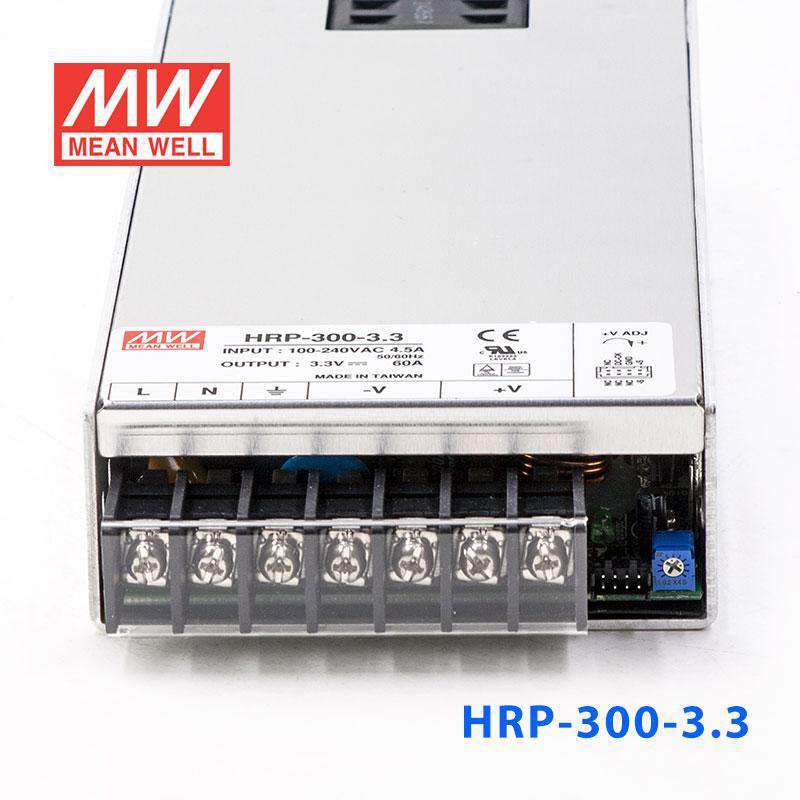

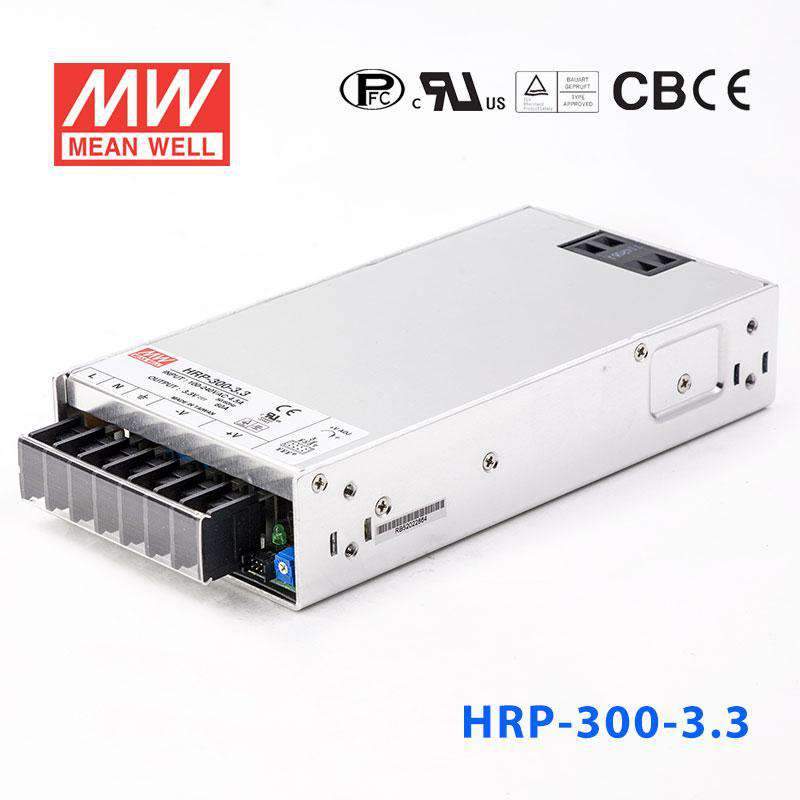

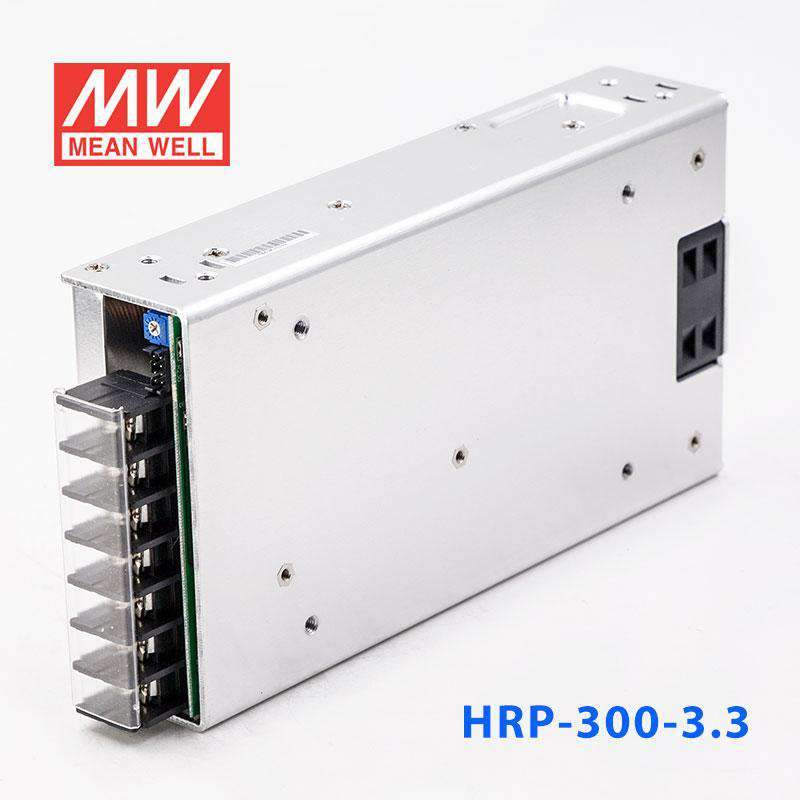

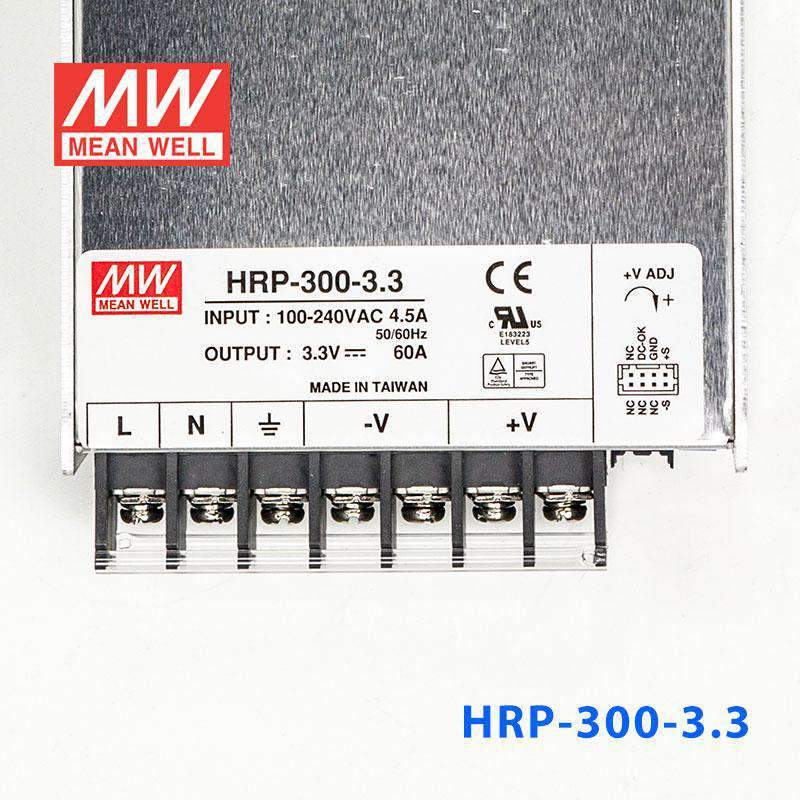

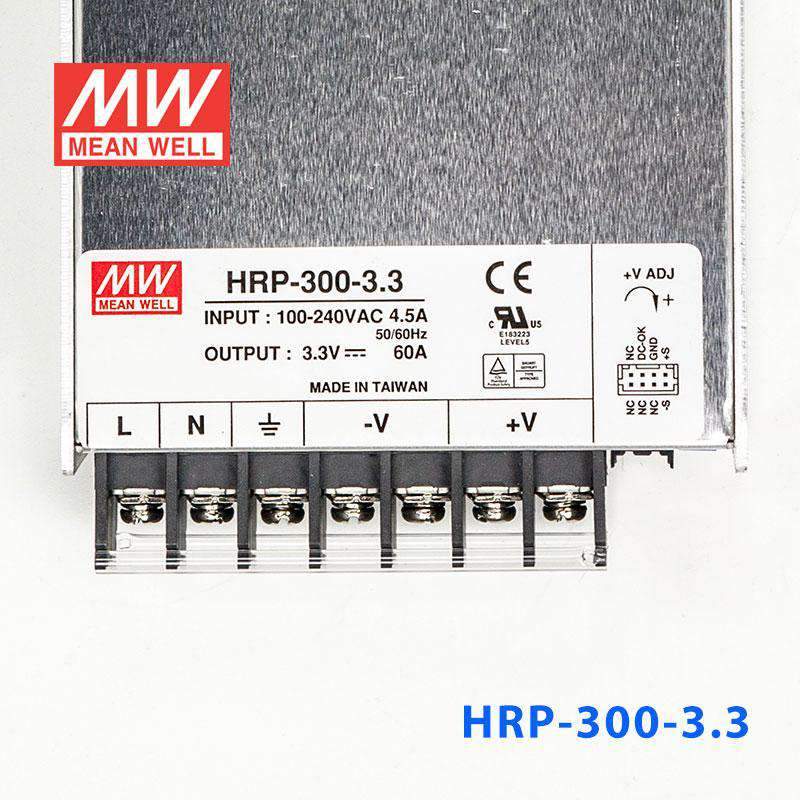

Mean Well HRP-300-3.3 Power Supply 198W 3.3V 60A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-300-3.3

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-300-3.3

HRP-75-3.3 75W 3.3V Backorder

HRP-100-3.3 100W 3.3V Backorder

HRP-150-3.3 150W 3.3V Backorder

HRP-200-3.3 200W 3.3V Backorder

HRP-300-3.3 300W 3.3V Backorder

HRP-450-3.3 450W 3.3V Backorder

HRP-600-3.3 600W 3.3V Backorder

Product variants

Available to order

Overview

HRP-300-3.3 is the 3.3V output model of this series: rated current 60A, rated power 198W, typical efficiency 80%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
1U low profile 41mm
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
5 years warranty

Specifications

HRP-300-3.3Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 60A
CURRENT RANGE: 0 ~ 60A
RATED POWER: 198W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 2.8 ~ 3.8V
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 80%
AC CURRENT (Typ.): 3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1.2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 3.96 ~ 4.62V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL: PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 1487.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*105*41mm (L*W*H)
PACKING: 0.95Kg;15pcs/15.3Kg/0.83CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-300-3.3 Mechanical Specification — Mechanical Specification

HRP-300-3.3 Block Diagram — Block Diagram

HRP-300-3.3 Derating Curve — Derating Curve

Downloads

Certificates4

EMC Certificate (HRP-300)(EN) PDF Download

UL Certificate(HRP-300)(EN) PDF Download

CB Certificate (HRP-300)(EN) PDF Download

TUV Certificate(HRP-300)(EN) PDF Download

Test reports1

Test Report(HRP-300-3.3)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-300-3.3 for a 3.3V embedded system with very high current demand?

Yes, this unit is a constant voltage 3.3V supply rated for 60A and 198W. It is suited to embedded or processing hardware that specifically requires 3.3V at high current within that rating.

Is the HRP-300-3.3 appropriate for logic-heavy industrial electronics that run on 3.3V DC?

It can be a fit when the electronics need a regulated 3.3V source and the total draw stays within 60A. This makes it more relevant to low-voltage, high-current systems than to general 12V, 24V, or 48V control equipment.

Would this 3.3V power supply work for a centralized low-voltage DC bus inside equipment?

It can support a 3.3V DC bus where the load is designed for constant voltage operation and remains within 198W and 60A. The wide 85-264VAC input also helps when the equipment may be used across different AC input environments.

Can the HRP-300-3.3 be used in hot or cold industrial environments?

The specified operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is listed, so it should be used in indoor or protected environments rather than directly exposed outdoor conditions.
