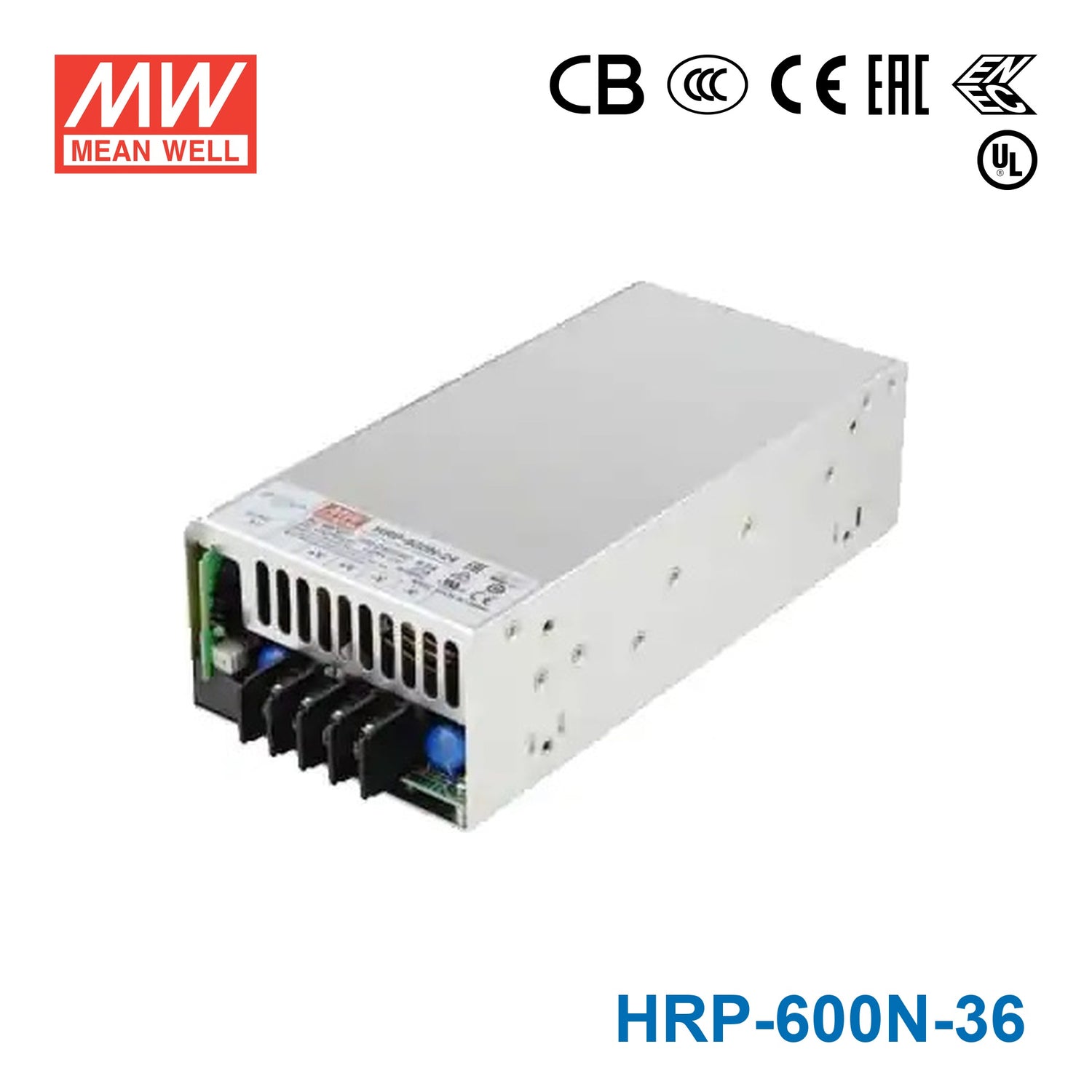

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HRP-600N-36 High Peak-Power Power Supply 600W 36V 17.5A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-600N-36

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by HRP-600N3-36

Available to order

Overview

HRP-600N-36 is the 36V output model of this series: rated current 17.5A, rated power 630W, typical efficiency 89%.

HRP-600N is a 600W single output type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan ON-OFF control, working for the temperature up to 70℃.Moreover, HRP-600N provides 250% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
250% peak power capability
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
5 years warranty

Specifications

HRP-600N-36Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 17.5A
CURRENT RANGE: 0 ~ 17.5A
RATED POWER: 630W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 28.8 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 50ms/230VAC 3600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 7.6A/115VAC 3.6A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1.5mA / 240VAC

PROTECTION

OVERLOAD: Normally works within 105 ~ 200% rated output power for more than 5 seconds and then shut down o/p voltage, re-power on to recover Constant current limiting for output power >280% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field BS EN/EN61000-4-3 Level 3, 10V/m
EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field	BS EN/EN61000-4-3	Level 3, 10V/m
EFT/ Burst	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

OTHERS

MTBF: 1380.8K hrs min. Telcordia SR-332 (Bellcore) ; 191.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*61.5mm (L*W*H)
PACKING: 1.39Kg;8pcs/12.1Kg/1.58CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-600N-36 Block Diagram — Block Diagram

HRP-600N-36 Derating Curve — Derating Curve

HRP-600N-36 Function Manual — Function Manual

HRP-600N-36 H R P - 6 0 0 N series — H R P - 6 0 0 N series

HRP-600N-36 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates5

Mean Well HRP-600N CB(UL) Certificate PDF Download

Mean Well HRP-600N CE-dec Certificate PDF Download

Mean Well HRP-600N UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well HRP-600N-36 Test Report PDF Download

FAQ

Can I use the HRP-600N-36 for 36V industrial equipment or automation subsystems?

Yes, this model delivers constant voltage 36V output rated at 630W and 17.5A. It is suitable for industrial electronics and automation subsystems that are specifically designed to run from a regulated 36V DC source.

Is the HRP-600N-36 a good fit for 36V motors, actuators, or DC machinery controls?

It can be used where the equipment is rated for constant voltage 36V and the total demand remains within 17.5A and 630W. For motors and electromechanical loads, the HRP-600N also provides 250% short-duration peak power (up to 5 seconds, within the sheet's duty-cycle limits) for start-up.

Would this power supply work for a 36V embedded test platform or production fixture?

Yes, the 36V output and 17.5A current capacity make it appropriate for 36V validation racks, engineering benches, and production fixtures. The wide 85-264VAC input also helps when those systems are used across different facilities.

Can the HRP-600N-36 support a centralized 36V DC bus in an industrial enclosure?

Yes, if the downstream devices all require constant voltage 36V and the combined load stays within 630W and 17.5A. That makes it a practical choice for grouped 36V control loads in industrial or embedded environments.

Is the HRP-600N-36 suitable for cold or hot industrial spaces, and can it be used outdoors?

Its specified operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve, so it is designed for wide-temperature operation. However, no IP rating is listed in the provided specs, so outdoor or washdown use should not be assumed from this data alone.
