Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

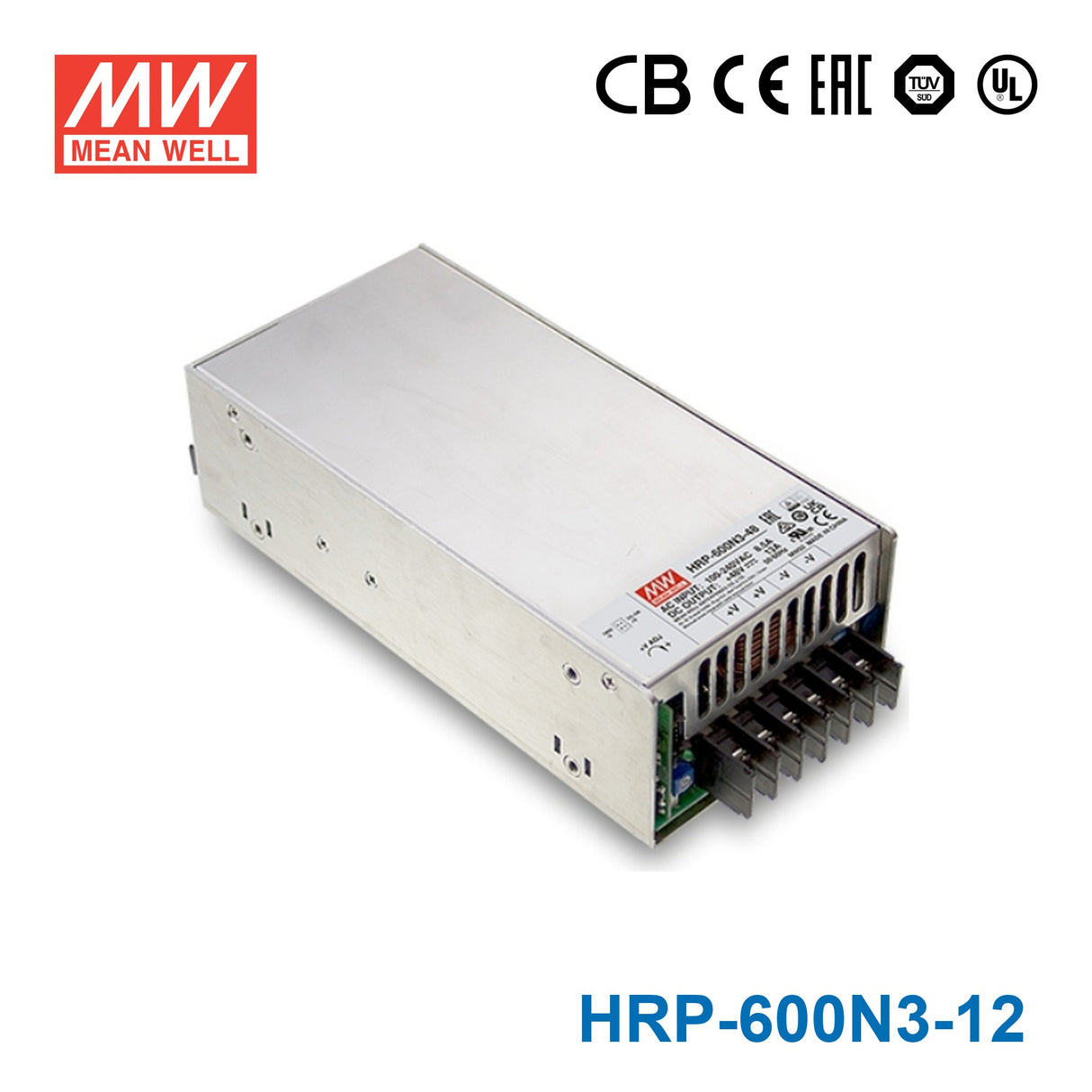

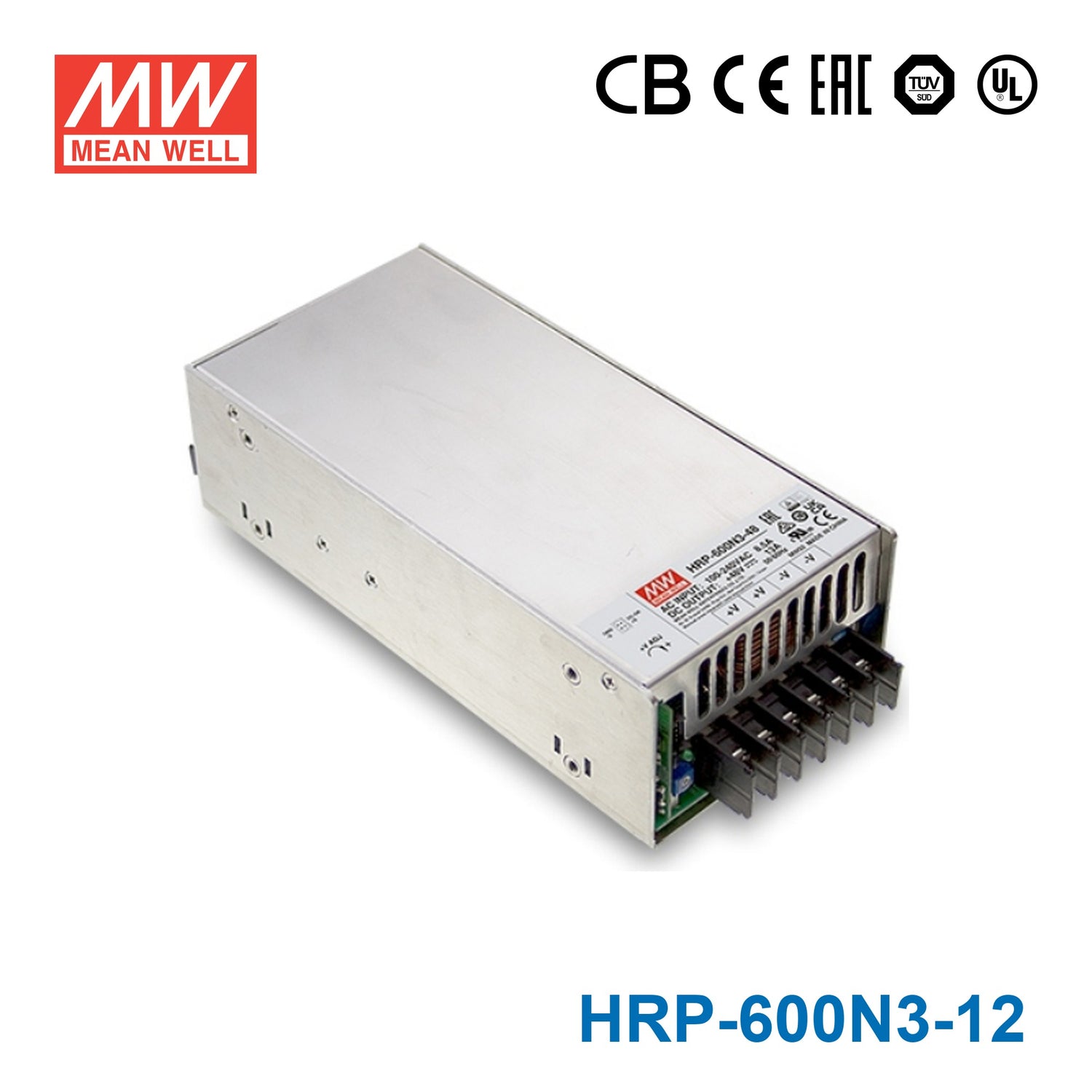

Mean Well HRP-600N3-12 Power Supply 636W 12V, 350% peak power model 53A

built-in active PFC1U low profile300% peak power capacity

SKU HRP-600N3-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The HRP-600N3 is a 600W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Safety approvals: AS/NZS 62368.1
✓ 3 years warranty

Frequently Asked Questions

What is the output rating of the Mean Well HRP-600N3-12?

The HRP-600N3-12 is a 12V enclosed AC-DC power supply rated for 636W output power. It provides a rated output current of 53A. This makes it suitable for higher-current 12V industrial equipment that needs a compact enclosed supply.

What kinds of industrial applications is the HRP-600N3-12 designed for?

This model is aimed at demanding industrial applications that need a reliable 12V power source with high output capacity. Its enclosed form factor, DC OK signal, remote sense function, and high-reliability positioning make it a fit for control systems, automation equipment, and other industrial power applications. It is especially relevant where continuous-duty operation and strong protection features matter.

Can the HRP-600N3-12 handle harsh electrical or industrial environments?

Yes. The unit accepts a universal input range of 85 to 264VAC and can withstand a 300VAC surge input for 5 seconds. It also meets heavy-industry EMC standards and is rated to withstand 5G vibration, which supports use in tougher industrial environments.

What temperature range can the HRP-600N3-12 operate in?

The specified operating temperature range is -40°C to +70°C, with reference to the derating curve. That gives it a wide operating window for industrial environments. Buyers should still confirm derating requirements for high ambient temperatures.

What protection features are included in the HRP-600N3-12?

The HRP-600N3-12 includes short circuit, overload, over voltage, and over temperature protection. Its overload protection range is specified at 105% to 135%, and the unit shuts down output voltage if output power exceeds 105% of rated power for more than 5 seconds, then recovers after re-powering. It also includes a built-in constant current limiting circuit.

Is the HRP-600N3-12 a good choice when space is limited?

This model uses a low-profile enclosed design intended for space-conscious industrial builds. Its dimensions are 218 x 105 x 61.5 mm, and the product highlights a 1U low-profile design. That makes it easier to consider where a compact high-power 12V supply is needed.

What certifications and compliance standards does the HRP-600N3-12 meet?

The HRP-600N3-12 is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. Its EMC compliance includes EN55022 Class B and EN61000 series standards, including EN61000-6-2 heavy industry level. These approvals are relevant for buyers who need a supply aligned with industrial and commercial compliance requirements.

What warranty comes with the Mean Well HRP-600N3-12?

This model includes a 5-year warranty. That warranty period supports its positioning as a high-reliability industrial power supply. For B2B buyers, it adds confidence for longer service-life planning and maintenance schedules.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HRP-600N3-48 Power Supply 624W 48V, 350% peak power model 13A	600W	48V	13A	View
Mean Well HRP-600N3-36 Power Supply 630W 36V, 350% peak power model 17.5A	600W	36V	17.5A	View
Mean Well HRP-600N3-24 Power Supply 648W 24V, 350% peak power model 27A	600W	24V	27A	View
