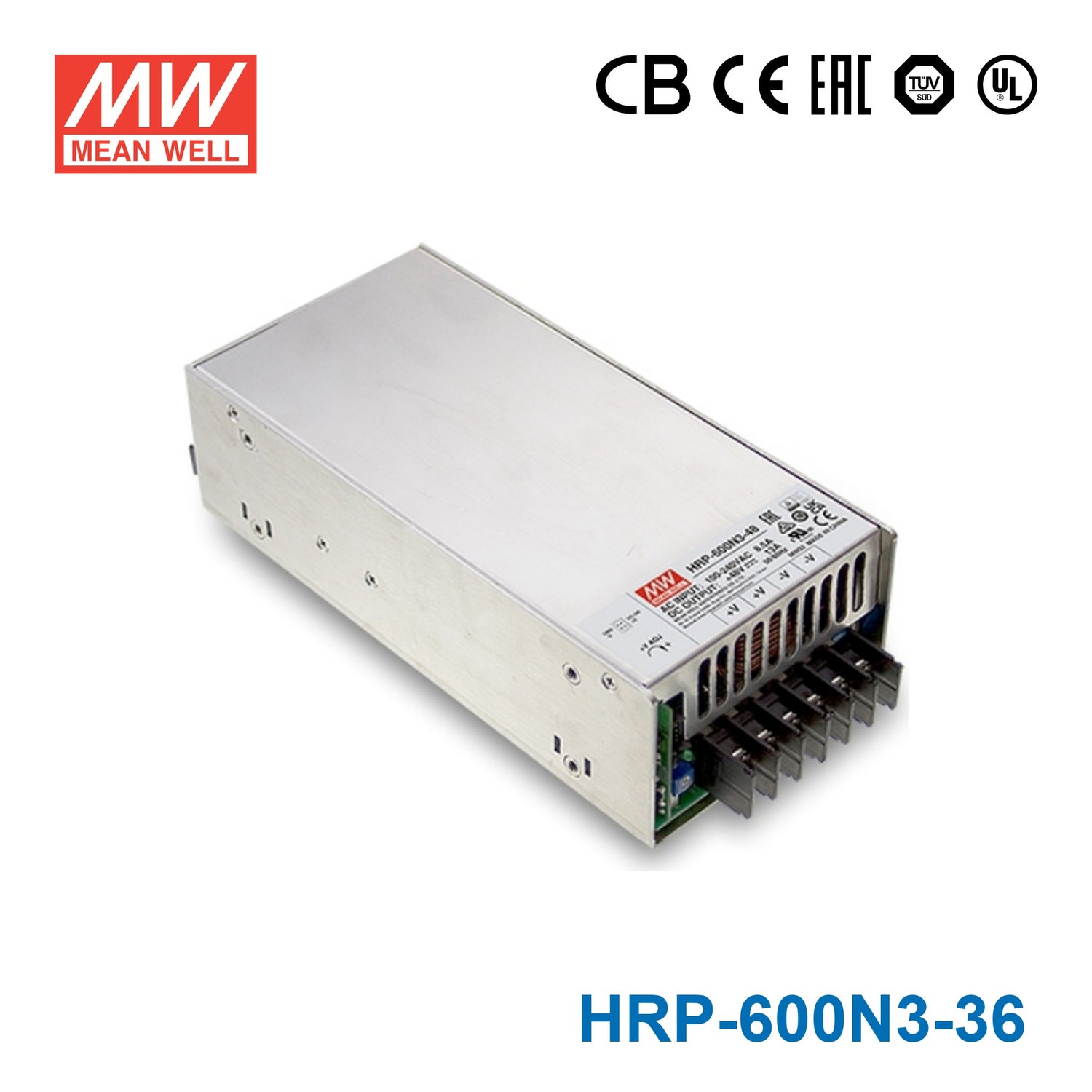

Mean Well HRP-600N3-36 Power Supply 630W 36V, 350% peak power model 17.5A

The HRP-600N3-36 is an enclosed AC-DC power supply built for industrial and high-reliability applications that need a regulated 36V DC output. It provides 600W rated power with a 17.5A rated current in a compact low-profile form factor. Its feature set is aimed at demanding equipment environments rather than light consumer use.

This model delivers a nominal 36V DC output and is rated for 600W with 17.5A output current. The output voltage is adjustable by approximately ±15% on average. It also includes a built-in DC OK signal and remote sense function.

The HRP-600N3-36 accepts a universal AC input range of 85 to 264VAC, and it can also operate from 120 to 370VDC. It is designed to withstand a 300VAC surge input for 5 seconds. That broad input range makes it suitable for varied industrial power environments.

Yes. This model is specified for operation from -40°C to +70°C and can be used at altitudes up to 5000 meters, subject to the manufacturer's derating guidance. It also withstands 5G vibration and is built to heavy industry EMC levels.

The HRP-600N3-36 includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection range is 105% to 135%, and if output power stays above 105% rated for more than 5 seconds, the output shuts down until power is reapplied. It also has a built-in constant current limiting circuit.

Compared with basic enclosed power supplies, this model adds features often needed in more demanding systems, including peak power capability, DC OK signal, remote sense, and fan ON-OFF control. It also offers a 1U low-profile 41mm design and approvals to multiple safety standards. These features make it better suited to industrial and high-reliability applications than entry-level alternatives.

This model is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. For EMC, it lists EN55022 Class B and EN61000 series compliance, including heavy industry level EN61000-6-2. These approvals are relevant for buyers who need documented industrial compliance coverage.

The unit measures 218 x 105 x 61.5 mm and weighs 1.39 kg. It is designed as a low-profile enclosed supply for space-conscious equipment layouts. Mean Well backs this model with a 5-year warranty.
