Mean Well

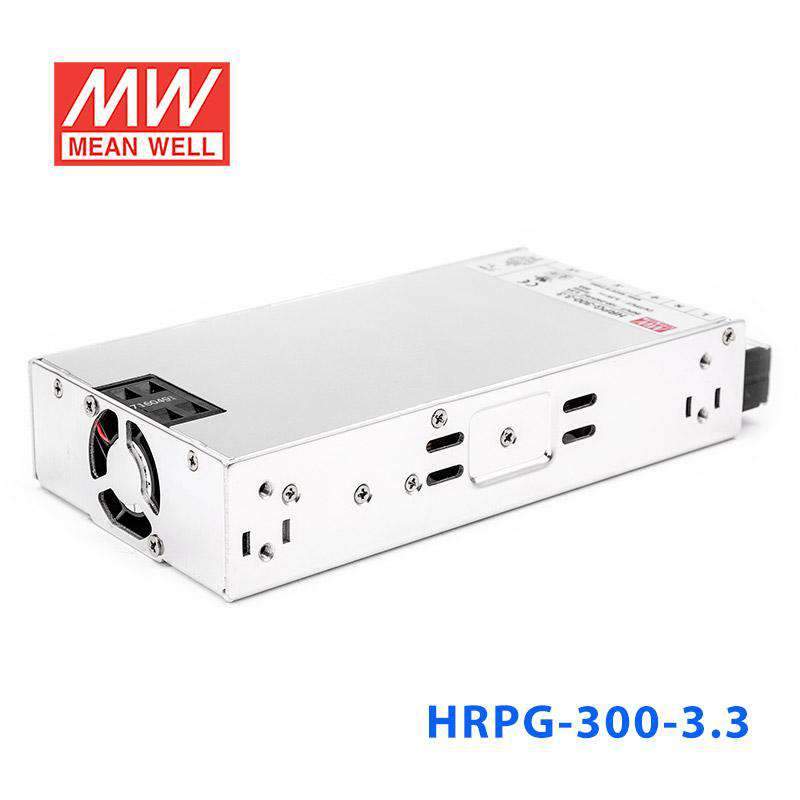

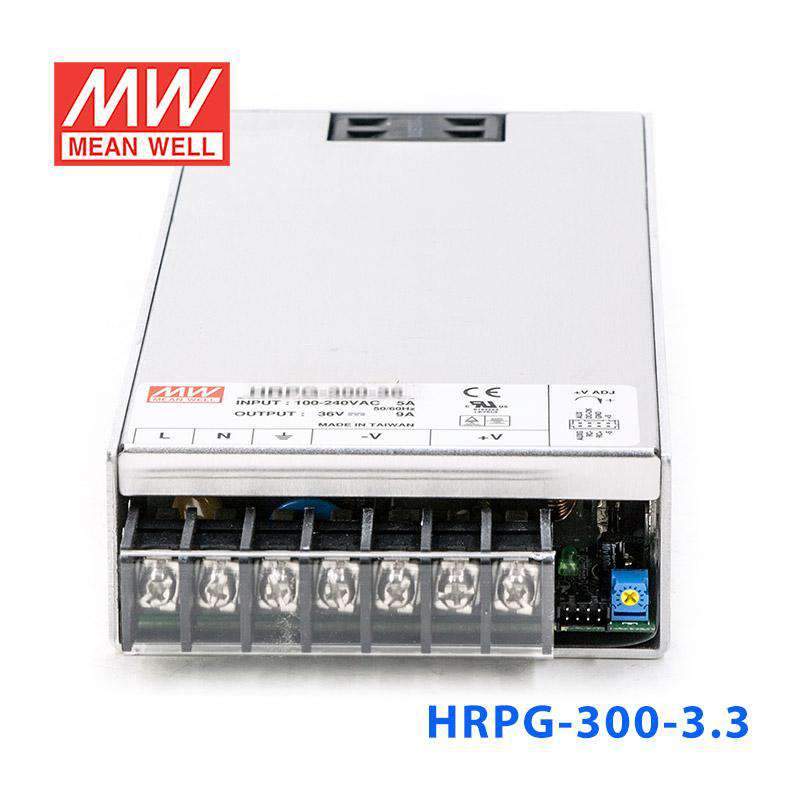

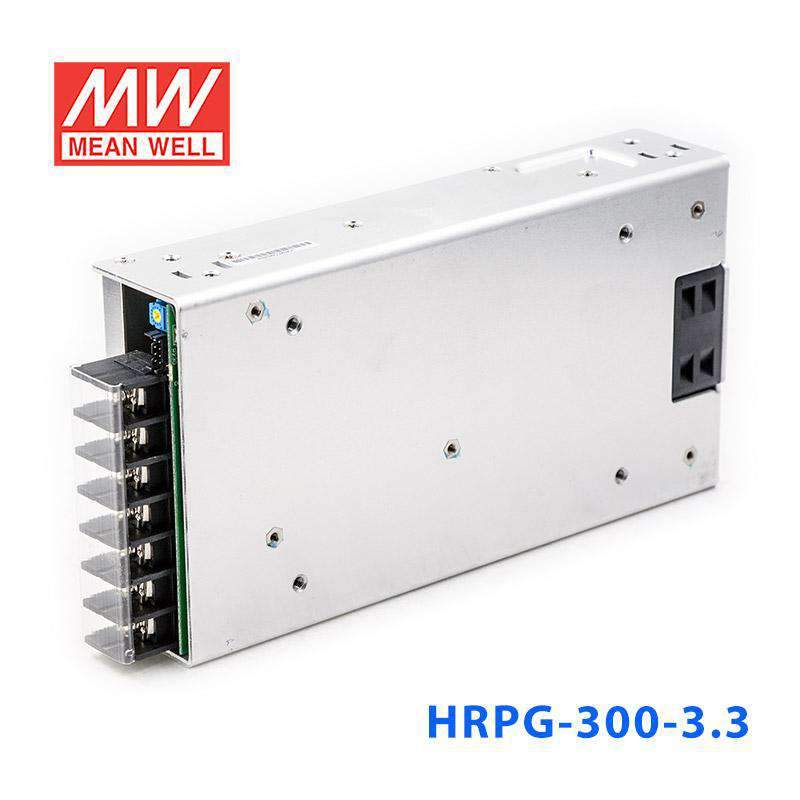

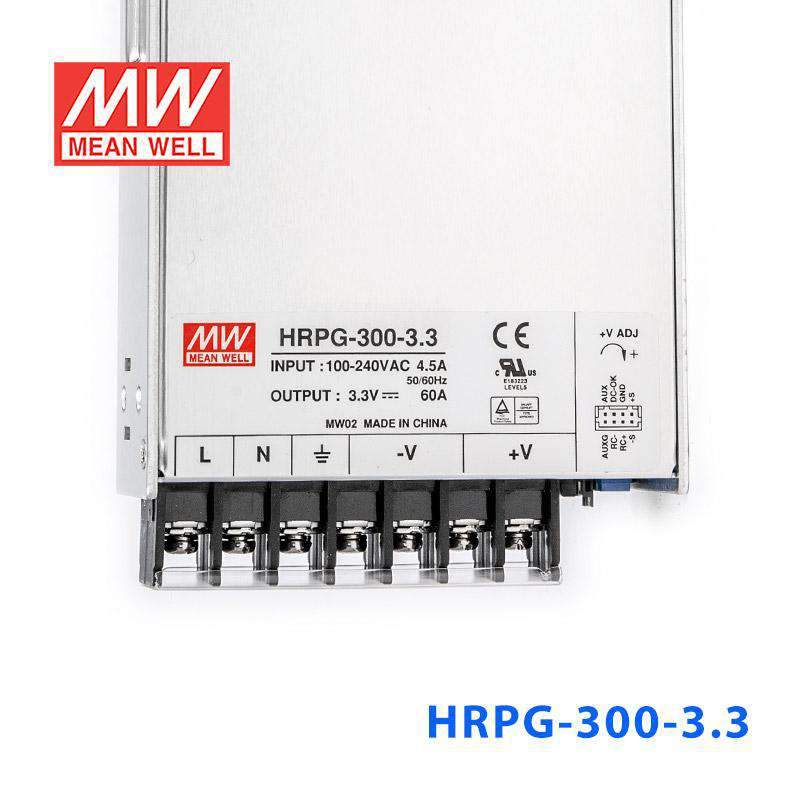

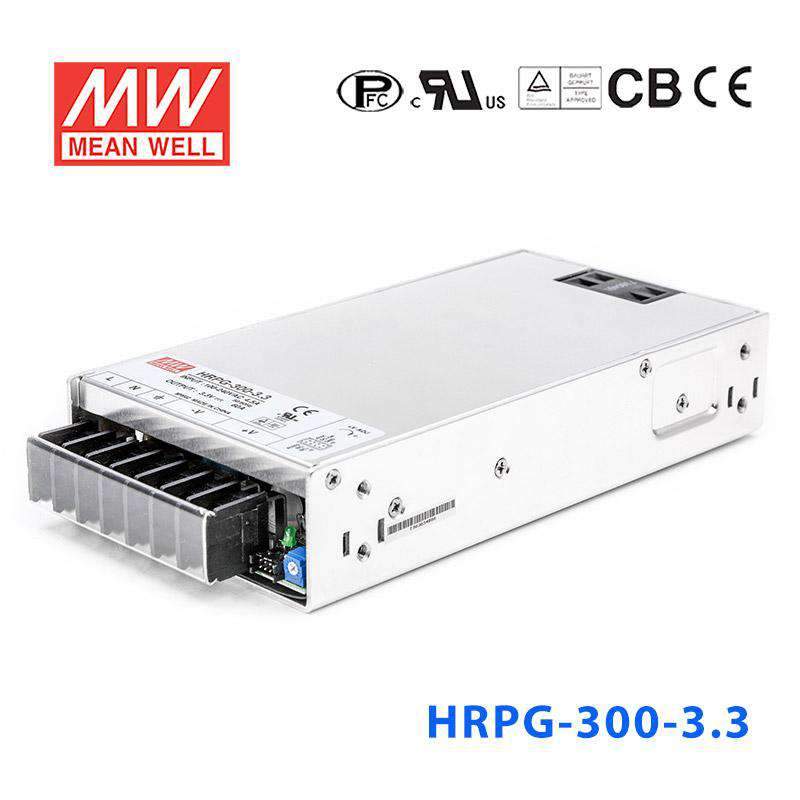

Mean Well HRPG-300-3.3 Power Supply 198W 3.3V 60A

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile
SKU HRPG-300-3.3
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

HRPG-300-3.3 is the 3.3V output model of this series: rated current 60A, rated power 198W, typical efficiency 80%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • 1U low profile 41mm
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.5W (Note.6)
  • 5 years warranty

Specifications

HRPG-300-3.3Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
3.3V
RATED CURRENT
60A
CURRENT RANGE
0 ~ 60A
RATED POWER
198W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
2.8 ~ 3.8V
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
3.5A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
3.96 ~ 4.62V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL
PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V
REMOTE CONTROL
RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.)
Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1339.6K hrs min. Telcordia SR-332 (Bellcore) ; 176.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*105*41mm (L*W*H)
PACKING
0.95Kg;15pcs/15.3Kg/0.83CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. No load power consumption<0.5W when RC- & RC+ (CN100 pin4,6) 0 ~ 0.8V or short.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRPG-300-3.3 Mechanical Specification
Mechanical Specification
HRPG-300-3.3 Block Diagram
Block Diagram
HRPG-300-3.3 Derating Curve
Derating Curve
HRPG-300-3.3 H R P G - 3 0 0 series
H R P G - 3 0 0 series
HRPG-300-3.3 2.DC-OK Signal
2.DC-OK Signal
HRPG-300-3.3 3.Remote Control
3.Remote Control

Downloads

FAQ

Can I use the HRPG-300-3.3 for a high-current 3.3V embedded or logic rail?

Yes, this model is built for constant voltage output at 3.3V and can deliver up to 60A. Its 198W rating makes it relevant for embedded or digital systems that need substantial current at a very low DC voltage.

Is the HRPG-300-3.3 suitable for powering 3.3V industrial electronics in one cabinet?

It can be a fit where multiple 3.3V loads are combined on one regulated DC source. The total demand still needs to stay within the published 60A output current and 198W power rating.

Would this power supply work for 3.3V test fixtures or burn-in stations?

It can work in fixture or test environments that need a constant 3.3V supply with high available current. The wide 85-264VAC input is also useful when the equipment may be deployed in different AC input regions.

Is the HRPG-300-3.3 a good option where a low-profile high-current DC supply is needed?

This unit measures 199.0 x 105.0 x 41.0 mm, a height of only 41 mm. That can help in dense industrial or embedded builds where 3.3V at up to 60A is required without moving to a larger chassis format.

Can the HRPG-300-3.3 be used outdoors or in wide-temperature environments?

The operating temperature range is listed as -40°C to +70°C, with output derating required at higher ambient temperatures according to the derating curve. No IP rating appears in the provided specs, so outdoor exposure is not confirmed by this listing and a protected enclosure should be assumed for non-indoor use.

How does the HRPG-300-3.3 compare with other HRPG-300 models?

The HRPG-300 series includes 198W at 3.3V and 60A, 300W at 5V and 60A, 300W at 7.5V and 40A, 324W at 12V and 27A, 330W at 15V and 22A, 336W at 24V and 14A, 324W at 36V and 9A, and 336W at 48V and 7A. This model is the lowest-voltage option in that set and one of the highest-current entries at 60A.
