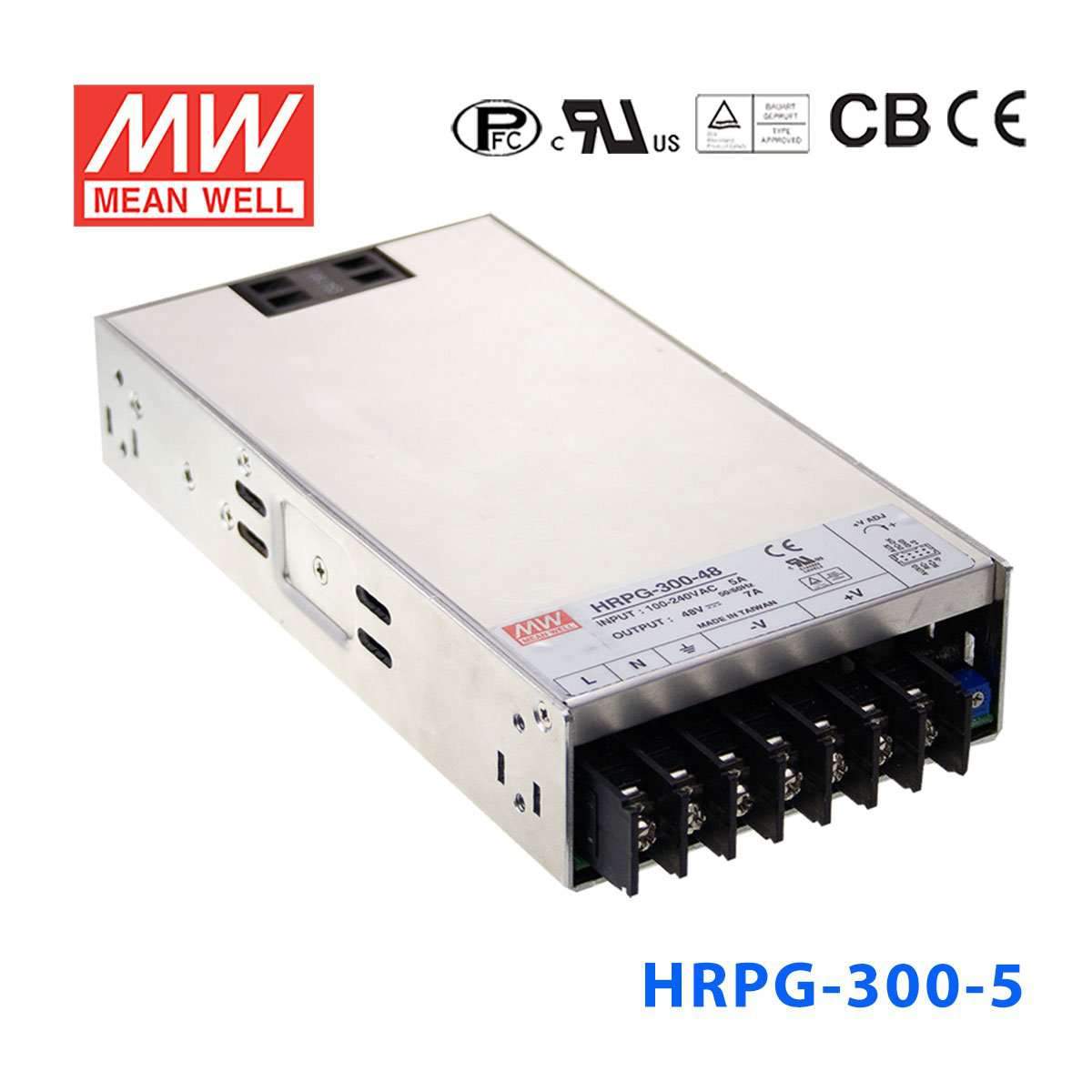

Mean Well HRPG-300-5 Power Supply 300W 5V 60A

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption

SKU HRPG-300-5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The HRPG-300 is a 300W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1, I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ℃ EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can I use the HRPG-300-5 for a 5V industrial controller or PLC cabinet?

This model is a constant-voltage 5V supply rated for 300W and up to 60A, so it fits 5V industrial control electronics that need a high-current DC source. Its 85-264VAC input and -40°C to +70°C operating temperature also suit panels used across varied industrial power environments.

Is the HRPG-300-5 suitable for powering multiple 5V embedded boards from one supply?

It can support centralized 5V embedded systems when the total load stays within 300W and 60A. The constant-voltage design is appropriate for equipment that expects a regulated 5V DC bus rather than a constant-current source.

Can this 5V 300W power supply be used for 5V automation peripherals and digital I/O loads?

Yes, it is intended for 5V DC loads and provides up to 60A from a 300W constant-voltage output. That makes it a fit for grouped 5V automation peripherals or digital electronics where the combined demand matches the unit's 5V, 60A, and 300W ratings.

Is the HRPG-300-5 appropriate for outdoor or washdown environments?

The published specs show an operating range of -40°C to +70°C, but no IP rating is listed for this model. That means the temperature range is broad, yet the product data does not identify it as an outdoor-rated or washdown-rated enclosure.

How does the HRPG-300-5 compare with the other HRPG-300 models?

Within the HRPG-300 group, the listed versions are HRPG-300-3.3 at 198W, 3.3V, 60A; HRPG-300-5 at 300W, 5V, 60A; HRPG-300-7.5 at 300W, 7.5V, 40A; HRPG-300-12 at 324W, 12V, 27A; HRPG-300-15 at 330W, 15V, 22A; HRPG-300-24 at 336W, 24V, 14A; HRPG-300-36 at 324W, 36V, 9A; and HRPG-300-48 at 336W, 48V, 7A. This model is the 5V, 60A member of that 300-class range.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HRPG-300-7.5 Power Supply 300W 7.5V 40A	300W	7.5V	40A	View
Mean Well HRPG-300-48 Power Supply 336W 48V 7A	336W	48V	7A	View
Mean Well HRPG-300-36 Power Supply 324W 36V 9A	324W	36V	9A	View
Mean Well HRPG-300-3.3 Power Supply 198W 3.3V 60A	198W	3.3V	60A	View
Mean Well HRPG-300-24 Power Supply 336W 24V 14A	336W	24V	14A	View
Mean Well HRPG-300-15 Power Supply 330W 15V 22A	330W	15V	22A	View
Mean Well HRPG-300-12 Power Supply 324W 12V 27A	324W	12V	27A	View
