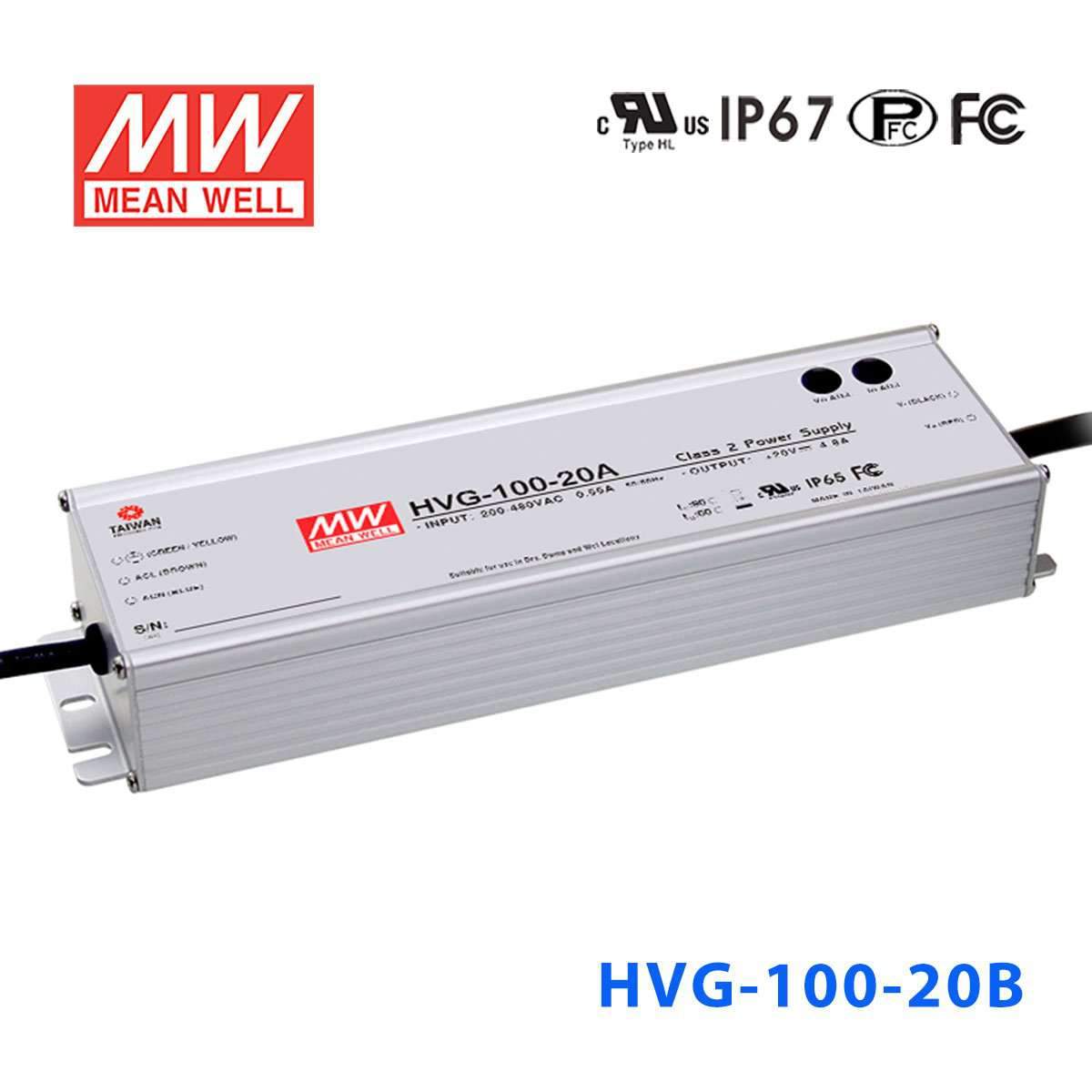

Mean Well HVG-100-20B Power Supply 100W 20V - Dimmable 4.8A

Name: Mean Well HVG-100-20B Power Supply 100W 20V - Dimmable 4.8A
Brand: Mean Well
SKU: HVG-100-20B
Price: 242.88 NZD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-100-20B

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

HVG-100-20B

HVG-65-20A Adjustable Backorder

HVG-65-20B Dimmable Backorder

HVG-65-20AB Adjustable and Dimmable Backorder

HVG-100-20A Adjustable Backorder

HVG-100-20B Dimmable Backorder

HVG-100-20AB Adjustable and Dimmable Backorder

HVG-150-20A Adjustable Backorder

HVG-150-20B Dimmable Backorder

HVG-150-20AB Adjustable and Dimmable Backorder

Product variants

Notify me when it's back in stock

HVG-100-20B is the 20V output model of this series: rated current 4.8A, rated power 96W, typical efficiency 90%.

HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528 VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Typical lifetime>50000 hours
5 years warranty

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.
