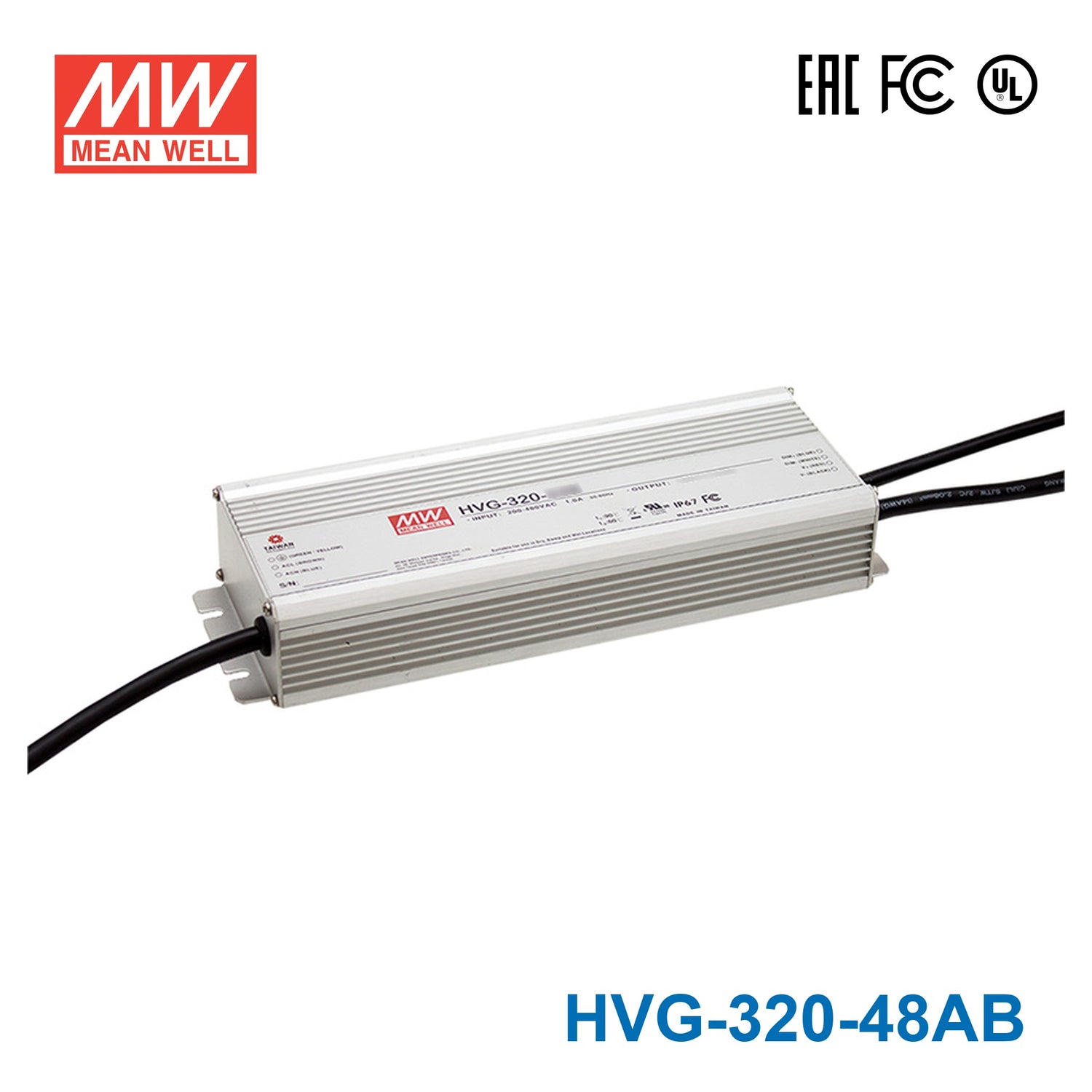

Description
Description
Features
180~528VAC wide input range |
Constant Voltage + Constant Current mode output |
Metal housing with Class I design |
Built-in active PFC |
IP67 / IP65 rating for indoor or outdoor installations |
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
Typical lifetime>50000 hours |
5 years warranty |
General Specification
AC input voltage range | 180~528VAC; 254~747VDC |
AC inrush current (max.) | COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
DC adjustment range | ±10% rated output voltage |
Current adjustment range | 55%~100% |
Over current protection | 95%~108% constant current limiting, auto-recovery |
Over-voltage protection | 110%~140% rated output voltage |
Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -40~+85ºC (refer to output derating curve) |
Safety standards | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved |
EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
Connection Input | UL rated, STW 18AWGx3C (30cm) |
Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
Dimension (LxWxH) (mm) | 262 x 90 x 43.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating321.6 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage180V~528V
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length26.2 cm
-
Width9 cm
-
Height4.38 cm
-
Weight2 kg
