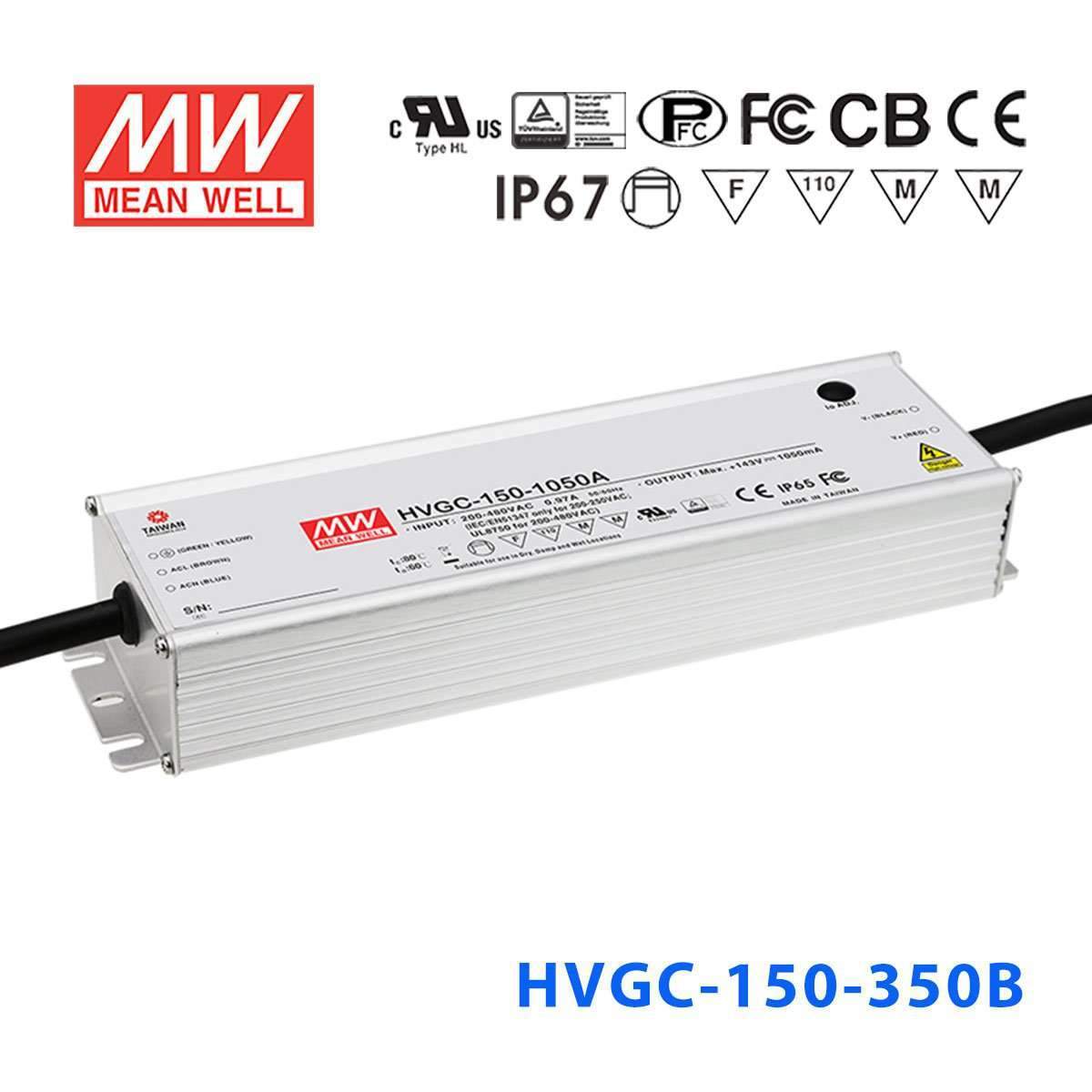

Mean Well HVGC-150-350B Power Supply 150W 350mA - Dimmable
Please Login for Pricing
Description
Description
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating149.8 Watt
-
Output Voltage428 Volt
-
Rated Current0.35 Ampere
-
Input Voltage180V~528V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length24.5 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-150-350B for outdoor LED downlights?
Yes, if the downlight system is a constant current 350mA load and its total forward voltage is within 42-428V. The IP67 waterproof rating makes this version better suited to harsher wet environments than a water-resistant driver.
Is this driver suitable for waterproof signage modules?
It can be suitable for signage modules when the load requires constant current at 350mA and the full module string stays within the 42-428V constant current range. This is not a constant voltage power supply, so it should not be matched to constant voltage signage products.
Can the HVGC-150-350B power a small LED array in exposed locations?
Yes, for constant current LED arrays rated for 350mA with a total forward voltage inside 42-428V. Its 149.8W rating and IP67 waterproof enclosure make it relevant where both electrical fit and stronger ingress protection matter.
How do I size a load for this 350mA constant current driver?
Match the LED load to 350mA output current and keep the total forward voltage within the 42-428V constant current range. The number of LEDs depends on each LED forward voltage, so compatibility should be determined from voltage calculations rather than a fixed count.
Is the HVGC-150-350B better for wet environments than the A or AB versions?
The key environmental difference is ingress protection: this B version is IP67 waterproof, while the A and AB versions are IP65 water-resistant. All three share 350mA output current, 42-428V constant current range, and 149.8W power, but the B model is the one with the higher enclosure rating.
Other HVGC-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HVGC-150-700B Power Supply 150W 700mA - Dimmable | 150.5W | 215V | 0.7A | IP67 | View |
| Mean Well HVGC-150-350A Power Supply 150W 350mA - Adjustable | 149.8W | 428V | 0.35A | IP65 | View |
| Mean Well HVGC-150-1050A Power Supply 150W 1050mA - Adjustable | 150.15W | 143V | 1.05A | IP65 | View |
