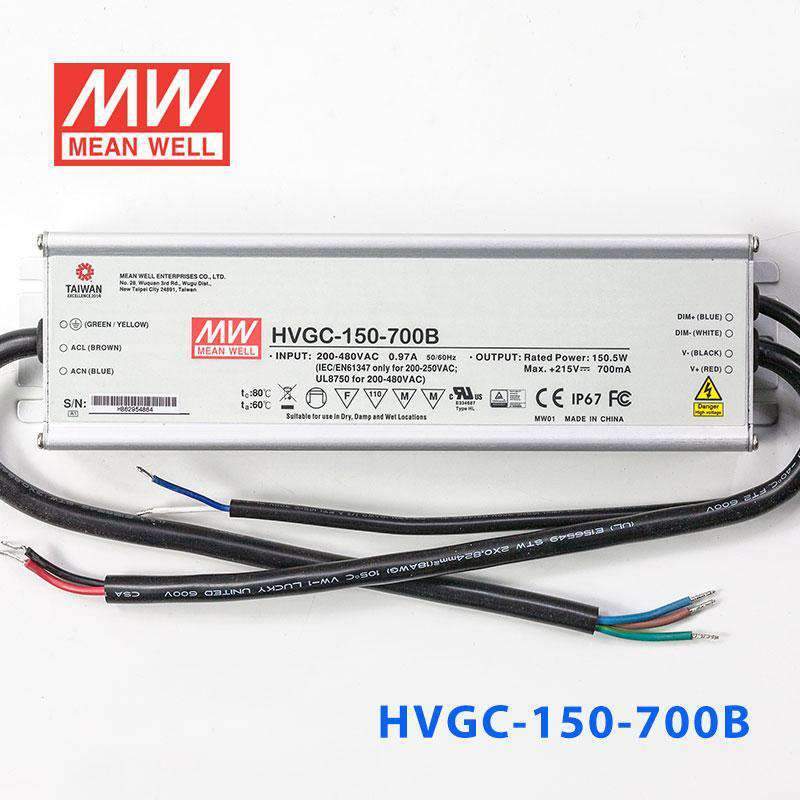

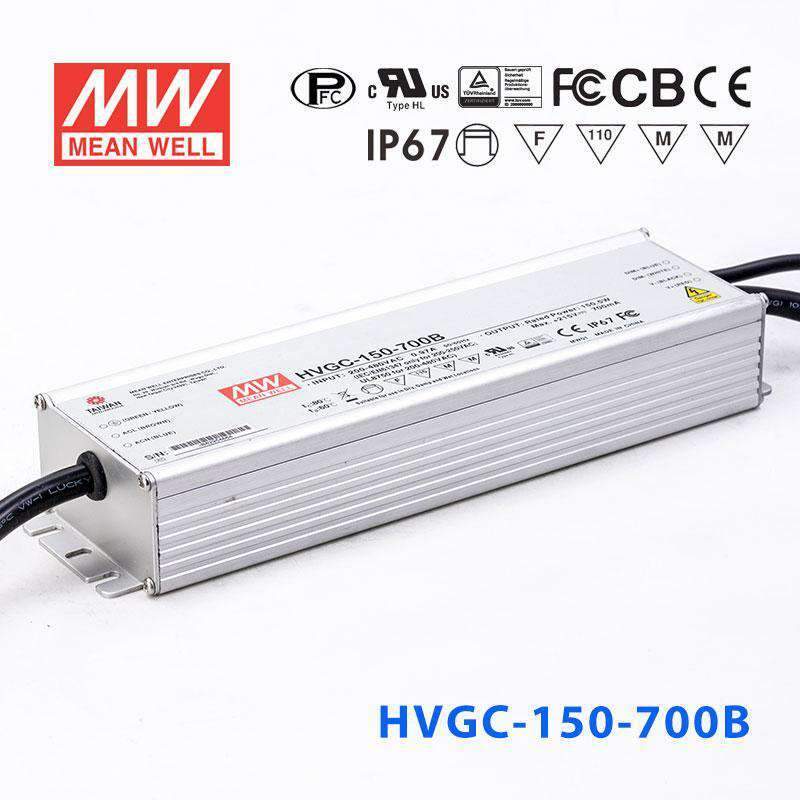

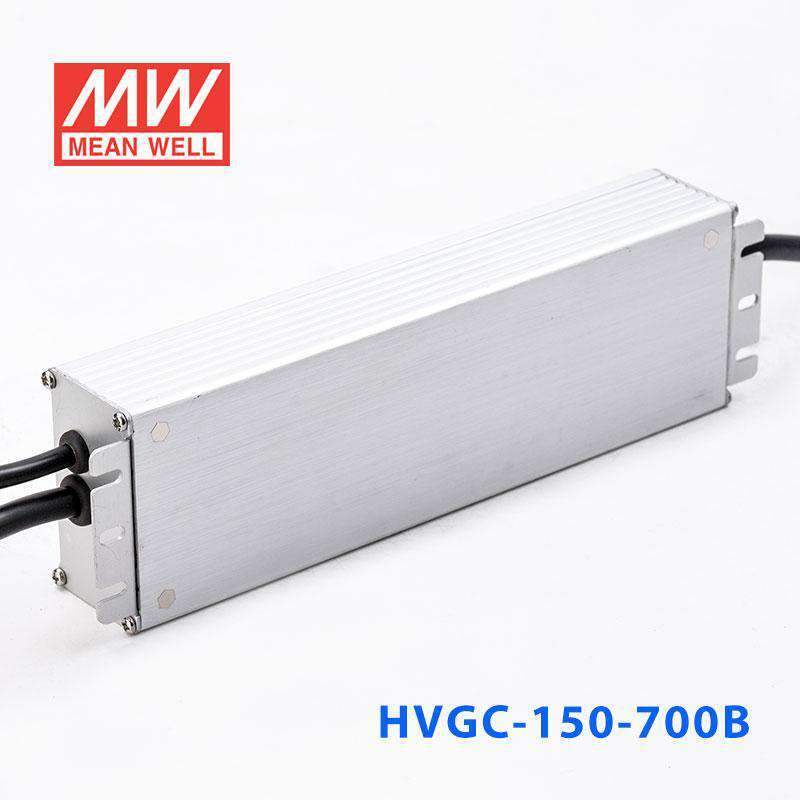

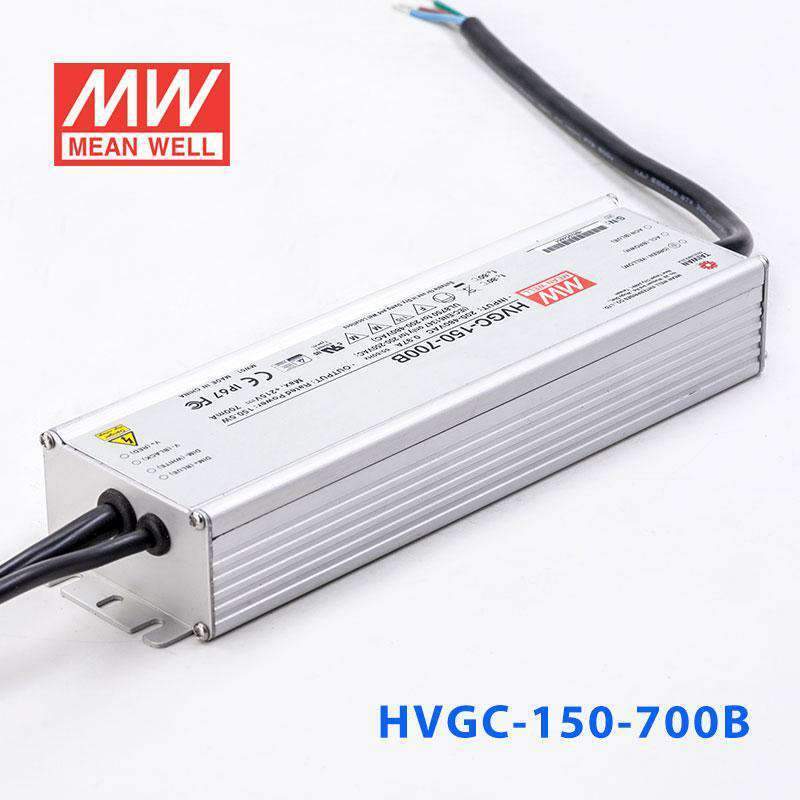

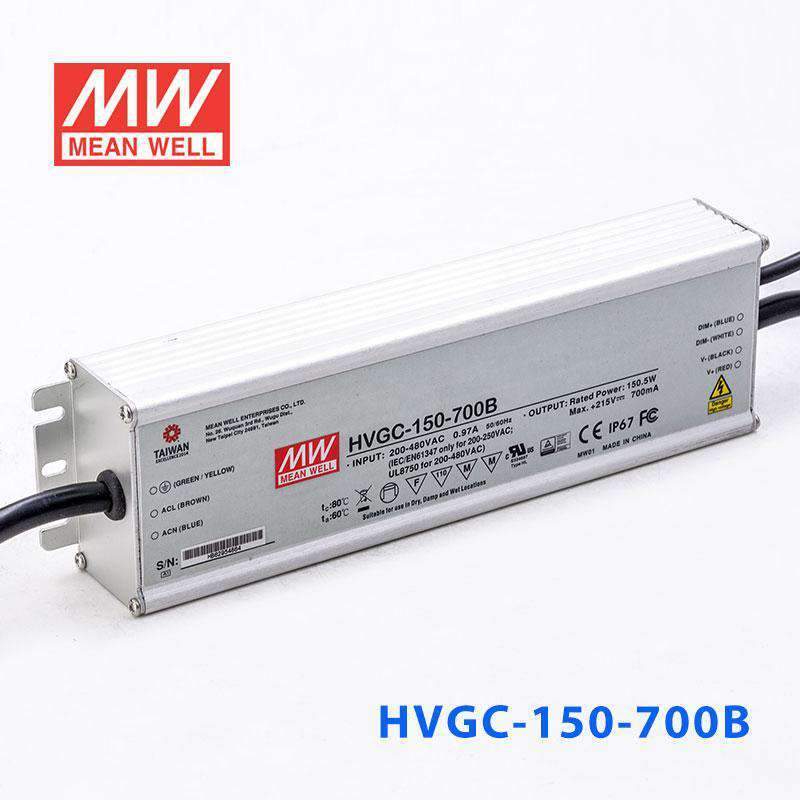

Mean Well HVGC-150-700B Power Supply 150W 700mA - Dimmable
Please Login for Pricing
Description
Description
The HVGC-150 is a 150W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating150.5 Watt
-
Output Voltage215 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~528V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length24.5 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-150-700B for outdoor LED downlights?
Yes, if the fixture is designed for a 700mA constant current driver and the total LED forward voltage is within 21-215V. Because this model is IP67 waterproof, it is a stronger fit for exposed outdoor lighting than a water-resistant only version.
Is the HVGC-150-700B suitable for waterproof signage modules or exterior LED arrays?
It can be used with constant current signage modules or small LED arrays that require 700mA and fit within the 21-215V output range. The IP67 rating supports wet-location use when the LED load and enclosure are also rated for that environment.
Can this driver power high-output constant current LED assemblies?
Yes, it is designed for constant current LED loads up to 150.5W at 700mA. That makes it suitable for larger LED assemblies where a constant voltage supply would not be the correct match.
How do I confirm compatibility with the HVGC-150-700B?
Match the LED load to 700mA constant current and make sure the total forward voltage stays between 21V and 215V. The number of LEDs cannot be stated as a fixed count because it depends on the forward voltage of each LED in the series string.
What is the practical difference between the HVGC-150-700A, HVGC-150-700AB, HVGC-150-700B, and HVGC-150-700D?
The HVGC-150-700A, HVGC-150-700AB, and HVGC-150-700B all share 700mA output current, a 21-215V constant current range, and 150.5W power. The HVGC-150-700D is listed at 149.8W, while the B version here is the IP67 waterproof model and the A and AB versions are IP65 water-resistant in the product data provided.
Other HVGC-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HVGC-150-350B Power Supply 150W 350mA - Dimmable | 149.8W | 428V | 0.35A | IP67 | View |
| Mean Well HVGC-150-350A Power Supply 150W 350mA - Adjustable | 149.8W | 428V | 0.35A | IP65 | View |
| Mean Well HVGC-150-1050A Power Supply 150W 1050mA - Adjustable | 150.15W | 143V | 1.05A | IP65 | View |
