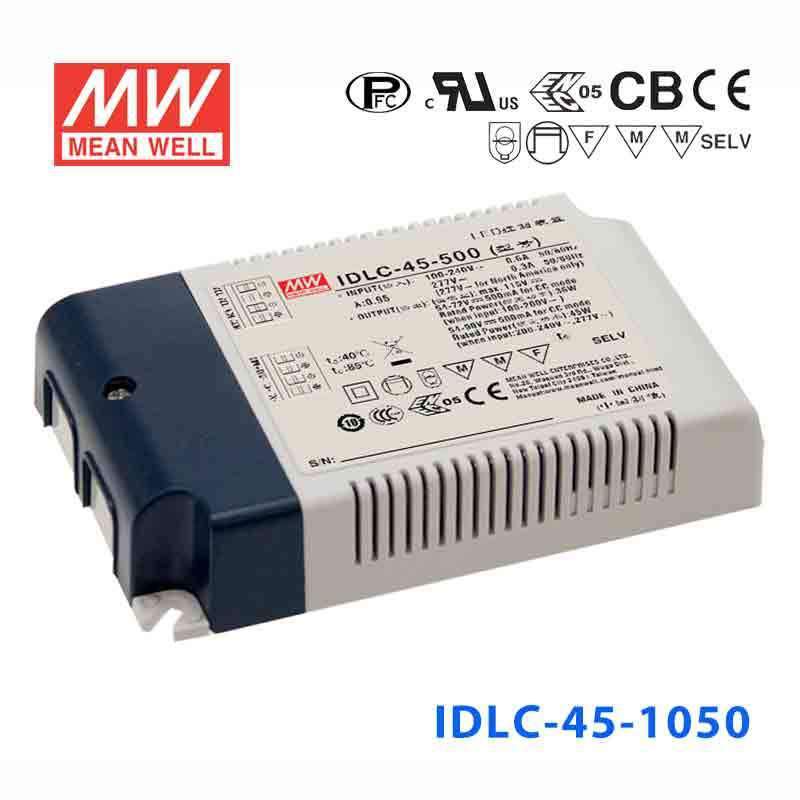

Mean Well IDLC-45-1050 Power Supply 45W 1050mA, Dimmable
Please Login for Pricing
Description
Description
Features
| Constant Current mode output |
| Flicker free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output |
| 3 years warranty |
General Specification
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature |
T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section) |
| Safety standards | UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved |
| EMC standards | Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1 |
| Dimension (LxWxH)(mm) | 120 x 75 x 25 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating45.15 Watt
-
Output Voltage43 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length12 cm
-
Width7.5 cm
-
Height2.5 cm
-
Weight0.22 kg
