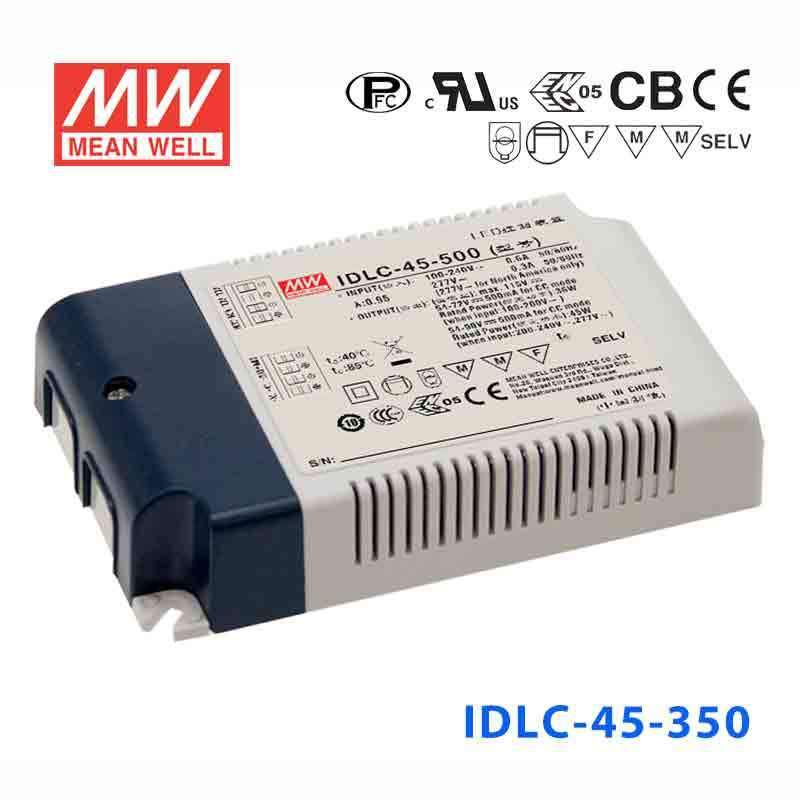

Mean Well IDLC-45-350 Power Supply 45W 350mA, Dimmable
Please Login for Pricing
Description
Description
Features
| Constant Current mode output |
| Flicker free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output |
| 3 years warranty |
General Specification
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature |
T case=-20 ~ +85°C (Please refer to OUTPUT LOAD vs TEMPERATURE section) |
| Safety standards | UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved |
| EMC standards | Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1 |
| Dimension (LxWxH)(mm) | 120 x 75 x 25 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating33.25 Watt
-
Output Voltage95 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length12 cm
-
Width7.5 cm
-
Height2.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other IDLC-45 Models
9 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well IDLC-45-700DA Power Supply 45W 700mA, DALI | 44.8W | 64V | 0.7A | — | View |
| Mean Well IDLC-45-700 Power Supply 45W 700mA, Dimmable | 44.8W | 64V | 0.7A | — | View |
| Mean Well IDLC-45-500DA Power Supply 45W 500mA, DALI | 45W | 90V | 0.5A | — | View |
| Mean Well IDLC-45-500 Power Supply 45W 500mA, Dimmable | 45W | 90V | 0.5A | — | View |
| Mean Well IDLC-45-350DA Power Supply 45W 350mA, DALI | 33.2W | 95V | 0.35A | — | View |
| Mean Well IDLC-45-1400DA Power Supply 45W 1400mA, DALI | 44.8W | 32V | 1.4A | — | View |
| Mean Well IDLC-45-1400 Power Supply 45W 1400mA, Dimmable | 44.8W | 32V | 1.4A | — | View |
| Mean Well IDLC-45-1050DA Power Supply 45W 1050mA, DALI | 45.15W | 43V | 1.05A | — | View |
| Mean Well IDLC-45-1050 Power Supply 45W 1050mA, Dimmable | 45.15W | 43V | 1.05A | — | View |
{
